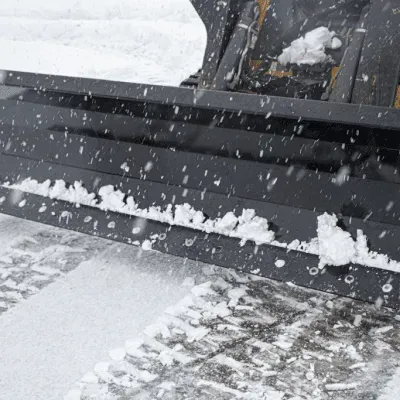

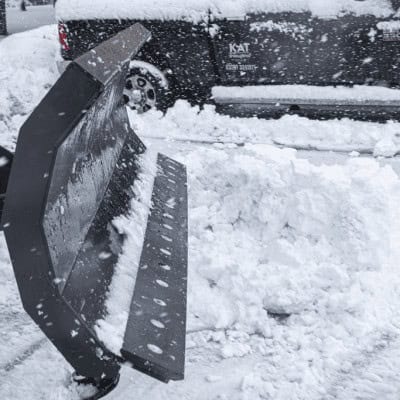

The Prime Snow Blade is built for fast, controlled snow removal with skid steers and compact track loaders. Instead of constantly lifting and dumping snow with a bucket, operators can hydraulically angle the blade up to 30 degrees left or right and keep pushing material toward the edge of the lot, lane, or driveway.

Available in 6', 7', and 8' widths, the Prime Snow Blade is a strong fit for parking lots, commercial properties, farmyards, driveways, equipment yards, and municipal cleanup. Adjustable skid shoes help the blade follow ground contours and protect the surface below the snow, while the 4-spring trip design helps protect the attachment and machine if the cutting edge catches an obstacle. A 3/4" hardened steel reversible cutting edge, greaseable pivot pin, hoses, and flat-face couplers are included.

Features

• Hydraulic Pivot: Angle the blade up to 30 degrees left or right without leaving the cab.
• 4-Spring Trip Design: Helps protect the blade and machine when the cutting edge catches an obstacle.
• Adjustable Skid Shoes: Set the cutting depth and help the blade follow uneven ground.
• Reversible Cutting Edge: 3/4" bolt-on hardened steel edge can be flipped for longer service life.
• Heavy-Duty Construction: All-steel build is made for winter snow removal work.
• Greaseable Pivot Pin: Makes routine maintenance easier during the season.
• Universal Quick Attach: Fits skid steers and compact track loaders with SSQA mounting.
• Ready to Hook Up: Hoses and flat-face couplers are included.

Angle Snow From the Cab

Hydraulically pivot the blade up to 30 degrees left or right to keep snow rolling toward the edge of the property.

Protect the Surface Below

Adjustable skid shoes help the cutting edge follow uneven ground and reduce damage to pavement, concrete, and other finished surfaces.

Built-In Trip Protection

Four trip springs allow the blade to give when it catches an obstacle, helping protect the blade and machine during snow removal.

Heavy-Duty Winter Build

All-steel construction and a 3/4" hardened reversible cutting edge make it a strong fit for repeated winter use.

• Snow removal contractors clearing commercial lots, driveways, loading areas, and private roads.
• Farmers cleaning barnyards, equipment lots, lanes, shop entrances, and feed areas.
• Property owners maintaining acreages, long driveways, parking areas, and outbuildings.
• Municipal and facility crews clearing roadsides, public lots, parks, and maintenance yards.

• Available Widths: 6', 7', 8'
• Overall Length: 36"
• Overall Height: 29"
• 6' Model Weight: 905 lbs
• 7' Model Weight: 965 lbs
• 8' Model Weight: 1,005 lbs
• Hydraulic Pivot: Up to 30 degrees left or right
• Cutting Edge: 3/4" hardened steel bolt-on reversible edge
• Trip Protection: 4-spring trippable blade

Note: Fits skid steers and compact track loaders with universal skid steer quick attach and auxiliary hydraulics. Match the blade width to machine size, traction, and the areas being cleared.

Bobcat: S510, S530, S550, S570, S590, S630, S650, S740, S76, S770, S86, T550, T590, T595, T630, T650, T66, T76, T770, T86

CAT: 226D3, 232D3, 236D3, 242D3, 246D3, 262D3, 272D3, 239D3, 249D3, 255, 259D3, 265, 275, 279D3, 289D3, 299D3

John Deere: 316GR, 318G, 320G, 324G, 325G, 330G, 331G, 332G, 333G, 317, 320, 324, 326, 328, 332, 333

Kubota: SSV65, SSV75, SVL65-2, SVL75-2, SVL75-3, SVL95-2s, SVL97-2

New Holland: L316, L318, L320, L321, L328, L334, C327, C332, C337, C345

Case: SR160B, SR175B, SV185B, SR210B, SR240B, SV280B, SV340B, TR270B, TR310B, TV370B, TV450B

Takeuchi: TL6R, TL8R2, TL8R3, TL10, TL12, TL12V2, TL12R2, TL12V3

ASV: RT-40, RT-50, RT-60, RT-65, RT-75, VT-70, RT-120, VT-100, RT-135

Gehl: R165, R190, R220, V270, V330, RT165, RT185, RT215, RT255, VT320

JCB: 215, 215T, 260, 260T, 270, 300, 3TS-8T, 3TS-8W

Manitou: 1650R, 1900R, 2200R, 2700V, 3300V, 3200VT, 4200V

Mustang: 1650R, 1900R, 2200R, 2700V, 3300V, 3200VT, 4200V

Wacker Neuson: SW17, SW20, SW21, SW24, SW28, SW32, ST31, ST35, ST40, ST45, ST50

What do the trip springs do?

The four trip springs allow the blade to move when it catches an obstacle, helping reduce stress on the attachment and machine.

Why choose a snow blade instead of a bucket?

A snow blade is better for continuously pushing and windrowing snow across driveways, lots, and lanes. A bucket is still useful when you need to lift and stack piles.

Can the cutting edge be replaced?

Yes. The 3/4" hardened steel cutting edge is bolt-on and reversible, so it can be flipped before replacement is needed.

What are the adjustable skid shoes for?

The skid shoes help set blade height and protect the surface beneath the snow, especially on uneven pavement or gravel.

Which width should I choose?

Choose a blade wide enough to cover your machine’s tracks or tires when angled. The right size also depends on machine weight, traction, property size, and typical snow conditions.

Prime Attachments products are backed by a limited manufacturer warranty covering defects in materials and workmanship for the original purchaser.



• Structural components and welds are typically covered for 2 years under normal use
• Wear items such as blades, hardware, and normal maintenance components are not covered
• Warranty applies to properly operated equipment within rated hydraulic and usage specifications

This warranty does not cover damage caused by misuse, improper installation, or normal wear and tear.

All warranty claims are handled through Echo Equipment, where you’ll work directly with our team to get issues resolved quickly without the runaround.
