Eterra Attachments | PDX-1000 Excavator Post Driver Attachment

Name: Eterra Attachments | PDX-1000 Excavator Post Driver Attachment - ECHO Eqpt
Brand: Eterra Attachments
SKU: ET-PDX
Availability: InStock

Model

Mount

Optional Additional Driver Head (One Included With Purchase)

Optional Breaker Tool

Estimate shipping to your ZIP

Estimated shipping only — your final shipping cost is confirmed at checkout.

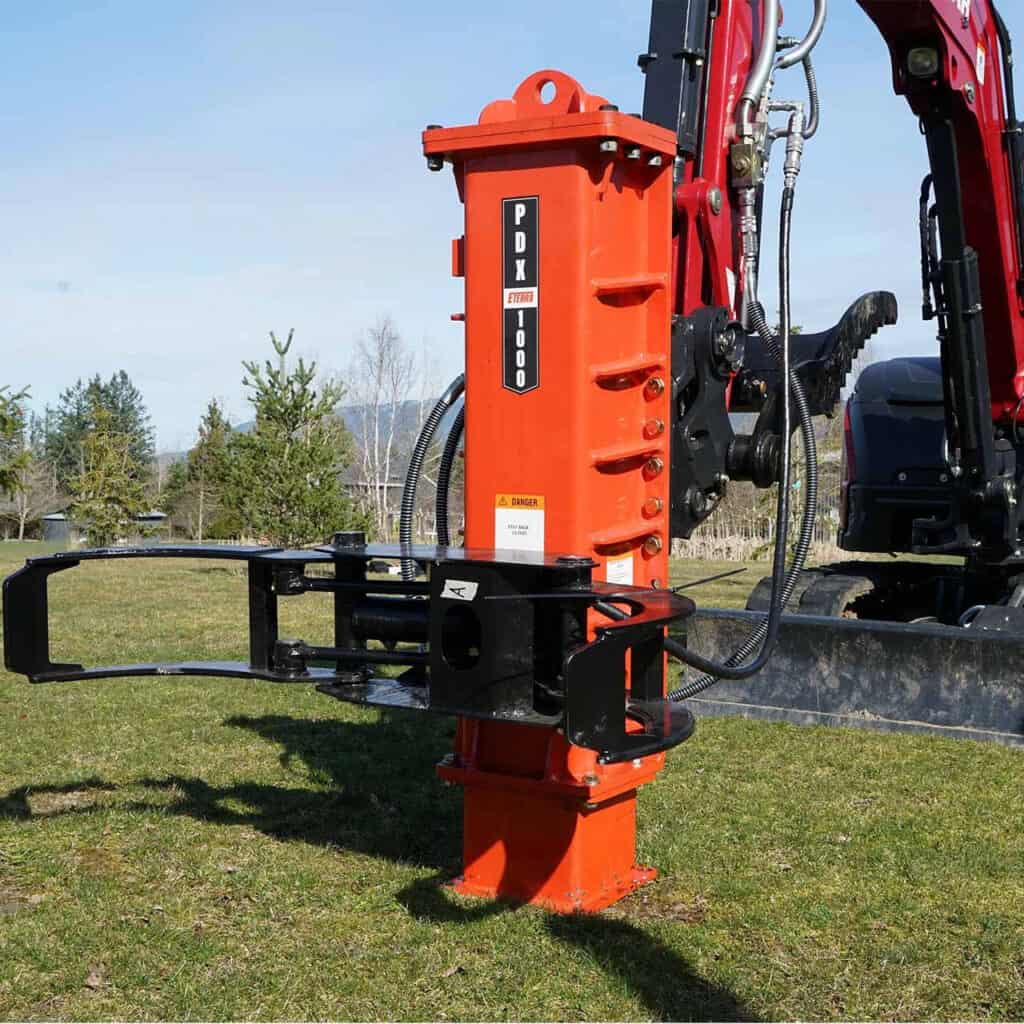

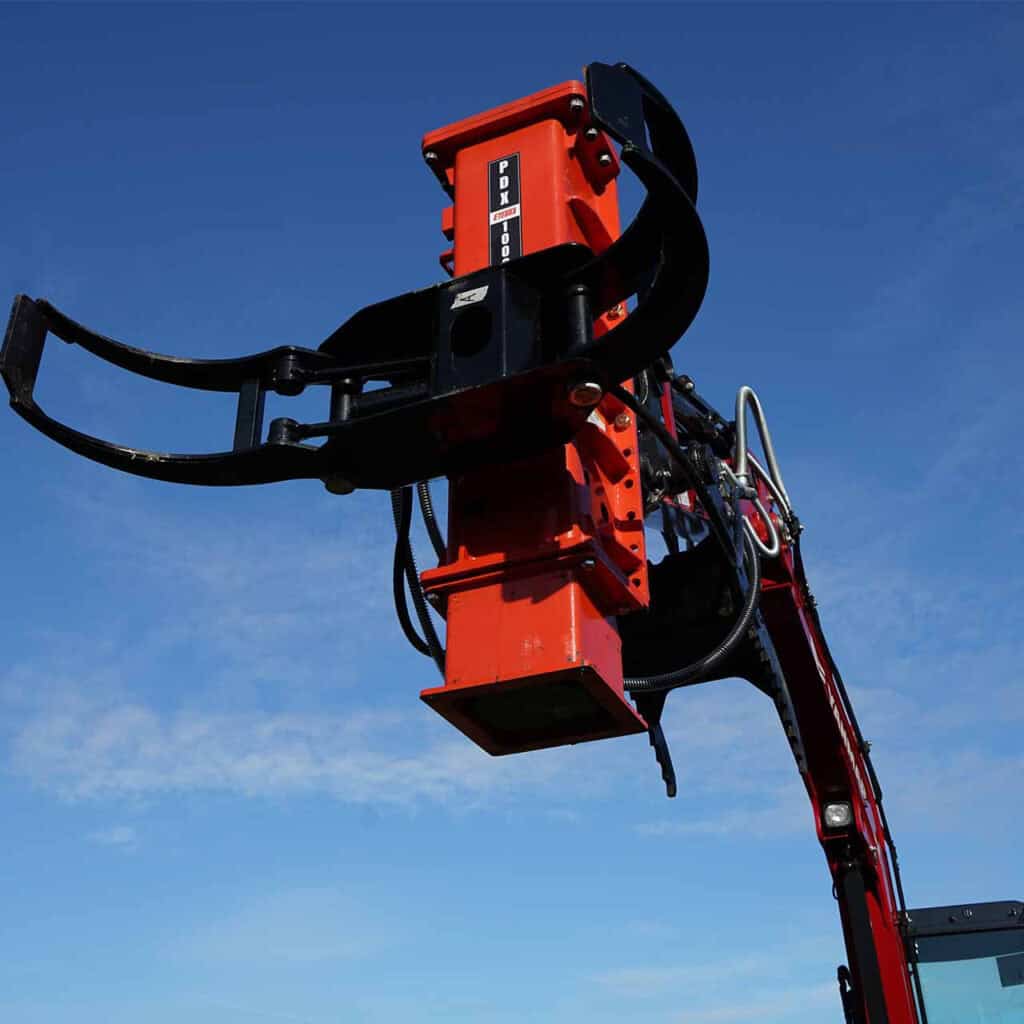

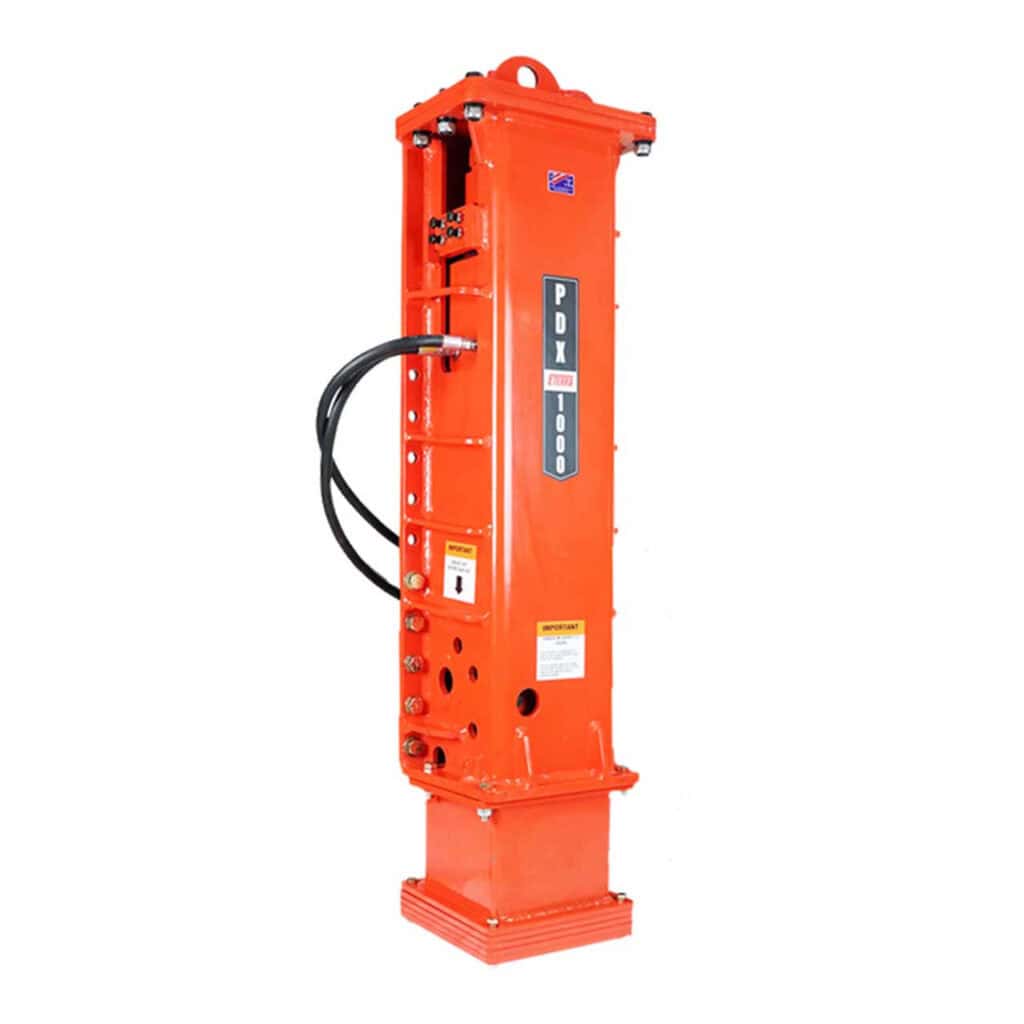

The Eterra PDX-1000 Excavator Post Driver puts 1,000 ft-lbs of breaker-style driving energy on a mini excavator for fast, controlled fence installation. Its compact mounting position and interchangeable post guides make it easy to line up and drive everything from smaller fence posts to large wood posts and railroad ties.

A nitrogen-charged power cell delivers rapid impacts while rubber isolators help keep vibration out of the carrier. For difficult ground, an optional breaker spike lets you pre-drive the hole before switching back to the post.

Features:

Breaker-Style Post Driving: Uses repeated high-energy impacts to drive posts efficiently instead of relying only on the weight and down pressure of the carrier.
Better Excavator Positioning: The driver body sits closer to the machine, improving visibility, maneuverability, and the ability to put down pressure on the post.
Handles Different Post Sizes: Interchangeable guides make the same attachment useful for a variety of wood, round, square, and other common fencing posts.
Optional Breaker Tool: Pre-drive holes in hard or rocky soil before setting the post—a major advantage when ground conditions aren’t cooperating.
Reduced Machine Vibration: Rubber-isolated mounting around the nitrogen power cell helps keep the repeated hammering from transferring directly into the excavator.
Professional Fence Installation: Designed around crews putting in a lot of fence, where faster post placement and easier positioning can make a noticeable difference over the course of the job.

Energy Class: 1,000 ft-lbs

Impact Force: 32,000 lbs-force

Hit Rate: 400–800 BPM

Hydraulic Flow: 13–21 GPM

Operating Pressure: 1,700 PSI

Minimum Operating Pressure: 1,400 PSI

Tilt: 15° left and right

Attachment Height: 60″

Attachment Width: 46″

Depth: 19″–38″, depending on configuration

Weight: 1,186–1,656 lbs, depending on configuration

Minimum Machine Lift Capacity: 1,500 lbs

Driver Head Material: 4140 steel

Standard Post Guides: 2″, 4″, 6″ and 8″

Domed Head Maximum Post Diameter: 8″

Flat Head Maximum Post Diameter: 9″

Optional Breaker Spike: 60″

What makes the PDX-1000 different from a vibratory post driver?
The PDX-1000 is a breaker-style driver. A nitrogen-charged power cell repeatedly strikes the driver head rather than using high-frequency vibration, giving it the impact needed for demanding post-driving applications.

Can it drive railroad ties?
Yes. Eterra specifically demonstrates the PDX-1000 driving a 9″ railroad tie and designed the flat driver head for posts up to 9″. Ground conditions still affect performance.

What hydraulic flow does it require?
The PDX-1000 requires 13–21 GPM with a published operating pressure of 1,700 PSI.

What post sizes can it handle?
It comes with guides for 2″, 4″, 6″, and 8″ posts. Eterra also offers domed and flat driver heads, with the flat configuration capable of handling posts up to 9″ in diameter.

What is the breaker spike for?
The optional 60″ breaker spike lets you break or pre-drive a hole in particularly hard ground before putting the post in. It’s especially useful when dealing with rock or heavily compacted soil.

Is the PDX-1000 only for large excavators?
No. Eterra designed this version around mini excavators, but the attachment itself is substantial. Eterra specifies at least 1,500 lbs of machine lift capacity, and the complete attachment can weigh from 1,186 to 1,656 lbs depending on configuration. Carrier stability and hydraulic compatibility need to be considered along with coupler fitment.

Kubota: KX040-4, KX057-5, U48-5, U55-5

Bobcat: E42, E48, E50, E55, E60

CAT: 304, 305, 305.5, 306

John Deere: 50G, 60G

Takeuchi: TB240, TB250, TB260

CASE: CX42D, CX50D, CX57C, CX60C

Yanmar: ViO50, ViO55

Kobelco: SK45SRX, SK55SRX

Wacker Neuson: ET42, EZ50, ET58, ET65

SANY: SY50U, SY60C

Eterra Attachments are backed by a limited manufacturer warranty covering defects in materials and workmanship for the original purchaser.

Structural components and hydraulic cylinders are typically covered for 1 year under normal use
Gearboxes and drive components are covered, with wear items (such as seals) considered maintenance after the initial period
Warranty applies to properly operated and maintained equipment within recommended hydraulic and usage specifications

This warranty does not cover damage caused by misuse, improper installation, normal wear and tear, or operation outside of rated capacities.

All warranty claims are handled through Echo Equipment, where you’ll work directly with our team to get issues resolved quickly without the runaround.

Put the Excavator to Work Fencing
Use the reach, visibility, and positioning of your excavator to place and drive posts without adding another dedicated machine to the job.

Drive Through Tough Ground
Breaker-style impact power makes the PDX-1000 a strong option for hard, rocky, or difficult soil where simply pushing a post isn’t enough.

Pre-Drive the Tough Ones
Add the optional breaker spike to punch through difficult ground before driving the post into place.

Professional fence contractors
Agricultural and livestock fencing
Orchards and vineyards
Ranch and farm fencing
Railroad ties and large wood posts
Rocky and hard ground conditions
Hillside and uneven-terrain fencing
Commercial and property perimeter fencing
