Prime Attachments | Skid Steer Walkthrough Pallet Forks

• Light-Duty Capacity: 4,000 lb.
• Heavy-Duty Capacity: 5,500 lb.
• Carriage Options: 4′ and 5′
• Fork Length Options: 4′, 5′, and 6′
• 4′ Carriage Width: 47.25″
• 5′ Carriage Width: 59.25″
• Carriage Height: 37″
• Top Slider Bar: 1-1/4″ × 3″ professionally milled steel
• Slider Adjustment: Notched every 4″
• Lower Rail: Reinforced 1/2″ welded T-style design
• Fork Adjustment: Manual with locking lever
• Mounting: Universal skid steer quick attach
• Auxiliary Hydraulics: Not required

What are skid steer pallet forks used for?

Pallet forks are useful for moving pallets, lumber, pipe, landscape block, building materials, equipment, and other loads that can be supported safely on a pair of forks.

What is the difference between the 4,000-lb. and 5,500-lb. pallet forks?

The 4,000-lb. option is a lighter 4′ × 4′ setup for general material handling. The 5,500-lb. version uses the heavier walk-through frame and is available with additional carriage and fork-length combinations for more demanding work.

Does a 5,500-lb. fork rating mean my skid steer can lift 5,500 lb.?

No. The fork rating is the capacity of the pallet fork assembly, not the lifting capacity of your skid steer. Your machine’s rated operating capacity, tipping load, lift height, load position, and stability determine how much you can safely handle.

What does 4′ × 5′ mean on the pallet fork options?

The first measurement is the width of the carriage, which is the upright frame the forks slide across. The second measurement is the fork length. A 4′ × 5′ setup uses a 4-foot-wide carriage with 5-foot forks.

What carriage sizes are available?

The 5,500-lb. pallet forks are available with either a 4′ or 5′ carriage.

What fork lengths are available?

Fork options include 4′, 5′, and 6′ lengths, depending on the carriage configuration you choose.

Why would I choose longer pallet forks?

Longer forks can be useful for lumber bundles, oversized pallets, pipe, and other long or deep loads. Keep in mind that moving the load farther away from the machine reduces effective lifting capacity and can affect stability.

How do the forks adjust?

The forks slide across the carriage and lock into position with manual locking levers. The milled top slider bar is notched at regular intervals to provide multiple spacing positions.

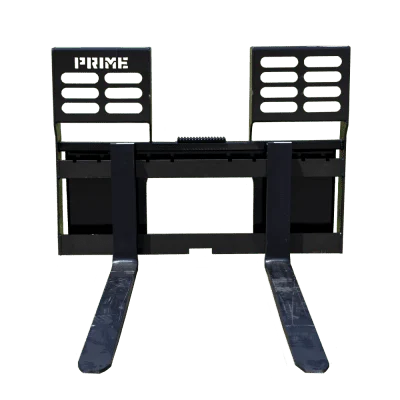

What is the advantage of the walk-through frame?

The open center gives the operator a clearer path between the attachment and the skid steer cab, which is especially useful on machines where a solid backrest can make entry and exit awkward.

Do the Pallet Forks require auxiliary hydraulics?

No. These pallet forks adjust manually and do not require auxiliary hydraulics.

Can I use these forks for logs or irregular loads?

Pallet forks can handle lumber, pipe, logs, and other long material when the load can be safely supported and balanced. If you frequently handle loose or irregular material that needs to be clamped in place, a pallet fork grapple may be the better choice.

Note: Compatibility depends on your machine’s universal quick-attach system, rated operating capacity, tipping load, machine weight, and the load you intend to carry. The pallet fork rating does not increase your skid steer’s lifting capacity. Always verify your own machine specifications before lifting heavy material.

Common Compatible Machines

Bobcat: S450, S510, S530, S550, S570, S590, S595, S62, S64, S66, S650, S740, S750, S76, S770, S86, T450, T550, T590, T595, T62, T64, T66, T650, T740, T76, T770, T86

Caterpillar: 216B, 216B3, 226B, 226B3, 226D, 232D, 232D3, 236D, 236D3, 242D, 242D3, 246D, 246D3, 262D, 262D3, 272D, 272D3, 239D, 239D3, 249D, 249D3, 259D, 259D3, 279D, 279D3, 289D, 289D3, 299D, 299D3

John Deere: 312GR, 314G, 316GR, 318G, 320G, 324G, 330G, 332G, 317G, 319E, 323E, 325G, 331G, 333G, 316 P-Tier, 318 P-Tier, 320 P-Tier, 324 P-Tier, 325 P-Tier, 330 P-Tier, 331 P-Tier, 333 P-Tier

Kubota: SSV65, SSV75, SVL65-2, SVL75, SVL75-2, SVL75-3, SVL97-2, SVL97-3

CASE: SR160, SR175, SR175B, SV185B, SR210B, SR240B, SV280B, SV340B, TR270B, TR310B, TV370B, TV450B

New Holland: L216, L218, L220, L223, L225, L228, L318, L320, L328, L334, C227, C232, C327, C330, C332, C337, C345

Takeuchi: TL6R, TL8, TL8R2, TL10, TL10V2, TL12R2, TL12V2

ASV: RT-40, RT-50, RT-60, RT-65, RT-75, VT-70, VT-75, VT-80, RS-75, VS-75, RT-135

Gehl: R150, R165, R190, R220, R260, V270, V330, RT165, RT195, RT215, RT255

Mustang / Manitou: 1500R, 1650R, 1900R, 2200R, 2600R, 2050, 2100RT, 2150RT, 2500RT, 2550RT

JCB: 155, 175, 190, 205, 225, 270, 300, 330, 190T, 205T, 225T, 260T, 300T, 325T

Volvo: MC60C, MC70C, MC95C, MCT85C, MCT110C, MCT125C

Wacker Neuson: SW16, SW17, SW20, SW21, ST31, ST45, ST50

Yanmar: TL65RS, TL75VS, TL80VS, TL100VS

Prime Attachments provides a two-year manufacturer warranty, subject to the manufacturer’s terms and exclusions.

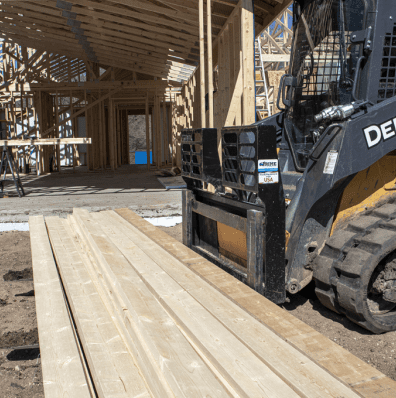

Move more than pallets.

Lumber, pipe, block, building supplies, bundled material, and equipment can all be handled with the same straightforward fork setup.

Match the forks to the job.

Multiple carriage widths and fork lengths let you choose a configuration that fits your machine and the types of loads you handle most often.

Adjust fork spacing without a fight.

The milled slider and locking lever system makes it easier to reposition the forks when pallet widths or loads change throughout the day.

Keep cab access practical.

The walk-through frame leaves the center open, making it easier to get in and out of the machine with the attachment installed.

• Palletized materials
• Lumber and building materials
• Pipe and conduit
• Landscape block
• Construction sites
• Framing crews
• Farm and acreage work
• Feed and seed pallets
• Shop and yard material handling
• Equipment and supply movement
• Landscaping materials
• General property maintenance
