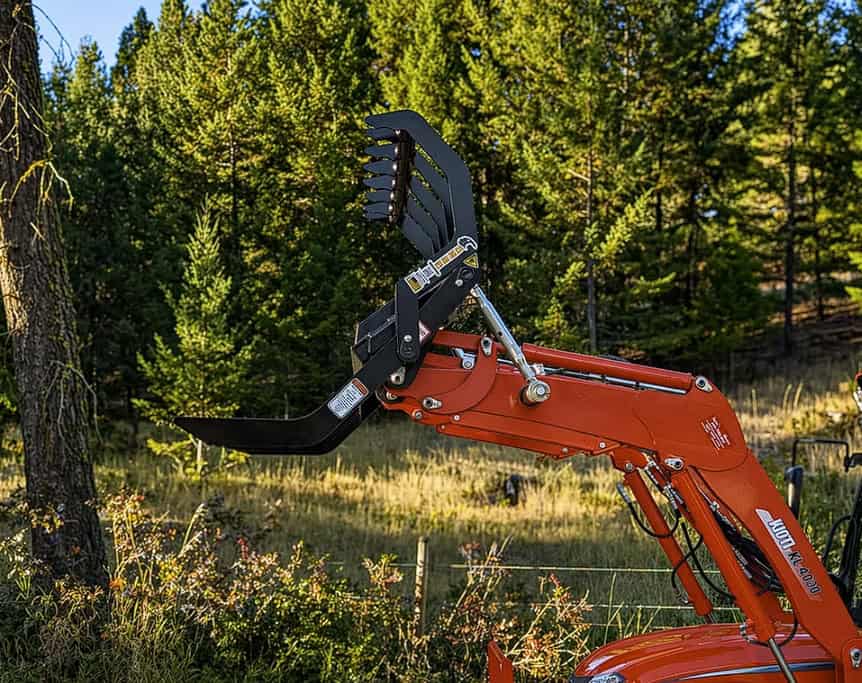

ANBO Attachments | Clasp-It Tractor Mechanical Grapple Attachment

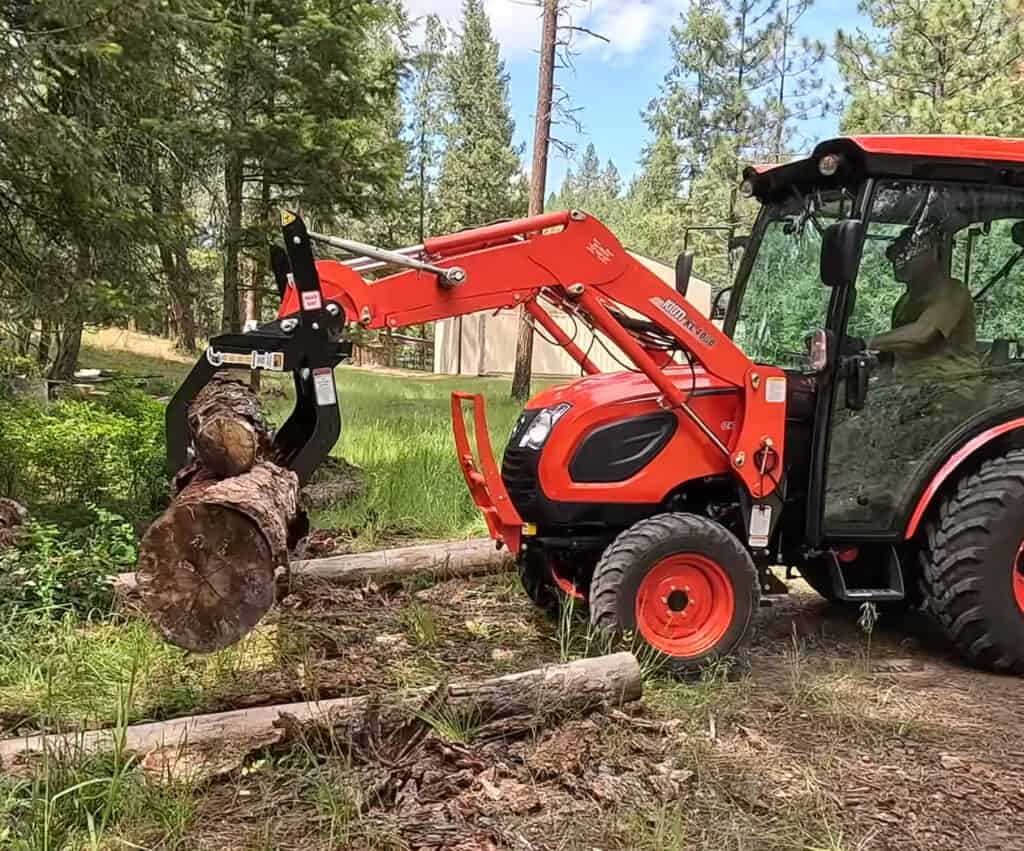

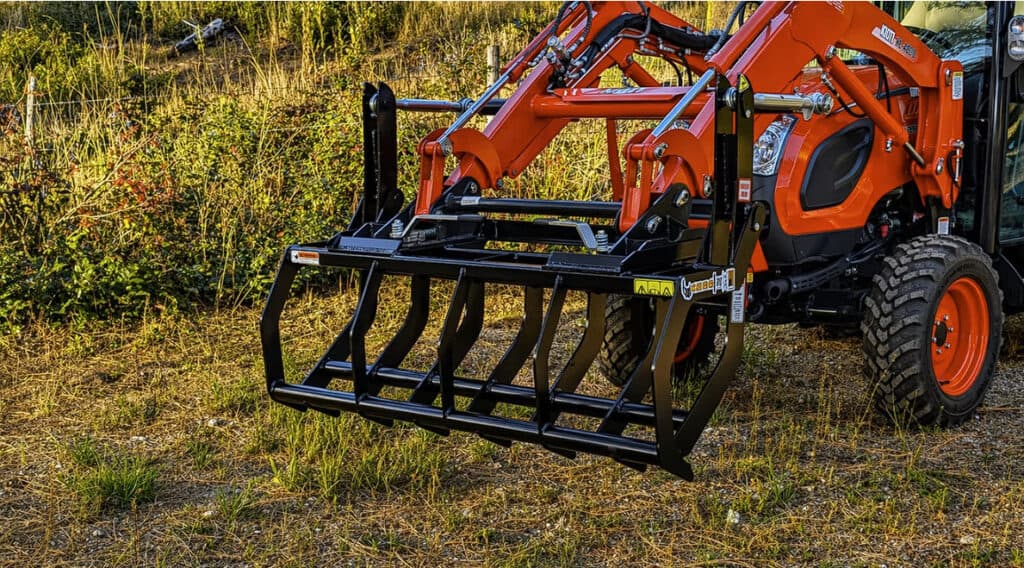

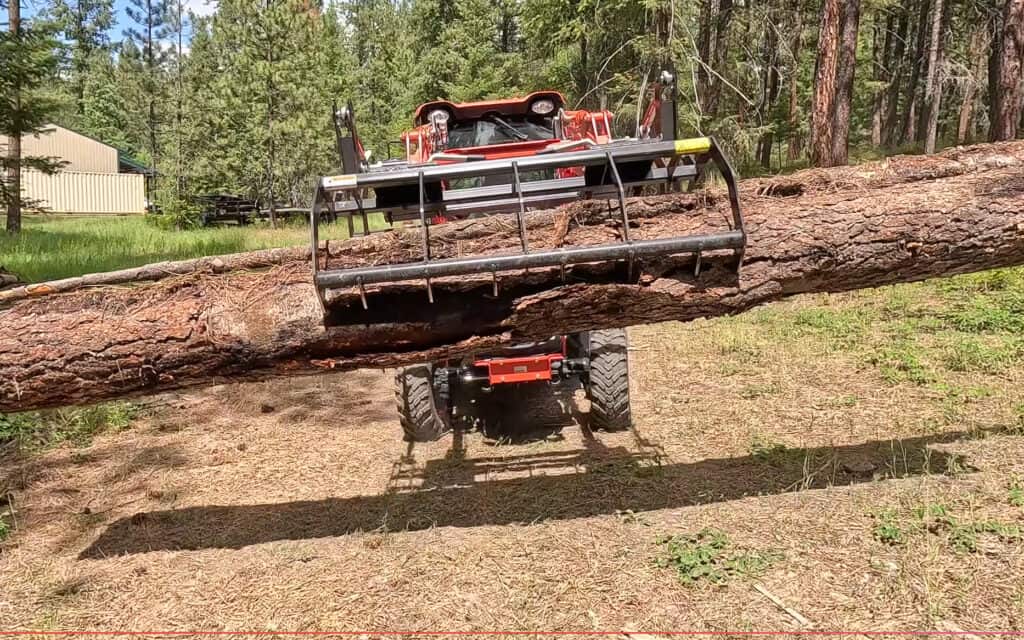

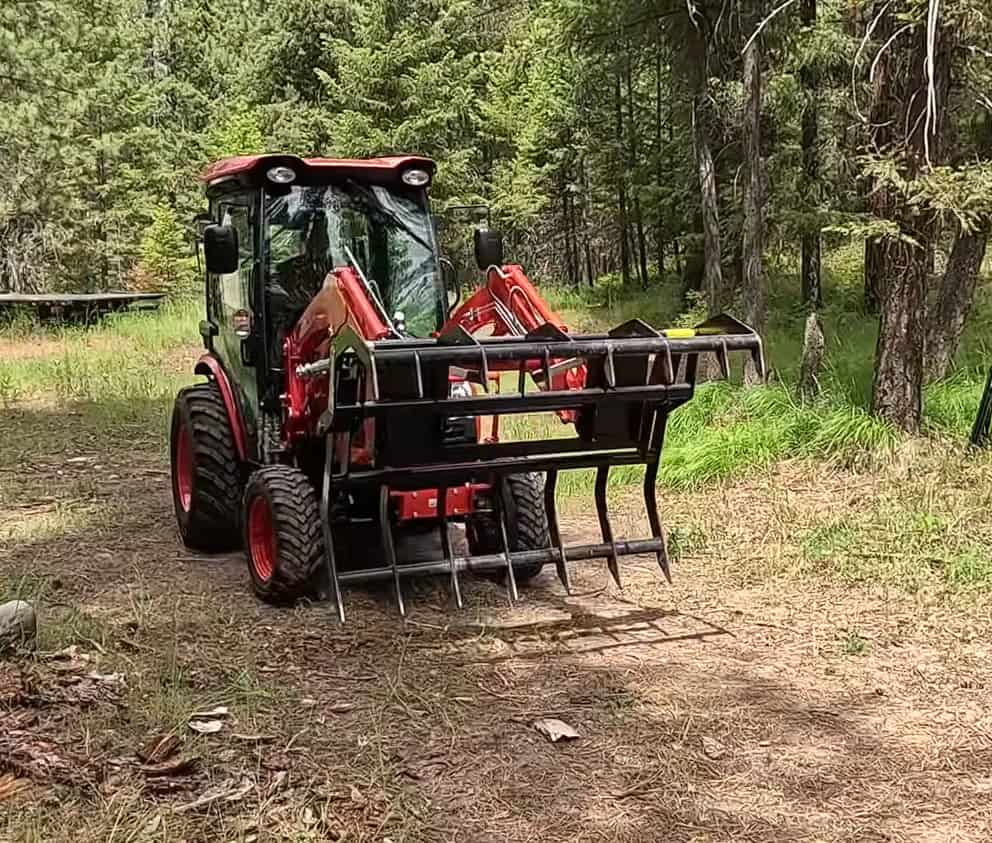

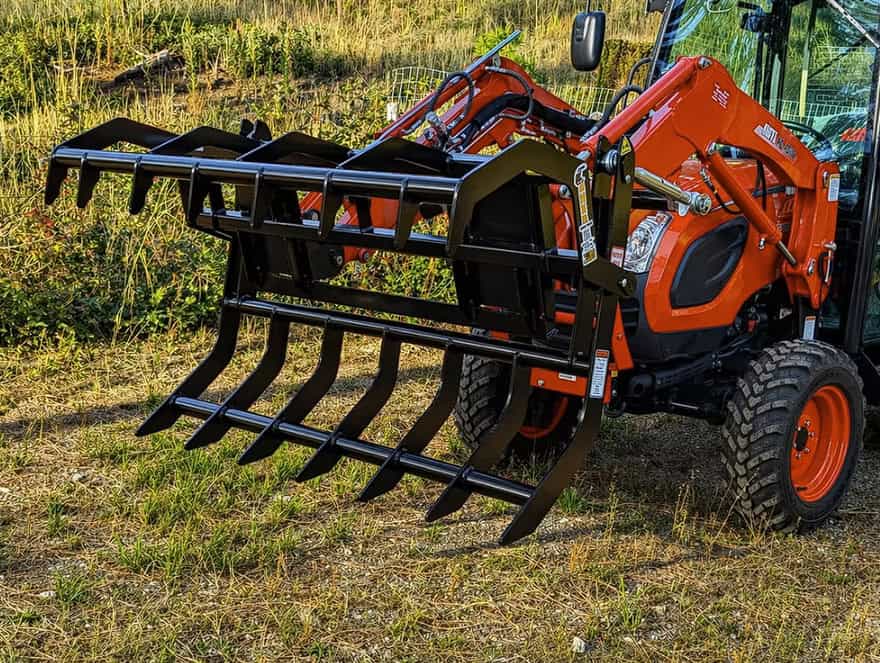

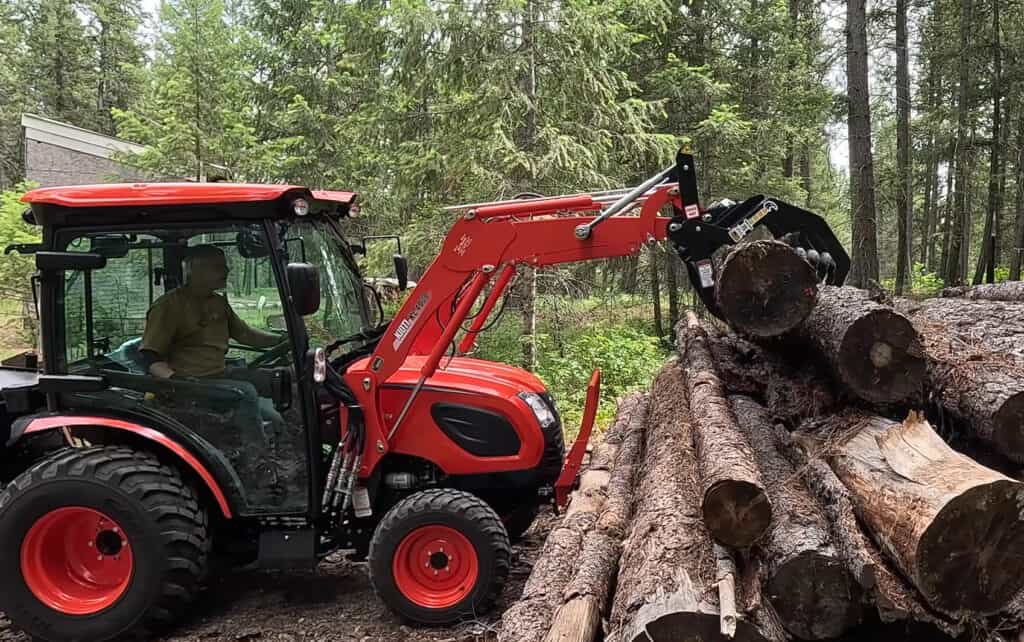

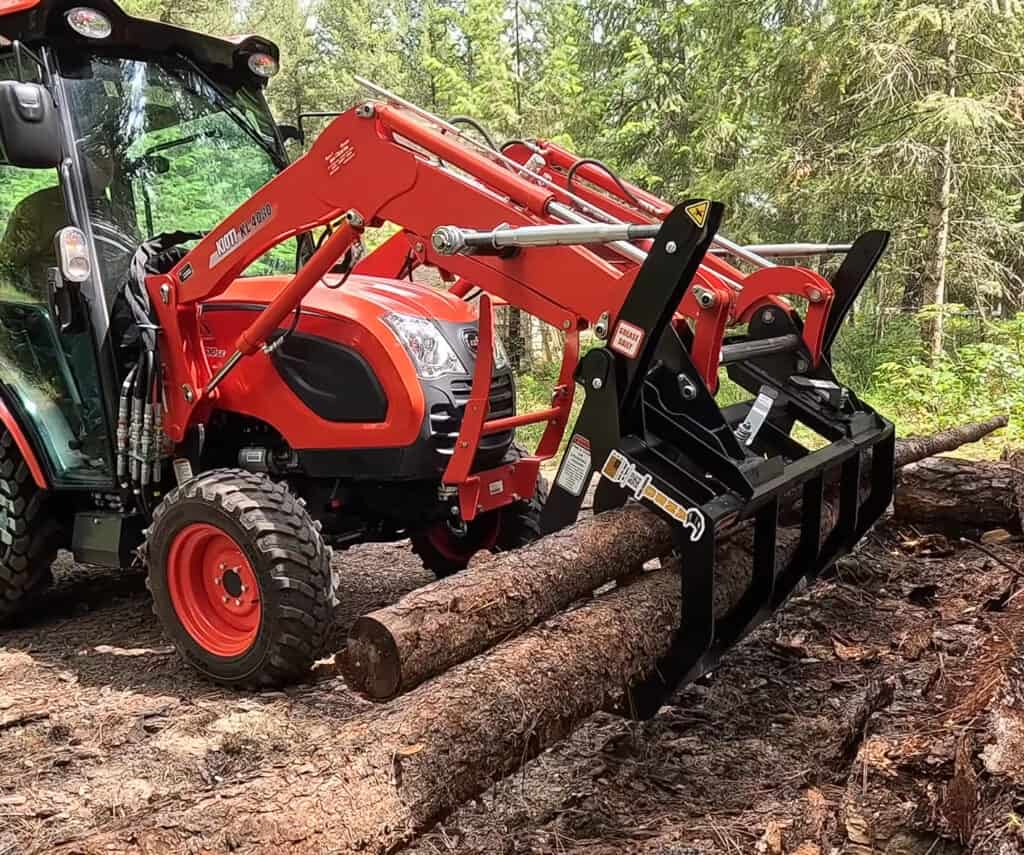

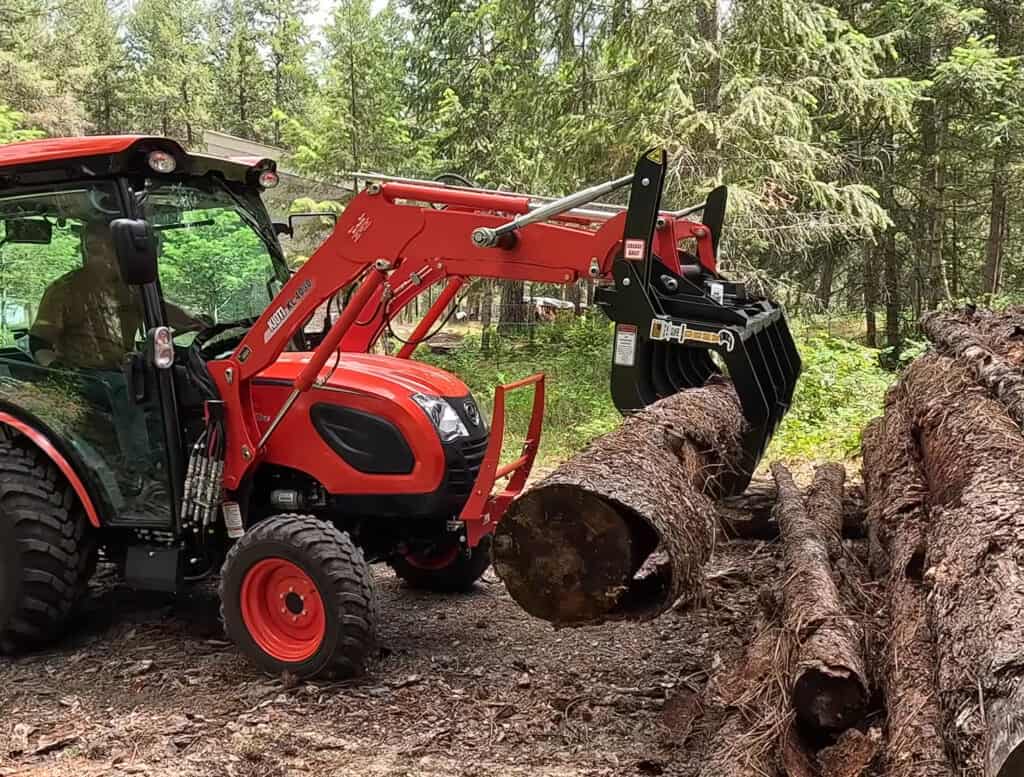

The ANBO CLASP-IT™ Mechanical Grapple gives compact tractor owners real grapple capability without adding a third-function hydraulic kit. The mechanical linkage works with the loader itself, keeping the setup simple, while still letting you grab brush, logs, limbs, debris, and other material.
Built specifically for 20 to 45 HP tractors, the CLASP-IT is 60″ wide, weighs only 322 lbs, and is built from 3/8″ USA-sourced AR400F steel. Each grapple is built to match the tractor and loader, including the mount, spacers, and linkage needed for the machine.
Features:
- Mechanical Grapple System: Operates without third-function hydraulics
- AR400F Construction: Built from 3/8″ USA-sourced abrasion-resistant steel
- Fully Welded Frame: No bolt-together main frame construction

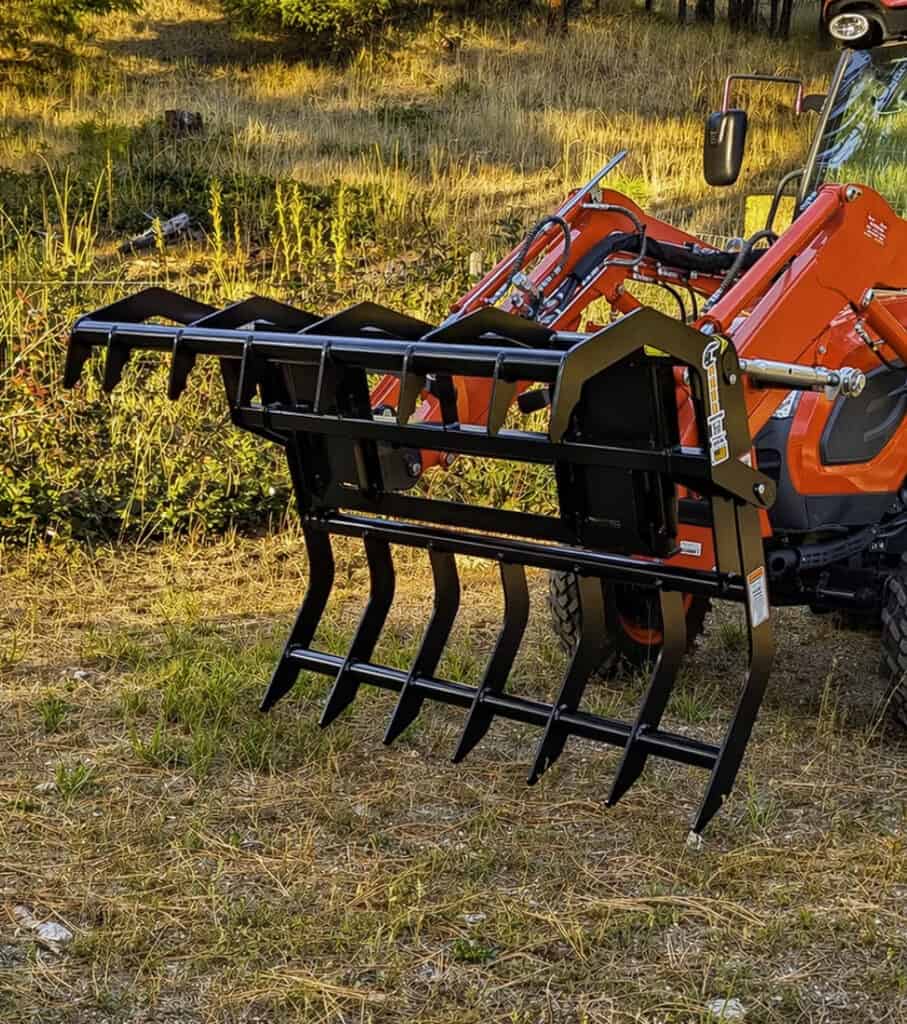

- Adjustable Rake Position: Allows the setup to be adjusted for the tractor and application
- 9″ Tine Spacing: Gives plenty of opening for dirt to fall through while holding larger material
- Greasable Pivot Points: Keeps the mechanical linkage serviceable
- Custom Fitment: Mount, spacers, and linkage are matched to the individual tractor loader
- Fully Assembled: Arrives ready to install and use
- Overall Width: 60″
- Machine Size: 20 to 45 HP tractors
- Attachment Weight: 322 lbs
- Tine Spacing: 9″
- Steel: 3/8″ USA-sourced AR400F
- Grapple Opening: Varies by loader and adjusted rake position
- Rake Position: Adjustable
- Pivot Points: Greasable
- Hydraulics Required: None
- Third Function Required: No
- Construction: Fully welded
- Mount: Custom matched to tractor and loader
- Warranty: 2 years
- Manufactured In: Colville, Washington
How does the grapple work without hydraulics?
The CLASP-IT uses a mechanical linkage matched to the tractor’s loader. This allows the grapple to open and close without a hydraulic cylinder or third-function valve.
Do I need to add a third function to my tractor?
No. Avoiding a third-function hydraulic system is one of the main reasons to choose the CLASP-IT.
What size tractor is it made for?
ANBO designed it for tractors from 20 to 45 horsepower.
Why does the low weight matter?
Compact tractors have limited loader capacity. A 322 lb grapple leaves more of that capacity available for the brush, logs, and debris you’re trying to move.
Is it a universal fit?
No. That’s important with this grapple. ANBO matches the mount, spacers, and mechanical linkage to your specific tractor and loader.
What is needed to confirm fitment?
Your loader needs an open, round cross tube, and loader measurements must be verified before the grapple is built.
Can the rake position be adjusted?
Yes. The rake position is fixed during operation but can be adjusted to change the setup for the machine and application.
Does it arrive assembled?
Yes. The CLASP-IT arrives fully assembled with the mounting and linkage setup built for the tractor.
The ANBO CLASP-IT is designed for 20 to 45 HP compact tractors, but compatibility cannot be determined by tractor make, model, or horsepower alone.

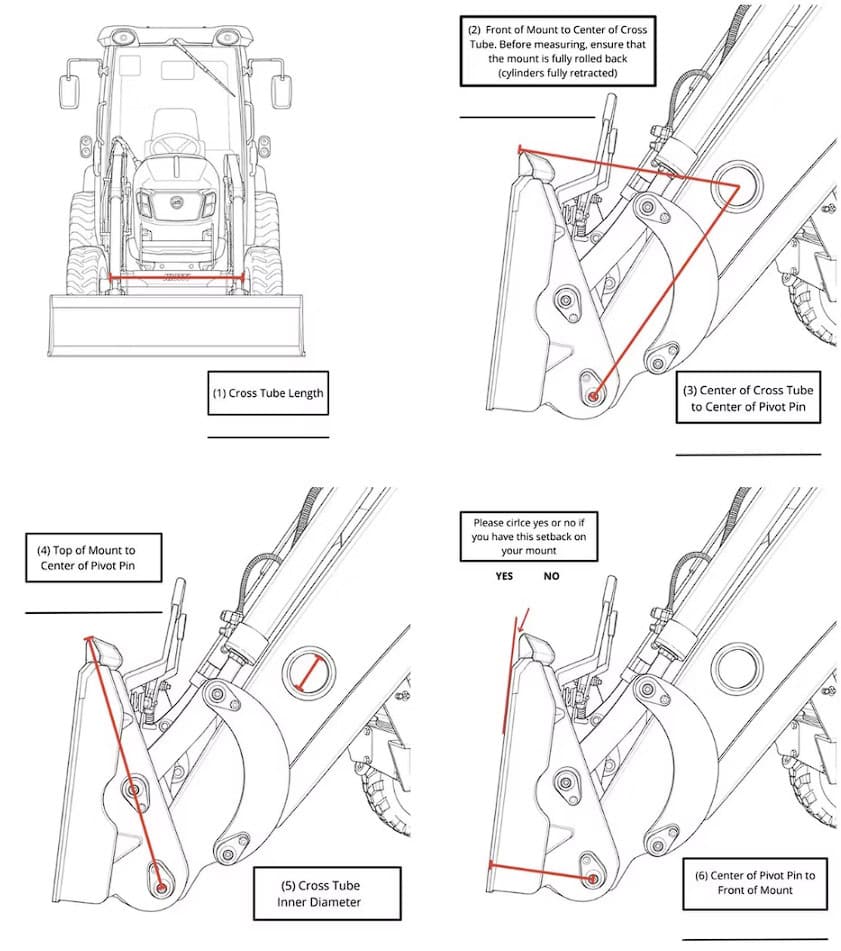

Fitment is heavily dependent on the front loader and its specific geometry. This means that final fitment is determined by the customer’s measurements. Before ordering, the customer must complete the ANBO measurement chart so the loader geometry can be reviewed, and the correct mount, spacers, and linkage can be built for the machine.
Important: A tractor or loader being within the recommended size range does not guarantee fitment. Always complete the measurement chart before ordering.
ANBO Attachments products are backed by a 2-year manufacturer warranty covering defects in materials and workmanship for the original purchaser. Twice the length of industry standard.
- Structural components and welds are covered under normal use
- Wear items such as cutting edges and skid shoes are considered maintenance
- Warranty applies to properly operated equipment within rated use
This warranty does not cover damage caused by misuse, improper operation, or normal wear and tear.
All warranty claims are handled through Echo Equipment, where you’ll work directly with our team to get issues resolved quickly without the runaround.
No Third Function Needed
Get grapple capability without the cost and hassle of adding auxiliary hydraulics to your tractor.
Keeps Weight Off the Loader
At 322 lbs, the CLASP-IT leaves more of your tractor’s lift capacity available for the material you’re actually carrying.
Simple Mechanical Design
No hydraulic cylinders, hoses, couplers, or electrical controls. Hook it up and let the mechanical linkage do the work.
- Compact tractor owners who do not have third-function hydraulics.
- Acreage owners moving brush, limbs, logs, and storm debris.
- Property owners cleaning fence lines, trails, woods, and burn piles.
- First-time tractor owners wanting more capability without modifying their hydraulic system.
- Small farms and rural properties needing a simple everyday grapple.
Why buy from ECHO Equipment
At ECHO Equipment, we actually use and support the equipment we sell. You’re not getting generic answers - you’re talking to people who understand how this equipment works in the field. That means faster answers, better recommendations, and no wasted time trying to figure things out on your own.
We’re easy to work with. If something breaks, tell us what actually happened and be honest with us (a good sense of humor doesn’t hurt either). We’re often known to help out even outside of standard warranty terms. And if it’s on us, we’ll own it and make it right. No excuses, no finger pointing - just real support when it matters.
