ANBO Attachments | GR140 Tractor and Skid Steer Grapple
The ANBO GR140 Grapple Rake is built for tractors, skid steers, and other machines up to 140 horsepower. Similar to the GR120 but built with thicker tines, the GR140 is made for operators putting larger machines into demanding land clearing, forestry, farm, demolition, and cleanup work. Its short lower tines and clamshell design make it equally useful for digging and raking as it is for grabbing logs, rocks, roots, stumps, brush, and debris.
Built in the USA from American AR400F steel, the GR140 steps up to 3/4″ tines throughout the grapple for additional strength. The High Capacity option adds longer lower tines and more carrying capacity, making it the better choice when moving large volumes of brush, slash, logs, and other bulky material is the priority.
Features:
- Clamshell Grapple Design: Rake, dig, grab, sort, and carry with the same attachment.
- 8″ Tine Spacing. 6″ available – call for price!
- Heavy GR140 Construction: Built for demanding work with larger tractors, skid steers, and compact track loaders.
- Serrated Upper Tines: Help grip and hold the load, while smooth lower tines make it easier to roll material out when you’re ready to dump.

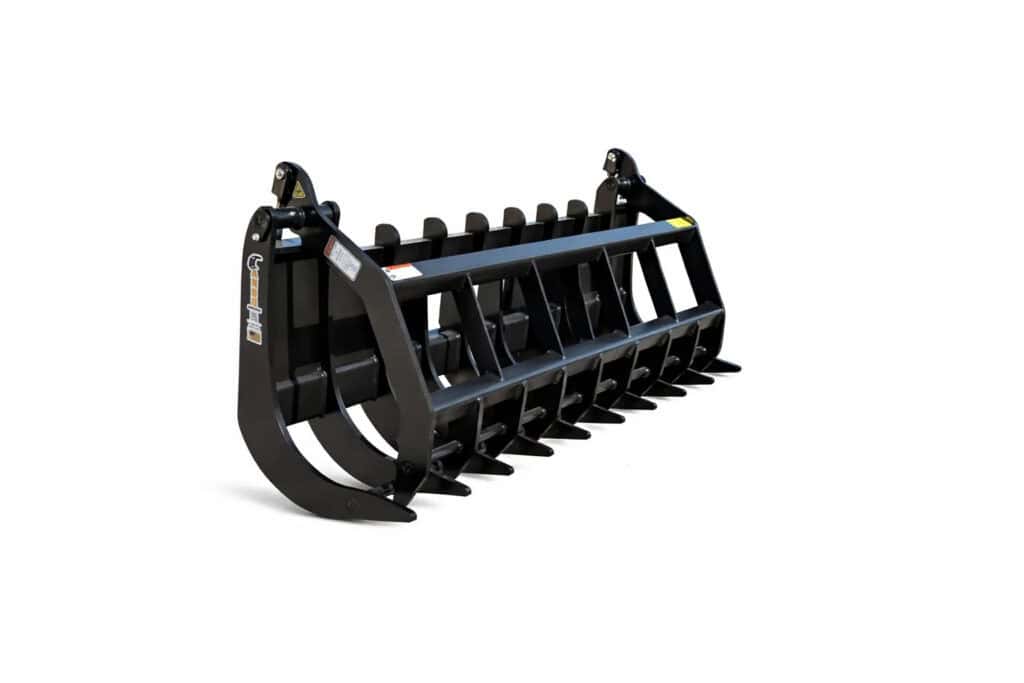

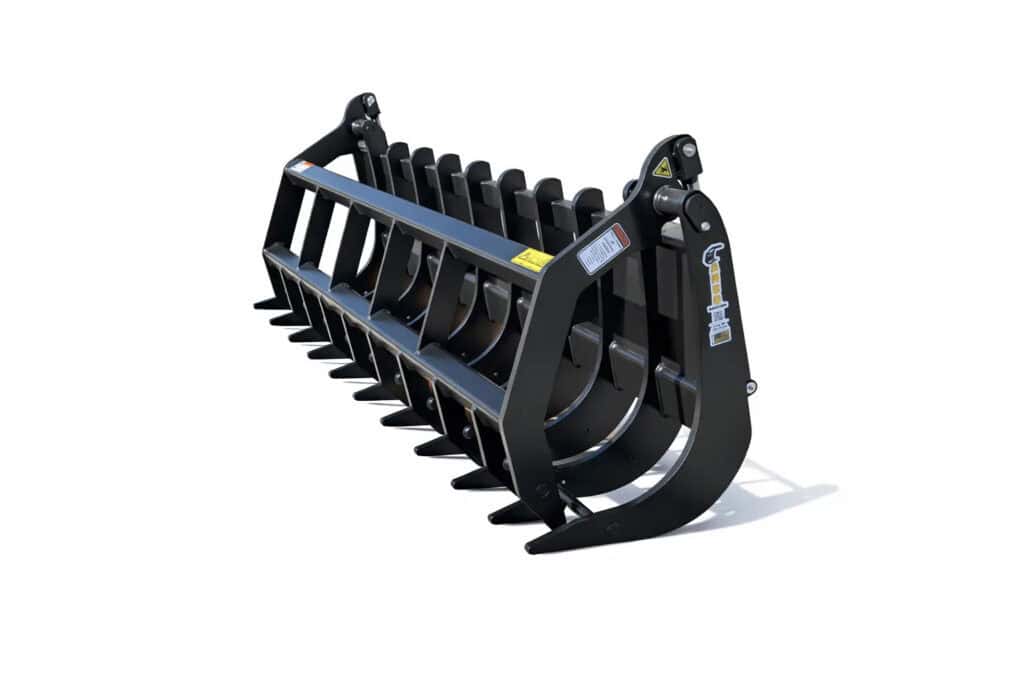

- High Capacity Option: Longer lower tines give you more room for brush, slash, logs, and other bulky loads.
- Standard or High Capacity: Choose the standard GR140 when digging and raking are a bigger part of the job, or High Capacity when carrying more per load is the priority.

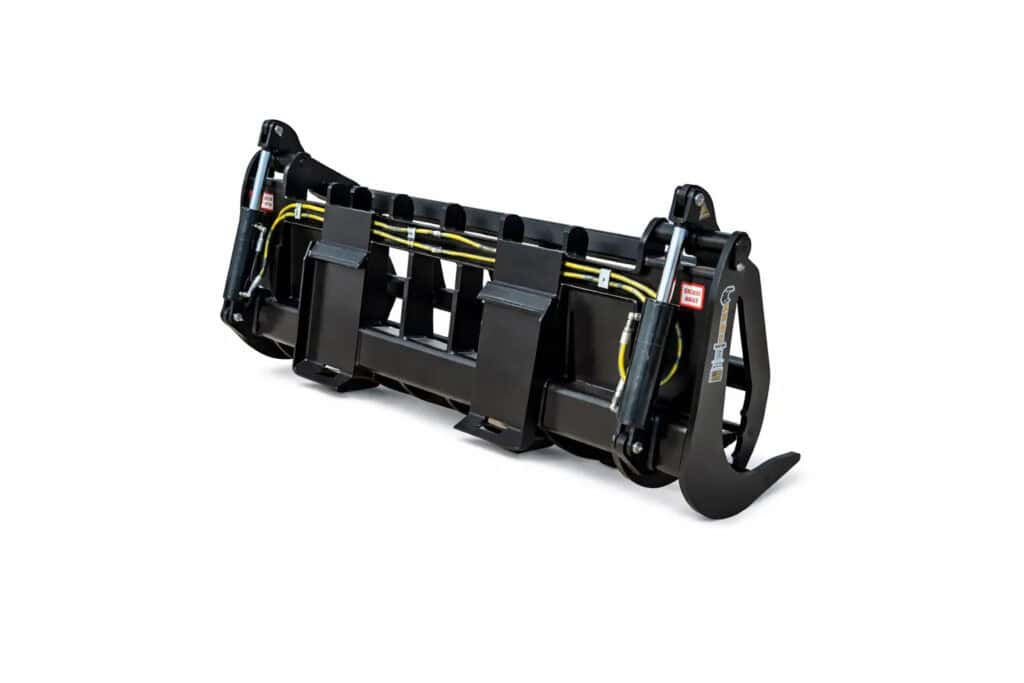

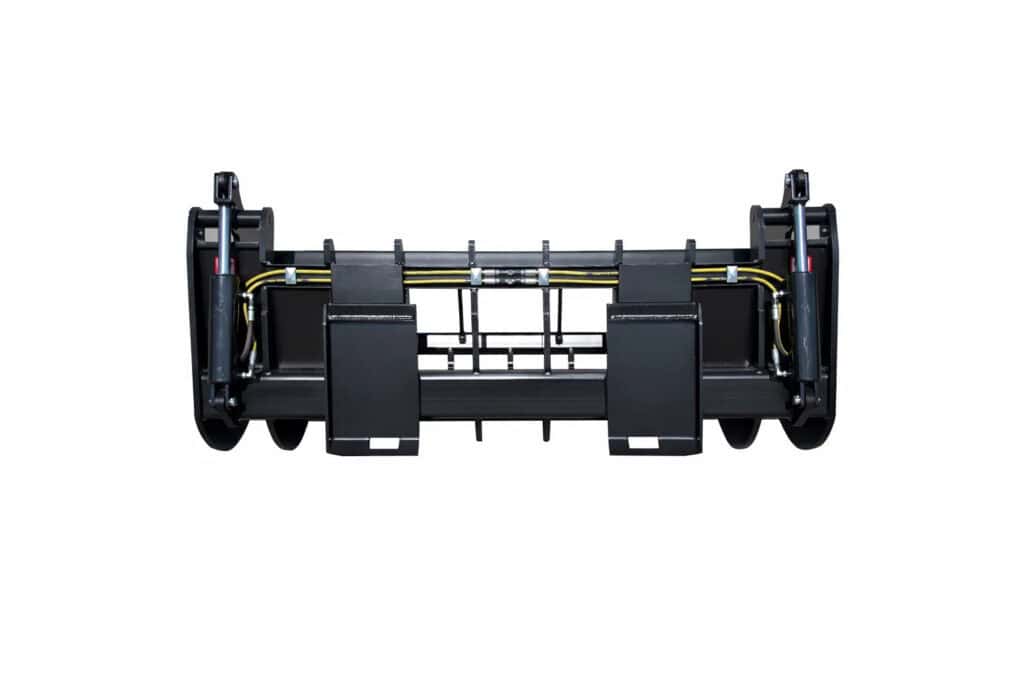

- Dual Hydraulic Cylinders: Provides strong, consistent clamping force for logs, rocks, stumps, brush, and irregular loads.

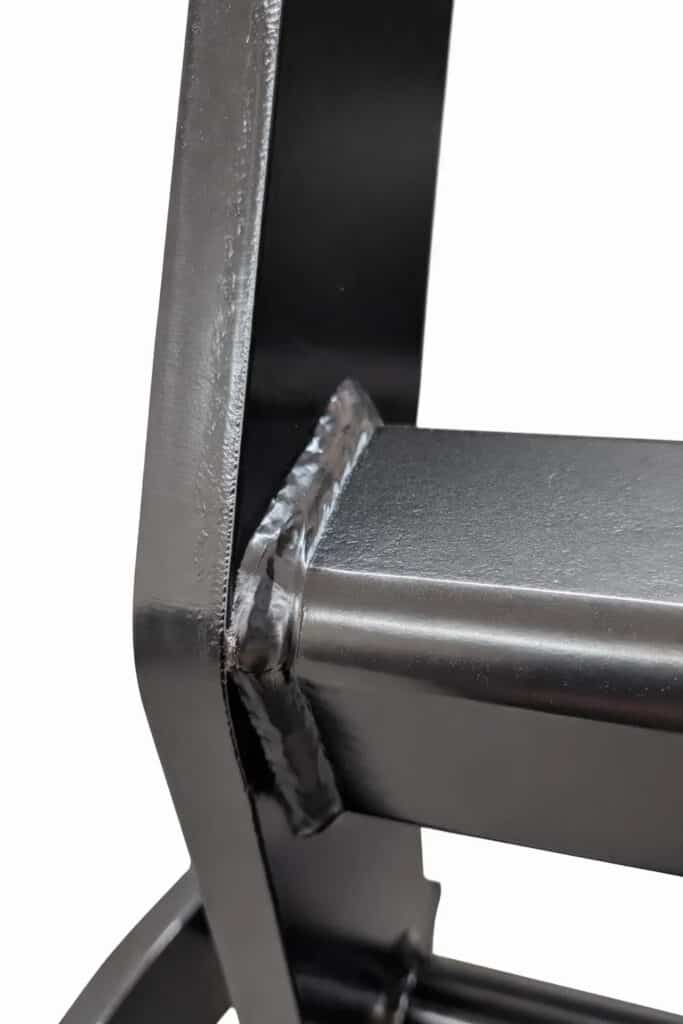

- AR400F Construction: Made from American abrasion-resistant steel for strength and durability.

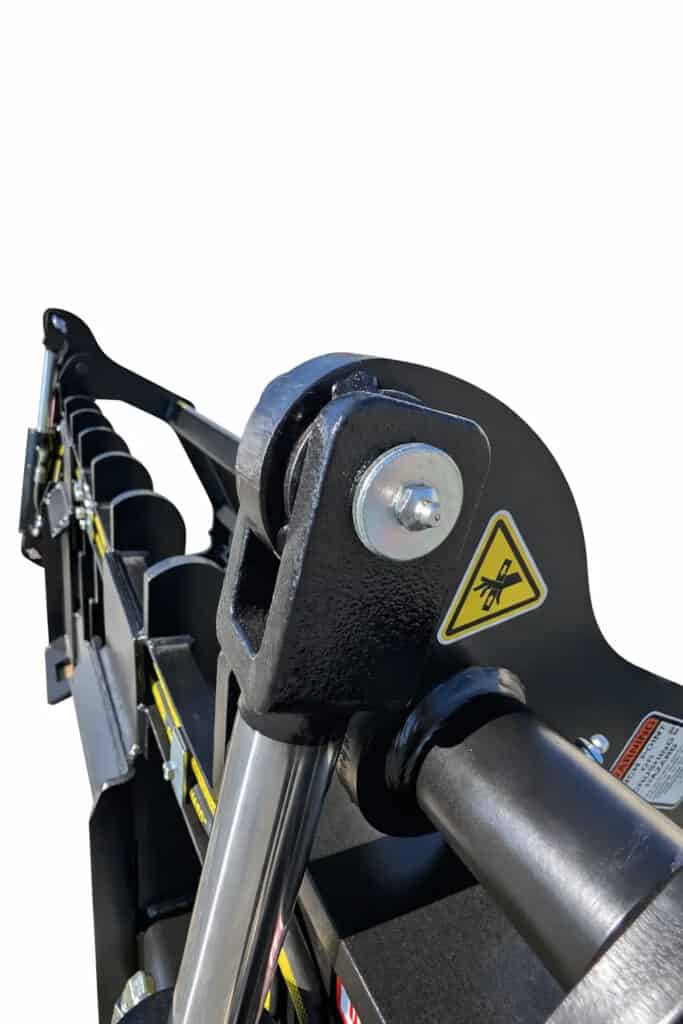

- Serviceable Design: Greaseable pivot points and protected hydraulic hose routing are built for everyday use.
- Machine Rating: Up to 140 HP
- Tine Spacing: 6″ or 8″
- Available Widths: 62″–97″, depending on tine spacing
- Outer Tines: 3/4″ AR400F
- Inner Tines: 3/4″ AR400F
- Grapple Opening: 48″
- Hydraulic Cylinders: Dual 2.5″ x 8″ or 3″ x 8″, depending on width
- Hydraulic Cylinder Rating: 4,000 PSI
- Pivot Points: Greasable
- Warranty: 2-year grapple / 3-year cylinders
GR140 High Capacity
- Machine Rating: Up to 140 HP
- Tine Spacing: 6″ or 8″
- Available Widths: 62″–97″, depending on tine spacing
- Outer Tines: 3/4″ AR400F
- Inner Tines: 3/4″ AR400F
- Bottom Tines: Longer High Capacity design
- Hydraulic Cylinders: Dual hydraulic cylinders
What size machine is the GR140 made for?
The GR140 is rated for machines up to 140 HP and is specifically positioned as the heavier step up from the GR120.
What’s the difference between the GR140 and GR140 High Capacity?
The standard GR140 uses shorter lower tines that work especially well for digging and raking. High Capacity extends the lower tines to create more carrying capacity for bulky material.
When should I choose the High Capacity option?
Choose High Capacity if you spend more time moving brush, slash, logs, forestry debris, and other high-volume material. ANBO specifically positions its High Capacity grapples for larger loads and production work.
How is the GR140 different from the GR120?
The GR140 is similar in overall design but is built with thicker tines and rated for machines up to 140 HP.
What is the advantage of 6″ tine spacing?
The tighter spacing holds smaller rocks, roots, debris, and material in the grapple instead of letting as much fall through.
Why choose 8″ tine spacing?
The wider spacing lets more loose dirt and fines fall through and reduces attachment weight while still holding larger material.
Does it require auxiliary hydraulics?
Yes. The GR140 uses dual hydraulic cylinders and requires the proper third-function or auxiliary hydraulic setup.
Common Compatible Tractors and Skids:
John Deere Tractors: 5075E, 5080E, 5090E, 5100E, 5105M, 5115M, 6120E, 6130E
Kubota Tractors: M5-091, M5-111, M6S-111, M6S-121, M6S-131
Case IH Tractors: Farmall 90A, 100A, 110A, 120A, 110C, 120C
New Holland Tractors: PowerStar 90, 100, 110, 120, T5.100, T5.110, T5.120
Massey Ferguson Tractors: 4709, 5710, 5711, 5713
Kioti Tractors: HX9010, HX1151, HX1302, HX1402
Bobcat Skid Steers: S650, S740, S76, S770, S850, S86
Bobcat Compact Track Loaders: T650, T66, T76, T770, T86
CAT Skid Steers: 242, 246, 262, 272
CAT Compact Track Loaders: 259, 265, 279, 289, 299
John Deere Skid Steers: 324G, 325G, 330G, 332G
John Deere Compact Track Loaders: 325G, 331G, 333G, 335
Kubota Skid Steers: SSV65, SSV75
Kubota Compact Track Loaders: SVL75, SVL97
Case Skid Steers: SR240B, SV280B, SV340B
Case Compact Track Loaders: TR310B, TV370B, TV450B
New Holland Skid Steers: L223, L225, L228, L234
New Holland Compact Track Loaders: C332, C337, C345
Takeuchi Compact Track Loaders: TL8, TL10, TL12
ASV Compact Track Loaders: RT-75, VT-80, VT-100, RT-120
ANBO Attachments products are backed by a 2-year manufacturer warranty covering defects in materials and workmanship for the original purchaser. Twice the length of industry standard.
- Structural components and welds are covered under normal use
- Wear items such as cutting edges and skid shoes are considered maintenance
- Warranty applies to properly operated equipment within rated use
This warranty does not cover damage caused by misuse, improper operation, or normal wear and tear.
All warranty claims are handled through Echo Equipment, where you’ll work directly with our team to get issues resolved quickly without the runaround.
Heavy-Duty All-Around Grapple
Built for larger machines doing serious land clearing, forestry work, demolition cleanup, farm work, and material handling.
Dig and Rake With It
The standard GR140’s short lower tines let you work through soil, roots, rocks, and debris before clamping down and carrying the material away.
Carry More With High Capacity
Choose the High Capacity option when large brush piles, slash, logs, and bulky debris make up more of your work and carrying more each trip matters.
Made for Demanding Work
Heavy AR400F construction gives the GR140 the strength and durability for serious land clearing, forestry, rock, root, and stump work.
- Land clearing contractors handling stumps, roots, rocks, logs, and heavy debris.
- Tree services moving logs, brush, slash, stumps, and cleanup material.
- Forestry crews clearing and moving large volumes of woody debris.
- Farmers and ranchers maintaining timber, fence lines, pastures, and storm-damaged areas.
- Operators with larger skid steers and CTLs needing a grapple for demanding everyday work.
