ANBO Attachments | GR45 Tractor and Skid Steer Grapple

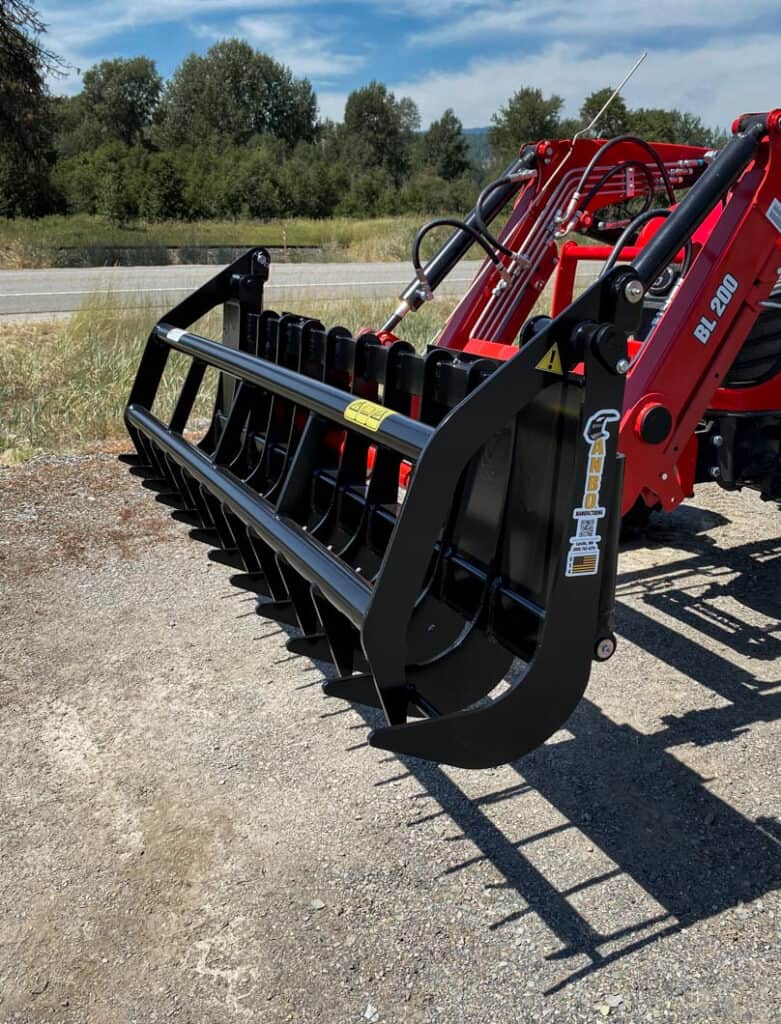

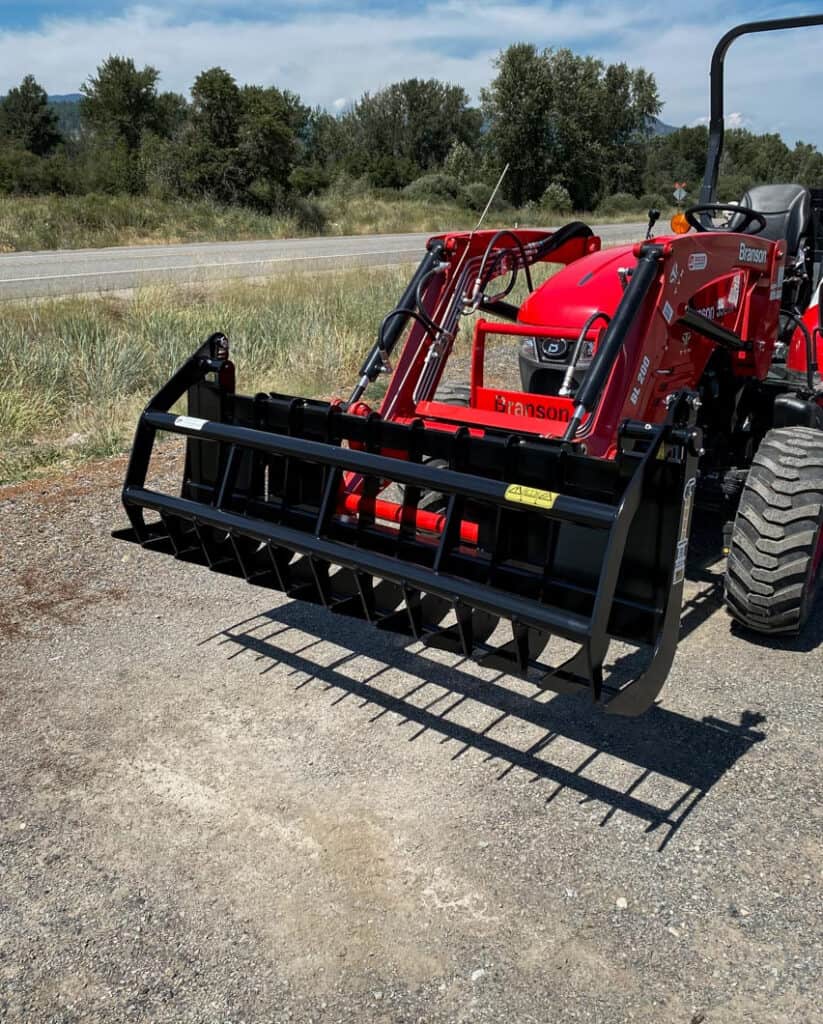

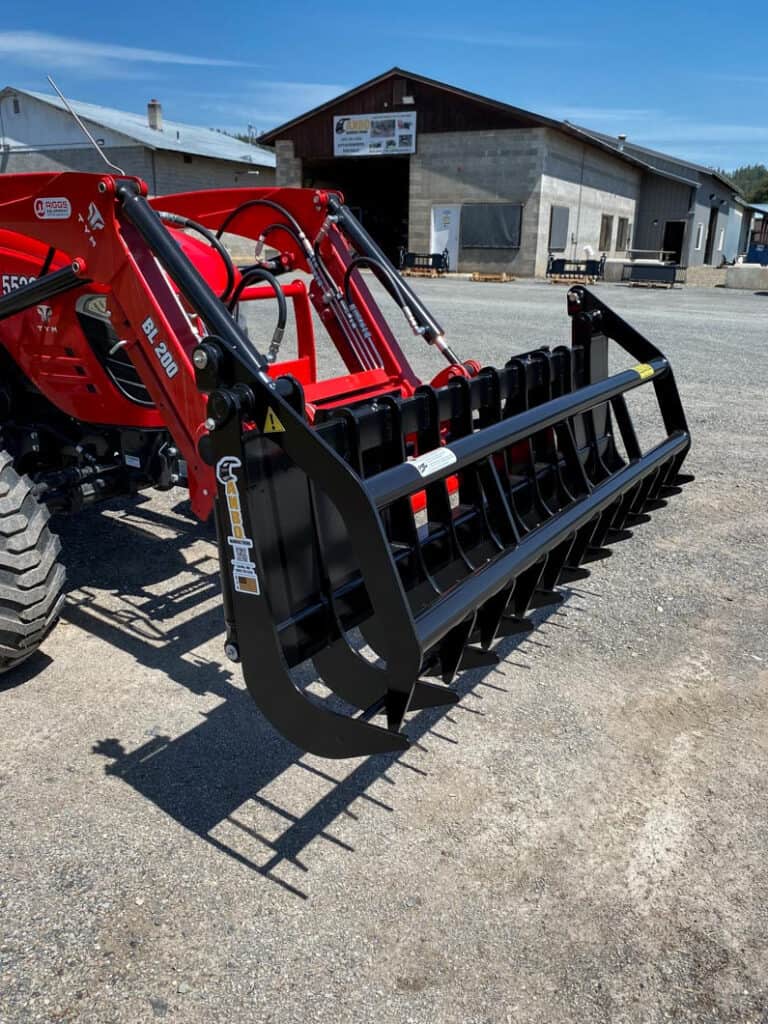

The ANBO GR45 Grapple Rake is built for tractors and machines up to 45 horsepower, giving compact equipment a strong, lightweight grapple for everyday property work. Its clamshell design and rounded lower tines let you rake through material, pull roots and rocks from the ground, grab brush and logs, and carry debris without constantly switching attachments.
The GR45 is built in the USA from 3/8″ American AR400F steel and starts at just 348 lbs. With five available widths from 58″ to 83″, it can be sized to the machine while keeping attachment weight down and preserving more of the loader’s available lifting capacity.
Features:

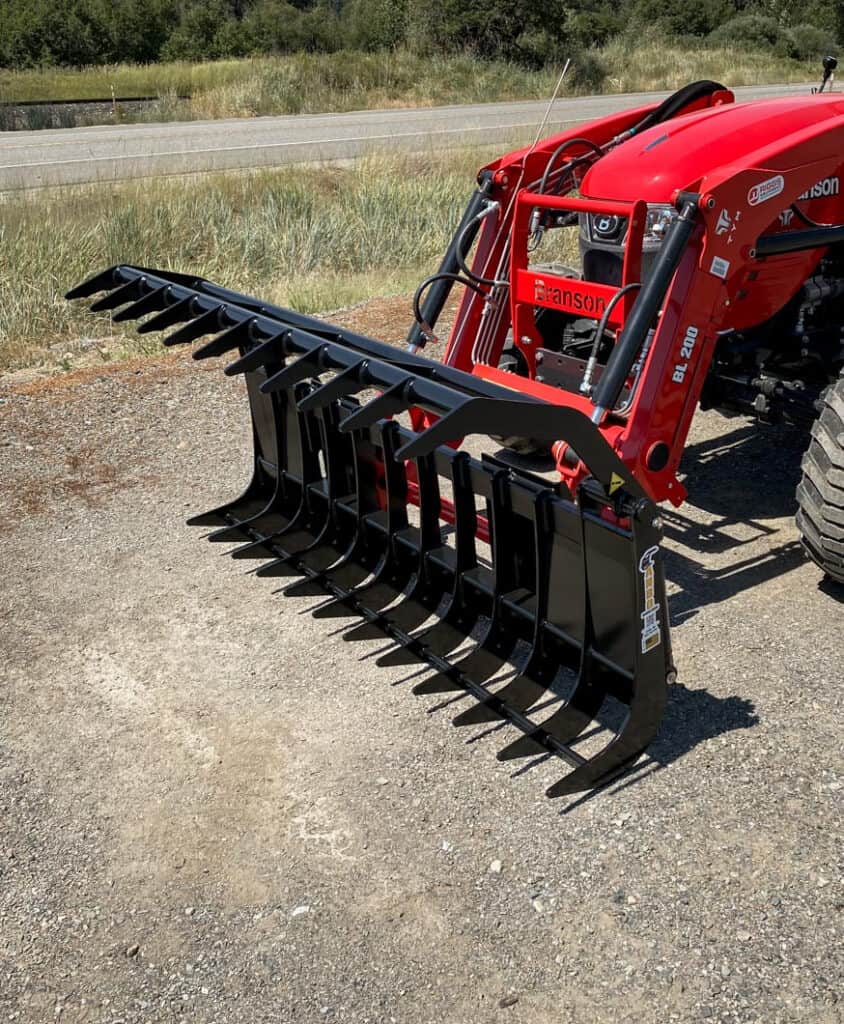

- Clamshell Design: Opens wide for grabbing while still allowing the lower tines to be used for raking and digging.
- Serrated Upper Tines: Serrated upper tines help grip and hold the load securely, while smooth lower tines make it easier to roll logs, brush, rocks, and debris out of the grapple when you’re ready to dump.
- Rounded Lower Tines: Work through soil to help uncover rocks, roots, and buried debris.
- Rake Bar: Adds support across the lower tine section during raking and cleanup work.
- 3/8″ AR400F Tines: American abrasion-resistant steel provides strength without unnecessary attachment weight.

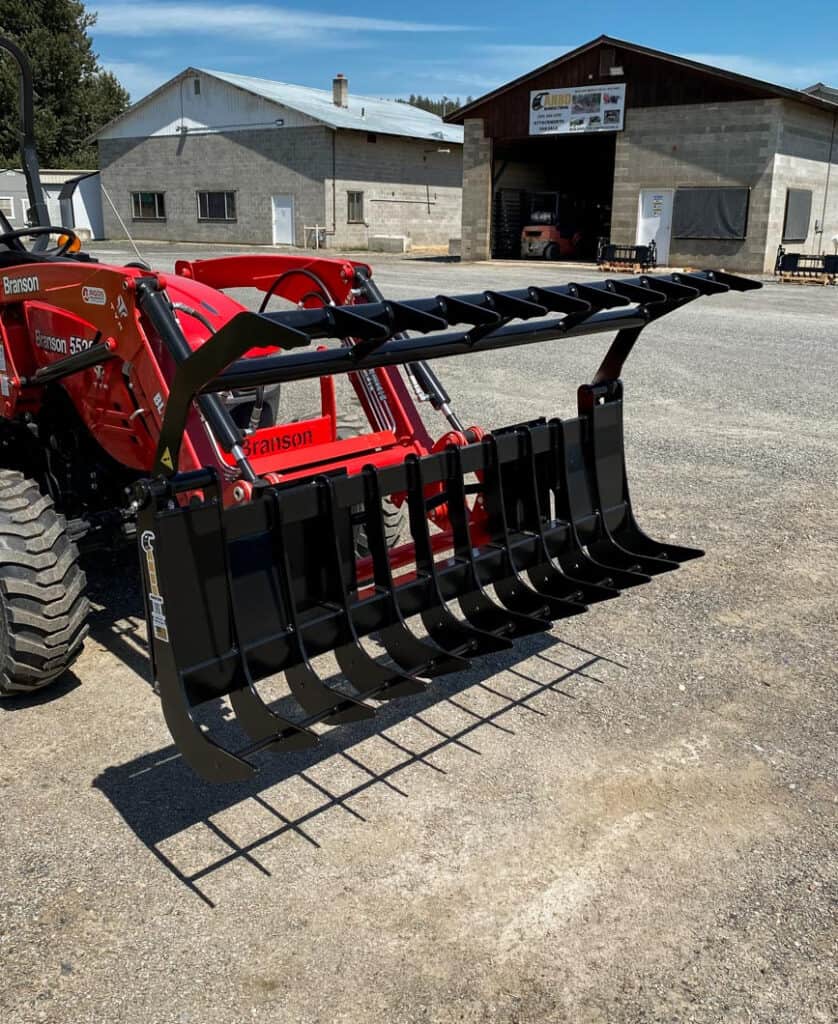

- 36″ Opening: Gives the grapple room to grab logs, brush, firewood, rocks, and bulky debris.
- 6″ Tine Spacing: Allows loose dirt to fall through while retaining larger material.
- Greasable Pivot Points: Keeps important grapple pivots serviceable.
- Protected Hose Routing: Hydraulic hoses are routed securely through the attachment.
- Machine Rating: Up to 45 HP
- Available Widths: 58″, 64″, 71″, 77″, 83″
- Weight Range: 348-438 lbs
- Tine Spacing: 6″
- Outer Tines: 3/8″ AR400F
- Inner Tines: 3/8″ AR400F
- Grapple Opening: 36″

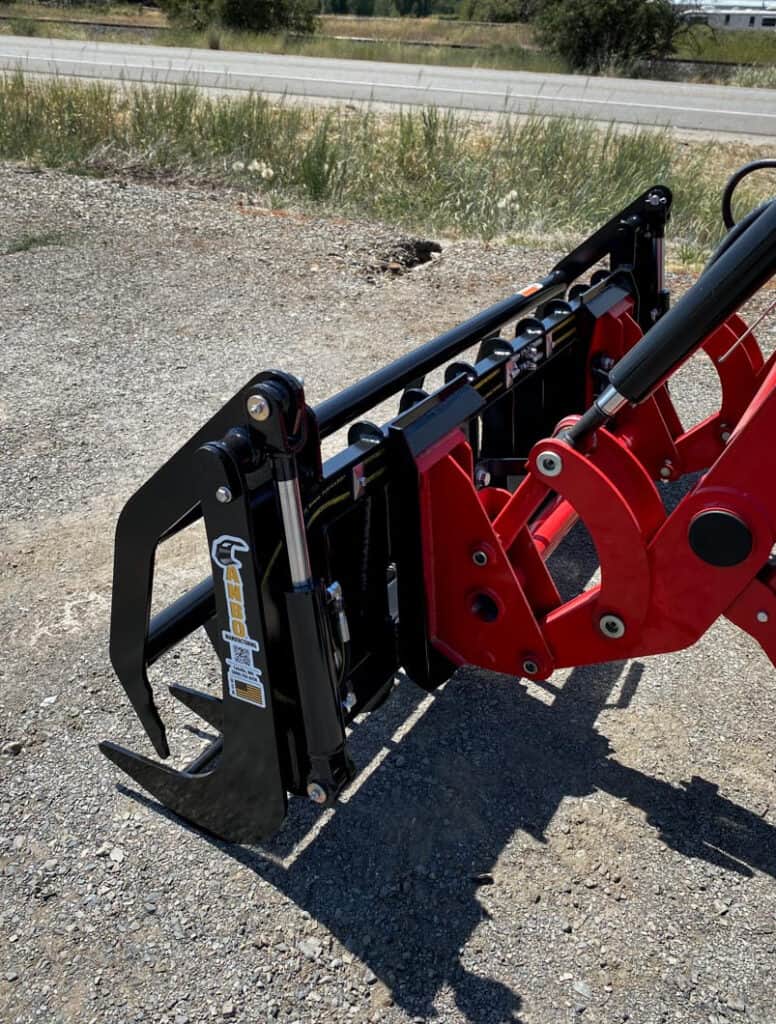

- Hydraulic Cylinders: 2″ x 6″
- Pivot Points: Greasable
- Construction: American AR400F steel
- Grapple Warranty: 2 years
- Cylinder Warranty: 3 years
- Manufactured in: Colville, WA, USA
What size machine is the GR45 made for?
The GR45 is designed for tractors and other machines rated up to 45 horsepower. ANBO uses horsepower as the primary starting point for matching its grapple series to the machine.
What can I use the GR45 for?
It works well for brush, logs, firewood, rocks, roots, storm debris, and general property cleanup. The lower tines can also be used to rake and dig material loose before grabbing it.
Does it require hydraulics?
Yes. The GR45 uses hydraulic grapple cylinders, so your tractor or loader needs the proper third-function or auxiliary hydraulic setup.
Which width should I choose?
Match the width to your machine size, loader capacity, tire width, and application. Going wider gives you more coverage, while a narrower grapple keeps attachment weight down and is easier to maneuver.
How much does the GR45 weigh?
Weight depends on width. The 58″ model weighs 348 lbs, while the largest 83″ model weighs 438 lbs.
Common Compatible Tractors and Skids:
John Deere Tractors: 1025R, 2025R, 2032R, 2038R, 3025D, 3035D, 3043D, 3025E, 3032E, 3038E, 3033R, 3039R, 4044M
Kubota Tractors: BX23S, B2301, B2401, B2601, B01 Series, LX Series, L2501, L2502, L3301, L3302, L3901, L3902, L4060
Kioti Tractors: CS2210, CS2220, CS2510, CX2510, CK2610, CK2620, CK3510, CK3520, CK4010, CK4020
Mahindra Tractors: 1626, 1635, 1640, 2126, 2638, 2645
New Holland Tractors: WORKMASTER 25S, Boomer 24, Boomer 25, Boomer 35, Boomer 40, Boomer 45
Case IH Tractors: Farmall 25SC, Farmall 25A, Farmall 35A, Farmall 40A, Farmall 45A
Massey Ferguson Tractors: GC1723E, GC1725M, 1825E, 1835E, 1840E, 1835M, 1840M
TYM Tractors: T224, T25, T264, T394, T474
LS Tractor: MT122, MT125, MT225S, MT225E, MT226E, MT235E, MT240E, MT235HE, MT240HE
Yanmar Tractors: SA221, SA223, SA325, SA425, YT235
Bobcat Skid Steers: S70, S100, S450
Bobcat Compact Track Loaders: T450
CAT Skid Steers: 216, 216B, 216B2, 216B3
New Holland Skid Steers: L213, L215
Case Skid Steers: SR130, SR150
Gehl Skid Steers: R105, R135
Mustang Skid Steers: 1050RT, 1350RT
ANBO Attachments products are backed by a 2-year manufacturer warranty covering defects in materials and workmanship for the original purchaser. Twice the length of industry standard.
- Structural components and welds are covered under normal use
- Wear items such as cutting edges and skid shoes are considered maintenance
- Warranty applies to properly operated equipment within rated use
This warranty does not cover damage caused by misuse, improper operation, or normal wear and tear.
All warranty claims are handled through Echo Equipment, where you’ll work directly with our team to get issues resolved quickly without the runaround.
Built for Compact Equipment
Designed around machines up to 45 HP, giving smaller tractors a grapple that matches the power and lift capacity of the machine.
Rake and Grapple With One Attachment
Rounded bottom tines and a clamshell design let you rake through soil, loosen material, grab it, and carry it away.
Strong Without Excess Weight
AR400F steel allows the GR45 to stay relatively light while still being built for rocks, roots, logs, brush, and debris.
- Property owners cleaning up brush, limbs, storm debris, and fallen trees.
- Hobby farmers moving logs, firewood, rocks, roots, and fence-line debris.
- Tractor owners clearing trails, woods, overgrown areas, and burn piles.
- Landscapers removing rocks, roots, brush, and debris from jobsites.
Why buy from ECHO Equipment
At ECHO Equipment, we actually use and support the equipment we sell. You’re not getting generic answers - you’re talking to people who understand how this equipment works in the field. That means faster answers, better recommendations, and no wasted time trying to figure things out on your own.
We’re easy to work with. If something breaks, tell us what actually happened and be honest with us (a good sense of humor doesn’t hurt either). We’re often known to help out even outside of standard warranty terms. And if it’s on us, we’ll own it and make it right. No excuses, no finger pointing - just real support when it matters.
