Stinger Attachments | LP Skid Steer Land Plane

• Cutting edges – 3/4″ x 6″ front and rear
• Frame material – Grade 50 steel construction
• Support structure – 3/8″ thick support plates
• Frame reinforcement – 3.5″ x 3.5″ angle iron
• Scarifiers – optional hydraulic teeth system
• Mount – universal skid steer quick attach
• Weight – approx. 500–600 lbs depending on size

What does a land plane do?

A land plane is used to level and smooth gravel, dirt, and aggregate surfaces by cutting high spots and redistributing material evenly.

Is this better than using a bucket for grading?

Yes. A land plane produces a much smoother and more consistent finish in fewer passes compared to a bucket.

Do I need scarifiers?

Scarifiers are recommended if you’re working with hard-packed gravel or clay. They help loosen material so it can be properly graded.

Can this be used for driveway maintenance?

Yes – this is one of the best tools available for maintaining gravel driveways and private roads.

What size should I choose?

• 66″–72″ – smaller machines or tighter areas
• 78″–84″ – larger machines and higher production work

Does it require hydraulics?

The base unit does not. Hydraulic flow is only required if equipped with hydraulic scarifiers.

The Stinger Skid Steer Land Plane is compatible with most skid steers and compact track loaders using the universal quick attach system.

Recommended machine size

• 50–100 HP skid steers and compact track loaders

Common Compatible Models

Bobcat – S650, S740, S770, T650, T66, T76

Caterpillar – 262D3, 272D3, 279D3, 289D3, 299D3

John Deere – 318G, 320G, 324G, 325G, 333G

Kubota – SSV65, SSV75, SVL75-2, SVL97-2

Case / New Holland – SR210, SV280, L218, L328, C332

Fitment Notes

• Universal skid steer quick attach
• Works with most modern skid steers and CTLs
• No hydraulics required (unless using hydraulic scarifiers)

Stinger Attachments products are backed by a 2-year manufacturer warranty covering defects in materials and workmanship for the original purchaser. Twice the length of industry standard.

• Structural components and welds are covered under normal use
• Wear items such as cutting edges and skid shoes are considered maintenance
• Warranty applies to properly operated equipment within rated use

This warranty does not cover damage caused by misuse, improper operation, or normal wear and tear.

All warranty claims are handled through Echo Equipment, where you’ll work directly with our team to get issues resolved quickly without the runaround.

Fast, Even Grading

Front and rear cutting edges help move loose material, fill low spots, and smooth gravel, dirt, and topsoil in fewer passes.

Great for Driveways and Lanes

Ideal for maintaining gravel driveways, farm lanes, trails, roads, yards, and other rough surfaces that need cleaned up.

Breaks Up Hard Ground

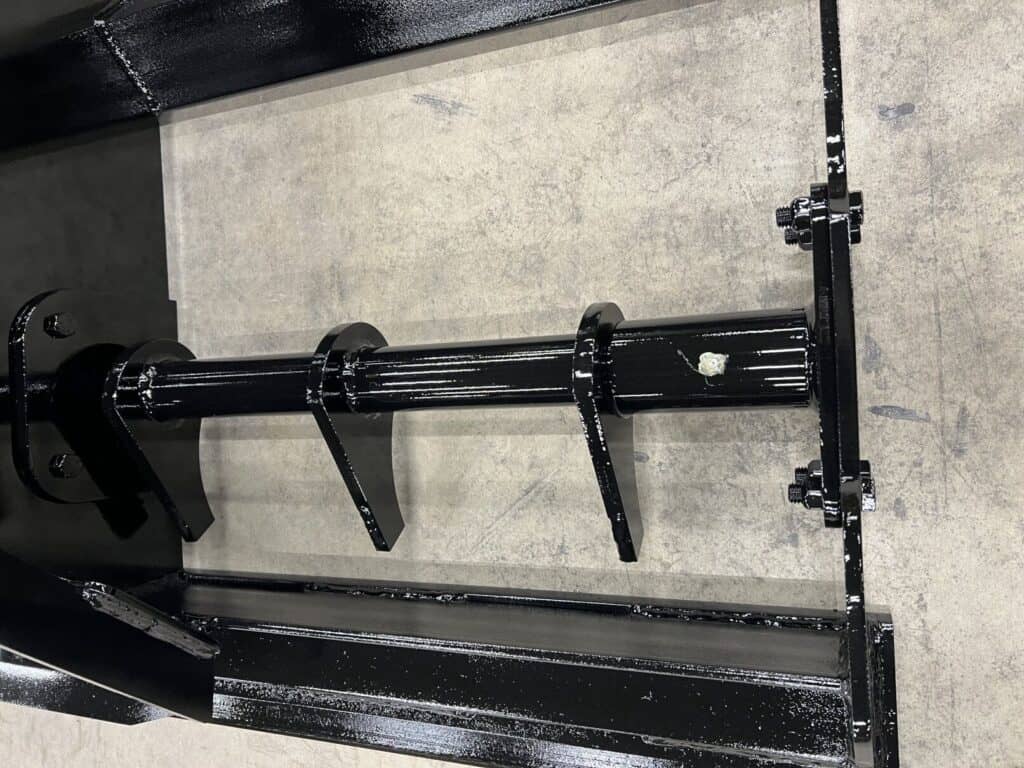

The optional hydraulic scarifier adds 1/2″ teeth to help loosen packed dirt, gravel, and rough ground before grading.

Built-In Bucket Transport

Top dirt bucket hooks are included so operators can carry a bucket with the land plane during transport, saving extra trips across the yard, farm, or jobsite.

• Farmers maintaining gravel lanes, field entrances, yards, barn lots, and washed-out areas.
• Acreage owners repairing driveways, private roads, trails, and rough property surfaces.
• Landscapers leveling topsoil, peeling sod, grading prep areas, and cleaning up jobsites.
• Contractors grading gravel, backfilling low spots, prepping pads, and smoothing work areas.
• Skid steer, compact track loader, and tractor owners needing a simple grading attachment.
