M&M Attachments | Hydra Clip 16" Tree Shear
The M&M Hydra-Clip Tree Shear is built for skid steer and compact track loader operators clearing trees, brush, fence lines, pastures, right-of-ways, and overgrown property. This version had an available grapple, giving operators the ability to cut, grab, control, bunch, and move material with one attachment.
With a cut capacity up to 16″ diameter in one cut, the Hydra-Clip is made for serious land clearing work. The shear cuts near to flush to the ground, while the grapple helps hold the tree during the cut and manage it after it drops. That makes it a stronger choice than a shear-only setup for operators who want more control, faster cleanup, and less time switching attachments.
Features
- Cuts trees up to 16″ in diameter in one cut.
- Optional grapple for controlling, bunching, stacking, and moving trees.
- Flush-cut design helps cut close to ground level.
- 4 to 5 second open-to-close cycle time keeps clearing work moving.
- No high flow required.

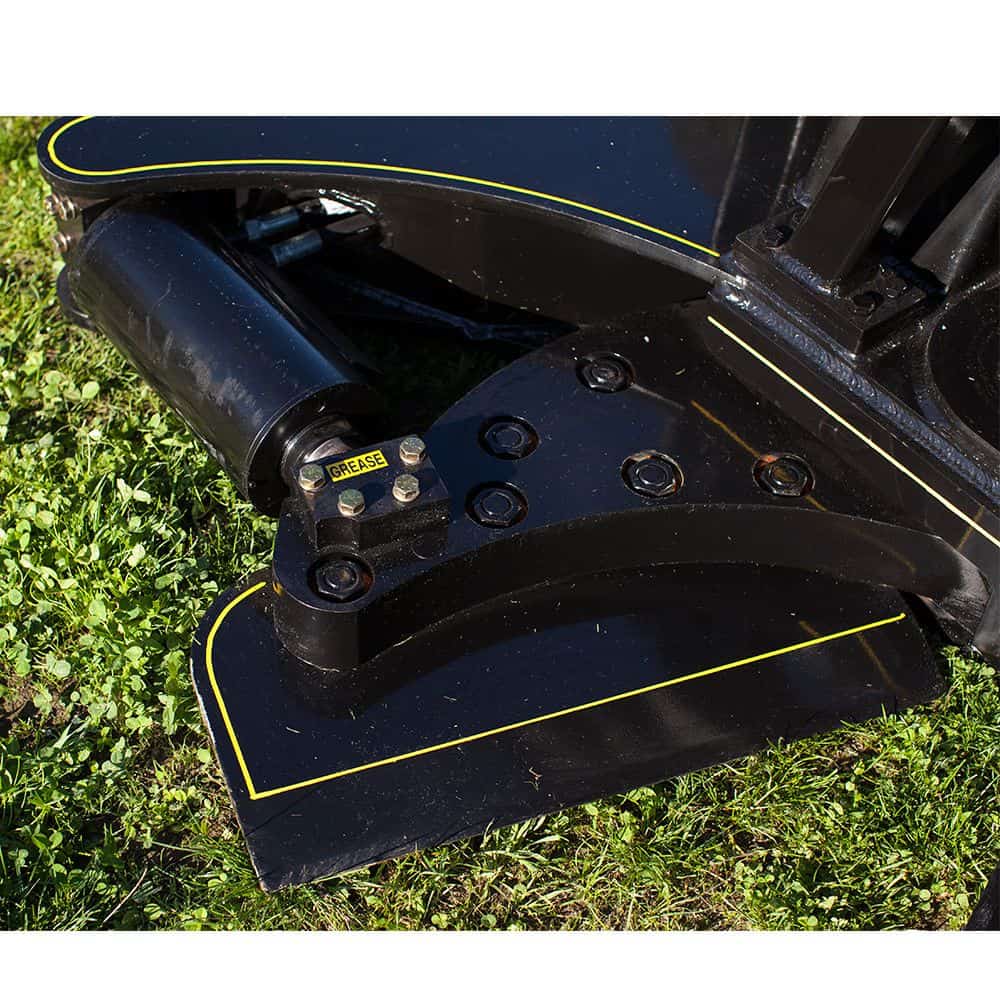

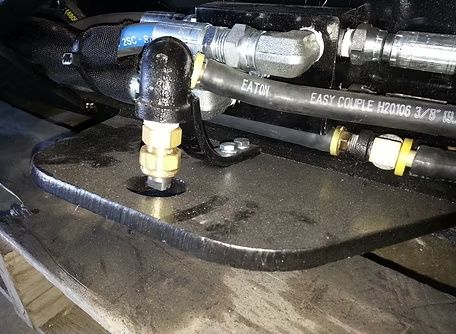

- Hidden grease fittings and protected hydraulic hoses help reduce snagging
- Integrated pressure reducing valve helps keep smaller trees from breaking in the grapple
- Optional spray system uses the built-in 10-gallon tank to treat fresh-cut stumps.
- Plug-and-play electrical adapters are available for many skid steer brands.
- Cut Capacity: Up to 16″ trees in one cut
- Larger Tree Cutting: Possible with multiple cuts
- Cycle Time: 4 to 5 seconds open to close
- Hydraulic Pressure: 2,500 PSI minimum, 3,000 PSI recommended
- Recommended Machine: 2,500 lb ROC or larger
- Attachment Weight: Approximately 2,250 to 2,350 lbs depending on configuration
What size tree can it cut?
It can cut up to a 16″ tree in one cut. Larger trees can be handled with multiple cuts depending on the tree and machine.
Does it require high flow?
No. The Hydra-Clip does not require high flow. It relies more on hydraulic pressure, with 2,500 PSI minimum and 3,000 PSI recommended.
What size skid steer do I need?
M&M recommends a loader with at least 2,500 lbs of operating capacity. Larger skid steers and CTLs are usually the better fit because of the attachment weight and tree control.
Why choose the grapple version?
The grapple helps control the tree during the cut, then grab, bunch, stack, and move material after cutting.
Can it cut close to the ground?
Yes. The Hydra-Clip is designed for flush ground-level cutting, which is useful for pastures, trails, fence rows, and areas that need cleaned up after clearing.
What is the optional spray system for?
The optional spray system treats fresh-cut stumps to help reduce regrowth after cutting.
Is this good for fence lines and pastures?
Yes. It is a strong fit for fence rows, pastures, waterways, field edges, trails, and overgrown property.
Note: Best matched with larger skid steers and compact track loaders with 2,500 lb ROC or higher, proper hydraulic pressure, and enough counterweight for safe tree handling.
Bobcat: S650, S740, S76, S770, S86, T650, T66, T76, T770, T86, A770
CAT: 242D3, 246D3, 262D3, 272D3, 279D3, 289D3, 299D3, 299D3 XE, 255, 265, 275, 285, 285 XE
John Deere: 324G, 330G, 332G, 333G, 331P, 333P, 335P, 325G, 331G
Kubota: SSV75, SVL75-3, SVL95-2s, SVL97-2
New Holland: L328, L334, C332, C337, C345, C362
Case: SR240B, SV280B, SV340B, TR310B, TV370B, TV450B, TV620B
Takeuchi: TL10, TL12, TL12V2, TL12R2, TL12V3, TL8R2, TL8R3
ASV: RT-75, VT-70, RT-120, VT-100, RT-135
Gehl: V270, V330, VT320, RT255
M&M Attachments are backed by a limited manufacturer warranty covering defects in materials and workmanship for the original purchaser.
- Structural components and hydraulic cylinders are typically covered for 1 year under normal use
- Gearboxes and drive components are covered, with wear items (such as seals) considered maintenance after the initial period
- Warranty applies to properly operated and maintained equipment within recommended hydraulic and usage specifications
This warranty does not cover damage caused by misuse, improper installation, normal wear and tear, or operation outside of rated capacities.
All warranty claims are handled through Echo Equipment, where you’ll work directly with our team to get issues resolved quickly without the runaround.

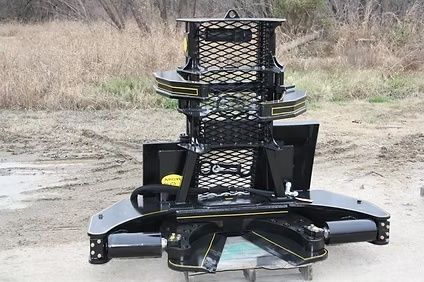

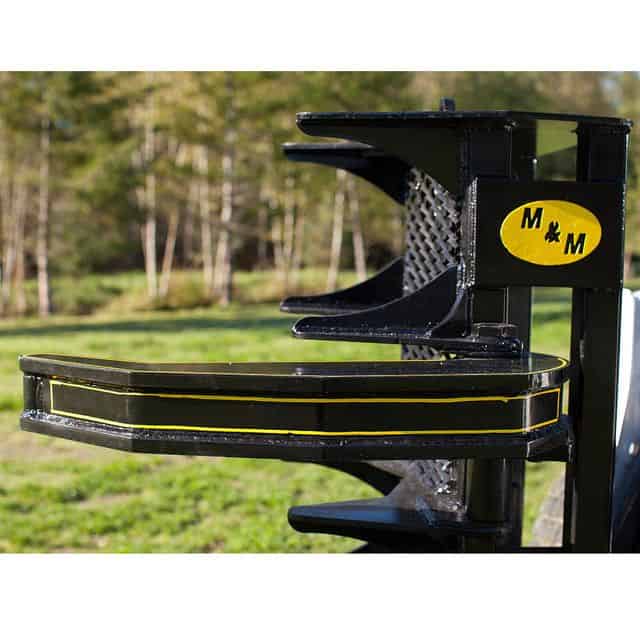

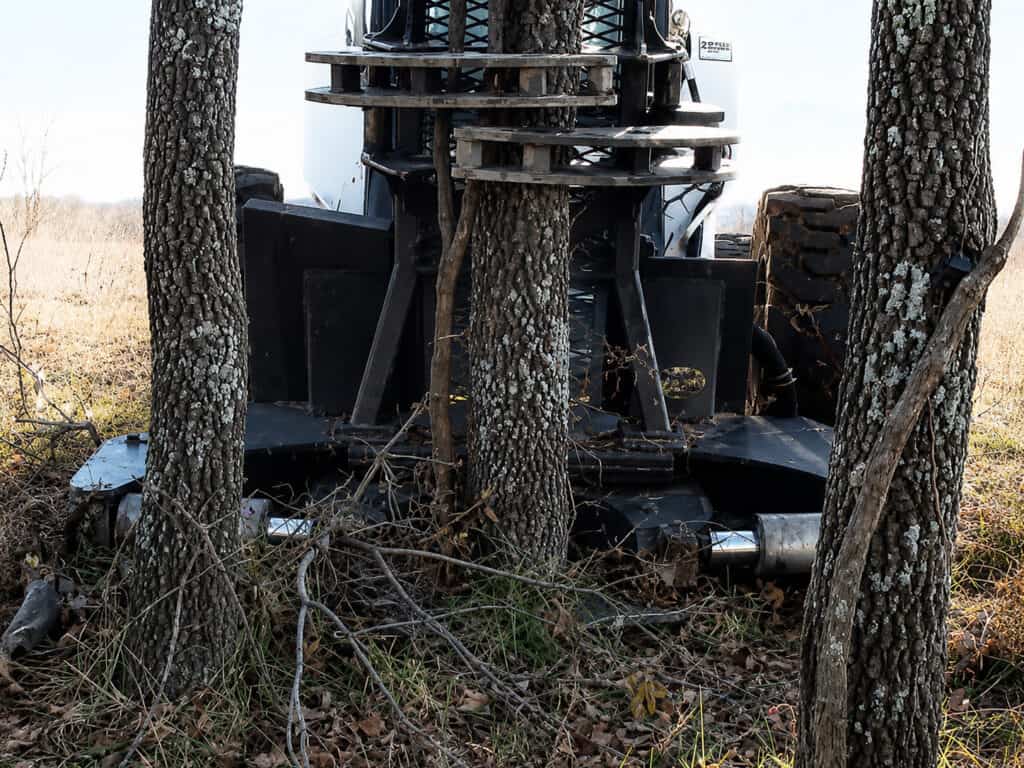

Cut and Grab in One Attachment
The included grapple lets operators cut trees, control the fall, bunch material, and move brush without switching attachments.
Flush Ground-Level Cutting
The Hydra-Clip is designed to cut close to the ground, leaving a cleaner finish for fence lines, pastures, trails, and mowing prep.
Fast Clearing Production
A 4 to 5 second open-to-close cycle time helps operators keep moving when clearing multiple trees, saplings, and brush lines.
No High Flow Required
The Hydra-Clip runs off hydraulic pressure instead of high-flow GPM, making it a practical fit for many larger standard-flow skid steers and CTLs.
- Land clearing contractors cutting, grabbing, bunching, and piling trees.
- Farmers and ranchers cleaning up fence lines, pastures, waterways, and field edges.
- Property owners clearing trails, hunting land, overgrown acreage, and wooded lots.
- Municipal and right-of-way crews maintaining roadsides, ditches, highlines, and utility paths.
Why buy from ECHO Equipment
At ECHO Equipment, we actually use and support the equipment we sell. You’re not getting generic answers - you’re talking to people who understand how this equipment works in the field. That means faster answers, better recommendations, and no wasted time trying to figure things out on your own.
We’re easy to work with. If something breaks, tell us what actually happened and be honest with us (a good sense of humor doesn’t hurt either). We’re often known to help out even outside of standard warranty terms. And if it’s on us, we’ll own it and make it right. No excuses, no finger pointing - just real support when it matters.
Related Products

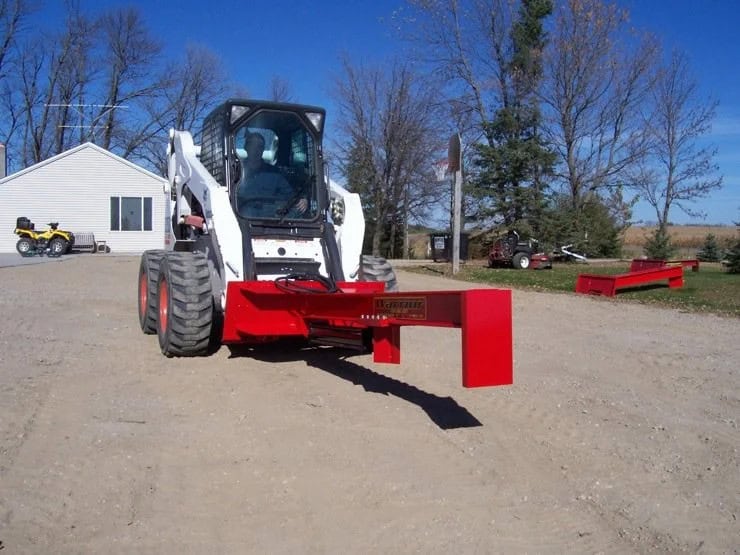

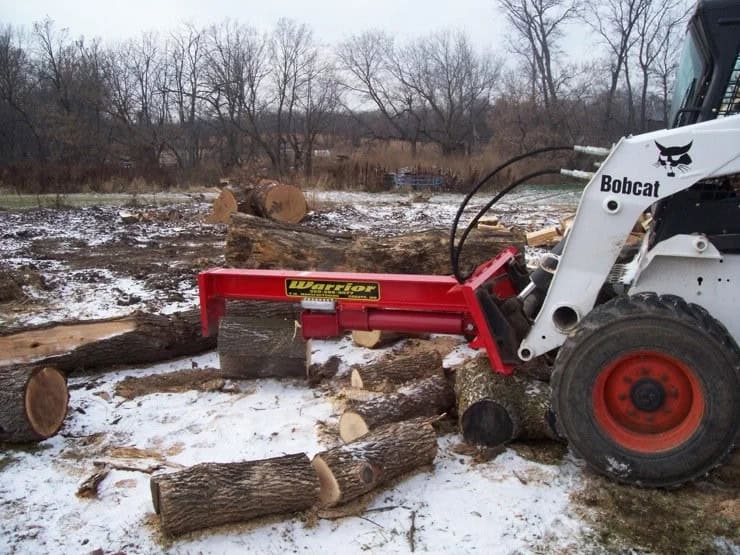

TM Manufacturing | Warrior Skid Steer Log Splitter

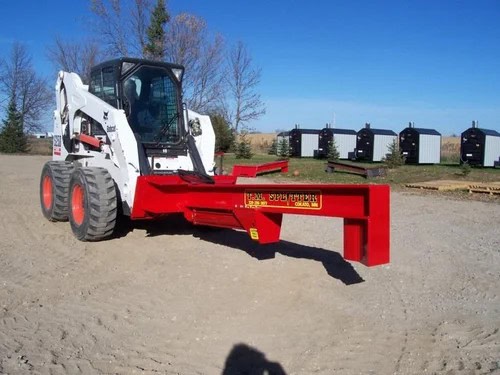

TM Manufacturing | HD Skid Steer Log Splitter

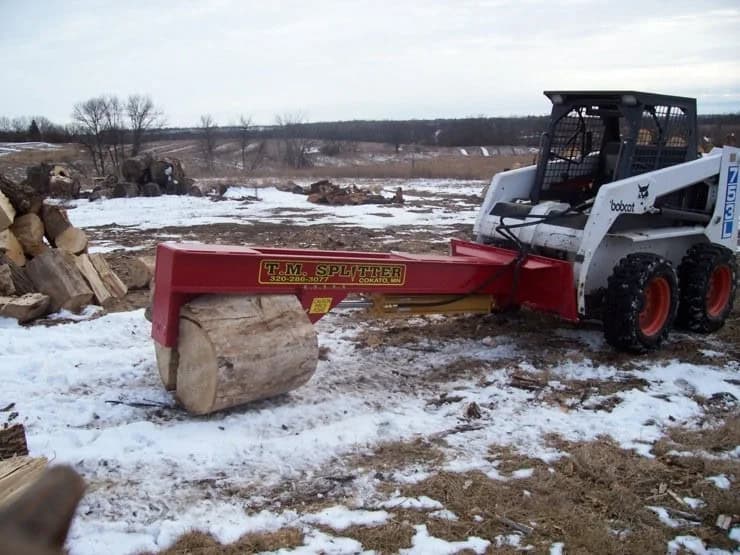

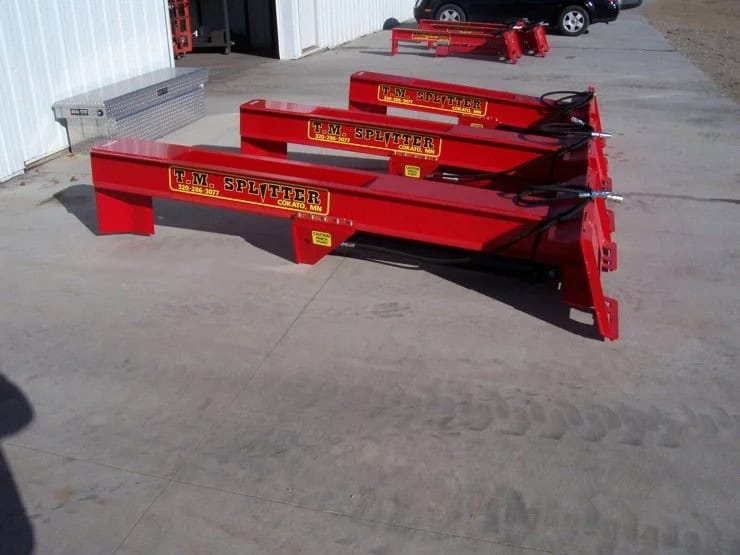

TM Manufacturing | Pro 1 Skid Steer Log Splitter
