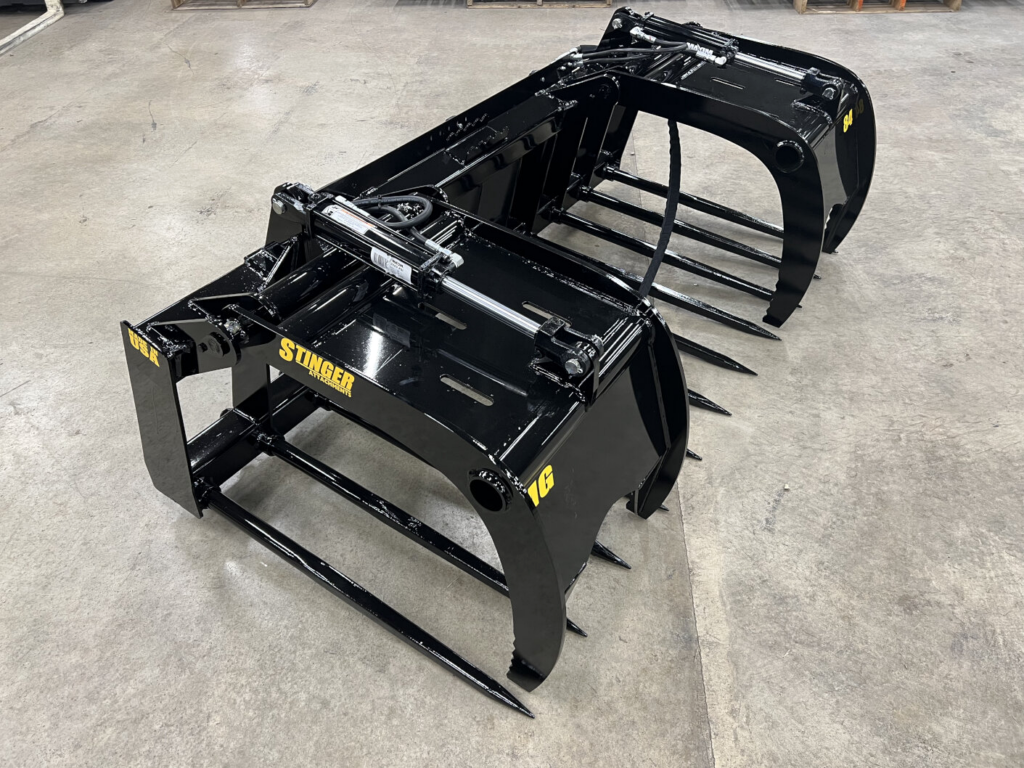

The Stinger Attachments Skid Steer Manure Spear Grapple Bucket is built for the everyday demands of livestock operations. Whether you’re cleaning pens, moving packed bedding, handling silage, or spreading fresh bedding, its long, replaceable spears get underneath material while the dual hydraulic grapples secure the load for transport.
Available in four widths from 60″ to 84″, the manure spear grapple combines a reinforced steel frame with independently operating grapple arms. Its open-back design provides visibility through the attachment, while an optional closed back offers additional material containment. Beyond livestock chores, this versatile grapple can also handle brush, branches, and other farm debris.
What is the difference between a manure spear grapple and a manure tine grapple?
The manure spear grapple uses long, pointed bale-style spears to penetrate and lift packed bedding, manure, and other agricultural materials. A manure tine grapple uses heavier, shorter tines suited to similar handling tasks.
Can the spears be replaced individually?

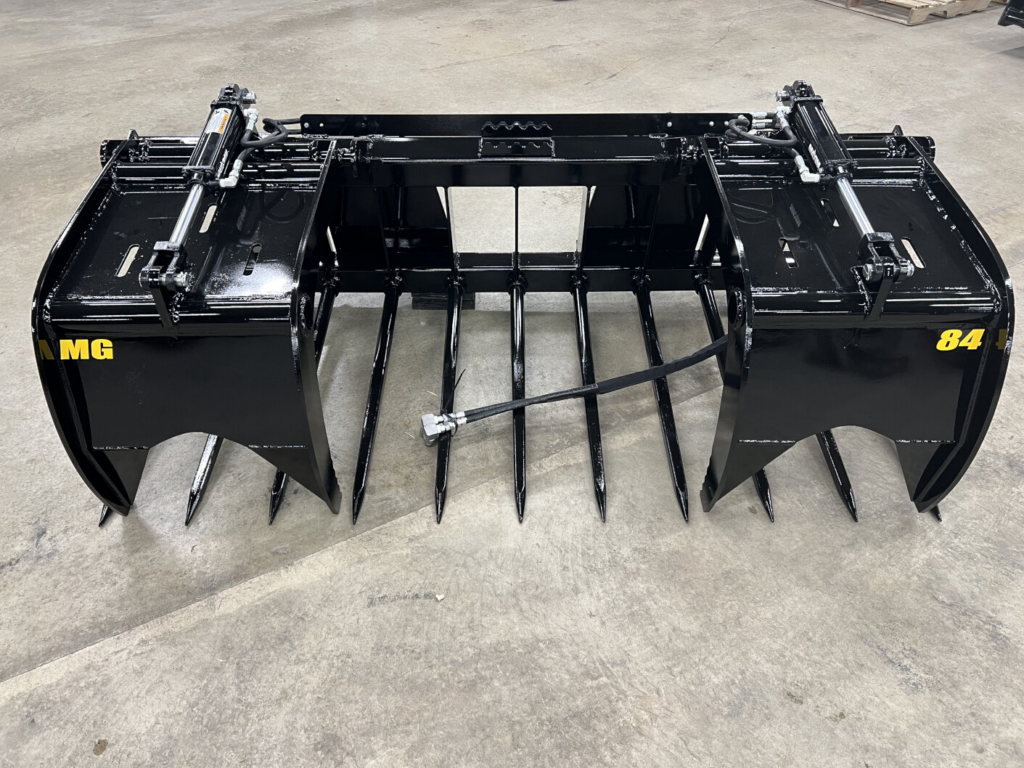

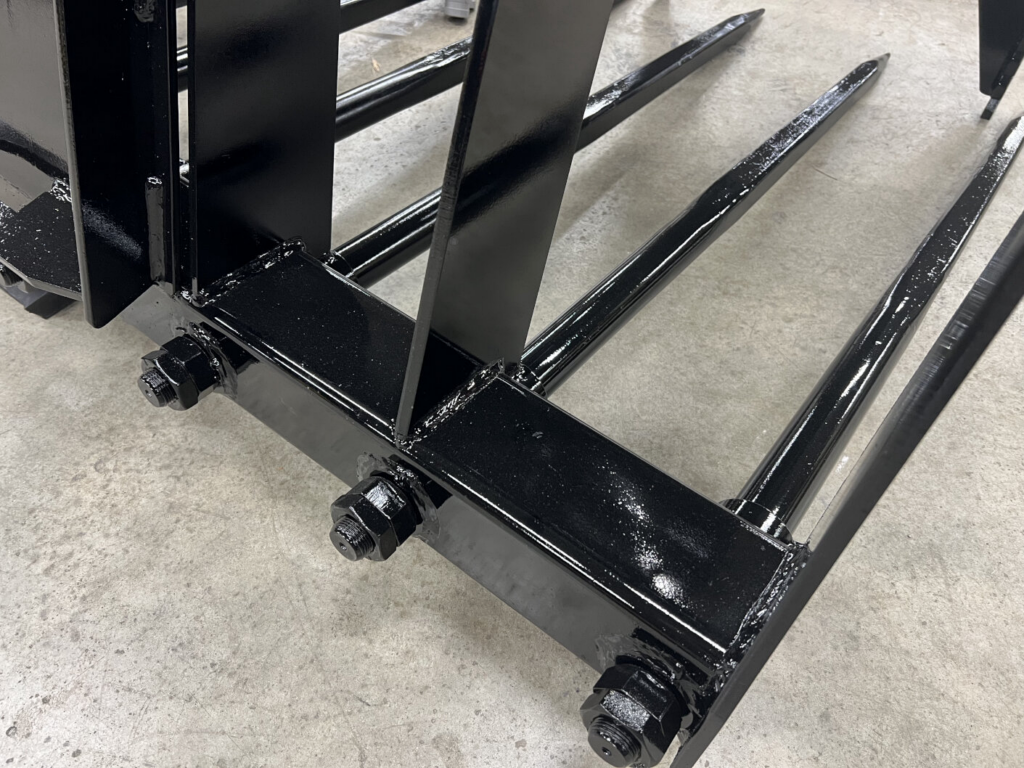

Yes. The spears are removable and replaceable, allowing damaged components to be serviced individually.
How many spears does each width have?
The 60″ has eight spears, the 68″ has nine, the 76″ has ten, and the 84″ has eleven.
Does the grapple have independent hydraulic arms?

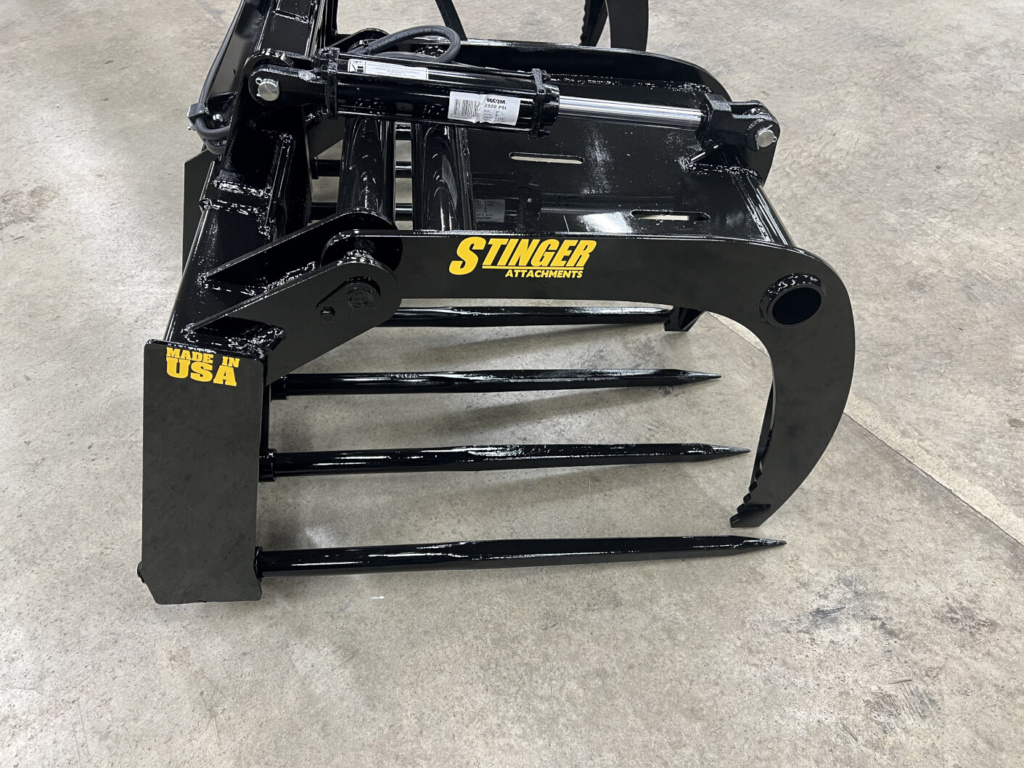

Yes. Two independently operating grapple arms help secure uneven loads.
What is the grapple opening?
The maximum grapple opening is 45″.
Can this grapple handle materials other than manure?
Yes. It can also be used for livestock bedding, silage, brush, branches, and general agricultural debris.
Is an open or closed back available?

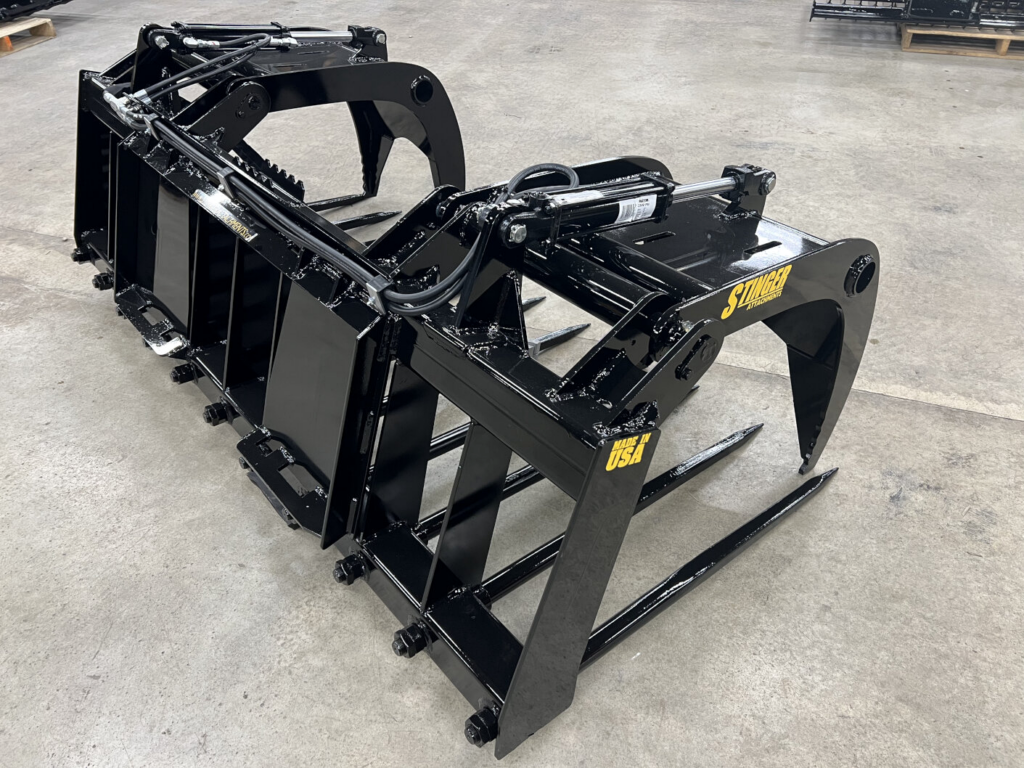

Both configurations are available. The open back is standard, with a closed-back option for additional material containment.
Will this attachment fit my skid steer?
The standard configuration uses a universal skid steer quick-attach mount. Confirm your machine’s mounting interface, hydraulic connections, and operating capacity before ordering.
Note: The Stinger Manure Spear Grapple uses a universal skid steer quick-attach mount and requires auxiliary hydraulics. Compatibility depends on the machine’s rated operating capacity, hydraulic connections, and selected grapple width. Larger grapples require sufficient lifting capacity for both the attachment and its load.
Common Compatible Machines
Bobcat: S590, S595, S62, S64, S650, S66, S740, S76, S770, S850, T590, T595, T62, T64, T650, T66, T740, T76, T770, T870
Caterpillar: 236D, 236D3, 242D, 242D3, 246D, 246D3, 262D, 262D3, 272D, 272D3, 259D, 259D3, 265, 279D, 279D3, 289D, 289D3, 299D, 299D3
John Deere: 318G, 320D, 320E, 320G, 324G, 326D, 326E, 328E, 330G, 332G, 317G, 325G, 331G, 333G
Kubota: SSV65, SSV75, SVL65-2, SVL75-2, SVL75-3, SVL90-2, SVL95-2, SVL97-2
CASE: SR175, SR200, SR210, SR220, SR240, SR250, SV250, SV280, SV300, SV340, TR270, TR310, TR320, TR340, TV370, TV380, TV450
New Holland: L175, L180, L185, L190, L218, L220, L221, L223, L225, L228, L230, L234, C227, C232, C238, C245, C327, C332, C337
Takeuchi: TL8, TL8R2, TL10, TL10V2, TL12, TL12R2, TL12V2
GEHL: R190, R220, R260, R280, V270, V330, RT175, RT210, RT250
Mustang: 1900R, 2200R, 2600R, 2700V, 3300V, 1750RT, 2100RT, 2500RT
JCB: 190, 205, 225, 260, 270, 300, 320T, 325T, 3TS-8T
ASV: RT-65, RT-75, RT-75 HD, RT-120, VT-70, VT-80, VT-100
Wacker Neuson: SW21, SW24, SW28, ST27, ST31, ST35, ST45, ST50
Stinger Attachments provides a 2-year manufacturer warranty against defects in materials and workmanship. Warranty coverage is subject to Stinger Attachments’ terms and exclusions.
Efficient Livestock Cleanup: Long spears reach underneath packed bedding and manure, helping operators lift and remove material without relying on a conventional bucket.
Better Load Control: Independent hydraulic grapples secure loose or uneven loads, reducing material loss during transport.

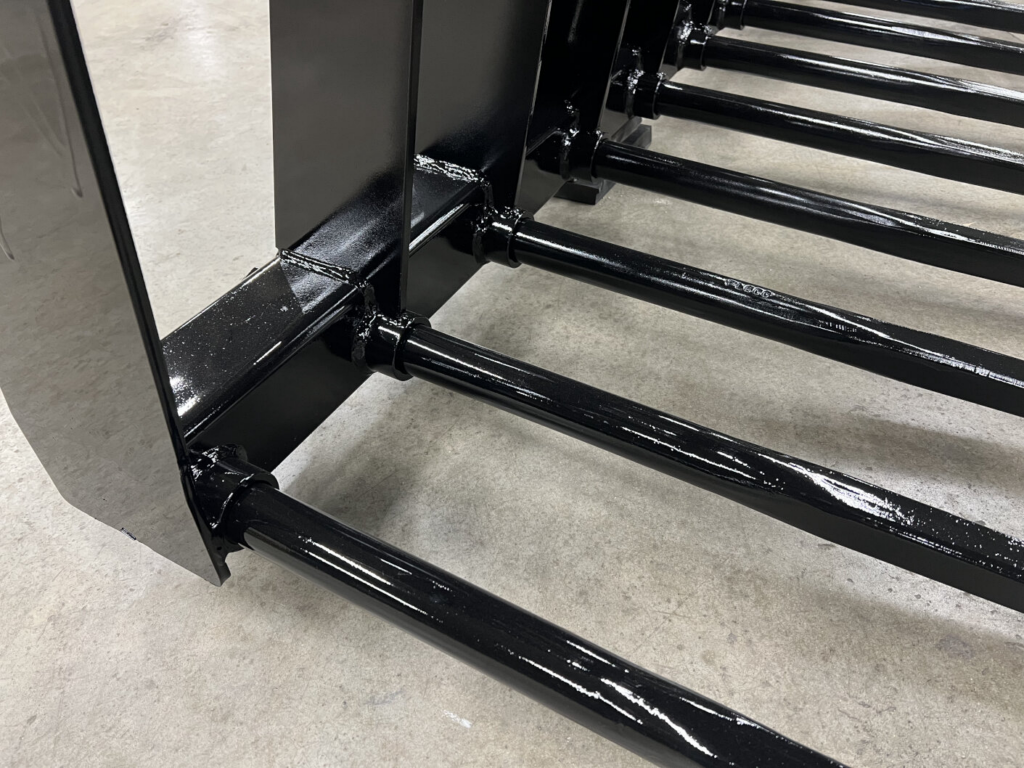

Serviceable Design: Replaceable spears and greaseable grapple pins simplify maintenance and help extend the attachment’s working life.
Versatility Beyond the Barn: From handling silage and bedding to clearing brush and farm debris, this grapple can serve multiple purposes around an agricultural property.
