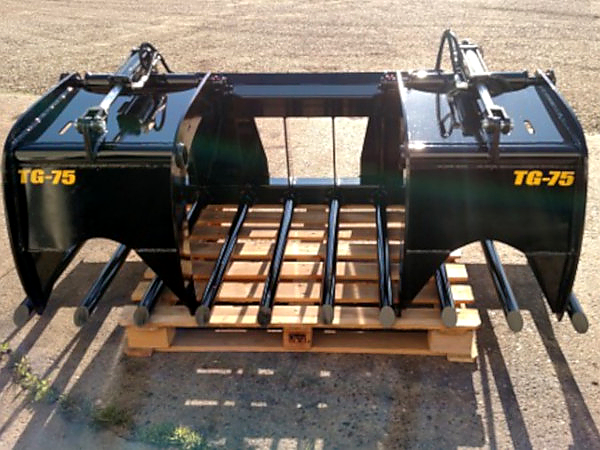

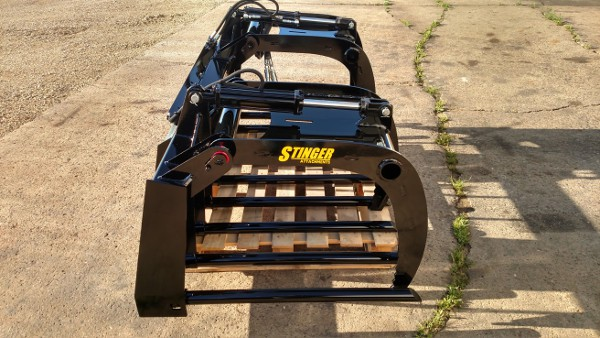

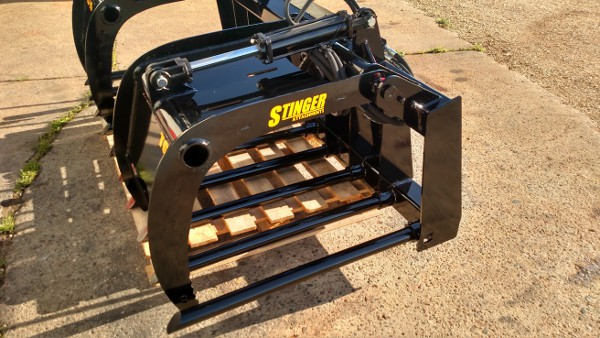

The Stinger Attachments Skid Steer Manure Tine Grapple Bucket is designed to make livestock cleanup and material handling more efficient. Its long, heavy-duty steel tines slide beneath packed bedding, manure, and silage, while dual hydraulic grapples secure material for lifting and transport. The open-tine design makes it useful for everything from cleaning livestock pens to moving brush and agricultural debris.
Built with heavy tuty steel and replaceable cold-rolled tines, this grapple is available in four widths from 60″ to 84″. Choose between Standard and XD grapples, along with an open or solid rear panel, to suit your equipment and the work you’re tackling.
What’s the difference between the manure tine grapple and manure spear grapple?
The manure tine grapple uses 2″ diameter cold-rolled steel tines, while the manure spear grapple uses tapered bale-style spears. Both are designed for handling manure, bedding, silage, and agricultural debris, but their different tine designs provide options for different materials and operating preferences.

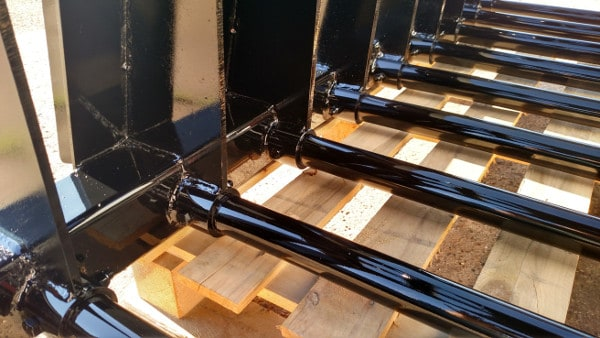

Can the tines be replaced individually?
Yes. Each tine is removable and replaceable, allowing damaged tines to be serviced without replacing the entire attachment.

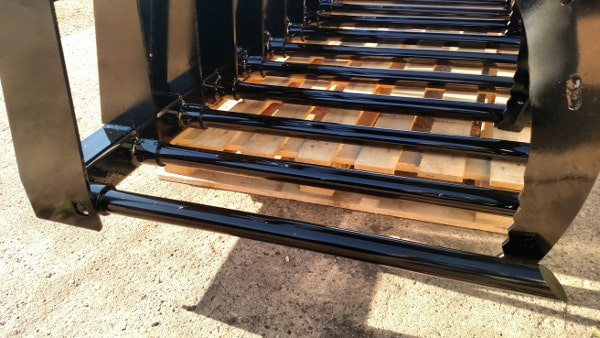

How far apart are the tines?
The tines are spaced 8″ on center, leaving approximately 6″ of open space between them.
What is the maximum grapple opening?
The grapple opens to 45″, providing clearance for bulky materials.
What is the difference between Standard and XD grapples?
The XD option provides an upgraded grapple configuration for more demanding applications. Both versions use the same manure tine bucket design.
Should I choose an open or solid rear panel?
The open rear panel provides visibility through the attachment and allows material to pass through. The solid rear panel offers additional containment when handling loose bedding, manure, or similar materials.
Can this grapple handle brush and branches?
Yes. In addition to livestock chores, the grapple can be used to lift and transport brush, branches, and other agricultural debris.
Does this attachment require auxiliary hydraulics?
Yes. The hydraulic grapples require an auxiliary hydraulic connection from the skid steer.

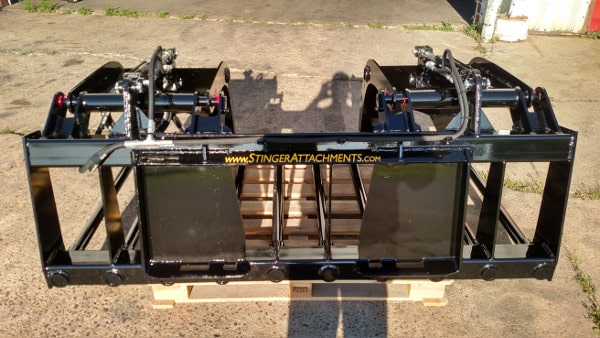

Note: The Stinger Manure Tine Grapple uses a universal skid steer quick-attach mount and requires auxiliary hydraulics. Compatibility depends on the machine’s mounting interface, hydraulic connections, operating capacity, and selected grapple width. Larger configurations require sufficient lifting capacity for the attachment and its load.
Common Compatible Machines
Bobcat: S590, S595, S62, S64, S650, S66, S740, S76, S770, S850, T590, T595, T62, T64, T650, T66, T740, T76, T770, T870
Caterpillar: 236D, 236D3, 242D, 242D3, 246D, 246D3, 262D, 262D3, 272D, 272D3, 259D, 259D3, 279D, 279D3, 289D, 289D3, 299D, 299D3
John Deere: 318G, 320D, 320E, 320G, 324G, 326D, 326E, 328E, 330G, 332G, 317G, 325G, 331G, 333G
Kubota: SSV65, SSV75, SVL65-2, SVL75-2, SVL75-3, SVL90-2, SVL95-2, SVL97-2
CASE: SR175, SR200, SR210, SR220, SR240, SR250, SV250, SV280, SV300, SV340, TR270, TR310, TR320, TR340, TV370, TV380, TV450
New Holland: L175, L180, L185, L190, L218, L220, L221, L223, L225, L228, L230, L234, C227, C232, C238, C245, C327, C332, C337
Takeuchi: TL8, TL8R2, TL10, TL10V2, TL12, TL12R2, TL12V2
GEHL: R190, R220, R260, R280, V270, V330, RT175, RT210, RT250
Mustang: 1900R, 2200R, 2600R, 2700V, 3300V, 1750RT, 2100RT, 2500RT
JCB: 190, 205, 225, 260, 270, 300, 320T, 325T, 3TS-8T
ASV: RT-65, RT-75, RT-75 HD, RT-120, VT-70, VT-80, VT-100
Wacker Neuson: SW21, SW24, SW28, ST27, ST31, ST35, ST45, ST50
Stinger Attachments provides a 2-year manufacturer warranty against defects in materials and workmanship. Warranty coverage is subject to Stinger Attachments’ terms and exclusions.
More Efficient Livestock Cleanup: Long steel tines reach underneath packed bedding and manure, helping operators lift and remove material without relying on a conventional bucket.
Secure Material Handling: Dual hydraulic grapples hold loose or uneven loads during transport, making it easier to move bedding, silage, and debris around the property.

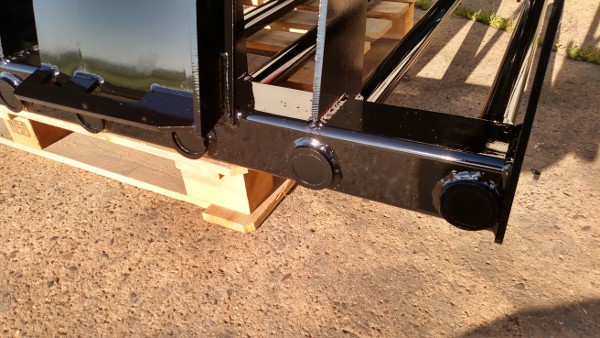

Simplified Maintenance: Replaceable tines and greaseable grapple pins allow individual components to be serviced as needed.
Versatility Around the Farm: From cleaning livestock pens to clearing brush and moving agricultural debris, the manure tine grapple provides a practical attachment for everyday property maintenance.
