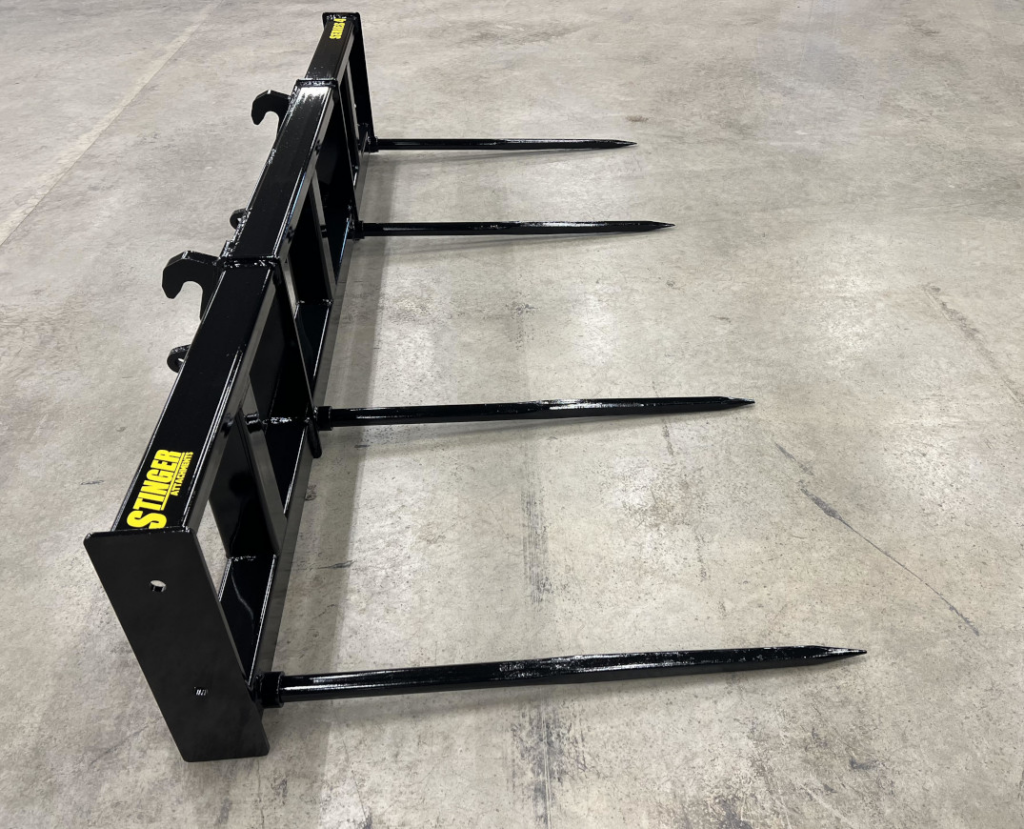

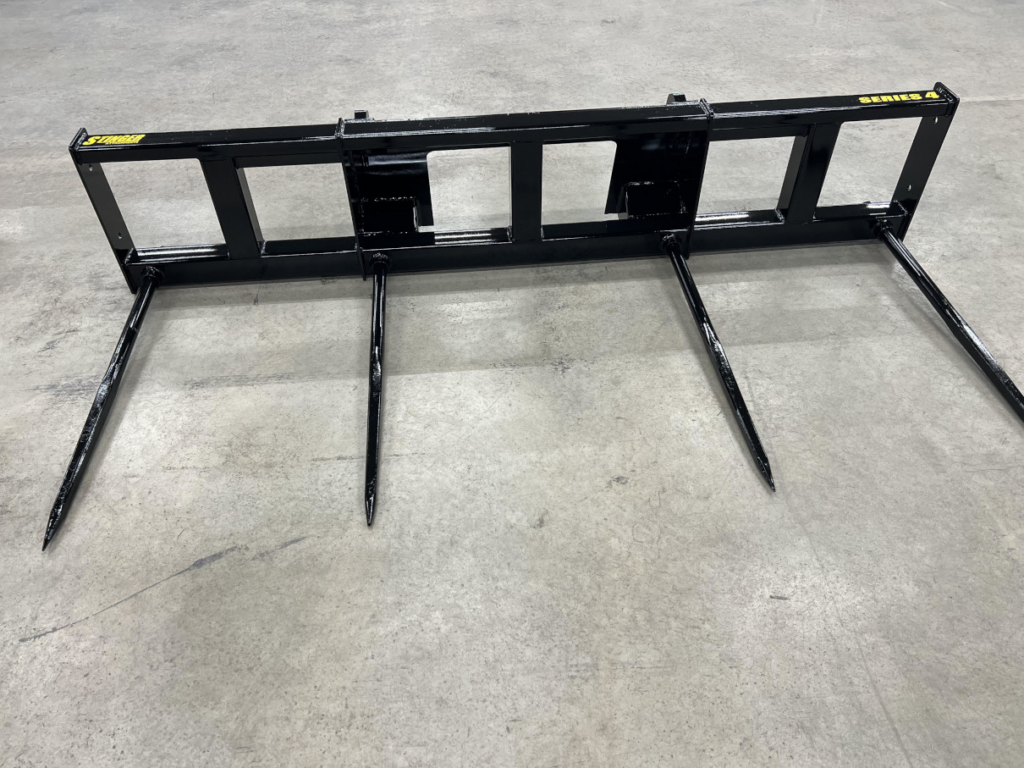

The Stinger Attachments Wheel Loader Double Round Bale Spear is built for moving two large round bales at once, helping farms, ranches, and hay operations cut down on loader trips during field cleanup, trailer loading, feeding, and bale storage. Its wide four-spear layout uses 100″ outer spacing with a 30″/40″/30″ configuration to support large round bales up to 6′ in diameter.

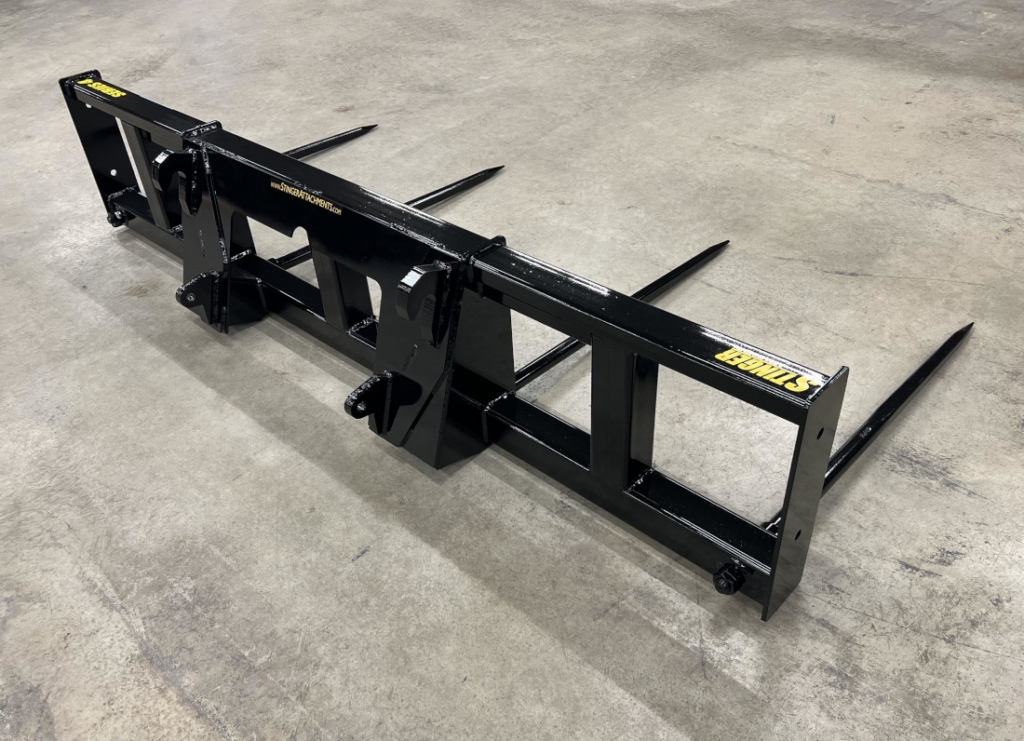

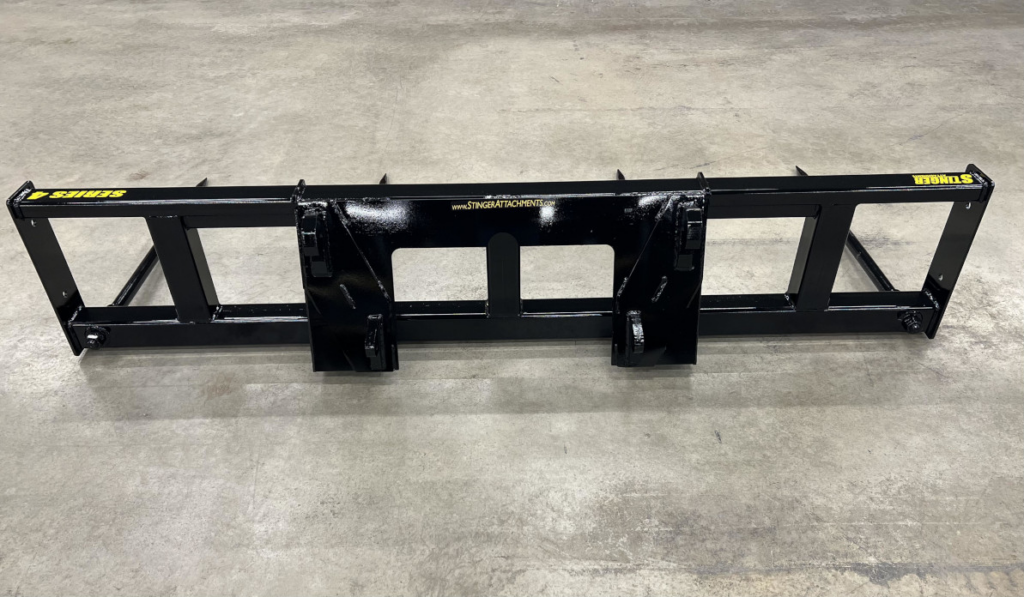

The Series 4 XD frame uses reinforced structural tubing, 1/2″ Grade 50 side plates, and replaceable double-nut spears for repeated wheel loader use. This configuration is paired with 49″ spears and is available with Construction or HD Construction mounting for compatible wheel loaders.
How many round bales can this spear carry?
The attachment is designed to handle two large round bales at one time. Stinger specifies the 100″ configuration for round bales up to 6′ in diameter.
How many spears does it use?
It uses four replaceable spears arranged across the frame in a 30″/40″/30″ spacing pattern.
What is the spear capacity?
Each spear is rated for 3,500 Lbs. at 30″, giving the four spears a combined rating of 14,000 Lbs. The wheel loader’s own rated capacity, ballast, operating conditions, and load position may impose a lower practical limit.
Are the spears replaceable?
Yes. The spears use a double-nut mounting design so individual spears can be replaced when necessary.
What length spears are included on this listing?
This configuration uses 49″ spears.
Can it move two square bales?
This 100″ Series 4 configuration is specifically intended for two large round bales. Stinger offers other Series 4 layouts intended for large square bales.
Does it require auxiliary hydraulics?
No. There are no hydraulic functions on the attachment itself.
What mount options are available?
The current configuration offers Construction mounting for coupler plates up to 1″ thick and HD Construction mounting for plates over 1″ thick.
Do I need ballast?
Yes. Proper ballast should be used according to the wheel loader manufacturer’s recommendations, especially when carrying two large bales.
Will the 14,000 Lbs. spear rating mean my loader can lift 14,000 Lbs.?
No. The spear rating describes the attachment components. Your actual working capacity is limited by the wheel loader’s rated lift capacity, tipping load, ballast, load center, and operating conditions.
Note: Compatibility depends on your wheel loader’s coupler, carrier plate thickness, lift capacity, operating weight, ballast, and overall configuration. Always verify your exact machine and mount before ordering. Models below are broad compatibility suggestions, not guaranteed fitments.
Common Compatible Machines
Caterpillar: 906, 907, 908, 910, 914, 918, 920, 924, 926, 930, 938
John Deere: 244, 304, 324, 344, 444, 524, 544, 624
Komatsu: WA100, WA200, WA250, WA270, WA320, WA380
CASE: 321, 521, 621, 721
Volvo: L45, L50, L60, L70, L90
JCB: 409, 411, 413, 417, 427
Develon / Doosan: DL200, DL220, DL250, DL280
Hyundai: HL930, HL940, HL955, HL960
Hitachi: ZW100, ZW120, ZW140, ZW150, ZW180
Liebherr: L 506, L 508, L 514, L 524, L 526
New Holland: W80, W110, W130, W170
Kawasaki: 60Z, 65Z, 70Z, 80Z
Wacker Neuson: WL52, WL60, WL70, WL95
Gehl / Manitou: AL650, AL750, AL850
Stinger Attachments provides a two-year manufacturer warranty against defects in material and workmanship from the date of delivery to the original purchaser.
Move two bales in one trip.
The wide four-spear layout lets wheel loader operators move two large round bales together, reducing travel time across fields, feedlots, and storage yards.
Support the load across four points.
Four evenly spaced spears distribute support across the bale pair instead of concentrating the load on one or two points.
Keep maintenance straightforward.
Individual double-nut spears can be replaced without replacing the entire attachment.
Match the frame to the loader.
Construction and HD Construction mounting options let the attachment be configured around different wheel loader carrier plate thicknesses.
