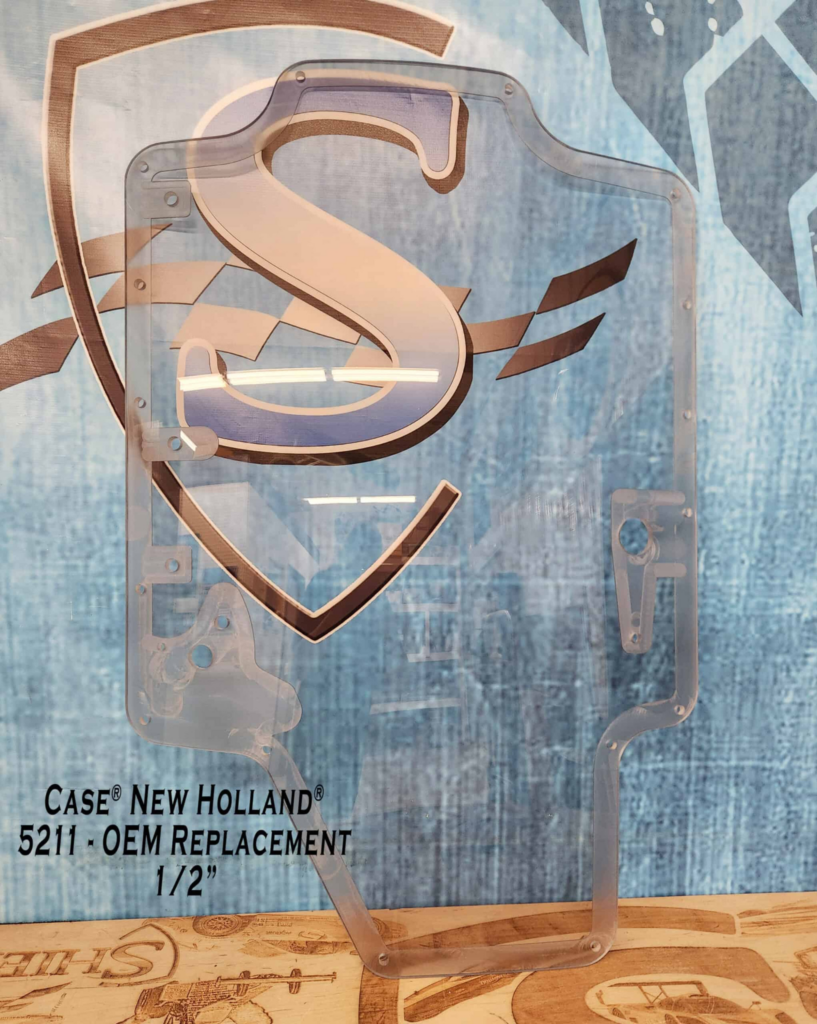

The SHIELDS Case & New Holland Polycarbonate Skid Steer Windshield is a formed replacement for front glass used across Case SR, SV, TR, and TV machines and New Holland L and C Series cabs. Single-wiper versions replace OEM glass #84344565, while dual-wiper versions replace #47405930, with the windshield formed and machined to match the correct cab profile, mounting points, and wiper layout.
Glass replacement versions are available in 1/4″, 3/8″, and 1/2″ polycarbonate, with a 50% tint option in 1/2″. SHIELDS also offers 1/2″ replacements for supported factory polycarbonate configurations. SUPERCOAT™ is applied to both sides for abrasion resistance, UV protection, and continued windshield-wiper use without scratching.
What Case and New Holland glass does this windshield replace?
The single-wiper version replaces OEM glass #84344565. The dual-wiper version replaces OEM glass #47405930.

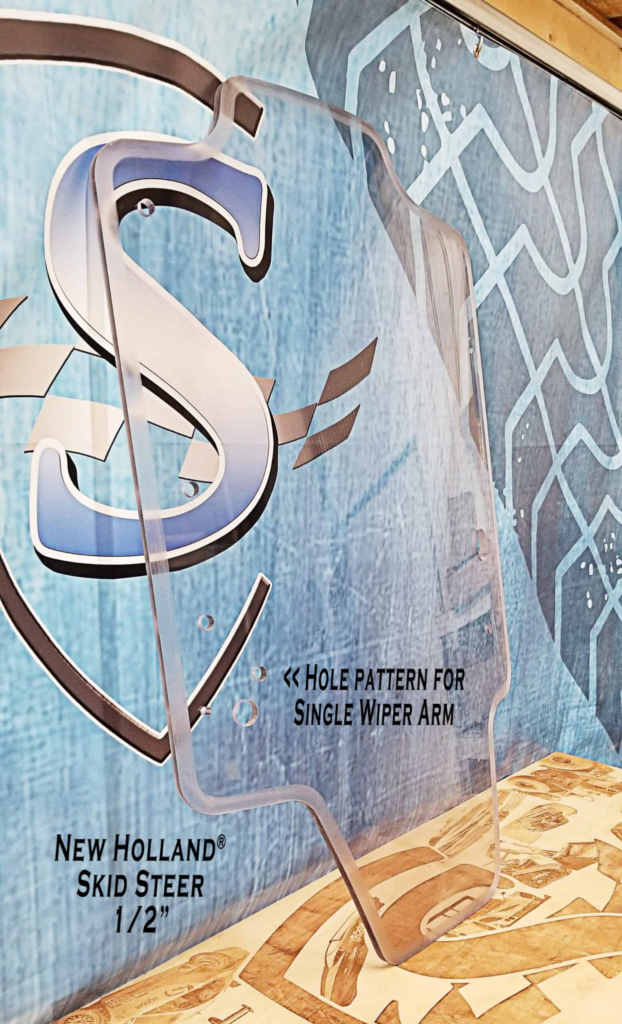

How do I know whether I have a single- or dual-wiper windshield?

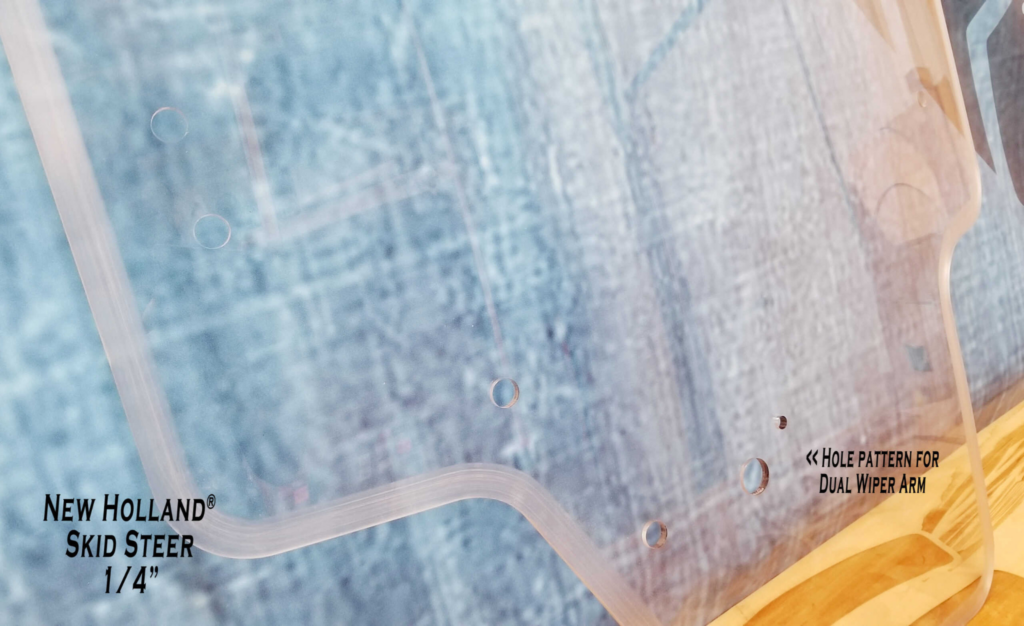

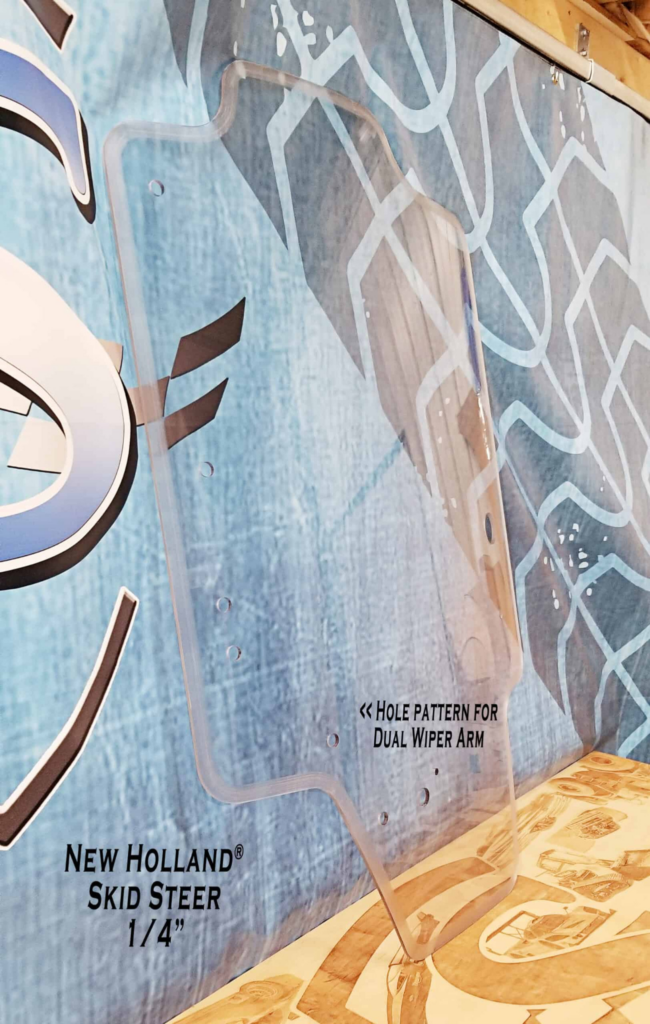

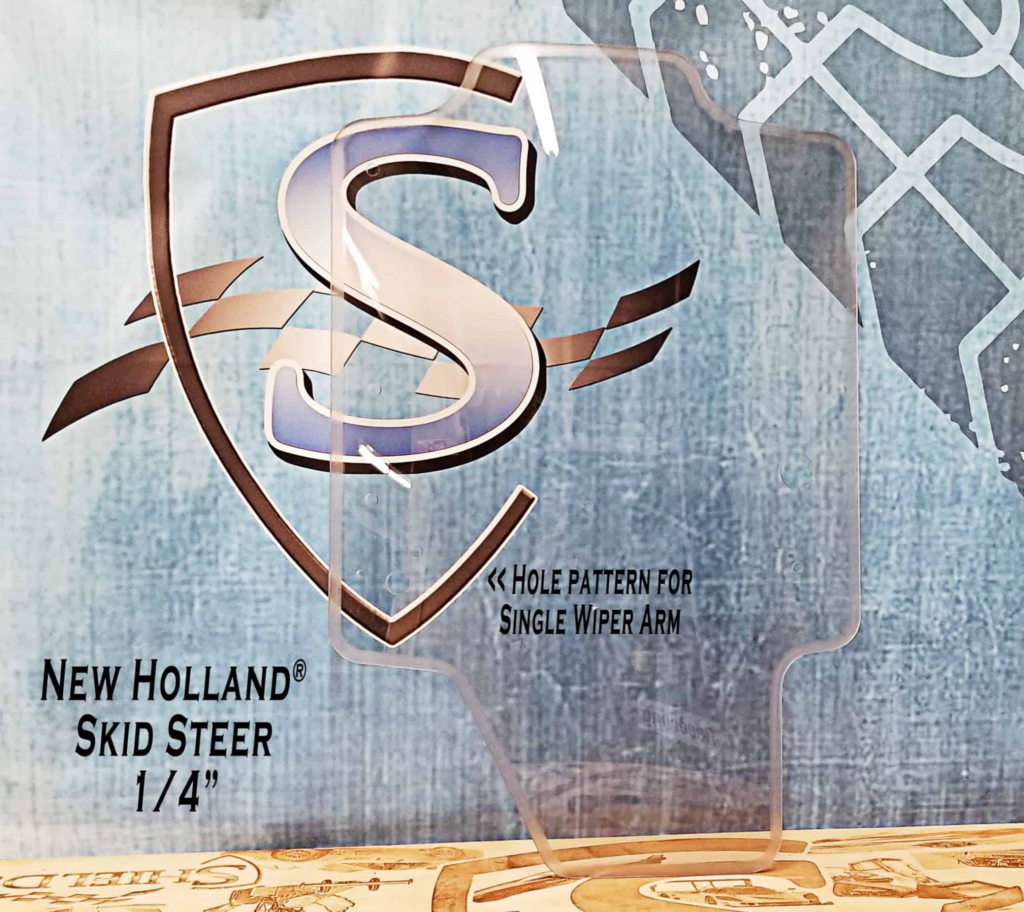

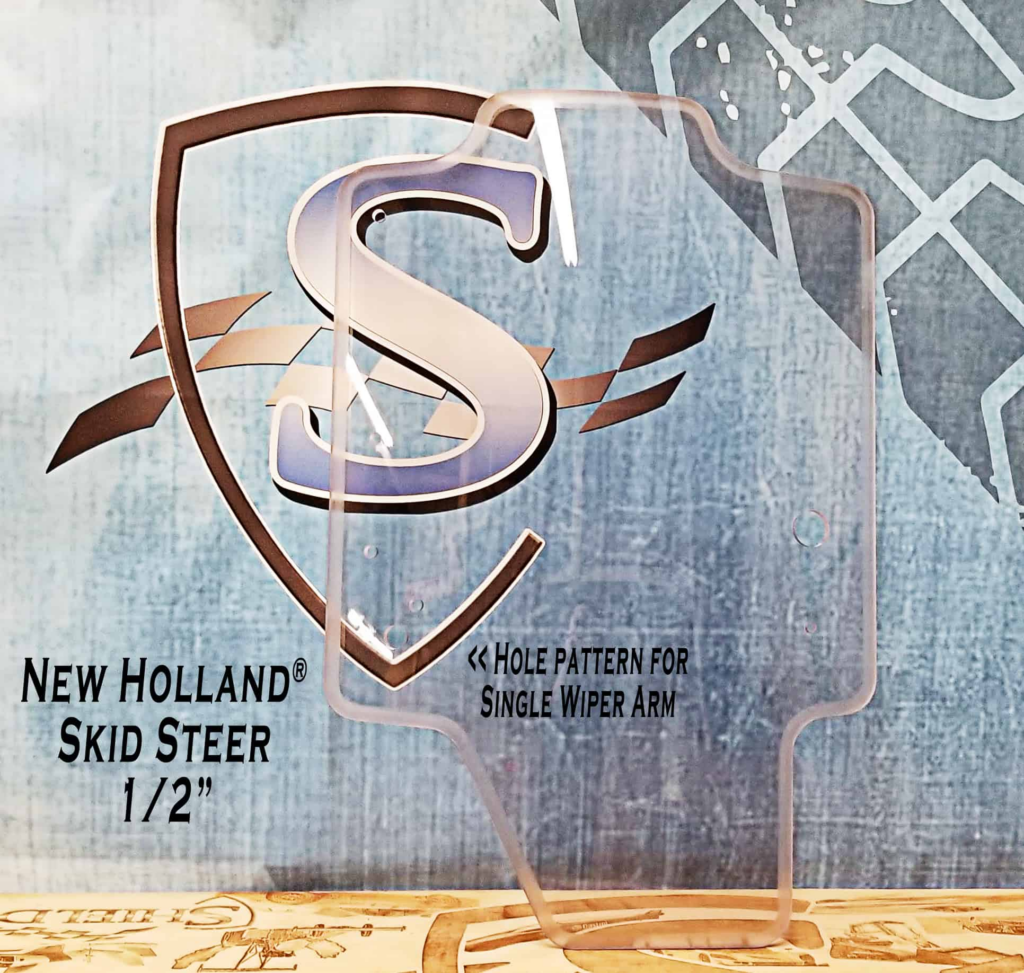

Check the wiper hardware and hole pattern on your existing front windshield. The single- and dual-wiper versions use different mounting patterns.
What thicknesses are available when replacing glass?
Glass replacements are available in 1/4″, 3/8″, and 1/2″ polycarbonate.
What if I am replacing an existing OEM polycarbonate windshield?

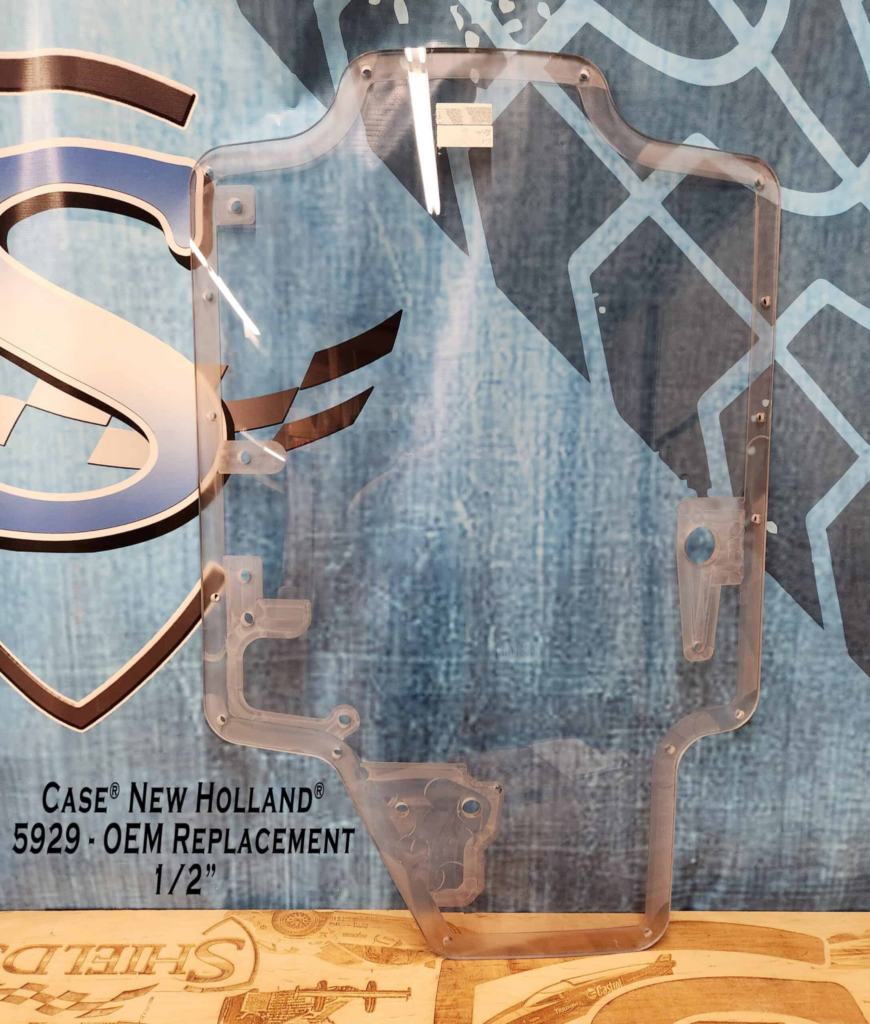

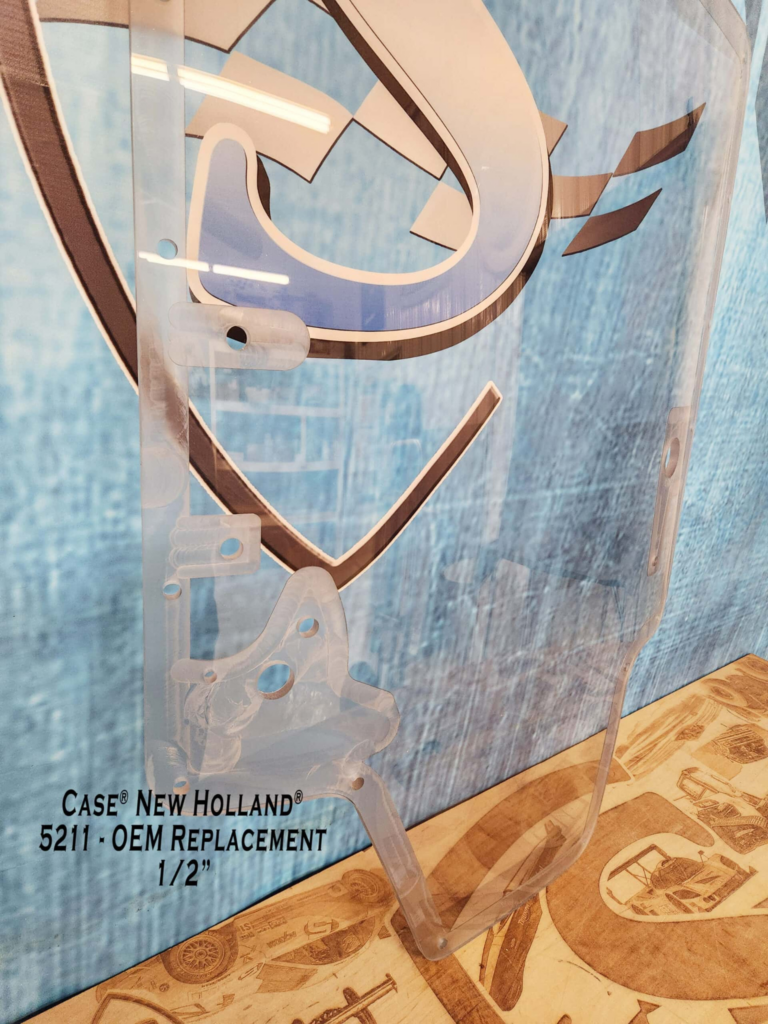

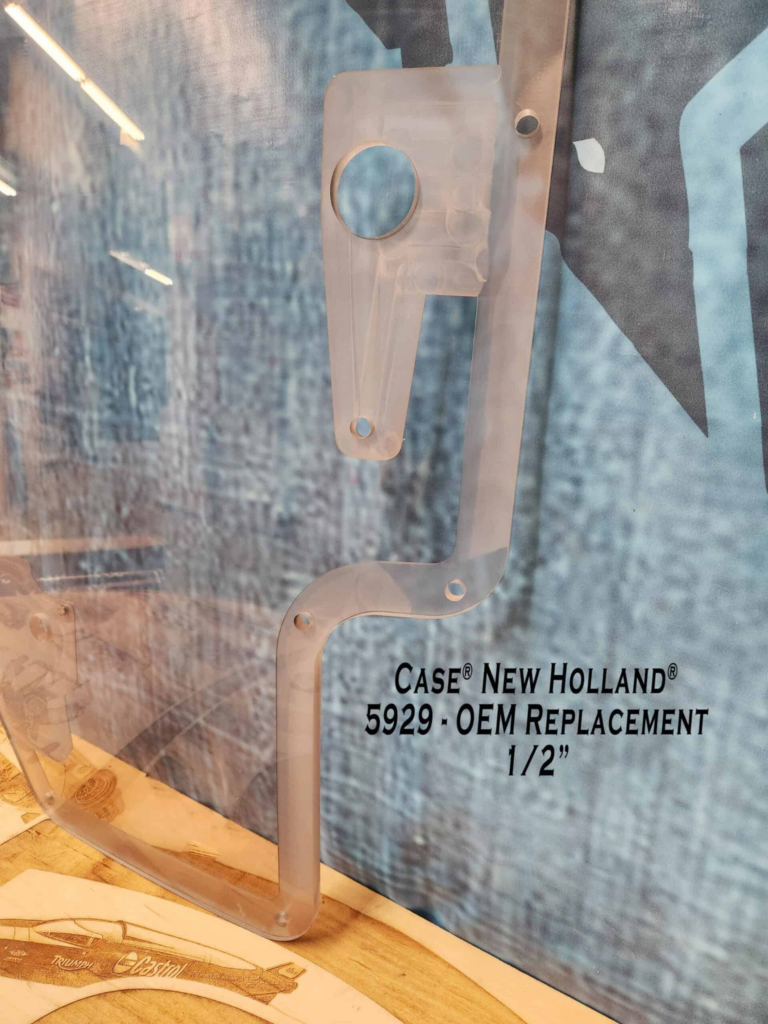

SHIELDS supplies the supported OEM polycarbonate replacements in 1/2″. The thickness of your existing OEM polycarbonate window is also used as a fitment detail, so verify it before ordering.
Why does the thickness of my existing OEM polycarbonate windshield matter?
SHIELDS asks for the existing polycarbonate thickness when matching the correct replacement configuration. If you are unsure of the current thickness, verify it before ordering.
Is tint available?

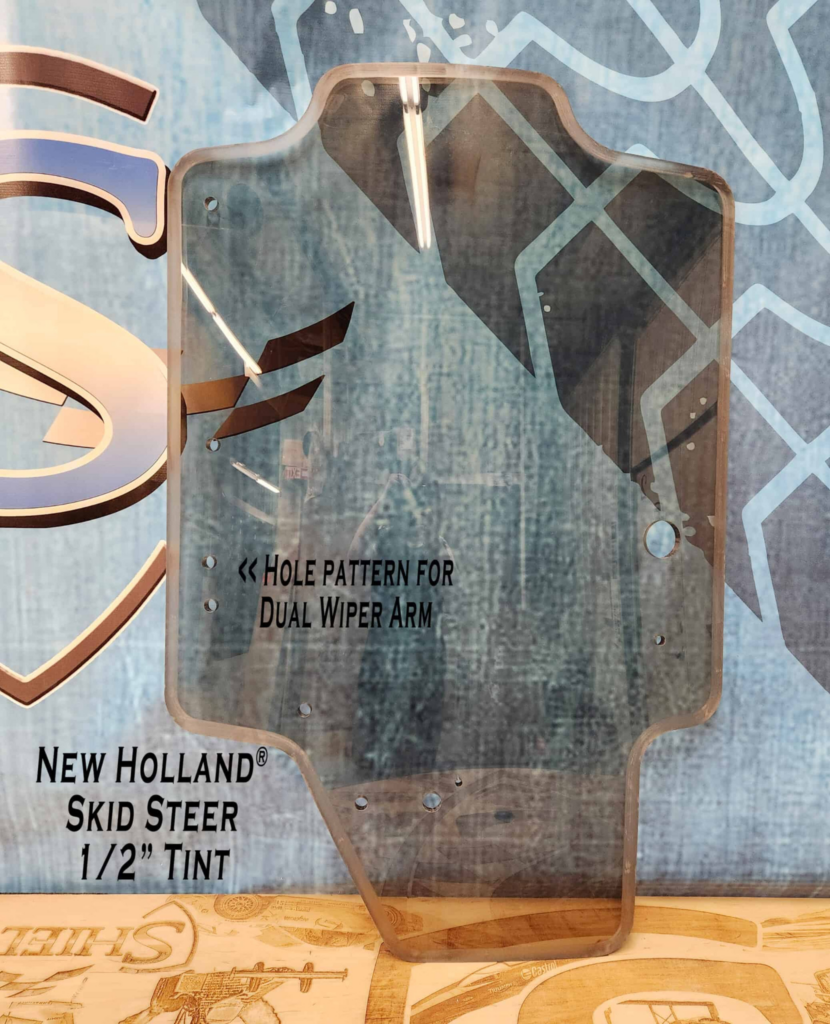

Yes. Tint is available with the 1/2″ windshield and is rated at 50% light transmission.
Is the tint an applied film?
No. The polycarbonate material itself is tinted.
Can I continue using my windshield wiper?
Yes. SUPERCOAT™ is applied to both sides for abrasion resistance during normal windshield-wiper use.
Do thicker windshields require different hardware?
For 3/8″ and 1/2″ glass replacements, SHIELDS specifies longer hinge bolts. The rubber gasket at the wiper mount is also removed for the thicker gauges.
Do I need my machine serial number to verify fitment?
It is a good idea. Case and New Holland used overlapping windshield configurations across some models and production periods, so model, serial number, OEM glass number, and wiper setup are all useful fitment checks.
Is this windshield ballistic-rated or certified for operator protection?
No. SHIELDS does not assign a ballistic rating to these windshields or warrant them for a particular bodily-protection application.
Note: Compatibility depends on the OEM windshield number, single- or dual-wiper configuration, machine model, and serial number. Some models were offered with more than one windshield setup, so always verify the windshield currently installed before ordering.
Common Compatible Machines
Single Wiper – Replaces OEM Glass #84344565
Case: SR130, SR150, SR160, SR175, SR200, SR210, SR220, SR250, SV185, SV250, SV300, TR270, TR320, TV380
New Holland: C227, C232, C238, L213, L215, L216, L218, L220, L221, L223, L225, L230

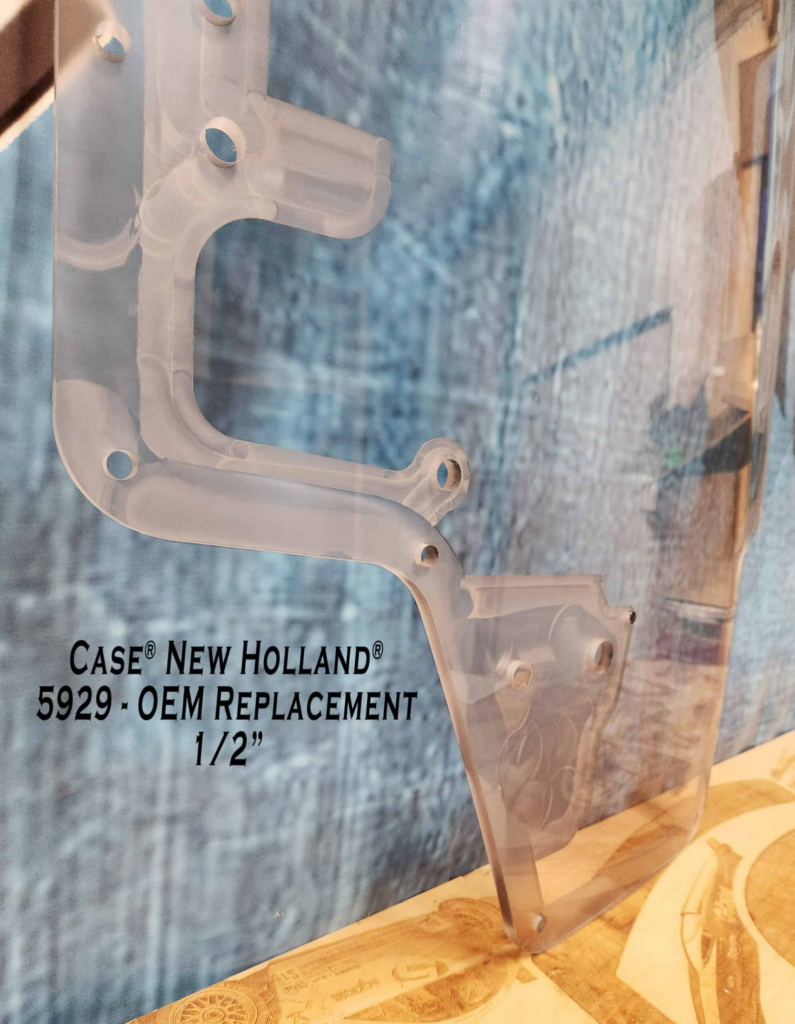

Dual Wiper – Replaces OEM Glass #47405930
Case: SR130, SR130B, SR150, SR150B, SR160, SR160B, SR175, SR175B, SR200, SR200B, SR210, SR210B, SR220, SR220B, SR240, SR240B, SR250, SR250B, SR270, SR270B, SV185, SV185B, SV250, SV250B, SV280, SV280B, SV300, SV300B, SV340, SV340B, TR270, TR270B, TR310, TR310B, TR320, TR320B, TR340, TR340B, TV370, TV370B, TV380, TV380B, TV450, TV450B
New Holland: C227, C232, C234, C237, C238, C245, C327, C330, C332, C334, C337, C338, C345, C362, L213, L216, L218, L318, L321, L221, L228, L230, L234, L313, L313B, L315, L316, L320, L323, L325, L328, L330, L334
SHIELDS provides a limited manufacturer warranty covering qualifying manufacturing defects. Inspect the windshield and confirm fitment before installation.
Upgrade factory glass to polycarbonate.
Replace the supported Case or New Holland front glass with formed polycarbonate built around the correct cab and wiper configuration.
Choose the thickness that fits your application.
Glass replacements are available in 1/4″, 3/8″, and 1/2″, with a 50% tint option available in 1/2″.
Keep your windshield-wiper setup.
SUPERCOAT™ provides abrasion resistance for normal windshield-wiper use while helping protect the material from UV-related hazing.
Match the original wiper configuration.
Separate single- and dual-wiper versions maintain the proper hardware layout for the supported factory windshield.
