SHIELDS | XCMG Polycarbonate Skid Steer Windshield

Name: SHIELDS | XCMG Polycarbonate Skid Steer Windshield - ECHO Eqpt
Brand: SHIELDS
SKU: SW-XCMG
Availability: InStock

Thickness

Tint

Optional SHIELDS Caulk

Estimate shipping to your ZIP

Estimated shipping only — your final shipping cost is confirmed at checkout.

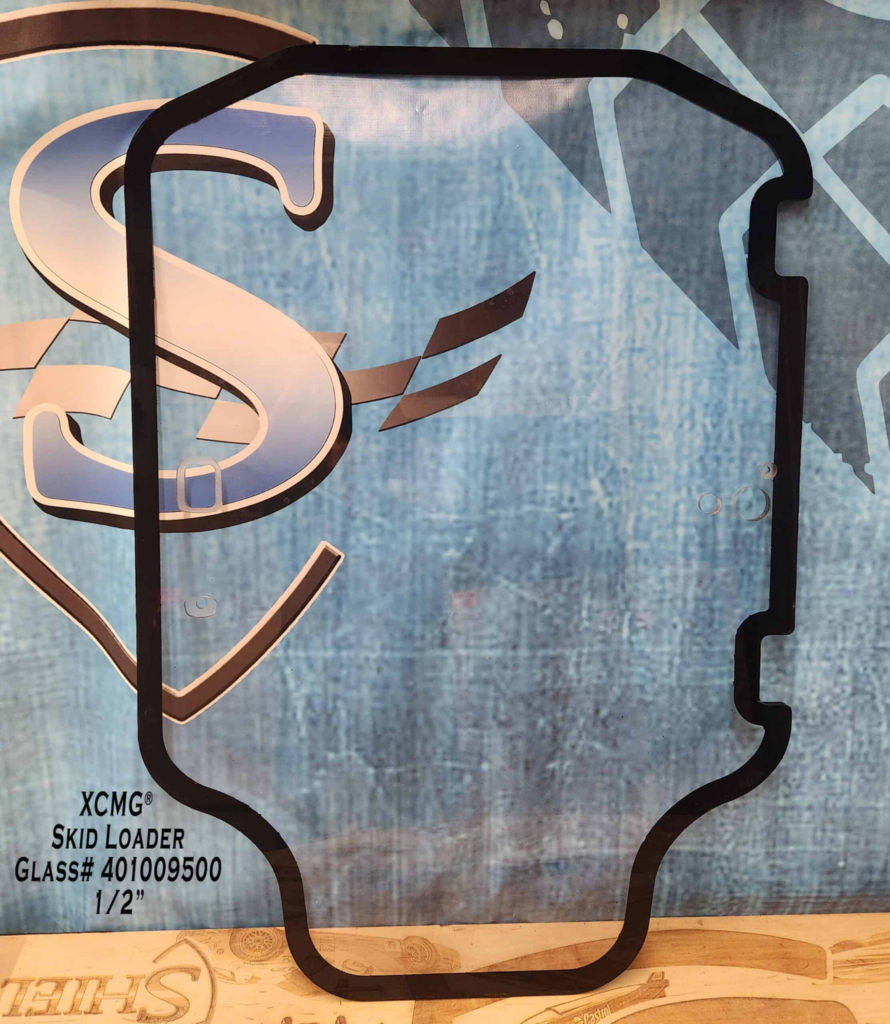

The SHIELDS XCMG polycarbonate windshield replaces the factory front glass on XC7-TV12 and XC7-SC12 skid loaders using OEM glass #401009500. It is formed to match the original windshield, with the edges and mounting holes machined for an OEM-style fit and glue-in installation.

Choose from 1/4″, 3/8″, or 1/2″ clear polycarbonate, with a 1/2″ tinted option also available. SUPERCOAT™ is applied to both sides for abrasion resistance, UV protection, and windshield wiper use, while the fritted edge prepares the windshield for a factory-style adhesive installation.

Features

Formed Polycarbonate Construction: Impact-resistant polycarbonate formed to match the original XCMG windshield shape.
SUPERCOAT™ Protection: Applied to both sides to help resist abrasion, UV damage, and hazing.
Glue-In Installation: Prepared for adhesive installation similar to the original glass windshield.

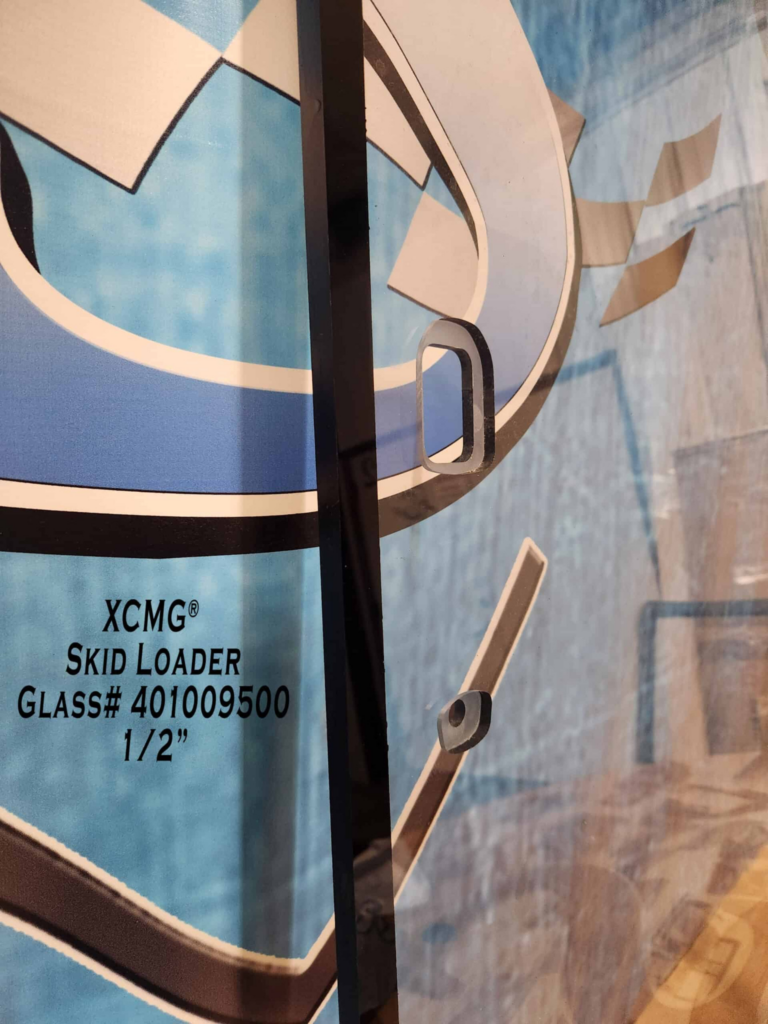

Factory-Style Fit: Milled edges and mounting holes are designed around the OEM glass application.
Factory-Style Black Edge: Helps protect and conceal the adhesive used for the glue-in installation.
Multiple Thickness Options: Available in 1/4″, 3/8″, and 1/2″ clear polycarbonate.
Tinted Option: Tint is available in 1/2″ material with 50% light transmission.
Wiper Compatible: SUPERCOAT™ allows normal windshield wiper use and routine cleaning.

Material: Formed Polycarbonate
Coating: SUPERCOAT™ on Both Sides
Thicknesses: 1/4″, 3/8″, 1/2″
Color Options: Clear; Tint (1/2″ Only)
Tint Light Transmission: 50%
OEM Glass Reference: 401009500
Installation: Glue-In
Edge Finish: Fritted
Edges and Holes: Precision-Milled
Wiper Compatible: Yes

Which XCMG machines does this windshield fit?

This windshield is designed for XCMG XC7-TV12 and XC7-SC12 skid loaders using OEM glass #401009500.

How is this windshield installed?

This is a glue-in replacement designed to install similarly to the original glass windshield. SHIELDS Caulk is available as an add-on for installation.

What thicknesses are available?

The windshield is available in 1/4″, 3/8″, and 1/2″ clear polycarbonate.

Is a tinted windshield available?

Yes. Tint is available in 1/2″ polycarbonate and has 50% light transmission. The tint is built into the material rather than applied as a film.

Can I use the factory windshield wiper?

Yes. SUPERCOAT™ is designed for abrasion resistance while allowing normal windshield wiper use.

Do I need additional mounting hardware?

No additional hardware is required for the correct application. The windshield is formed and machined to match the OEM glass design.

Can I apply aftermarket tint film?

SHIELDS does not recommend aftermarket tint film because SUPERCOAT™ resists adhesives, which can cause films and decals to peel.

Is the 1/2″ windshield forestry or ballistic rated?

No. Thickness alone does not establish a forestry or ballistic rating. Confirm the protection requirements for your application before use.

Note: Fitment is based on the OEM windshield design and glass #401009500. Confirm your machine model and existing windshield before ordering.

Common Compatible Machines

XCMG: XC7-TV12, XC7-SC12

OEM Glass Reference: 401009500

SHIELDS windshields are covered by the manufacturer’s limited warranty for qualifying manufacturing defects, subject to its terms and exclusions.

Improved Impact Resistance

Polycarbonate provides greater resistance to impacts and breakage than conventional glass for demanding equipment applications.

Long-Lasting Visibility

SUPERCOAT™ helps resist scratches, UV damage, and hazing while allowing continued windshield wiper use.

OEM-Style Fit

Formed construction, milled edges, and mounting holes are designed around the original XCMG glass application.

Glue-In Replacement

The fritted edge and glue-in preparation make this windshield a direct replacement for the factory-style adhesive installation.

XCMG XC7-TV12 and XC7-SC12 skid loaders
Replacing damaged or broken OEM glass #401009500
Construction, landscaping, site preparation, and property maintenance
Operators wanting a coated polycarbonate alternative to factory glass
