SHIELDS | Takeuchi TL Series Polycarbonate Skid Steer Windshield

Name: SHIELDS | Takeuchi TL Series Polycarbonate Skid Steer Windshield - ECHO Eqpt
Brand: SHIELDS
SKU: SW-TK-TL
Availability: InStock

Existing Windshield Type

Thickness

Tint

Add SHIELDS Caulk

Estimate shipping to your ZIP

Estimated shipping only — your final shipping cost is confirmed at checkout.

The SHIELDS Takeuchi TL Series Polycarbonate Skid Steer Windshield is a formed replacement for glass #069860295, #0880865301, and #0698600150 on supported Takeuchi TL Series machines. It is available for both gasket and glue-in windshield configurations, with the edge preparation prepared for the correct installation style.

Available in 1/4″, 3/8″, and 1/2″ polycarbonate, with a 50% tint option in 1/2″, each windshield is coated on both sides with SUPERCOAT for abrasion resistance, UV protection, and continued windshield-wiper use. Glue-in configurations are prepared for adhesive installation, while gasket configurations use the appropriate milled-edge setup.

Features

Polycarbonate Replacement Windshield: Replaces glass #069860295, #0880865301, and #0698600150 on supported Takeuchi TL Series machines.
Glass and Polycarbonate Replacement Options: Available for machines currently equipped with factory glass, OEM polycarbonate, or a previous SHIELDS polycarbonate windshield.
Gasket or Glue-In Fitment: Windshield preparation is matched to the machine’s existing installation style.
Three Thickness Options: Available in 1/4″, 3/8″, and 1/2″.
1/2″ Tint Option: Available with 50% light transmission.
SUPERCOAT on Both Sides: Helps resist abrasion, UV exposure, and hazing.
Windshield-Wiper Compatible: Coated for continued use with the windshield wiper.

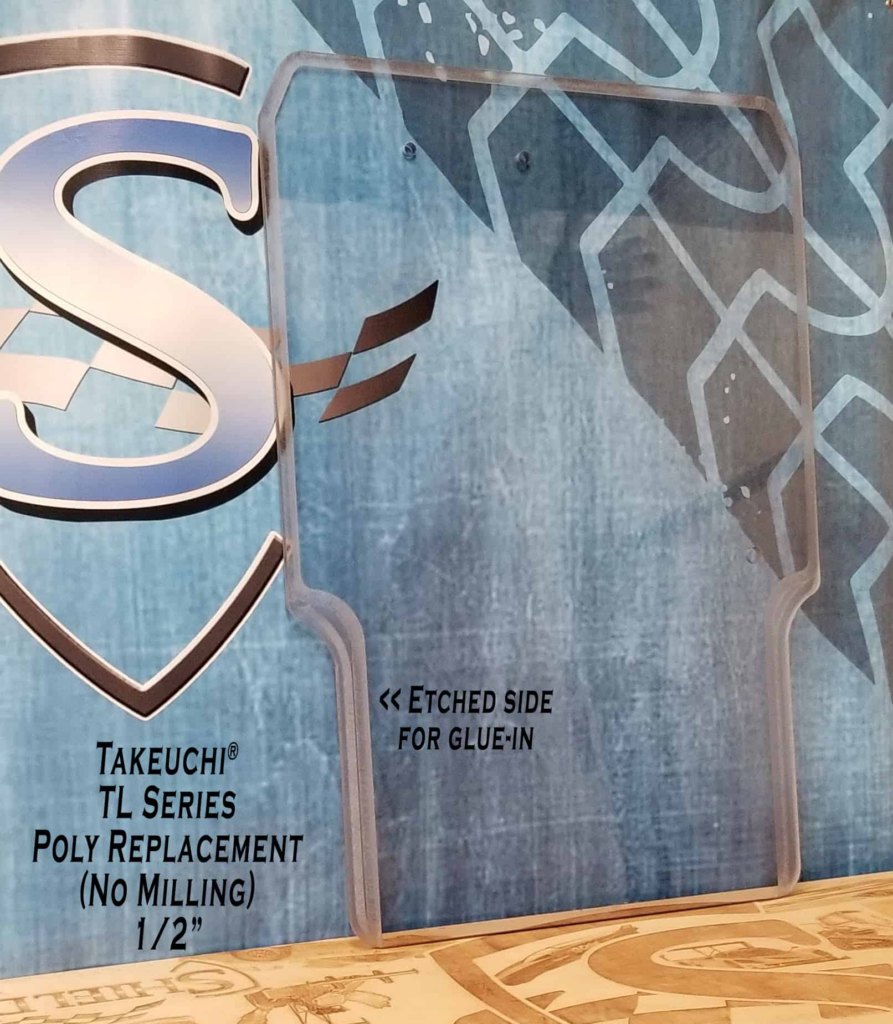

Glue-In Edge Preparation: Glue-in versions are prepared for adhesive bonding to the cab frame.
Milled Gasket Fitment: Gasket-installed versions are machined for the appropriate drop-in fit.
Optional SHIELDS Caulk: SHIELDS Caulk can be added to glue-in configurations for windshield installation.

Material: Polycarbonate
Replaces Takeuchi Glass: #069860295, #0880865301, #0698600150
Thickness Options: 1/4″, 3/8″, 1/2″
Tint: Available in 1/2″
Tint Light Transmission: 50% LTM
Coating: SUPERCOAT on both sides
Current Windshield Types Supported: Glass, OEM polycarbonate, SHIELDS polycarbonate
Installation Options: Gasket or glue-in
Glue-In Edge: Prepared for adhesive installation
Gasket Edge: Milled for gasket installation
Windshield Wiper Compatible: Yes
Glue-In Adhesive: Optional SHIELDS Caulk

What Takeuchi glass does this windshield replace?

This windshield replaces glass #069860295, #0880865301, and #0698600150 on supported Takeuchi TL Series machines.

Which Takeuchi models use this windshield?

SHIELDS lists TL8, TL10, TL12, TL130, TL140, TL150, TL230, TL240, and TL250 models for this windshield family.

Is there anything different about the TL250?

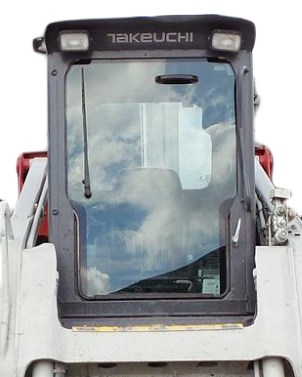

Yes. SHIELDS notes that there are two TL250 windshield versions. Fitment should be confirmed before ordering a TL250 windshield rather than relying on the model number alone.

Can this replace an existing OEM polycarbonate windshield?

Yes. SHIELDS offers configurations for customers replacing factory glass, OEM polycarbonate, or a previous SHIELDS polycarbonate windshield.

Why do I need to identify whether my current windshield is gasket or glue-in?

The windshield edge preparation differs by installation style. Gasket-installed windshields use the appropriate milled-edge configuration, while glue-in windshields are prepared for adhesive installation.

What thicknesses are available?

Choose from 1/4″, 3/8″, or 1/2″ polycarbonate.

Is tint available?

Yes. Tint is available with the 1/2″ windshield.

How dark is the tint?

SHIELDS specifies the tinted material at 50% light transmission.

Is the tint an applied film?

No. The polycarbonate material itself is tinted rather than using an applied film.

Can I continue using my windshield wiper?

Yes. SUPERCOAT is applied to both sides for abrasion resistance during normal windshield-wiper use and cleaning.

What is the SHIELDS Caulk option for?

SHIELDS Caulk is an installation adhesive for glue-in windshield configurations. It is not needed when the windshield installs with a gasket.

How much SHIELDS Caulk is typically needed?

SHIELDS says most windows require one tube, and the tube fits a standard caulking gun.

Is this windshield ballistic-rated or certified for operator protection?

No. This windshield does not carry a ballistic rating or a guarantee of bodily protection for a particular application.

Note: Compatibility depends on your machine’s existing windshield configuration, glass #, and installation method. TL250 machines have two windshield versions, so TL250 fitment should be confirmed before ordering. Always verify your existing windshield before purchase.

Common Compatible Machines

Takeuchi: TL8, TL10, TL12, TL130, TL140, TL150, TL230, TL240, TL250

SHIELDS manufacturer warranty applies to qualifying manufacturing defects according to the manufacturer’s current warranty terms. Inspect the windshield and confirm fitment before installation or use.

Replace factory glass or polycarbonate.

This windshield family supports machines currently equipped with factory glass, OEM polycarbonate, or a previous SHIELDS polycarbonate windshield.

Match the correct installation style.

Gasket and glue-in configurations receive the appropriate edge preparation for the existing cab setup.

Choose the thickness that fits your application.

Select from 1/4″, 3/8″, or 1/2″ polycarbonate, with a 50% tinted option available in 1/2″.

Keep using your windshield wiper.

SUPERCOAT helps resist abrasion during normal windshield-wiper use and cleaning while helping protect against UV-related hazing.

Add adhesive when you need it.

Glue-in configurations can be ordered with SHIELDS Caulk so the recommended windshield adhesive is included with the replacement.

Takeuchi TL Series skid steer windshields
TL8, TL10, TL12, TL130, TL140, TL150, TL230, TL240, and TL250
Replacing factory glass
Replacing OEM polycarbonate
Replacing an existing SHIELDS polycarbonate windshield
Gasket-installed windshield configurations
Glue-in windshield configurations
Machines retaining windshield-wiper use
