POLYCARBONATE DOORS

SHIELDS | John Deere D & E Series Polycarbonate Skid Steer Windshield

Name: SHIELDS | John Deere D & E Series Polycarbonate Skid Steer Windshield - ECHO Eqpt
Brand: SHIELDS
SKU: SW-JDDE
Availability: InStock

Host Machine Series

Thickness

Tint

Estimate shipping to your ZIP

Estimated shipping only — your final shipping cost is confirmed at checkout.

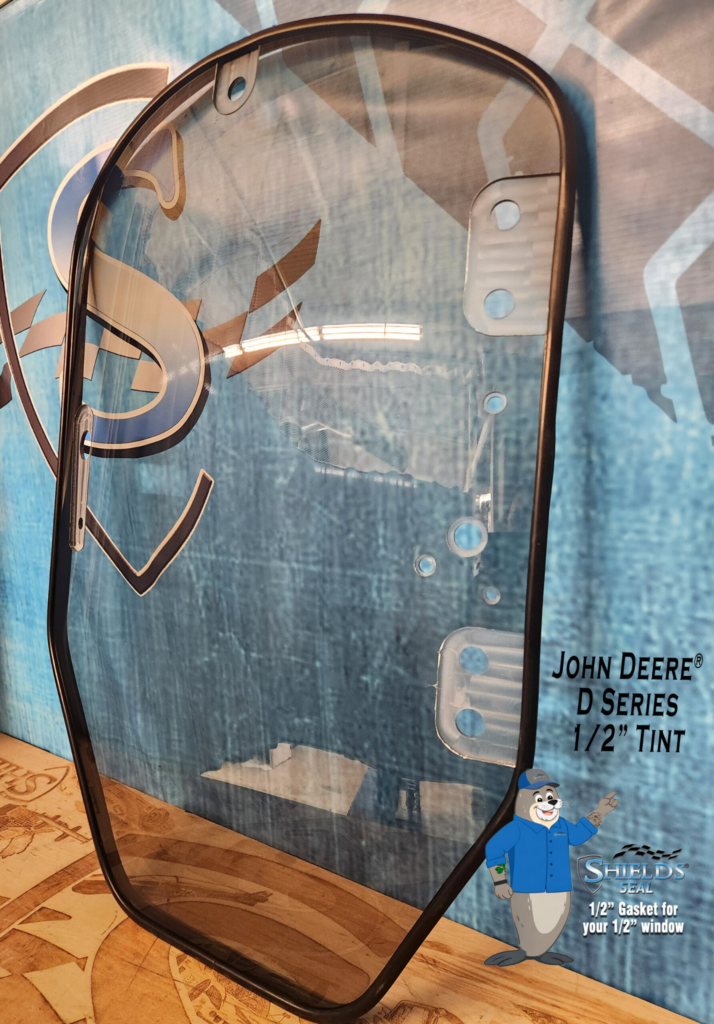

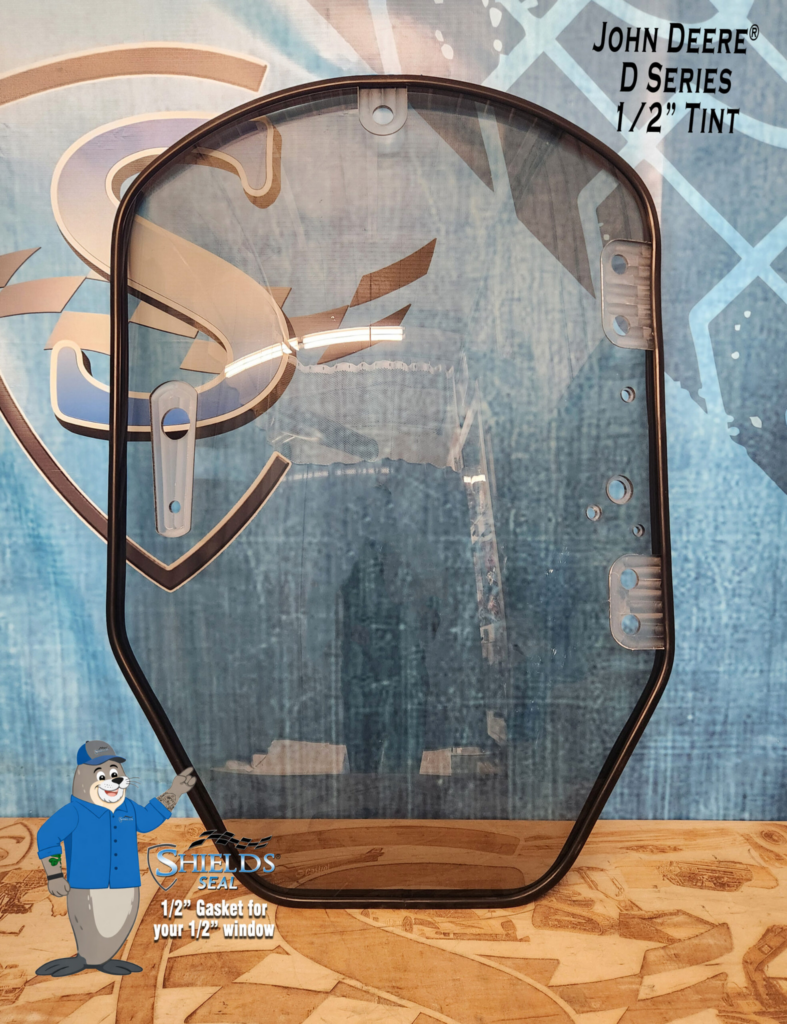

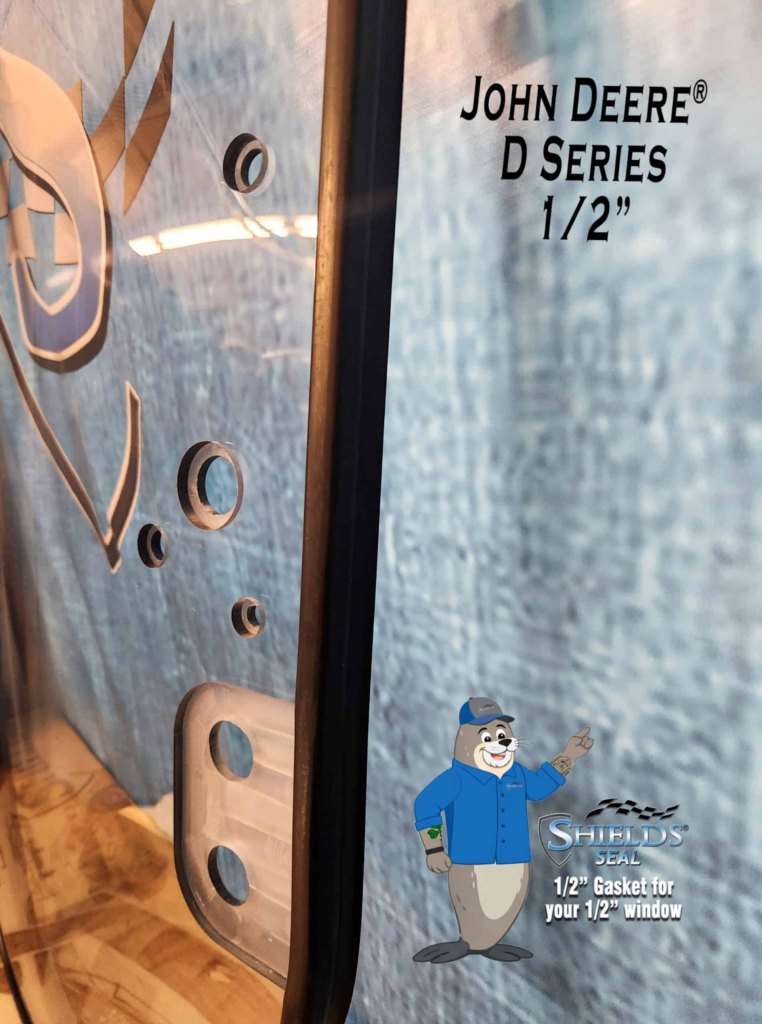

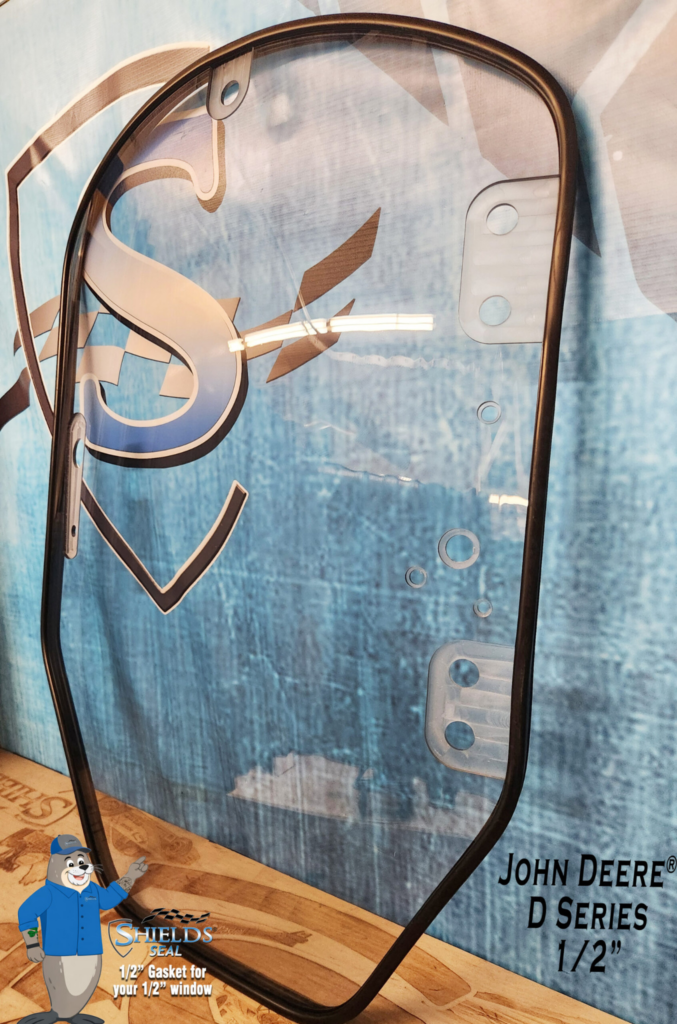

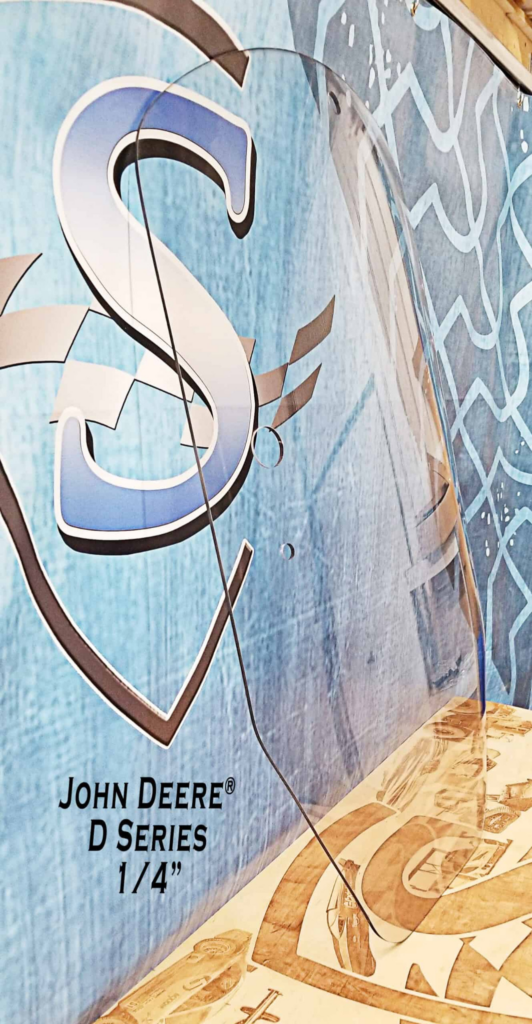

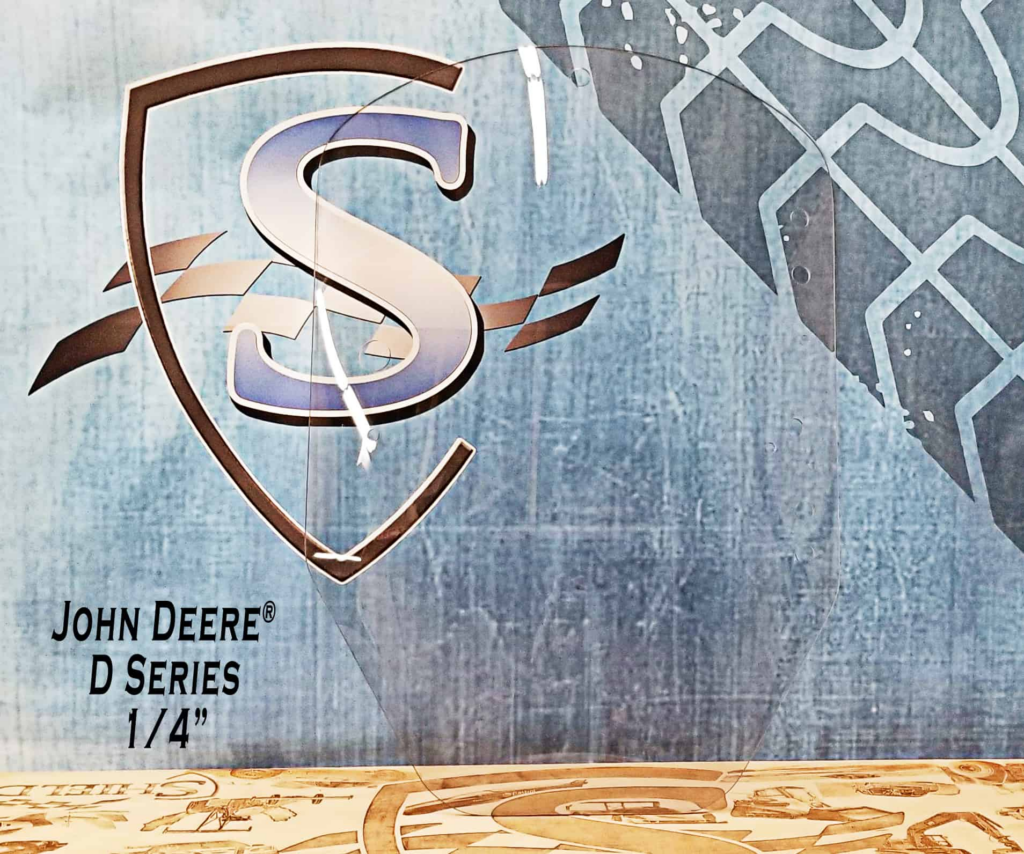

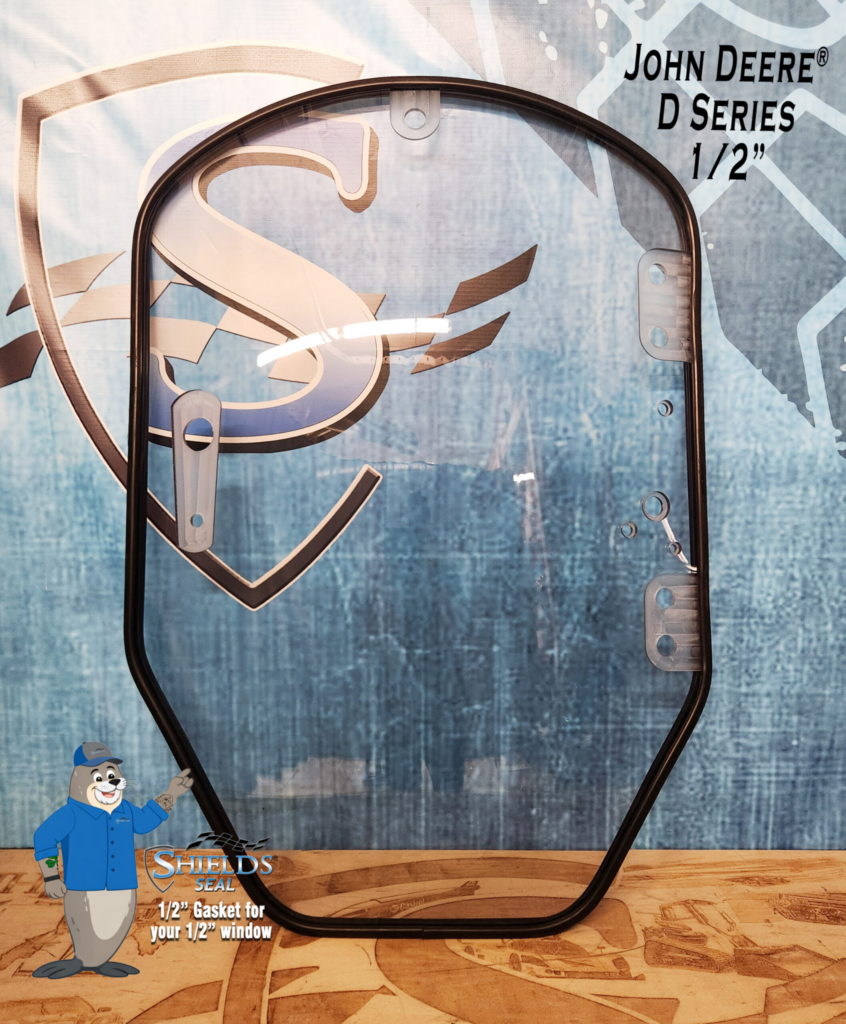

The SHIELDS John Deere D & E Series Polycarbonate Skid Steer Windshield is a formed replacement for John Deere glass #T312628. It fits supported D Series machines and E Series machines with serial number 269401 or below, matching the original windshield profile, mounting locations, and factory hardware.

Available in 1/4″, 3/8″, and 1/2″ polycarbonate, with a 50% tint option in 1/2″, each windshield is coated on both sides with SHIELDS SUPERCOAT for abrasion resistance, UV protection, and continued windshield-wiper use. The 1/2″ version also includes the SHIELDS Seal gasket already installed.

Polycarbonate Replacement for Factory Glass: Replaces John Deere glass #T312628.
D & E Series Fitment: Fits supported D Series models and E Series machines through serial 269401.
Three Thickness Options: Available in 1/4″, 3/8″, and 1/2″.
1/2″ Tint Option: Available with 50% light transmission.
SHIELDS Seal on 1/2″: The 1/2″ windshield arrives with the gasket already installed.
SUPERCOAT on Both Sides: Helps resist abrasion, UV exposure, and hazing.
Windshield-Wiper Compatible: Coated for continued use with the factory windshield wiper.
Factory-Style Fit: Formed and machined around the original mounting locations.
Original Hardware Reuse: No additional mounting hardware is required for the supported factory configuration.

Material: Polycarbonate
Replaces John Deere Glass: #T312628
Thickness Options: 1/4″, 3/8″, 1/2″
Tint: Available in 1/2″
Tint Light Transmission: 50% LTM
Coating: SHIELDS SUPERCOAT on both sides
E Series Serial Range: 269401 and below
Windshield Wiper Compatible: Yes
Original Hardware Reuse: Yes
Additional Hardware Required: No
1/2″ Gasket: SHIELDS Seal installed

What John Deere glass does this windshield replace?

This windshield replaces John Deere glass #T312628.

Which E Series machines use this windshield?

This windshield fits supported E Series machines with serial 269401 and below. E Series machines with serial 269402 and above use the later G-style windshield.

How can I tell which windshield my E Series machine needs?

Check the machine serial number first. You can also compare your existing windshield and mounting-hole arrangement with the fitment diagram included in the product photos.

What thicknesses are available?

Choose from 1/4″, 3/8″, or 1/2″ polycarbonate.

Is tint available?

Yes. Tint is available with the 1/2″ windshield.

How dark is the tint?

SHIELDS specifies the tinted polycarbonate at 50% light transmission.

Is the tint an applied film?

No. The tint is part of the polycarbonate material rather than an applied film.

What is the SHIELDS Seal?

The 1/2″ version comes with SHIELDS’ purpose-built gasket already installed while retaining the drop-in replacement design.

Do the 1/4″ and 3/8″ versions include the SHIELDS Seal?

No. The SHIELDS Seal is used with the 1/2″ windshield.

Can I continue using my windshield wiper?

Yes. SUPERCOAT is applied to both sides for abrasion resistance during normal windshield-wiper use and cleaning.

Can I reuse my original hardware?

Yes. The windshield is formed and machined around the supported factory mounting locations so the original hardware can be reused.

Is this windshield ballistic-rated or certified for operator protection?

No. This windshield does not carry a ballistic rating or a guarantee of bodily protection for a particular application.

Note: Compatibility depends on your machine using John Deere glass #T312628. For E Series machines, this windshield is for serial 269401 and below. E Series machines with serial 269402 and above use the later G-style windshield. Always verify your machine’s glass #, serial number, and mounting configuration before ordering.

Common Compatible Machines

John Deere D Series: 318D, 319D, 320D, 323D, 326D, 328D, 329D, 332D, 333D

John Deere E Series – Serial 269401 or Below: 318E, 319E, 320E, 323E, 326E, 328E, 329E, 332E, 333E

SHIELDS manufacturer warranty applies to qualifying defects according to the manufacturer’s current warranty terms. Inspect the windshield and confirm fitment before installation or use.

Upgrade factory glass to polycarbonate.

Replace the original John Deere windshield with coated polycarbonate formed around the factory cab profile, mounting locations, and windshield hardware.

Choose the thickness that fits your application.

Select from 1/4″, 3/8″, or 1/2″ polycarbonate, with a tinted option available in 1/2″.

Keep using your windshield wiper.

SUPERCOAT helps resist abrasion during normal windshield-wiper use and cleaning while helping protect against UV-related hazing.

Simplify the 1/2″ installation.

The 1/2″ windshield arrives with the SHIELDS Seal gasket already installed while retaining the drop-in replacement design.

John Deere D Series skid steers and compact track loaders
John Deere E Series machines through serial 269401
Replacing John Deere glass #T312628
Upgrading factory glass to coated polycarbonate
Machines retaining the factory windshield wiper
Applications needing 1/4″, 3/8″, or 1/2″ polycarbonate
Operators wanting clear or 50% tinted 1/2″ polycarbonate
