SHIELDS | John Deere D Series Polycarbonate Excavator Windshield

Name: SHIELDS | John Deere D Series Polycarbonate Excavator Windshield - ECHO Eqpt
Brand: SHIELDS
SKU: SW-JDD-EX
Availability: InStock

Window Options

Thickness

Tint

Estimate shipping to your ZIP

Estimated shipping only — your final shipping cost is confirmed at checkout.

The SHIELDS John Deere D Series polycarbonate excavator windshield replaces the upper or lower cab glass on a wide range of John Deere D Series excavators. The same windshield design also fits compatible Hitachi ZAXIS ZX-3 machines. Order the upper windshield, lower windshield, or both together as a set.

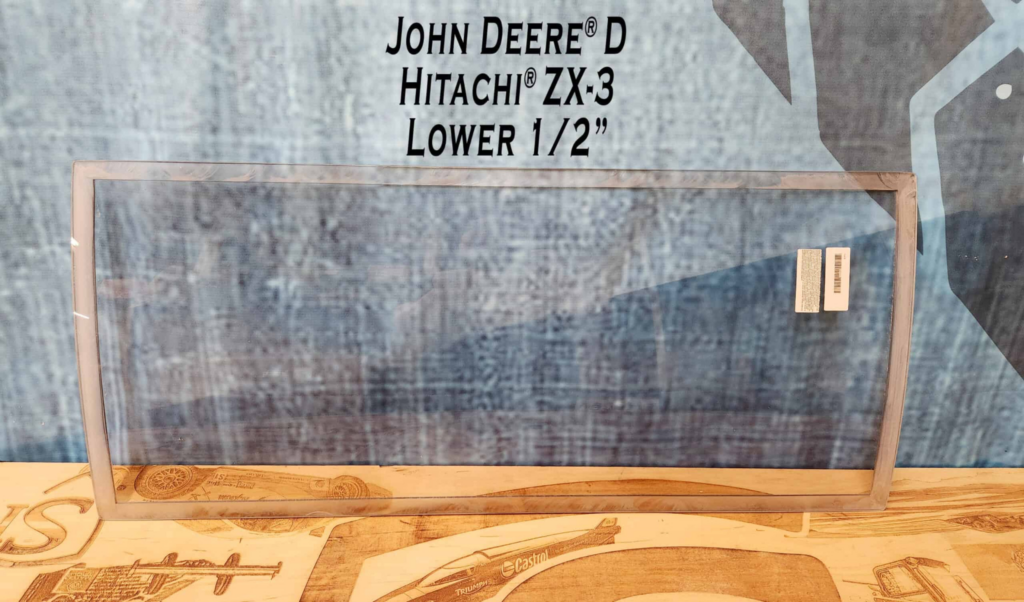

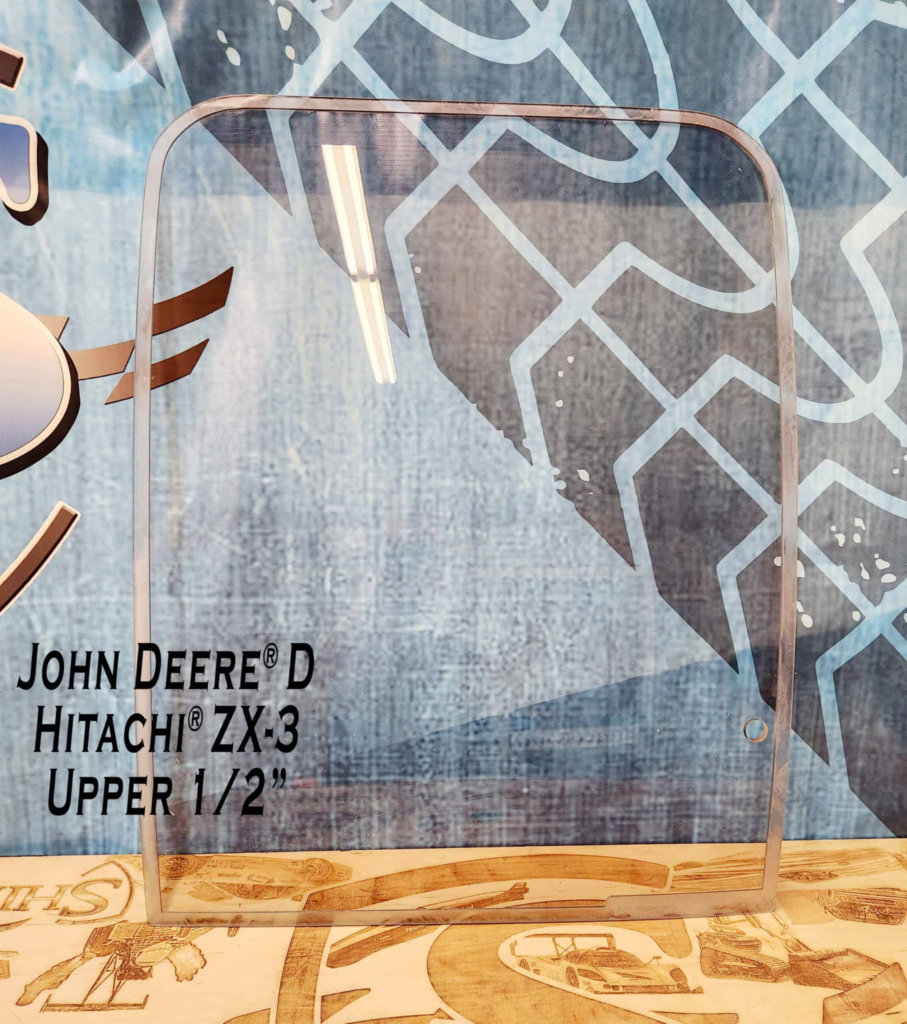

Both windshield sections are curved to match the original glass and are available in 1/4″, 3/8″, and 1/2″ clear polycarbonate, with a 1/2″ tinted option also available. SUPERCOAT™ is applied to both sides for abrasion resistance, UV protection, and continued windshield wiper use.

Features

Upper, Lower, or Complete Set: Order the upper windshield, lower windshield, or both pieces together.

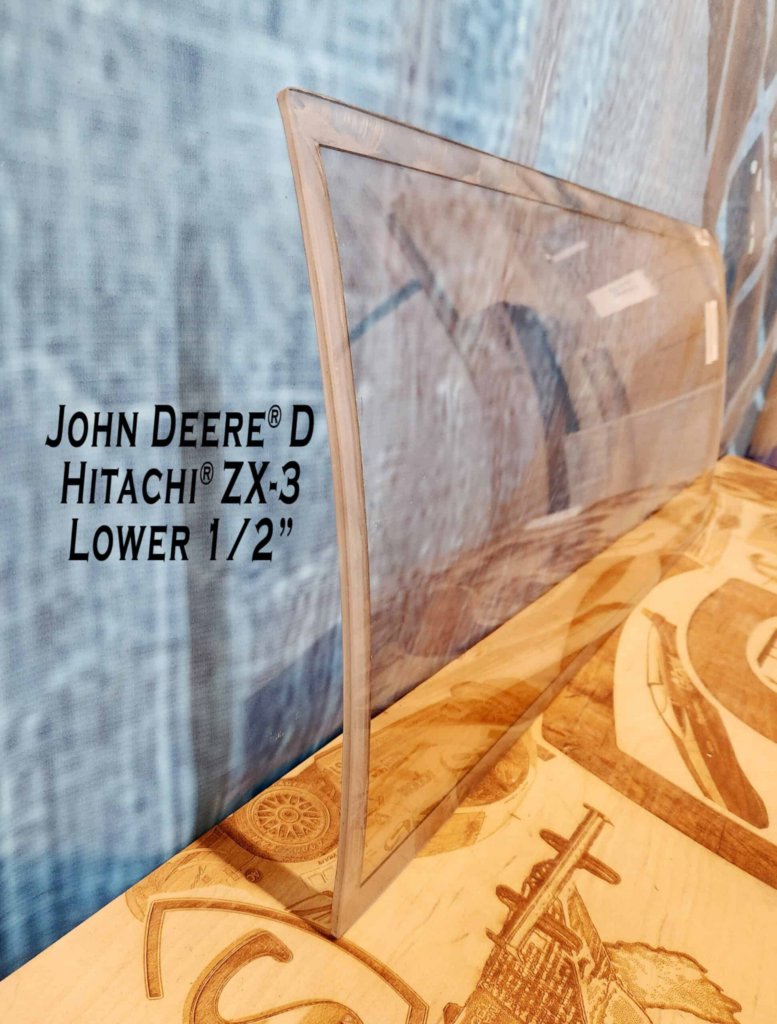

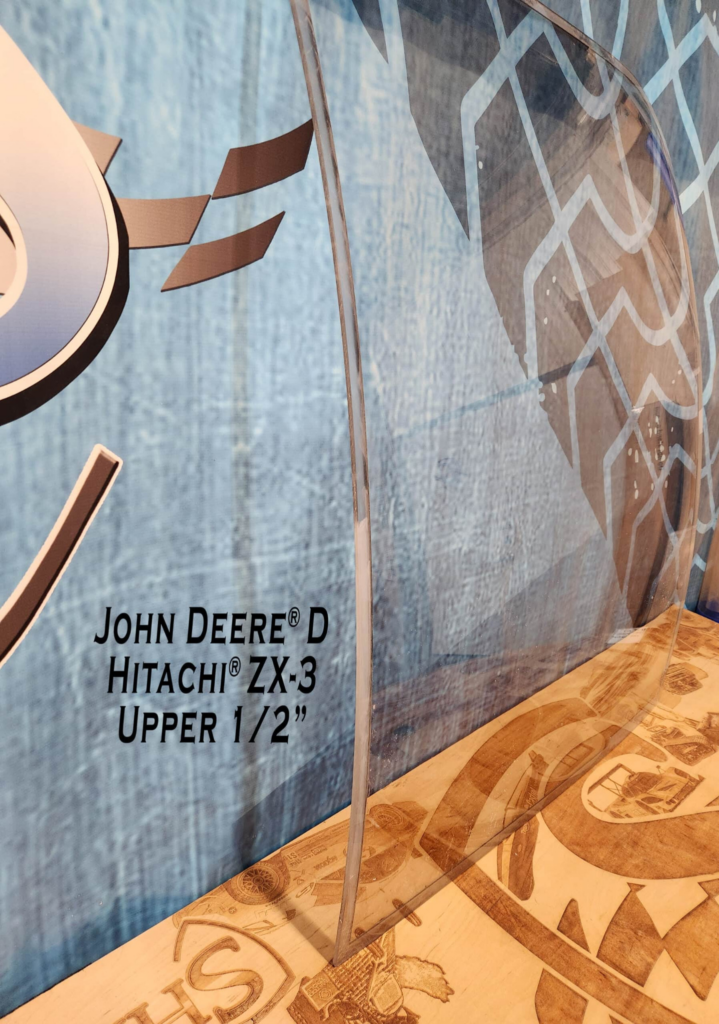

Curved OEM-Style Shape: Both windshield sections are curved to match the original factory glass.
SUPERCOAT™ Protection: Applied to both sides to help resist abrasion, UV damage, and hazing.
Factory-Style Fit: Precision-machined edges are designed around the OEM glass application so the original hardware can be reused.
Multiple Thickness Options: Available in 1/4″, 3/8″, and 1/2″ clear polycarbonate.
Tinted Option: Tint is available in 1/2″ material with 50% light transmission.
Wiper Compatible: SUPERCOAT™ allows normal windshield wiper use and routine cleaning.
John Deere & Hitachi Fitment: Designed around shared windshield applications used across John Deere D Series and Hitachi ZX-3 excavators.

Material: Formed Polycarbonate
Coating: SUPERCOAT™ on Both Sides
Window Options: Upper Windshield; Lower Windshield; Upper + Lower Set
Thicknesses: 1/4″, 3/8″, 1/2″
Color Options: Clear; Tint (1/2″ Only)
Tint Light Transmission: 50%
John Deere Upper OEM Glass References: T396392; 4651653
John Deere Lower OEM Glass References: T396635; 4651654
Hitachi Upper OEM Glass Reference: T396392
Hitachi Lower OEM Glass Reference: T396635
Windshield Shape: Curved
Wiper Compatible: Yes
Original Hardware Compatible: Yes

Which John Deere excavators does this windshield fit?

This windshield fits John Deere 120D, 160DLC, 190DW, 200DLC, 220DW, 240DLC, 270DLC, 350DLC, 450DLC, 650DLC, and 850DLC excavators.

Does this windshield also fit Hitachi excavators?

Yes. Compatible Hitachi ZAXIS ZX-3 models are listed below under Compatible Machines. Confirm the OEM glass number before ordering.

Can I order just one windshield section?

Yes. Choose the Upper Windshield or Lower Windshield individually, or select the Upper + Lower Set to replace both sections together.

How do I confirm which windshield I need?

Check the OEM glass number on your existing windshield when possible. The John Deere upper replaces #T396392 or #4651653, while the lower replaces #T396635 or #4651654.

What if I don’t see my glass number listed?

Call Echo and we’ll help verify the correct windshield for your machine before you order.

What thicknesses are available?

Both upper and lower windshields are available in 1/4″, 3/8″, and 1/2″ clear polycarbonate.

Is a tinted windshield available?

Yes. Tint is available in 1/2″ polycarbonate with 50% light transmission.

Are the windshields curved?

Yes. Both the upper and lower windshield are curved to match the original glass.

Can I reuse the original mounting hardware?

Yes. SHIELDS machines the windshield to accommodate the original hardware across the available thicknesses.

Can I use the windshield wiper?

Yes. SUPERCOAT™ is designed for normal windshield wiper use and routine cleaning.

Is the 1/2″ windshield forestry or ballistic rated?

No. Thickness alone does not establish a forestry or ballistic rating. Confirm the protection requirements for your machine and application before use.

Note: Verify the OEM glass number before ordering. Several John Deere and Hitachi excavators share this windshield design, but model name alone should not be used as the only fitment check. Don’t see your glass number? Call Echo and we’ll help verify the correct windshield.

Common Compatible Machines

John Deere: 120D, 160DLC, 190DW, 200DLC, 220DW, 240DLC, 270DLC, 350DLC, 450DLC, 650DLC, 850DLC

Hitachi ZAXIS: 120-3, 160LC-3, 190W-3, 200LC-3, 210W-3, 240LC-3, 270LC-3, 350LC-3, 450LC-3, 650LC-3, 850LC-3

John Deere Upper: OEM Glass #T396392 / #4651653

John Deere Lower: OEM Glass #T396635 / #4651654

Hitachi Upper: OEM Glass #T396392

Hitachi Lower: OEM Glass #T396635

SHIELDS windshields are covered by the manufacturer’s limited warranty for qualifying manufacturing defects, subject to its terms and exclusions.

Improved Impact Resistance

Polycarbonate provides greater resistance to impacts and breakage than conventional glass for demanding excavator applications.

Long-Lasting Visibility

SUPERCOAT™ helps resist scratches, UV damage, and hazing while allowing continued windshield wiper use.

OEM-Style Curved Fit

Both sections are formed around the original curved glass design and machined so the existing mounting hardware can be reused.

Flexible Replacement Options

Order the upper windshield, lower windshield, or both together, with three clear thicknesses and a 1/2″ tinted option available.

John Deere D Series excavators
Compatible Hitachi ZAXIS ZX-3 excavators
Replacing damaged upper or lower cab glass
Construction, excavation, demolition, and site preparation
Operators wanting a coated polycarbonate alternative to conventional glass
