The SHIELDS John Deere G Series polycarbonate excavator windshield replaces the upper or lower cab glass on a wide range of John Deere G Series excavators, from the 130G through the 870G. The same windshield design also fits numerous Hitachi ZAXIS ZX-5 and ZX-6 excavators. Order the upper windshield, lower windshield, or both together as a set.

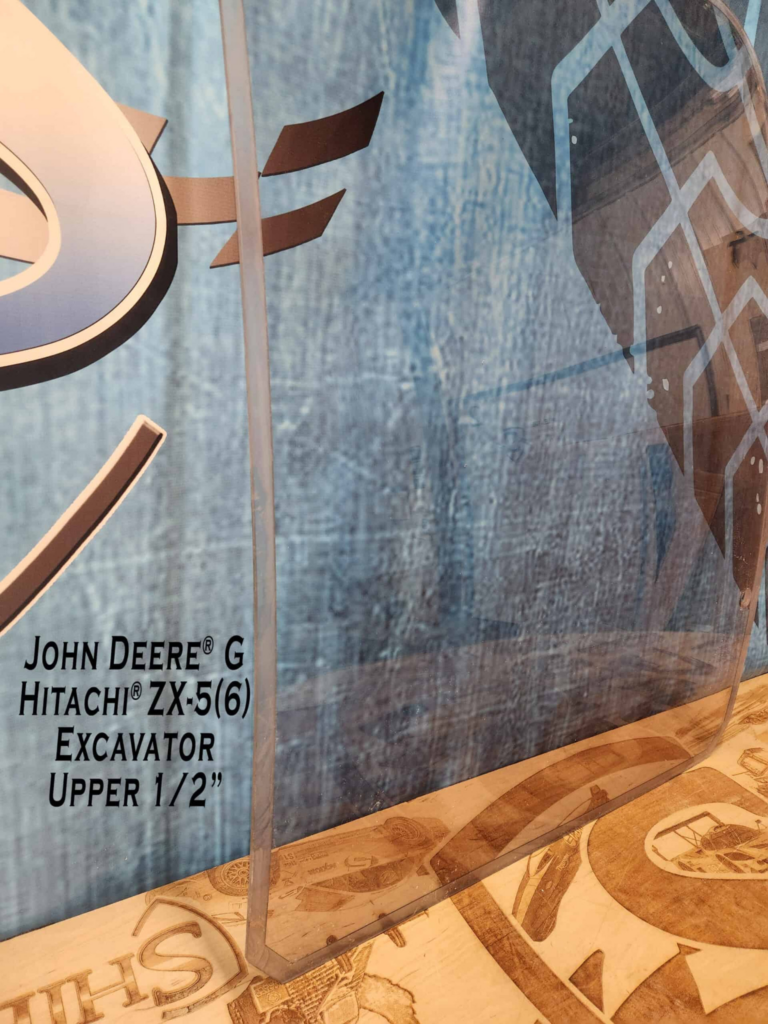

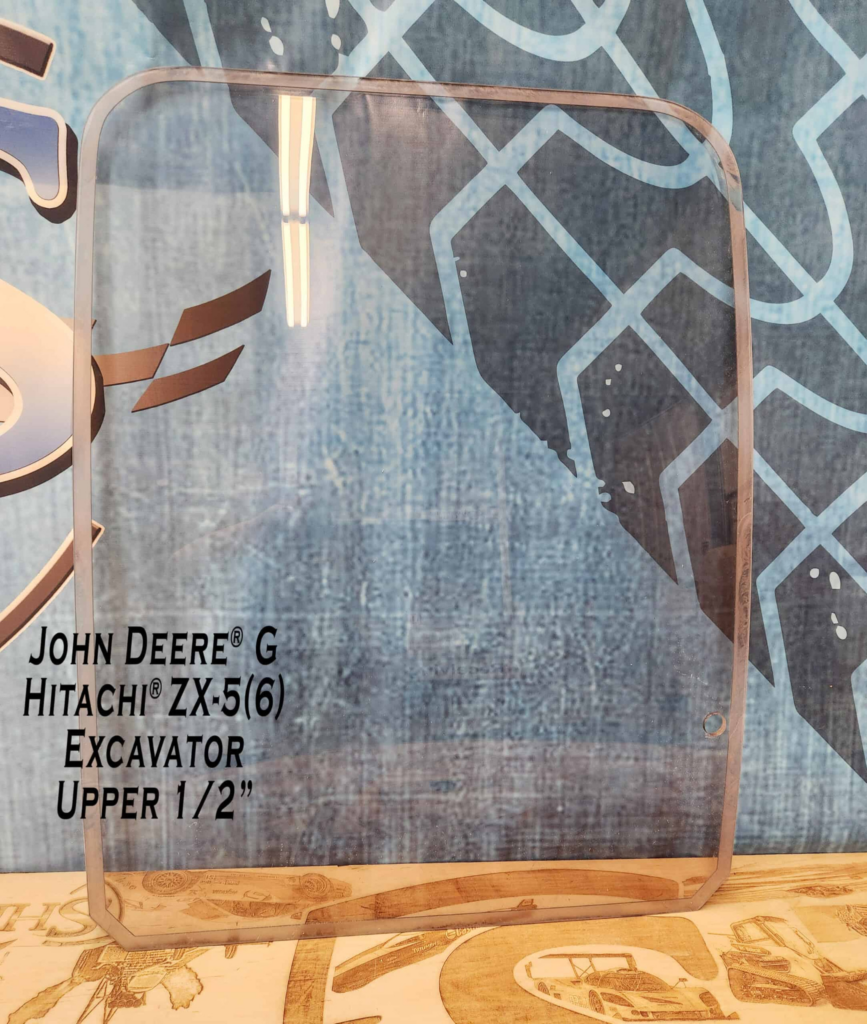

Both windshield sections are curved to match the original glass and are available in 1/4″, 3/8″, and 1/2″ clear polycarbonate, with a 1/2″ tinted option also available. SUPERCOAT™ is applied to both sides for abrasion resistance, UV protection, and continued windshield wiper use.
Which John Deere excavators does this windshield fit?
SHIELDS lists this windshield for John Deere 130G, 160G, 180G, 190GW, 200G, 210G, 230GW, 290G, 300G, 345GLC, 380G, 470G, 670G, and 870G excavators.
What if I don’t see my glass number listed?
Call Echo and we’ll help verify the correct windshield for your machine before you order.
Does this windshield also fit Hitachi excavators?
Yes. The same windshield design is used across a broad range of Hitachi ZAXIS ZX-5 and ZX-6 excavators. Confirm the OEM glass number before ordering.
Can I order just one windshield section?
Yes. Choose the Upper Windshield or Lower Windshield individually, or select the Upper + Lower Set to replace both sections together.
How do I confirm which windshield I need?
Check the OEM glass number on the existing windshield when possible. John Deere upper glass is #T396393 or #FYA00001495, while the lower is #T396635. Hitachi applications use upper glass #T396393 and lower glass #T396635 or #4651654.
What thicknesses are available?
Both upper and lower windshields are available in 1/4″, 3/8″, and 1/2″ clear polycarbonate.
Is a tinted windshield available?
Yes. Tint is available in 1/2″ polycarbonate with 50% light transmission.
Are the windshields curved?
Yes. Both the upper and lower windshield are curved to match the original glass.
Can I reuse the original mounting hardware?
Yes. SHIELDS machines the windshield to accommodate the original hardware across the available thicknesses.
Can I use the windshield wiper?
Yes. SUPERCOAT™ is designed to withstand normal windshield wiper use and routine cleaning.
Is the 1/2″ windshield forestry or ballistic rated?
No. Thickness alone does not establish a forestry or ballistic rating. Confirm the protection requirements for your machine and application before use.
Note: Verify the OEM glass number before ordering. Several John Deere and Hitachi excavators share this windshield design, but model name alone should not be used as the only fitment check. Don’t see your glass number? Call Echo and we’ll help verify the correct windshield.
Common Compatible Machines
John Deere: 130G, 160G, 180G, 190GW, 200G, 210G, 230GW, 290G, 300G, 345GLC, 380G, 470G, 670G, 870G
Hitachi ZAXIS: 130-5G, 130-5N, 130-6N, 160LC-5G, 160LC-5N, 160LC-6N, 180LC-5G, 180LC-5N, 180LC-6N, 190W-5N, 190W-6N, 210-5A, 210-5G, 210LC-5G, 210-5N, 210LC-6N, 230W-5N, 250LC-5G, 250LC-5N, 260LC-6N, 290LC-5G, 290LC-5N, 300LC-6N, 345USLC-6N, 350LC-5A, 350LC-5G, 350LC-5N, 350LC-6N, 380LC-5N, 380LC-6N, 470-5A, 470LC-5B, 470LC-5G, 470LC-6, 670LC-5A, 670LC-5B, 670LC-5G, 670C-6, 870LC-5A, 870LC-5B, 870LC-5G, 870LC-6
John Deere Upper: OEM Glass #T396393 / #FYA00001495
John Deere Lower: OEM Glass #T396635
Hitachi Upper: OEM Glass #T396393
Hitachi Lower: OEM Glass #T396635 / #4651654
SHIELDS windshields are covered by the manufacturer’s limited warranty for qualifying manufacturing defects, subject to its terms and exclusions.
Improved Impact Resistance
Polycarbonate provides greater resistance to impacts and breakage than conventional glass for demanding excavator applications.
Long-Lasting Visibility
SUPERCOAT™ helps resist scratches, UV damage, and hazing while allowing continued windshield wiper use.
OEM-Style Curved Fit
Both sections are formed around the original curved glass design and machined so the existing mounting hardware can be reused.
Broad Machine Coverage
One windshield family covers numerous John Deere G Series and Hitachi ZAXIS excavators while still allowing the upper and lower sections to be replaced independently.
