TM Manufacturing | Pro 1 Skid Steer Log Splitter
The TM Manufacturing Pro 1 Skid Steer Log Splitter is built for operators who split a lot of wood and want a heavier production splitter without paying for the Pro 2 interchangeable wedge system. It is a strong fit for tree service companies, firewood operations, outdoor wood boiler owners, farms, acreages, and cleanup crews that want to lift, position, and split logs from the skid steer seat.
The Pro 1 keeps the setup simple with a fixed Pro Series wedge, viewing window, and three available stroke lengths. It gives you the commercial splitter build TM is known for, but without the tool-free wedge swapping found on the Pro 2. Choose the Pro 1 when you want a serious skid steer log splitter and do not need to change between single, 4-way, and 6-way wedge heads. Optional Regen Valve to 33% Faster Splitting.
Features

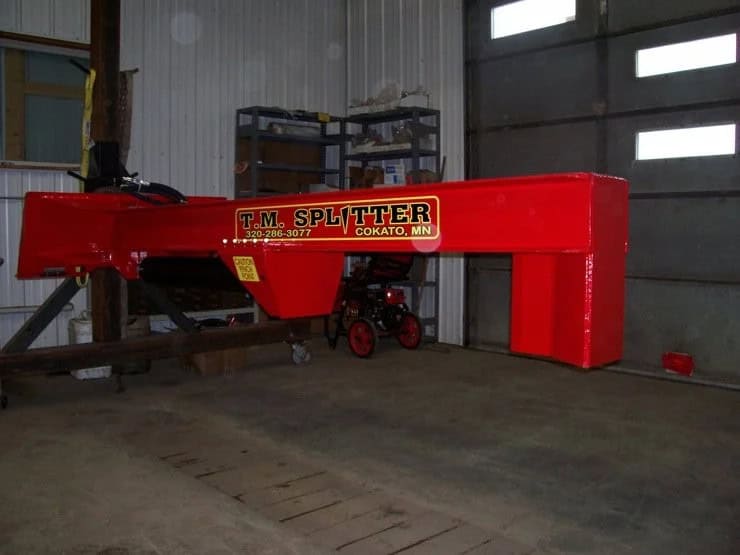

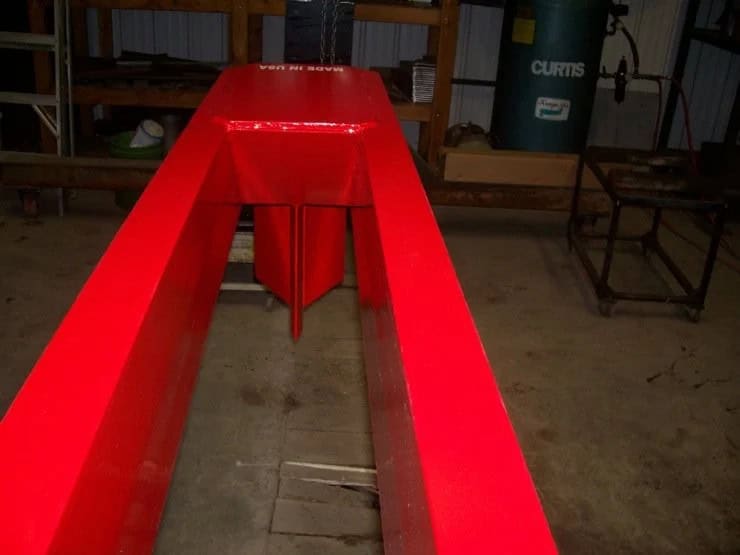

- Fixed Pro Series Wedge: Built for operators who want a strong production splitter without changing wedge heads.
- Optional Regen Valve: Up to 33% Faster Splitting

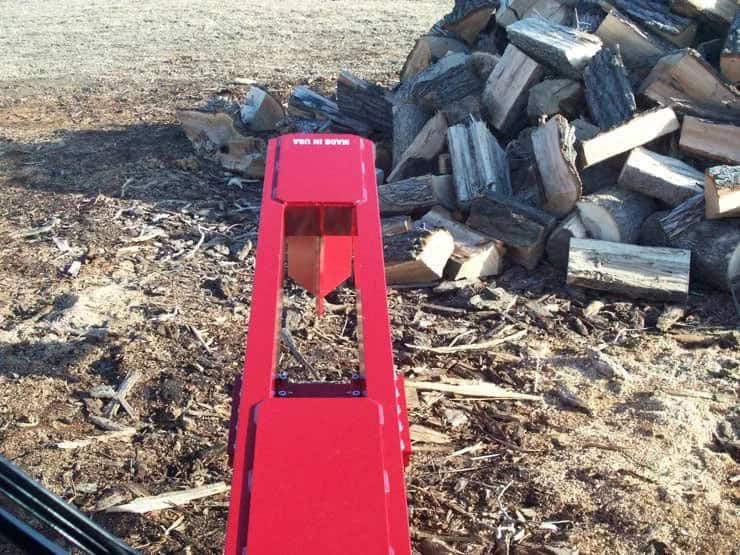

- Viewing Window: Helps the operator see the wedge and line up logs from the skid steer seat.
- Three Stroke Lengths: Choose 24″, 30″, or 36″ depending on the wood you process most often.

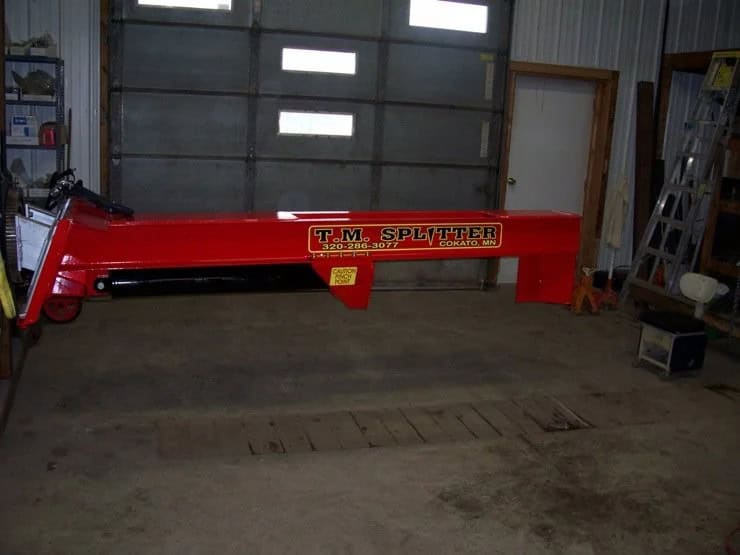

- Cylinder Options: 24″ model uses a 4″ cylinder, while 30″ and 36″ models are available with 4.5″ or 5″ cylinders.
- Cab-Controlled Splitting: Lets the machine do the lifting, positioning, and splitting.
- Commercial Wood Focus: Built for tree service work, firewood processing, outdoor boilers, and repeated heavy use.

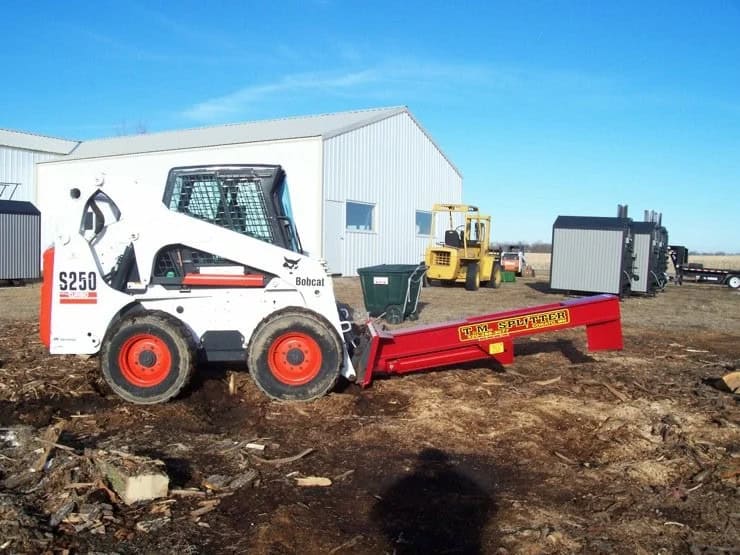

- Skid Steer Quick Attach: Fits skid steers and compact track loaders with universal skid steer quick attach.
- Hydraulic Powered: Runs off the machine’s auxiliary hydraulics.
- Available Stroke Lengths: 24″, 30″, 36″
- Optional Regen Valve: Up to 33% Faster Splitting
- 24″ Model: 4″ cylinder, 800 lbs
- 30″ Model: 4.5″ or 5″ cylinder, 900 lbs
- 36″ Model: 4.5″ or 5″ cylinder, 1,000 lbs
- Wedge Style: Fixed Pro Series splitting wedge
- Viewing Window: Included
- Mounting Style: Universal skid steer quick attach
- Hydraulic Power: Machine auxiliary hydraulics
- Machine Type: Skid steers and compact track loaders
- 24″ / 4″ cylinder: up to 25 tons at 3,500 PSI
- 30″/36″ / 4.5″ cylinder: 30 tons at 3,500 PSI
- Optional 5″ cylinder: up to 35 tons at 3,500 PSI
What is the difference between the Pro 1 and Pro 2?
The Pro 1 uses a fixed Pro Series wedge. The Pro 2 adds the patented interchangeable wedge system for switching between different splitting heads.
Does the Pro 1 have interchangeable wedges?
No. That is the main difference. Choose the Pro 1 if you want a simpler production splitter. Choose the Pro 2 if you want tool-free wedge changes.
What stroke lengths are available?
The Pro 1 is available in 24″, 30″, and 36″ stroke lengths.
Which stroke length should I choose?
Choose 24″ for shorter firewood, 30″ for a strong all-around setup, and 36″ for longer wood or outdoor boiler lengths.
What cylinder size should I choose?
The 24″ model uses a 4″ cylinder. The 30″ and 36″ models can be set up with a 4.5″ or 5″ cylinder. The larger cylinder gives more splitting force, while the smaller cylinder can help cycle faster depending on hydraulic flow.
Does it require high flow?
Not necessarily. Like most skid steer splitters, hydraulic flow affects cycle speed and pressure affects splitting force. Match the splitter to your machine’s hydraulic setup.
Who should buy the Pro 1?
The Pro 1 is a good fit for operators who split a lot of wood and want a commercial skid steer splitter, but do not need to swap wedge heads throughout the day.
Does it have a viewing window?

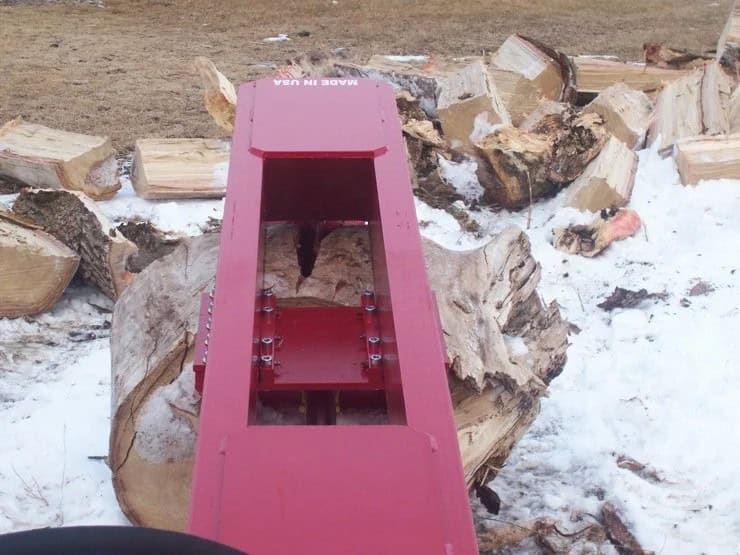

Yes. The Pro 1 includes the viewing window, which helps line up logs and watch the split from the cab.
Note: Best matched with skid steers and compact track loaders with universal skid steer quick attach, auxiliary hydraulics, enough lift capacity, and enough hydraulic flow for the cycle speed you want.
Bobcat: S510, S530, S550, S570, S590, S630, S650, S740, S76, S770, S86, T550, T590, T595, T630, T650, T66, T76, T770, T86
CAT: 226D3, 232D3, 236D3, 242D3, 246D3, 262D3, 272D3, 239D3, 249D3, 255, 259D3, 265, 275, 279D3, 289D3, 299D3
John Deere: 316GR, 318G, 320G, 324G, 325G, 330G, 331G, 332G, 333G, 317, 320, 324, 326, 328, 332, 333
Kubota: SSV65, SSV75, SVL65-2, SVL75-2, SVL75-3, SVL95-2s, SVL97-2
New Holland: L316, L318, L320, L321, L328, L334, C327, C332, C337, C345
Case: SR160B, SR175B, SV185B, SR210B, SR240B, SV280B, SV340B, TR270B, TR310B, TV370B, TV450B
Takeuchi: TL6R, TL8R2, TL8R3, TL10, TL12, TL12V2, TL12R2, TL12V3
ASV: RT-40, RT-50, RT-60, RT-65, RT-75, VT-70, RT-120, VT-100, RT-135
Gehl: R165, R190, R220, V270, V330, RT165, RT185, RT215, RT255, VT320
JCB: 215, 215T, 260, 260T, 270, 300, 3TS-8T, 3TS-8W
Manitou: 1650R, 1900R, 2200R, 2700V, 3300V, 3200VT
Mustang: 1650R, 1900R, 2200R, 2700V, 3300V, 3200VT
Wacker Neuson: SW17, SW20, SW21, SW24, SW28, SW32, ST31, ST35, ST40, ST45, ST50
Volvo: MC70C, MC85C, MC95C, MC110C, MC115C, MCT85C, MCT110C, MCT125C
TM Manufacturing products are backed by a 1 year limited manufacturer warranty covering defects in materials and workmanship for the original purchaser.
- Structural components and welds are covered under normal use
- Wear items such as cutting edges and skid shoes are considered maintenance
- Warranty applies to properly operated equipment within rated use
This warranty does not cover damage caused by misuse, improper operation, or normal wear and tear.
All warranty claims are handled through Echo Equipment, where you’ll work directly with our team to get issues resolved quickly without the runaround.
Pro Series Splitting Power
Built for operators splitting large volumes of wood, including tree services, firewood sellers, farms, and outdoor boiler users.
Simpler Than the Pro 2
The Pro 1 gives you the Pro Series build without the interchangeable wedge system, keeping the setup more straightforward.
Split From the Cab

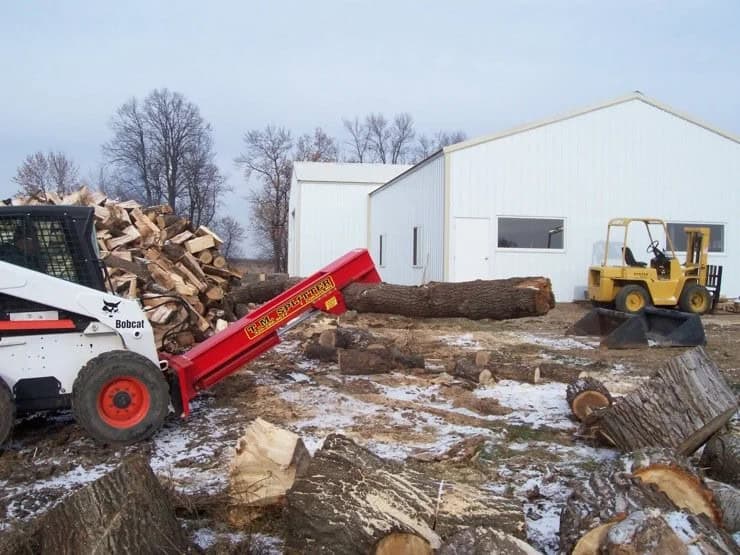

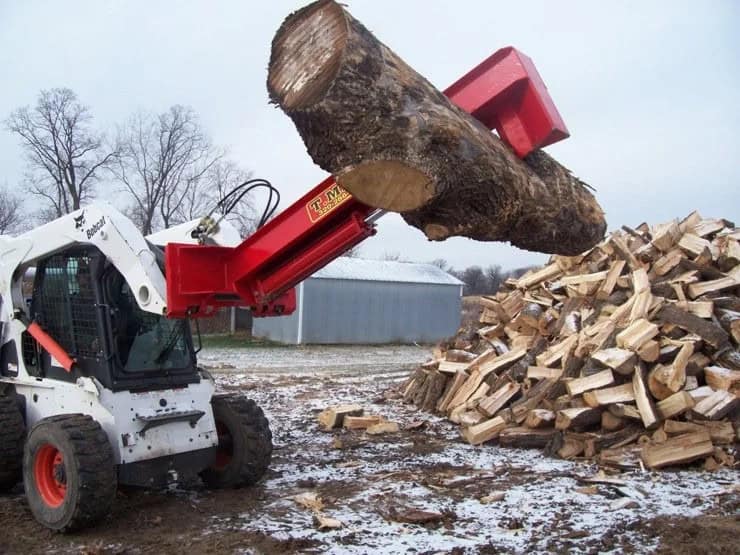

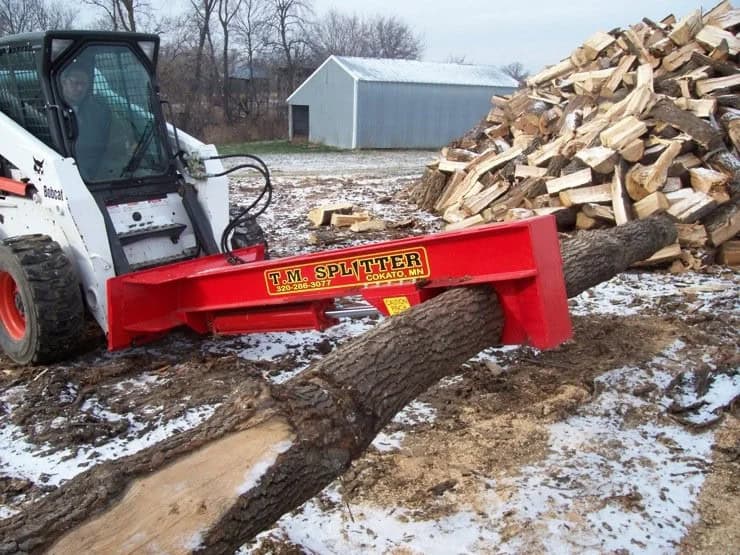

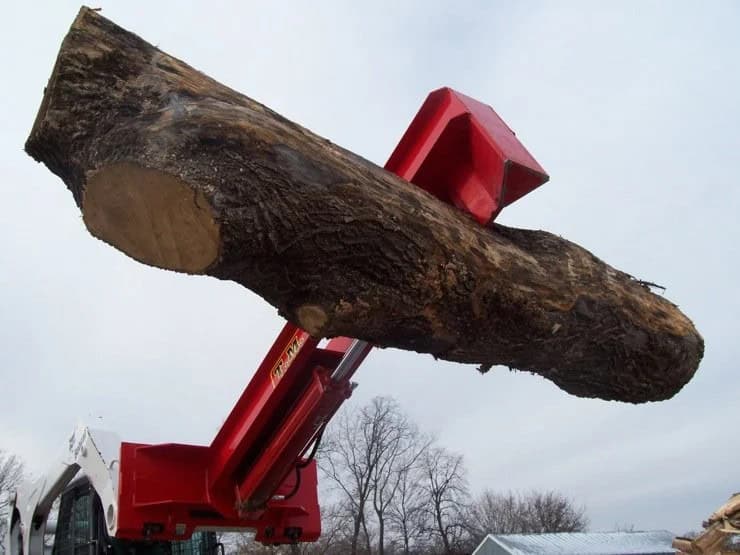

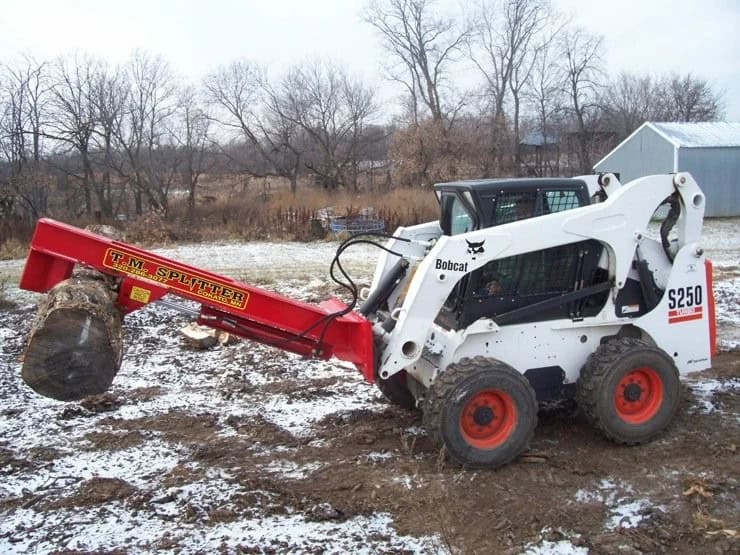

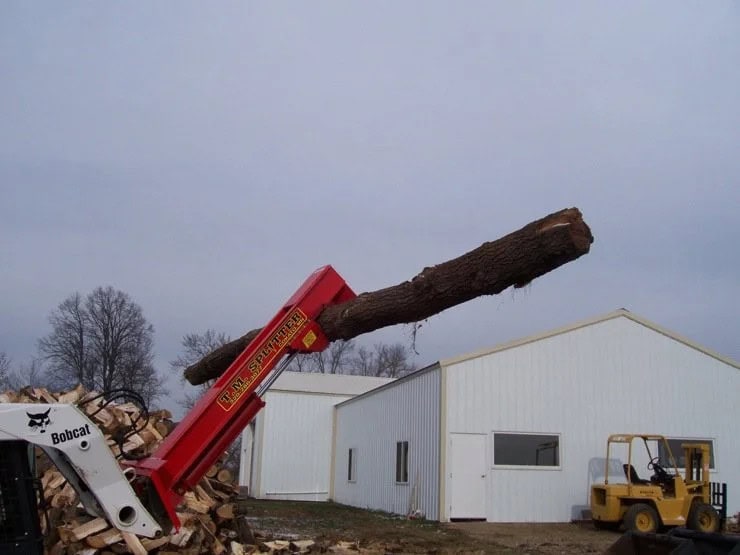

Use the skid steer to lift, position, and split logs instead of wrestling rounds onto a standalone splitter by hand.
Three Stroke Options
Available in 24″, 30″, and 36″ stroke lengths so you can match the splitter to your wood length and machine setup.
- Tree service companies processing logs, removals, storm cleanup, and jobsite wood.
- Firewood businesses wanting a skid steer splitter for higher-volume splitting.
- Outdoor wood boiler owners splitting longer or larger firewood.
- Farmers and acreage owners cleaning up timber, trails, fence lines, and wooded property.
- Skid steer and CTL operators who want a production splitter without interchangeable wedges.
