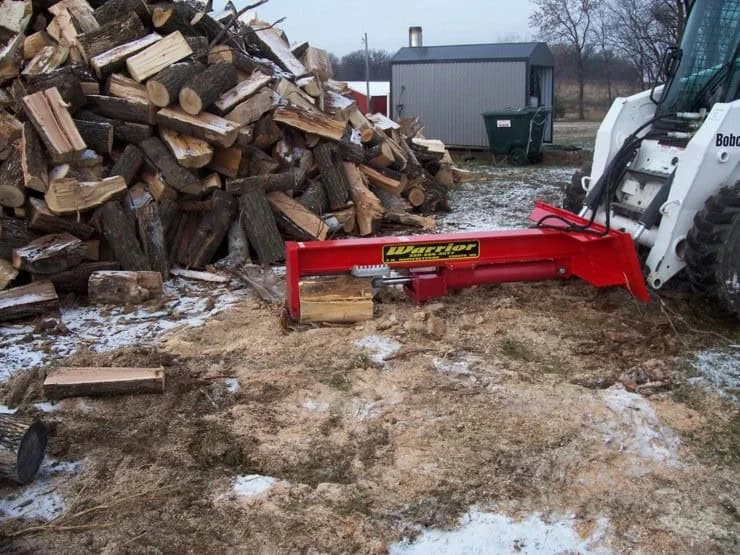

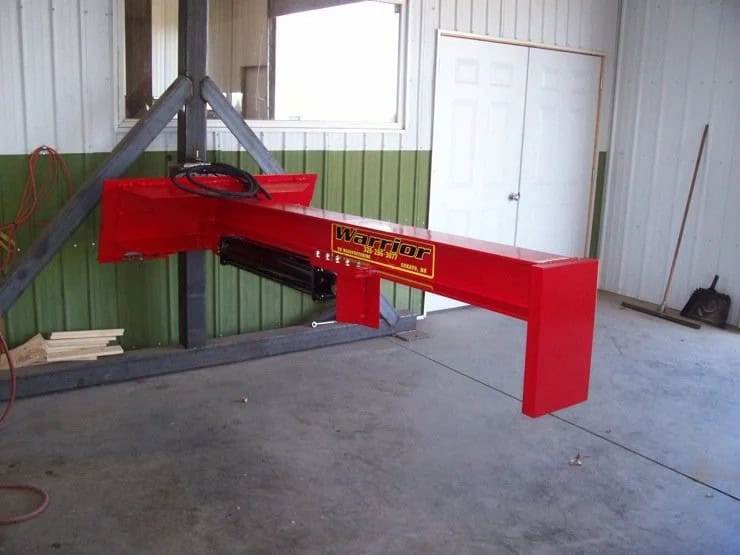

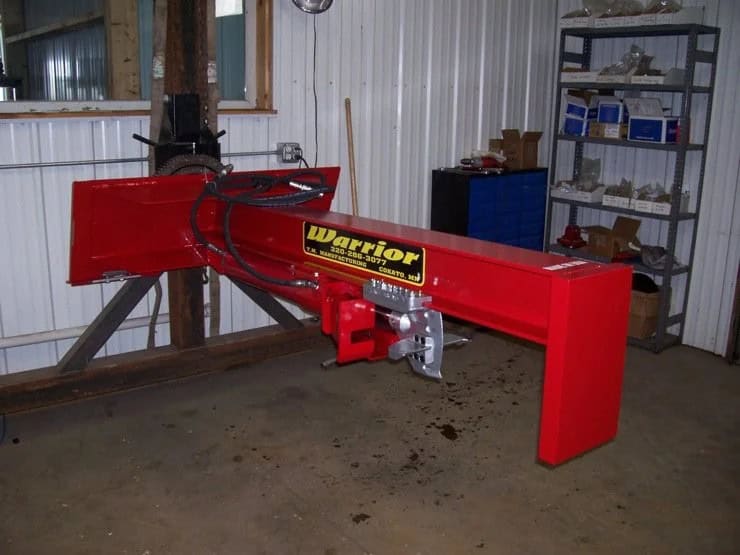

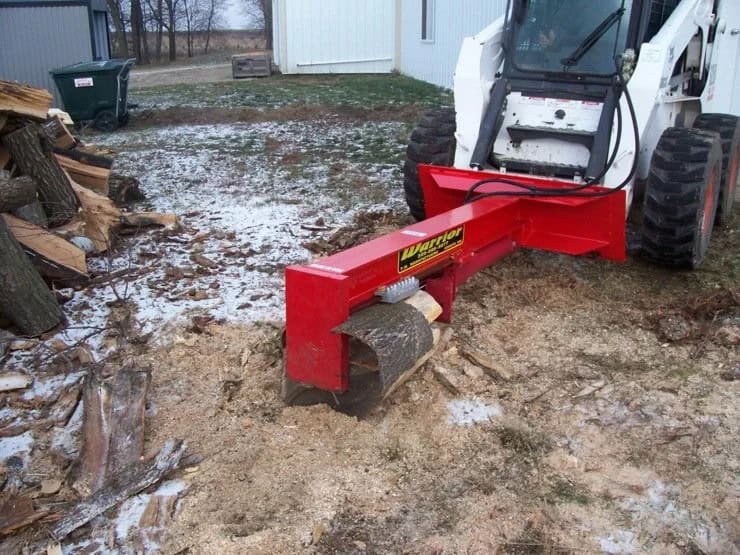

TM Manufacturing | Warrior Skid Steer Log Splitter
he TM Manufacturing Warrior is the lighter, more affordable skid steer splitter in the TM lineup. It is built for residential and light commercial use, making it a good fit for landowners, firewood users, acreage owners, and smaller tree cleanup jobs that do not need the heavier HD or Pro Series splitter.
The Warrior uses a 4″ cylinder and is designed around faster cycle time, a smaller wedge, and more precise firewood splitting. The Warrior 30 can be set up with a two-stage single wedge, a 4-way wedge, or both, allowing operators to split big rounds first and then break them down smaller for a fireplace or indoor wood stove.
Features
- 4″ Cylinder: Built for faster cycling and 20 to 25 tons of splitting force.
- 30″ Stroke: Gives enough stroke length for common firewood and larger residential rounds.
- Single Wedge Option: Better for first-splitting larger or tougher rounds.
- 4-Way Wedge Option: Better for breaking cleaner rounds into smaller stove-size pieces.
- Removable Wedge Setup: The single wedge can be removed and replaced with the 4-way wedge.
- Optional Regen Valve: TM’s regen valve can be added to new or existing TM splitters for faster splitting speed.
- Skid Steer Mount: Built for skid steers and compact track loaders with the right mount and hydraulics.

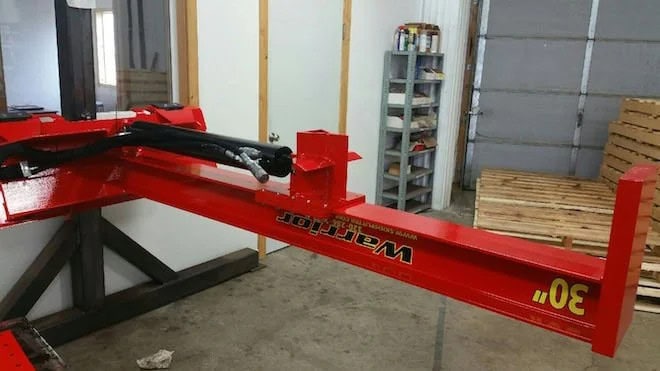

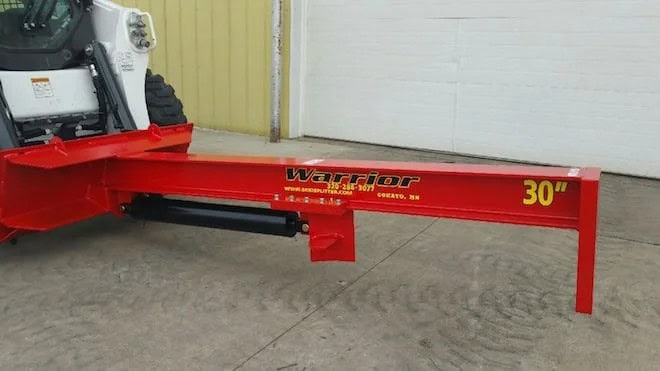

- Warrior 30 Stroke: 30″
- Warrior 30 Cylinder: 4″
- Warrior 30 Weight: 550 lbs
- Splitting Force: 20 to 25 tons with the 4″ cylinder
- Wedge Options: Two-stage single wedge, 4-way wedge
- Regen Valve: Optional
- Hydraulic Power: Machine auxiliary hydraulics
What is the TM Warrior best for?
The Warrior is best for residential and light commercial firewood splitting.
How is it different from the Heavy Duty or Pro Series?
The Warrior is lighter, more affordable, and built around faster cycle time with a smaller wedge. The HD and Pro models are better for heavier production work.
How much splitting force does it have?
The 4″ cylinder produces about 20 to 25 tons of splitting force, depending on machine hydraulic pressure.
Should I choose the single wedge or 4-way wedge?
Choose the single wedge for larger or tougher rounds. Choose the 4-way wedge for cleaner wood when you want smaller stove-size pieces faster.
Does the regen valve work with the Warrior?
Yes. TM says the regen valve supports all TM log splitter models and can increase splitting speed by 33%.
Who should step up to the Heavy Duty instead?
Step up to the Heavy Duty if you split larger, uglier wood often or want the heavier 4.5″ cylinder setup.

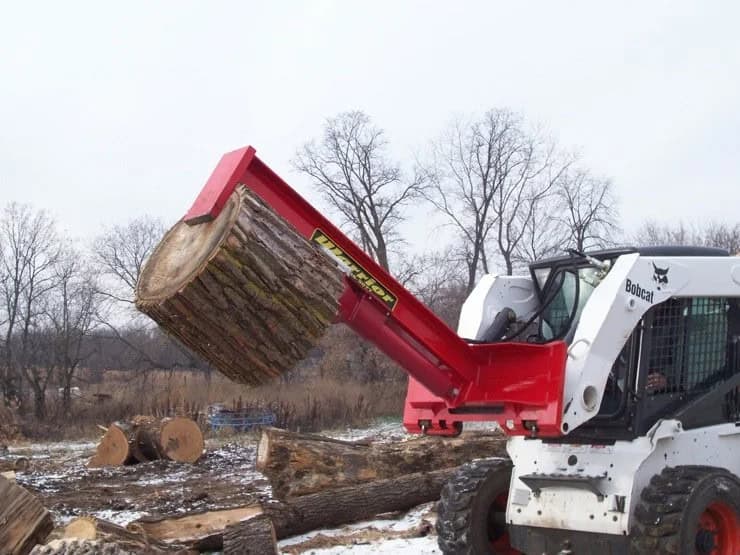

Note: Best matched with skid steers and compact track loaders with universal skid steer quick attach, auxiliary hydraulics, and enough lift capacity for the splitter and log weight.
Common Compatible Skid Steers:
Bobcat: S510, S530, S550, S570, S590, S630, S650, T550, T590, T595, T630, T650
CAT: 226D3, 232D3, 236D3, 242D3, 246D3, 239D3, 249D3, 255, 259D3, 265
John Deere: 316GR, 318G, 320G, 324G, 325G, 317, 320, 324, 326
Kubota: SSV65, SSV75, SVL65-2, SVL75-2, SVL75-3
Case: SR175B, SV185B, SR210B, TR270B, TR310B
New Holland: L316, L318, L320, L321, C327, C332
Takeuchi: TL6R, TL8R2, TL8R3, TL10
ASV: RT-40, RT-50, RT-60, RT-65, RT-75
TM Manufacturing products are backed by a 1 year limited manufacturer warranty covering defects in materials and workmanship for the original purchaser.
- Structural components and welds are covered under normal use
- Wear items such as cutting edges and skid shoes are considered maintenance
- Warranty applies to properly operated equipment within rated use
This warranty does not cover damage caused by misuse, improper operation, or normal wear and tear.
All warranty claims are handled through Echo Equipment, where you’ll work directly with our team to get issues resolved quickly without the runaround.
Affordable TM Splitter
The Warrior is TM’s most budget-friendly skid steer splitter option.
Faster Cycle Time
The 4″ cylinder and smaller wedge are designed for quicker splitting compared to the heavier HD and Pro models.
Single or 4-Way Wedge
Use the single wedge for larger rounds, or the 4-way wedge to make smaller firewood pieces faster.
Good for Home Firewood
A strong fit for fireplace wood, indoor wood stove wood, property cleanup, and light commercial splitting.
- Homeowners and acreage owners splitting firewood.
- Indoor wood stove and fireplace users.
- Small firewood sellers doing lower-volume production.
- Farm and property cleanup.
- Tree service crews needing a lighter, lower-cost splitter for smaller jobs.
