M&M Attachments | Hydra Split Skid Steer Log Splitter

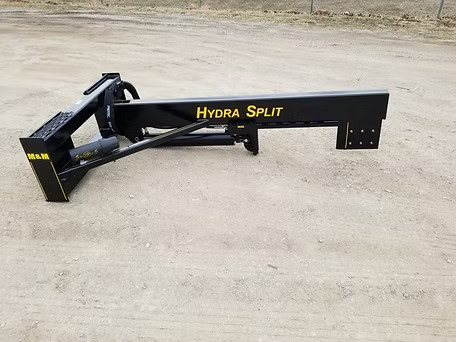

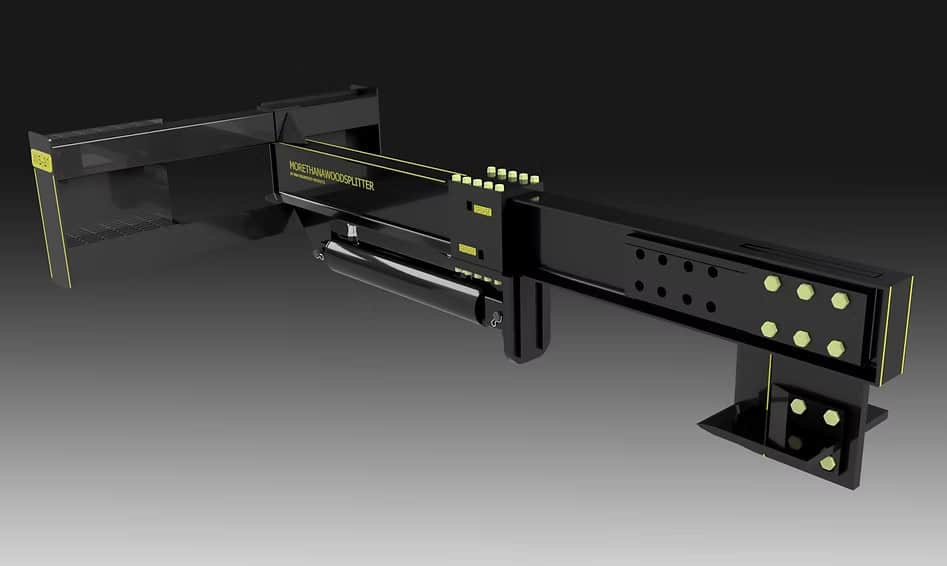

The M&M Hydra Split is built for skid steer and compact track loader operators who want more than a basic firewood splitter. It can split firewood, trim trees, and cut wood to length, making it a useful attachment for storm cleanup, property maintenance, farm work, wooded acreage, and firewood processing.
Available in 24" and 36" stroke models, the Hydra Split uses a 20-ton hydraulic cylinder and a sharp knife-style blade that can cross cut hardwood up to 8" diameter and softer wood up to 10" diameter. It is also offset to the left for better visibility from the cab, includes hoses and couplers, and can be paired with an optional bolt-on 4-way splitting head for faster splitting work,
Features
- Multi-Use Wood Tool: Splits firewood, trims trees, and cuts wood to length with one attachment.
- Knife-Style Cutting: Sharp blade technology allows cross cutting, unlike most standard wood splitters.

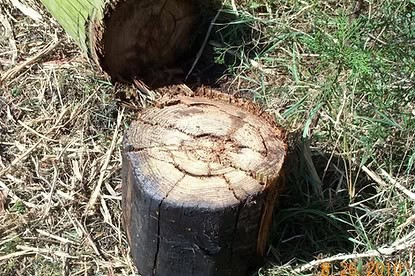

- Clean Cut Design: Pushes wood past the cutting edge to leave a cleaner cut.
- Reversible Blade: Blade is reversible and replaceable for longer service life.

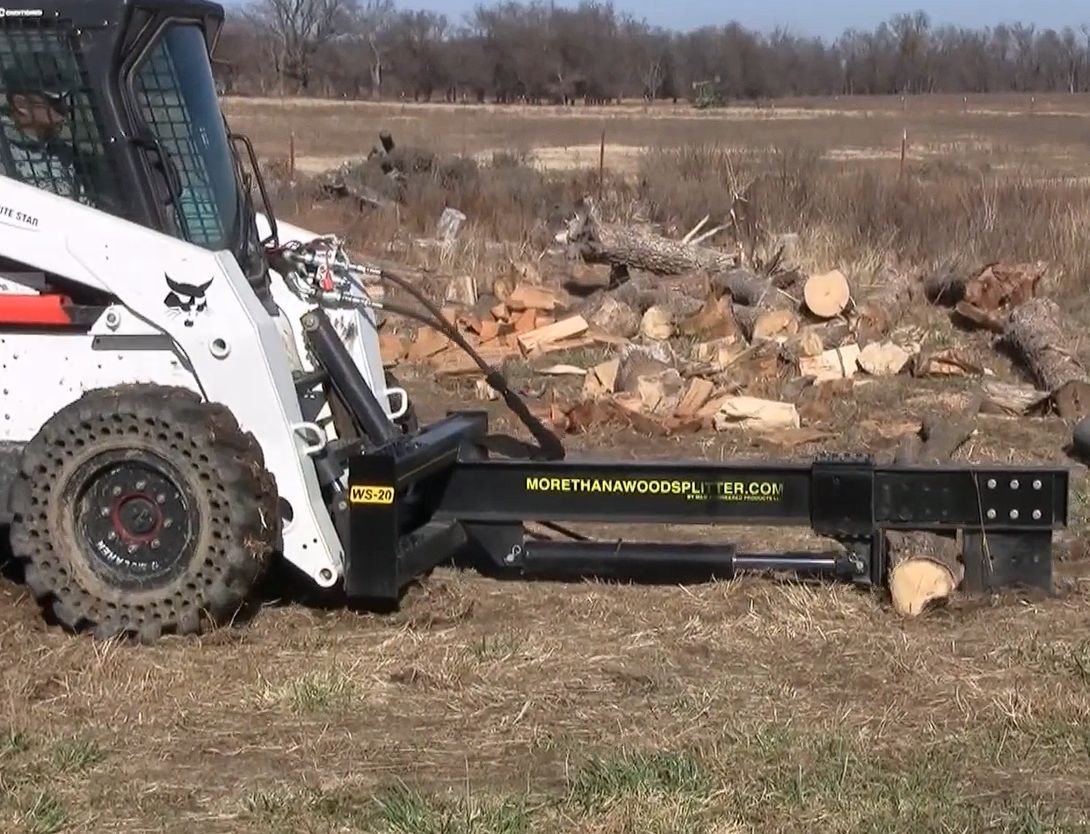

- Left Offset Frame: Improves operator visibility from the skid steer or CTL cab.
- Available Stroke Lengths: 24″ and 36″
- Splitting Force: 20-ton hydraulic cylinder
- Hardwood Cross Cut Capacity: Up to 8″ diameter
- Softwood Cross Cut Capacity: Up to 10″ diameter
- Recommended Hydraulic Pressure: 3,000 PSI
- Blade: Reversible and replaceable
- Frame Position: Offset left for better visibility
- Included: Hoses and couplers
What does the Hydra Split do?
The Hydra Split can split firewood, trim trees, and cut wood to length, making it more versatile than a standard skid steer log splitter.
What is the difference between the 24″ and 36″ models?
The 24″ stroke model is a good fit for shorter firewood and smaller cleanup jobs. The 36″ stroke model gives more stroke length for longer material. A longer stroke increases cycle time, so if you are not looking for 3′ logs, go with the 24″ stroke.

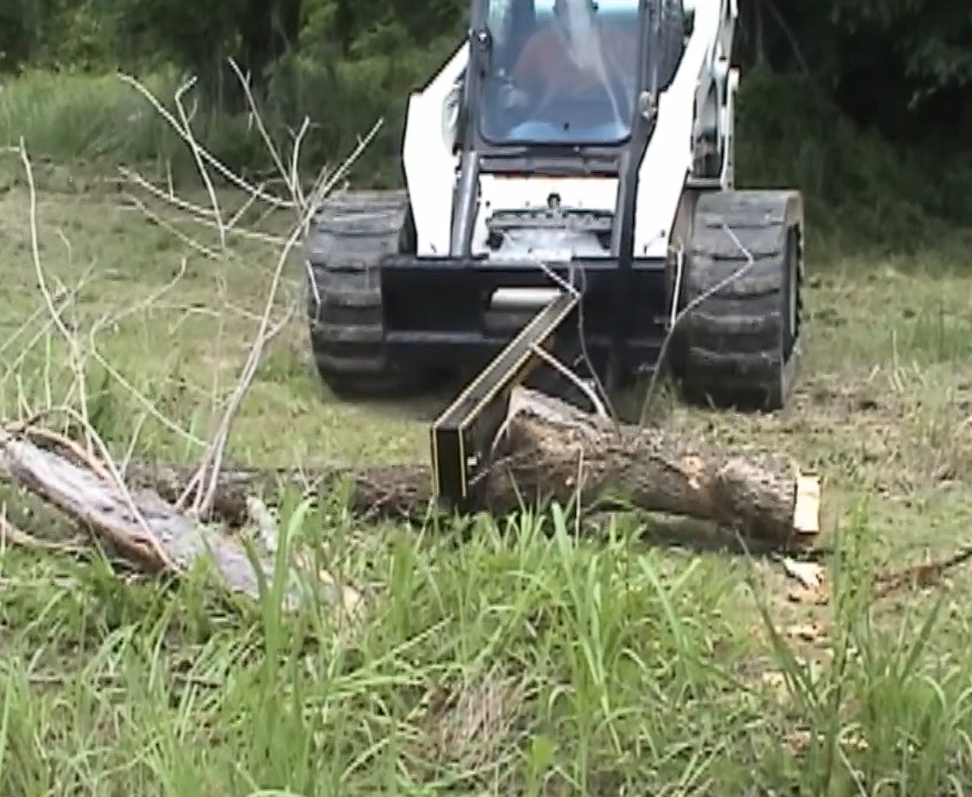

Can it cross cut logs?
Yes. It can cross cut hardwood up to 8″ diameter and softer wood up to 10″ diameter.

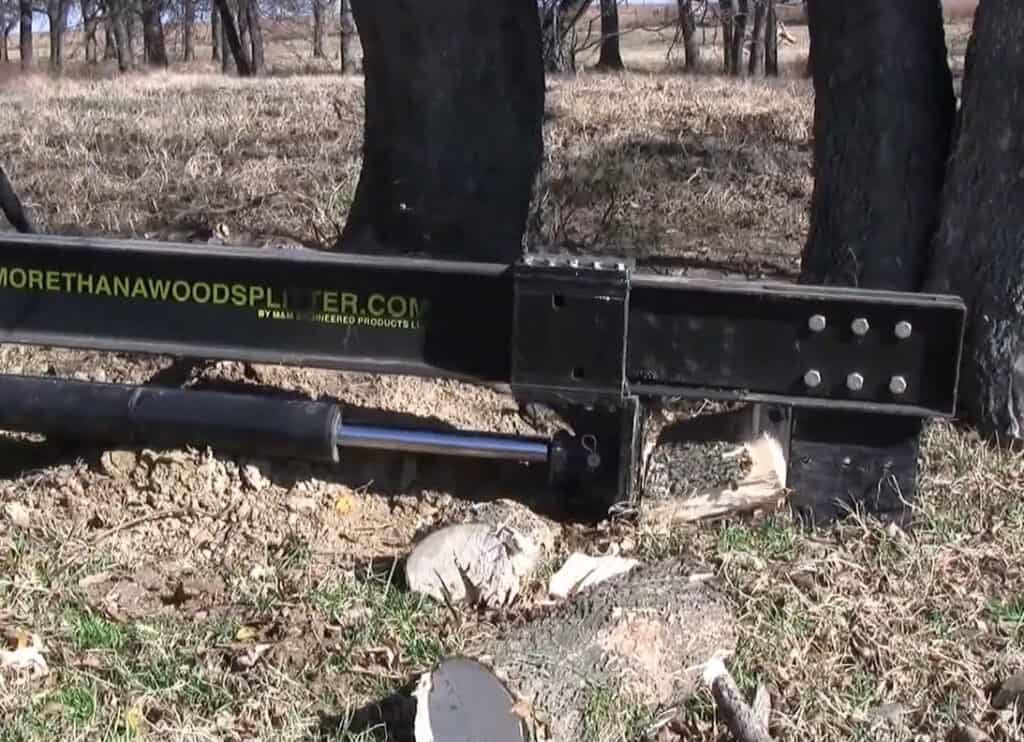

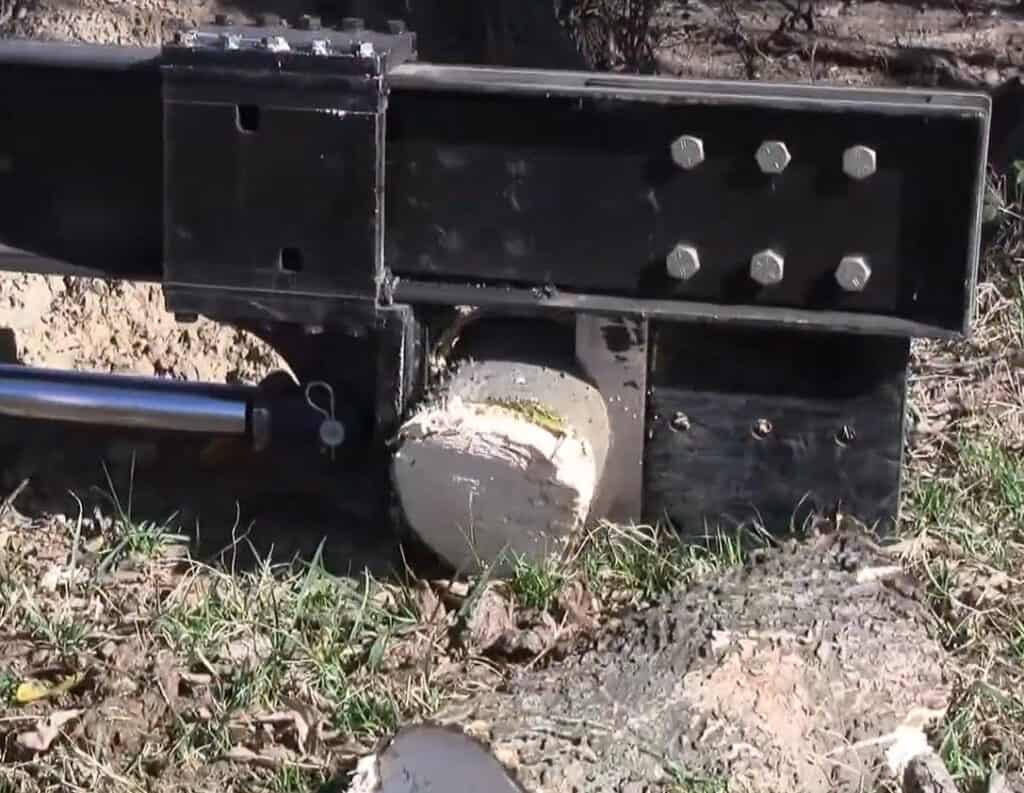

How does it cross cut wood?
The sharp knife-style blade pushes wood past the cutting edge, allowing it to cut material instead of only splitting it.
How much splitting force does it have?
The Hydra Split uses a 20-ton hydraulic cylinder.
Does it include hoses and couplers?
Yes. Hoses and couplers are included.
What is the 4-way splitting head for?
The optional bolt-on 4-way head splits wood into four pieces instead of two. It is for splitting only, not cross cutting.
Note: Best matched with skid steers and compact track loaders with universal skid steer quick attach, proper hydraulic pressure, and enough lift capacity for safe handling.
Common Compatible Skid Steers:
Bobcat: S510, S530, S550, S570, S590, S630, S650, S740, S76, S770, S86, T550, T590, T595, T630, T650, T66, T76, T770, T86
CAT: 226D3, 232D3, 236D3, 242D3, 246D3, 262D3, 272D3, 239D3, 249D3, 255, 259D3, 265, 275, 279D3, 289D3, 299D3
John Deere: 316GR, 318G, 320G, 324G, 325G, 330G, 331G, 332G, 333G, 317, 320, 324, 326, 328, 332, 333
Kubota: SSV65, SSV75, SVL65-2, SVL75-2, SVL75-3, SVL95-2s, SVL97-2
New Holland: L316, L318, L320, L321, L328, L334, C327, C332, C337, C345
Case: SR160B, SR175B, SV185B, SR210B, SR240B, SV280B, SV340B, TR270B, TR310B, TV370B, TV450B
Takeuchi: TL6R, TL8R2, TL8R3, TL10, TL12, TL12V2, TL12R2, TL12V3
ASV: RT-40, RT-50, RT-60, RT-65, RT-75, VT-70, RT-120, VT-100, RT-135
Gehl: R165, R190, R220, V270, V330, RT165, RT185, RT215, RT255, VT320
JCB: 215, 215T, 260, 260T, 270, 300, 3TS-8T, 3TS-8W
Manitou: 1650R, 1900R, 2200R, 2700V, 3300V, 3200VT, 4200V
Mustang: 1650R, 1900R, 2200R, 2700V, 3300V, 3200VT, 4200V
Wacker Neuson: SW17, SW20, SW21, SW24, SW28, SW32, ST31, ST35, ST40, ST45, ST50
Volvo: MC70C, MC85C, MC95C, MC110C, MC115C, MCT85C, MCT110C, MCT125C, MCT135C
M&M Attachments are backed by a limited manufacturer warranty covering defects in materials and workmanship for the original purchaser.
- Structural components and hydraulic cylinders are typically covered for 1 year under normal use
- Gearboxes and drive components are covered, with wear items (such as seals) considered maintenance after the initial period
- Warranty applies to properly operated and maintained equipment within recommended hydraulic and usage specifications
This warranty does not cover damage caused by misuse, improper installation, normal wear and tear, or operation outside of rated capacities.
All warranty claims are handled through Echo Equipment, where you’ll work directly with our team to get issues resolved quickly without the runaround.

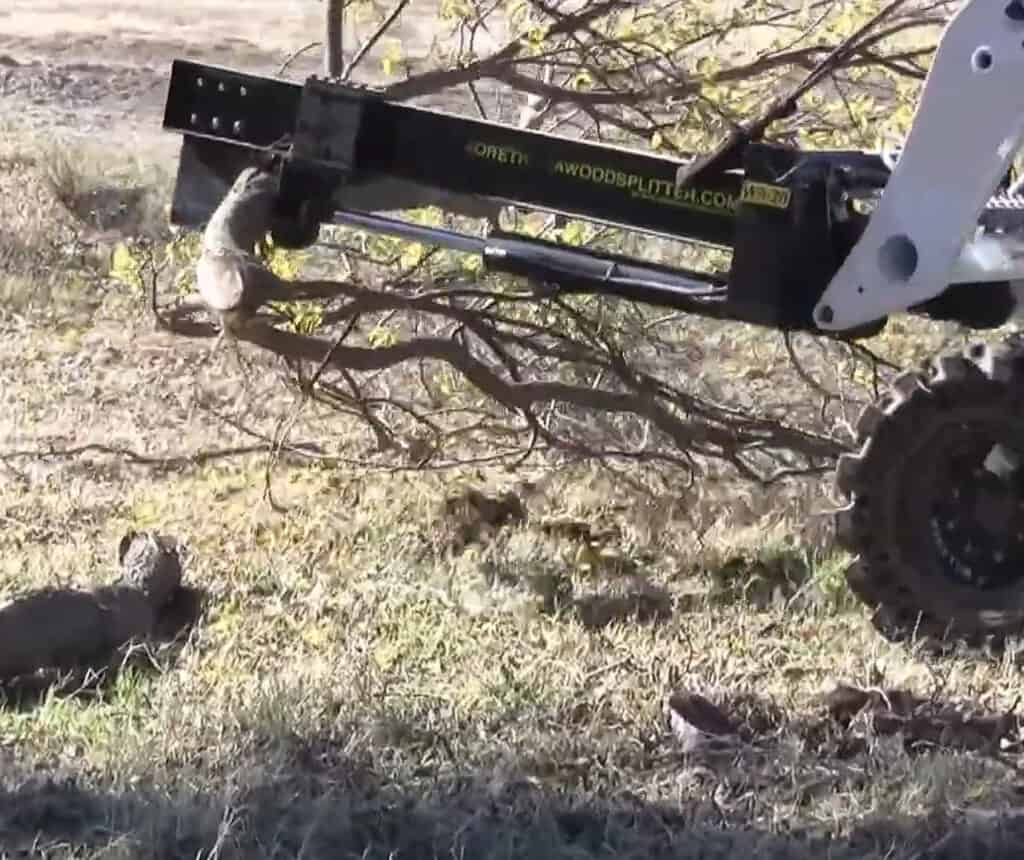

Split, Trim, and Cut
Use one attachment to split firewood, trim trees, and cut wood to length from the cab.
Two Stroke Options
Choose the 24″ stroke model for smaller firewood work or the 36″ stroke model for longer material.
Cross Cut Capability
The sharp knife design can cross cut hardwood up to 8″ and softer wood up to 10″ diameter.
Better Cab Visibility
The left-offset design gives operators a better view of the cutting and splitting area.
- Farmers processing firewood, trimming trees, and cleaning up wooded areas around the farm.
- Acreage owners maintaining cabins, trails, driveways, hunting land, and storm-damaged trees.
- Tree service and cleanup crews processing limbs, downed trees, and manageable logs.
- Municipal and maintenance crews cleaning up parks, roadsides, public land, and fallen branches.
Why buy from ECHO Equipment
At ECHO Equipment, we actually use and support the equipment we sell. You’re not getting generic answers - you’re talking to people who understand how this equipment works in the field. That means faster answers, better recommendations, and no wasted time trying to figure things out on your own.
We’re easy to work with. If something breaks, tell us what actually happened and be honest with us (a good sense of humor doesn’t hurt either). We’re often known to help out even outside of standard warranty terms. And if it’s on us, we’ll own it and make it right. No excuses, no finger pointing - just real support when it matters.
