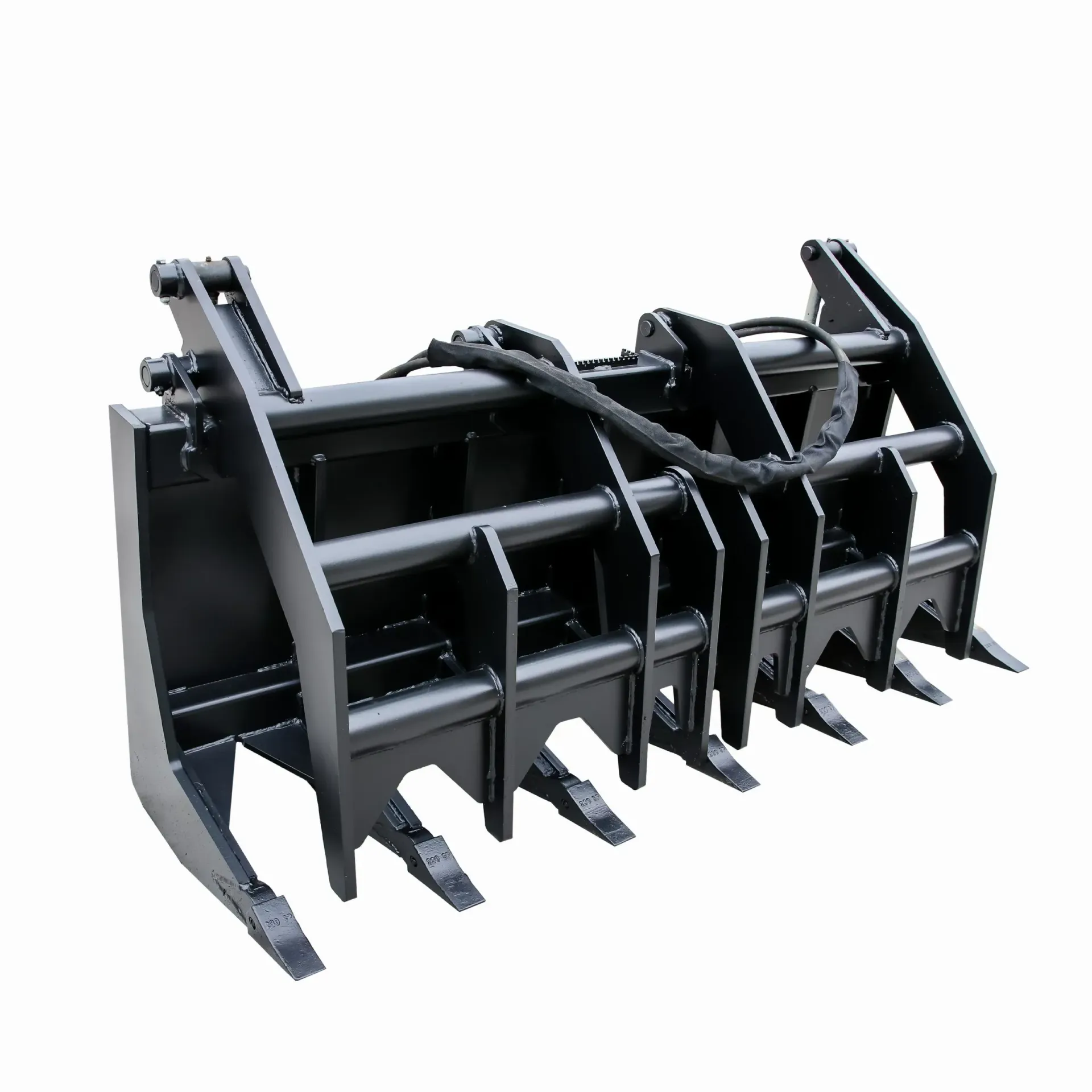

The Express Steel Vertical Extreme Grapple is a heavy-duty skid steer attachment designed for aggressive land clearing, brush removal, and debris handling. Built with a vertical rake-style design, this grapple allows operators to grab large amounts of material while letting dirt fall through, making it highly efficient for clearing jobs.

Designed for high horsepower machines, this grapple features thick serrated tines, dual hydraulic cylinders, and independent grapple arms, allowing it to securely handle uneven loads like logs, roots, and brush. Available in multiple widths, it provides a strong combination of capacity, durability, and control for demanding applications.

Aggressive land clearing performance

The vertical rake design allows operators to grab large volumes of brush, roots, and debris while sifting out dirt.

Handles uneven and bulky loads

Independent grapple arms clamp down on irregular material like logs and root balls for better control.

Built for high horsepower machines

Designed for machines up to 100–110 HP, making it ideal for contractors and heavy-duty use.

Heavy-duty construction for tough jobs

Thick steel tines and reinforced frame provide durability in demanding environments.

• Land clearing and brush removal
• Root and log handling
• Construction site cleanup
• Storm debris removal
• Property and acreage maintenance
• Contractors and high-volume operators

The ES Vertical is designed to work with a mid to large sized skid steers

• Auxiliary hydraulics (low flow compatible - approx. 10+ GPM minimum)
• Skid steer universal quick attach
• 70-110 HP

Common Machine Types

• Skid steers
• Compact track loaders
• Telehandlers (with skid steer or Euro/Global interface)
• Wheel loaders with compatible mounting systems
• Tractors

Common Skid Steer Compatible Models

• Bobcat S650, S740, S770, T650, T770, S66, T76
• John Deere 320G, 324G, 330G, 332G, 333G
• Kubota SVL75-2, SVL97-2, SVL97-3
• Case SV280, SV340, TV370
• New Holland L228, L230, C332
• CAT 262D, 272D, 289D, 299D
• ASV RT-65, RT-75, RT-120
• Takeuchi TL8, TL10, TL12

What makes a vertical grapple different from a root grapple?

A vertical grapple works like a rake, letting dirt fall through while grabbing material, making it ideal for land clearing.

Is this overkill compared to lighter grapples?

Yes, but that’s the point, it’s built for bigger jobs where lighter grapples bend or struggle.

What kind of material can it handle?

Logs, roots, brush piles, demolition debris, and large uneven loads.

Why are the tines spaced wider?

Wider spacing allows dirt to fall through, so you’re not moving unnecessary material.

Do I need a large skid steer to run this?

Yes, this is best suited for mid to large machines due to its weight and capacity.

Will it clamp uneven loads well?

Yes, the independent grapple lids allow each side to clamp down separately for better control.

Express Steel products are backed by a limited manufacturer warranty covering defects in materials and workmanship for the original purchaser.

• Structural components and welds are typically covered for 1 years under normal use
• Wear items such as blades, hardware, and normal maintenance components are not covered
• Warranty applies to properly operated equipment within rated hydraulic and usage specifications

This warranty does not cover damage caused by misuse, improper installation, or normal wear and tear.

All warranty claims are handled through Echo Equipment, where you’ll work directly with our team to get issues resolved quickly without the runaround.
