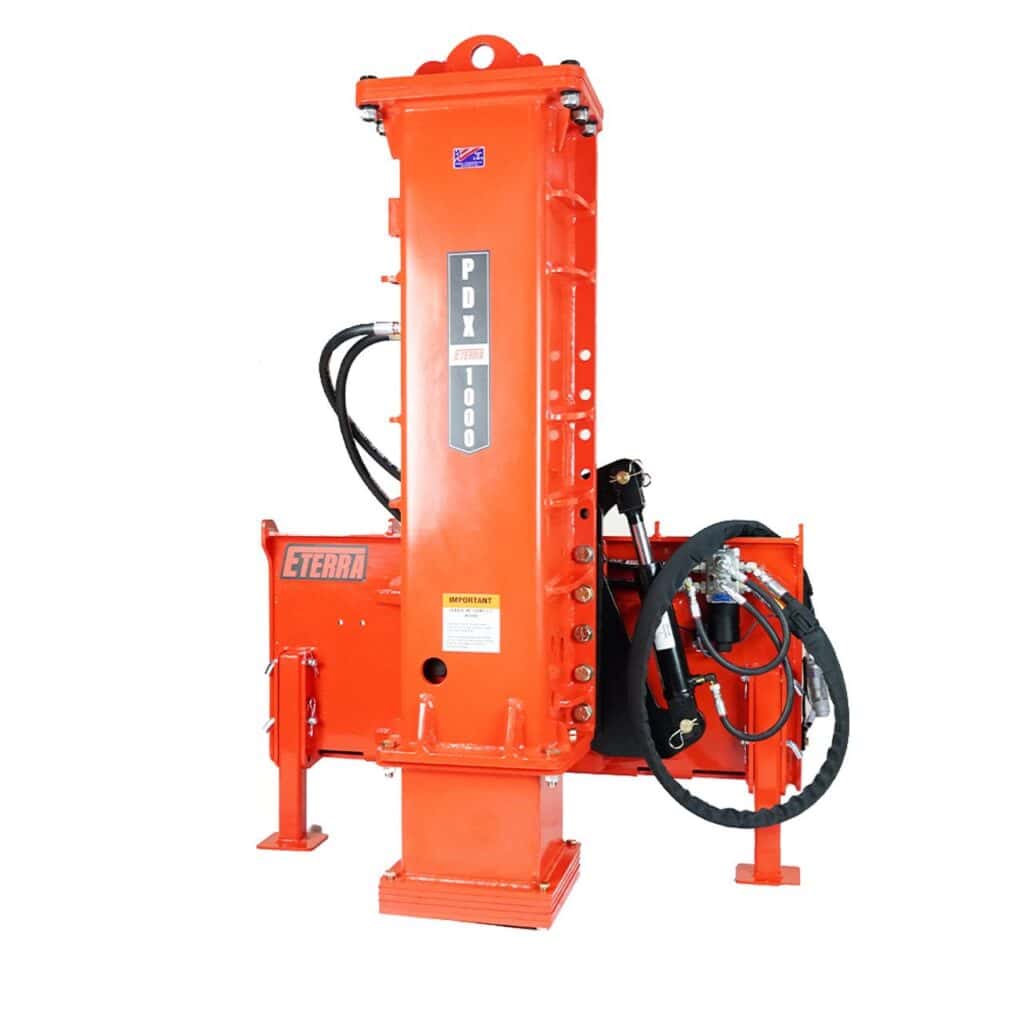

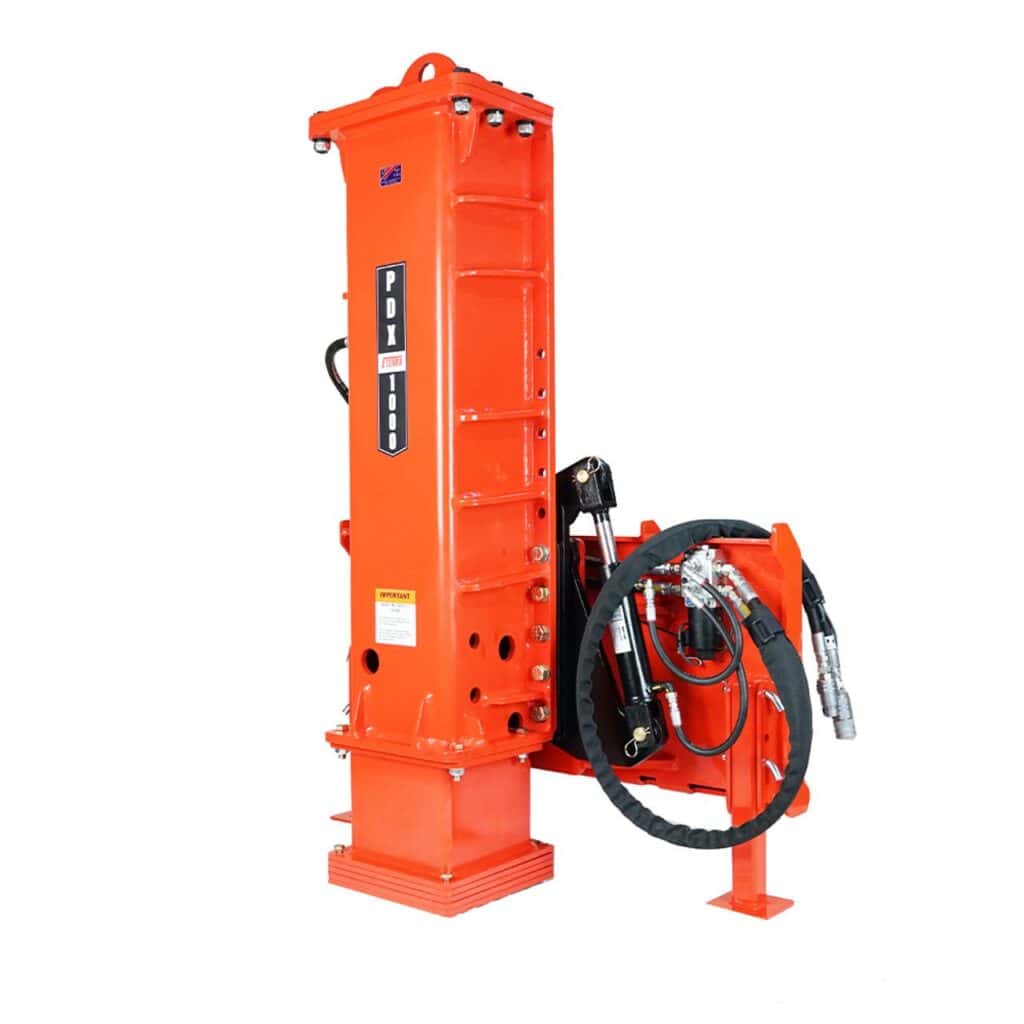

The Eterra PDX-1000 Post Driver is a heavy-duty skid steer attachment designed to quickly and efficiently drive fence posts, pipe, and sign posts into the ground. Powered by a nitrogen-charged breaker-style power cell, the PDX-1000 delivers up to 1,000 ft-lbs of driving energy per strike, allowing operators to install posts in a wide range of soil conditions.

Designed for professional fence installers and contractors, the PDX-1000 combines powerful impact force with smooth operation. The fully enclosed driver housing and vibration-isolating components help reduce shock transferred to the machine while maintaining consistent driving performance.

Features

• 1,000 ft-lb breaker-style impact energy drives posts fast in tough soil conditions
• Fully enclosed driver housing with isolators reduces vibration and protects your machine
• 15° hydraulic tilt (optional) allows accurate post placement on uneven terrain
• Post guide system (2", 4", 6", 8") keeps posts aligned and stable during driving
• Driver positioned closer to machine improves visibility and increases downforce control
• Optional breaker spike attachment pre-drills holes in hard or rocky ground

Fast Fence Installation

Drive posts quickly and consistently without the labor of manual post pounding.

Powerful Driving Force

Delivers 1,000 ft-lbs of impact energy to drive posts into tough soil conditions.

Improves Jobsite Efficiency

Install more posts in less time using your skid steer or excavator.

Reduced Machine Vibration

Rubber isolators help minimize vibration and protect the carrier machine during operation.

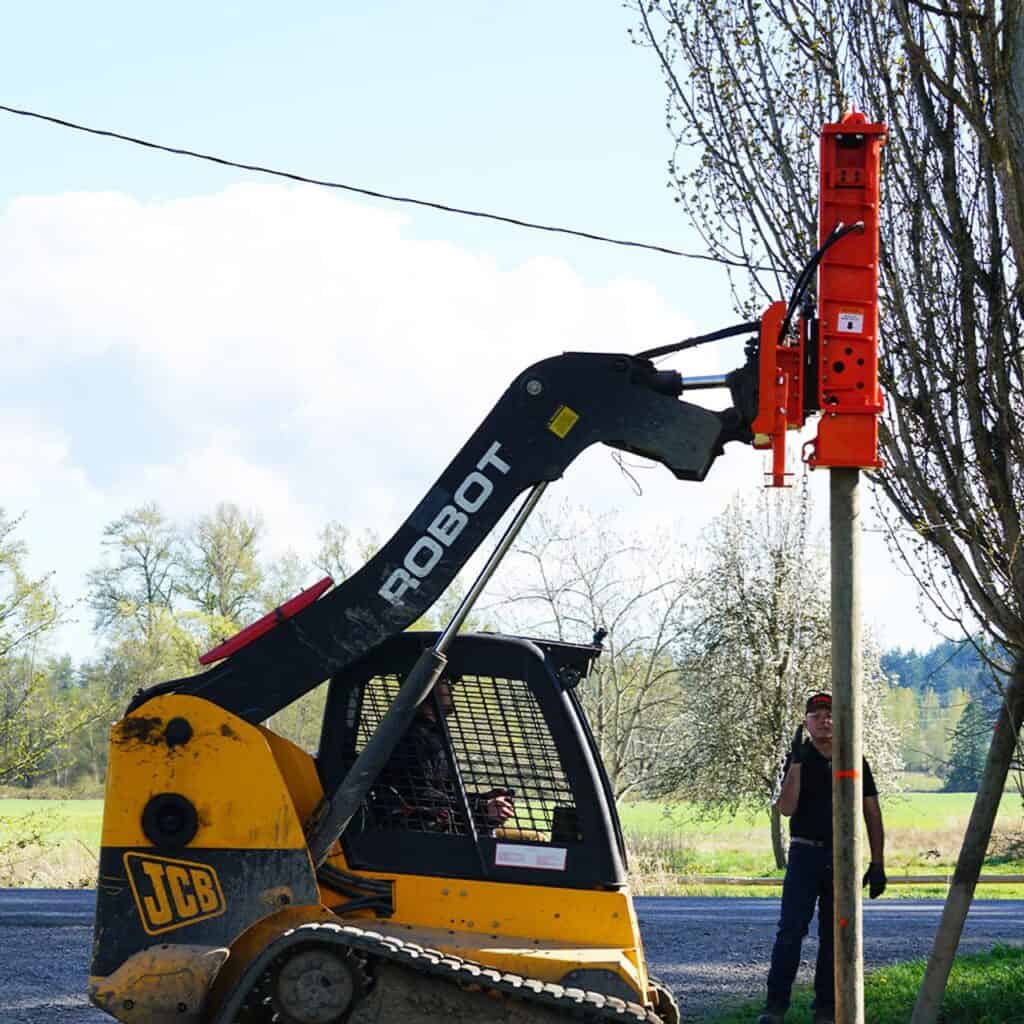

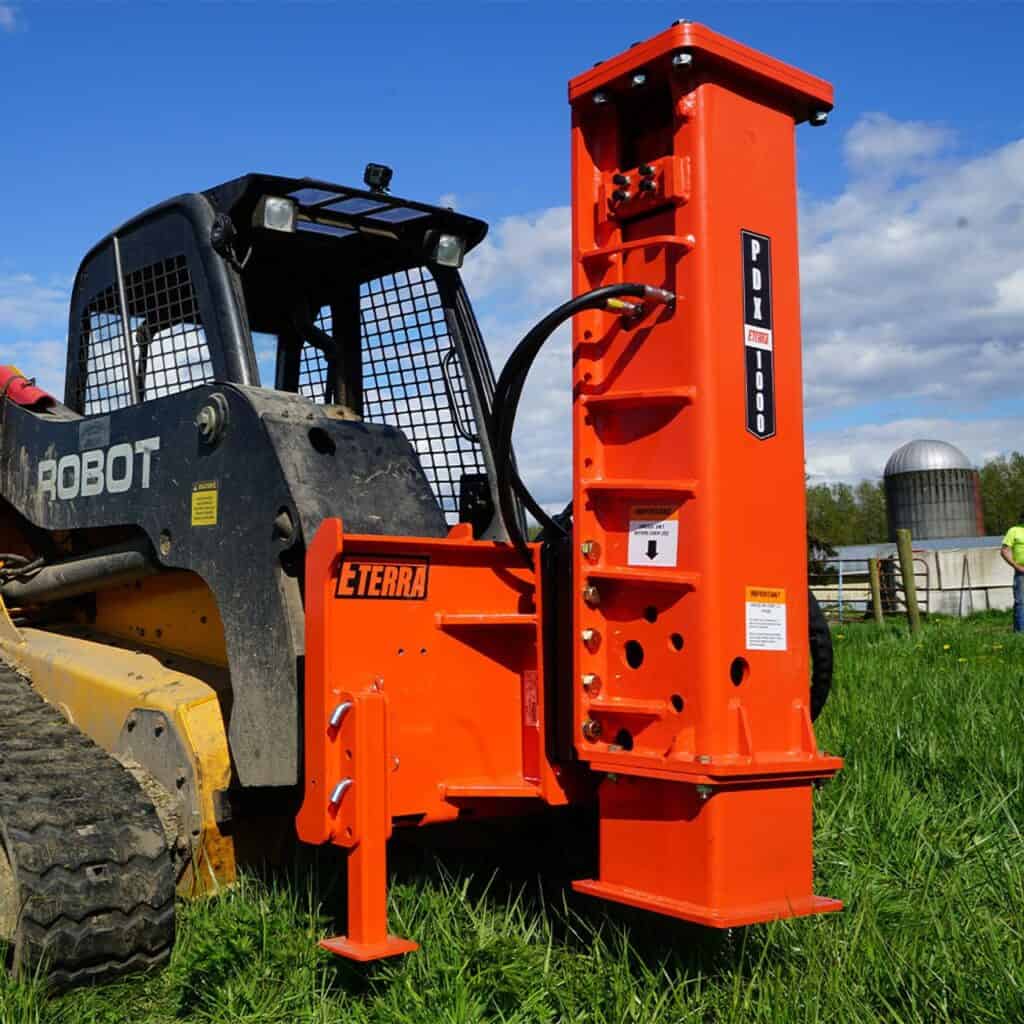

• Fence installation
• Agricultural fencing
• Guard rail and sign post installation
• Vineyard and orchard posts
• Pipe and steel post driving
• Ranch and property fencing

• Impact Energy: 1,000 ft-lbs per strike
• Impact Force: Approx. 32,000 lbs force
• Hit Rate: 400–800 BPM
• Hydraulic Flow: 13–21 GPM
• Operating Pressure: ~1,700 PSI
• Minimum Machine Lift Capacity: 1,500 lbs
• Weight: ~1,186–1,656 lbs depending on setup
• Width: ~46"
• Height: ~60"
• Driver Head Material: 4140 heat-treated steel
• Tilt Range: Up to 15° left/right (tilt models)
• Post Guide Sizes: 2", 4", 6", 8" (removable for larger posts)

The Eterra PDX1000 is designed to work with a wide range of equipment, as long as the machine is equipped with:

• Auxiliary hydraulics 11-22 GPM (we find around 16 is the sweet spot)

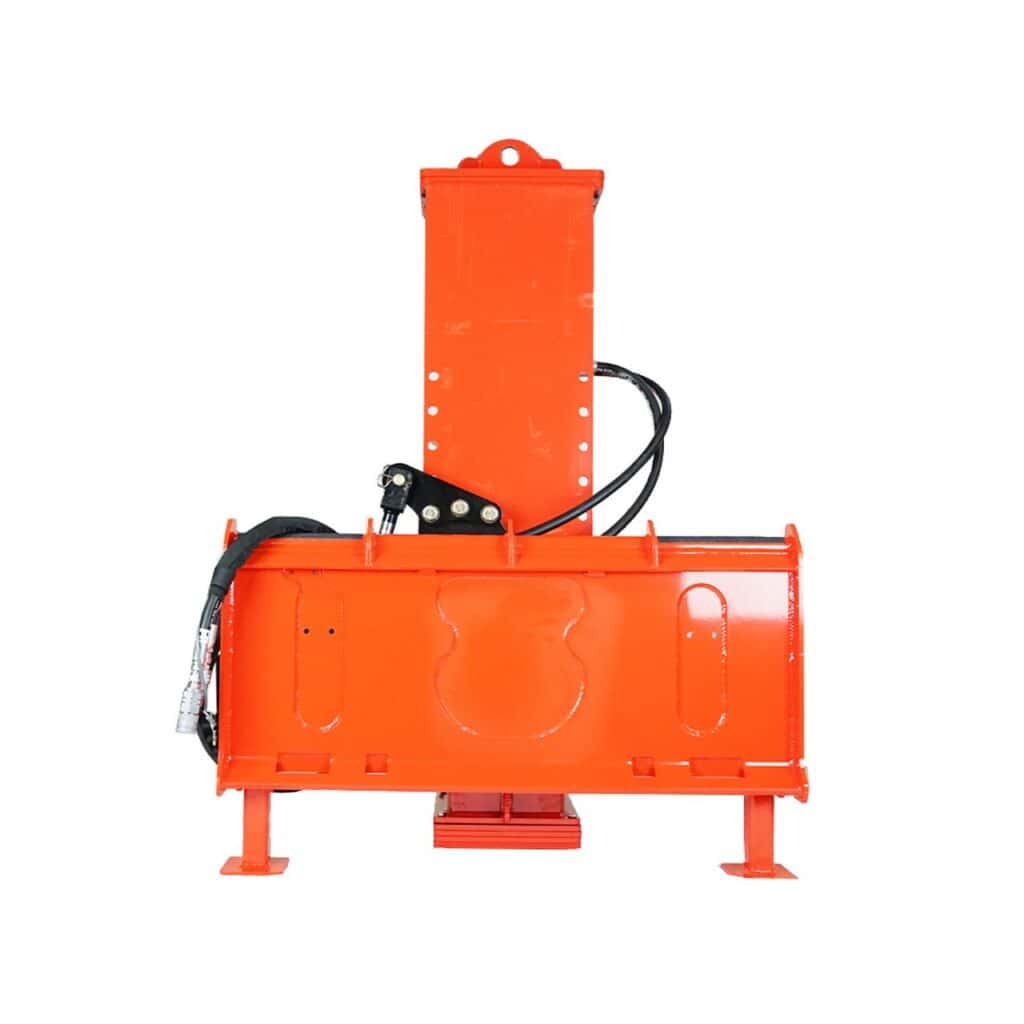

• Skid steer universal quick attach or excavator mount
• At least 1,500 lb. lift capacity

Common Machine Types

• Skid steers
• Compact track loaders
• Telehandlers (with skid steer mount)
• Excavators

Common Skid Steer Compatible Models

• Bobcat S650, S740, S770, T650, T770, S66, T76
• John Deere 320G, 324G, 330G, 332G, 333G
• Kubota SVL75-2, SVL97-2, SVL97-3
• Case SV280, SV340, TV370
• New Holland L228, L230, C332
• CAT 262D, 272D, 289D, 299D
• ASV RT-65, RT-75, RT-120
• Takeuchi TL8, TL10, TL12

What makes this different from a traditional post driver?

This is what is called a breaker style post driver, which utilizes the vibration from multiple hits to mimic a vibratory driver. But also uses massive power to copy a drop hammer system. Add the weight of the driver and some downforce to drives posts faster and more consistently.

Can it handle hard or rocky ground?

Yes, and with the optional breaker spike you can pre-drill tough ground before driving posts.

Do I need a large machine to run it?

No, it runs on standard flow (13–21 GPM), but you need enough machine weight and lift capacity for stability.

How accurate is the tilt feature?

The optional 15° tilt allows precise post placement on slopes, uneven terrain, and difficult angles.

What types of posts can it drive?

It can handle wood posts, pipe, guardrail, and even large posts depending on guide setup.

Does it shake the machine a lot?

We wouldn't say a lot, but definitely will be felt by the the operator. The enclosed power cell with isolators reduces vibration which allows for a full work day without your operator feeling like they rode a horse across Montana like other drivers do.

Is the driver head a wear part?

Technically yes

Eterra Attachments are backed by a limited manufacturer warranty covering defects in materials and workmanship for the original purchaser.

• Structural components and hydraulic cylinders are typically covered for 1 year under normal use
• Gearboxes and drive components are covered, with wear items (such as seals) considered maintenance after the initial period
• Warranty applies to properly operated and maintained equipment within recommended hydraulic and usage specifications

This warranty does not cover damage caused by misuse, improper installation, normal wear and tear, or operation outside of rated capacities.

All warranty claims are handled through Echo Equipment, where you’ll work directly with our team to get issues resolved quickly without the runaround.
