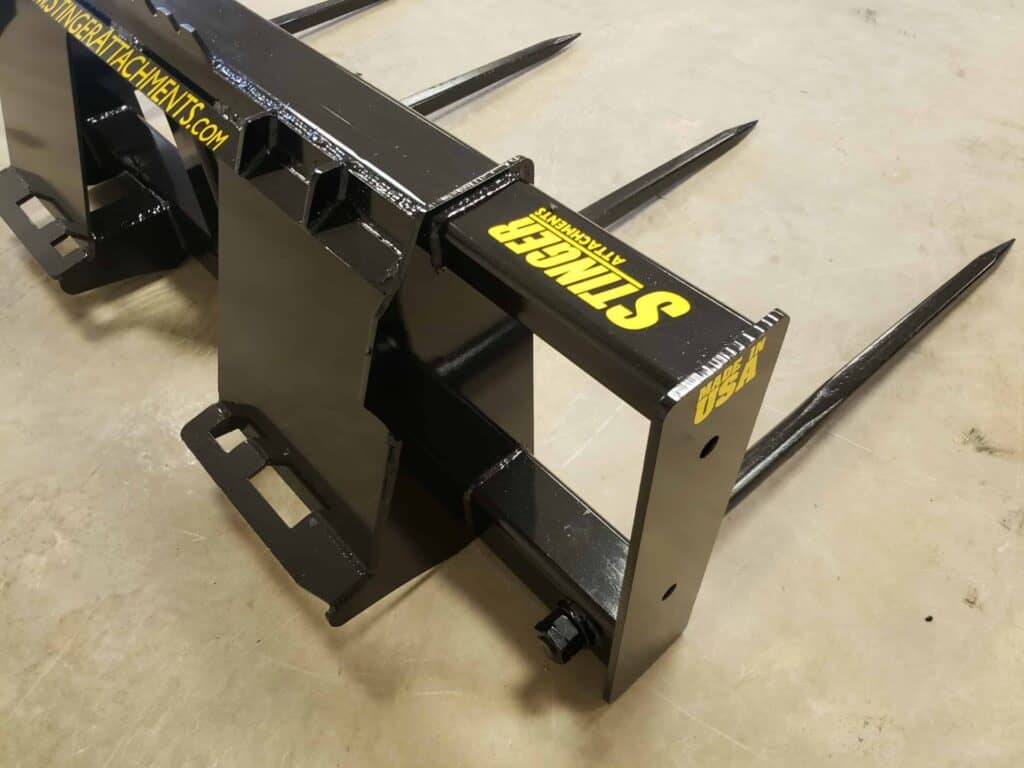

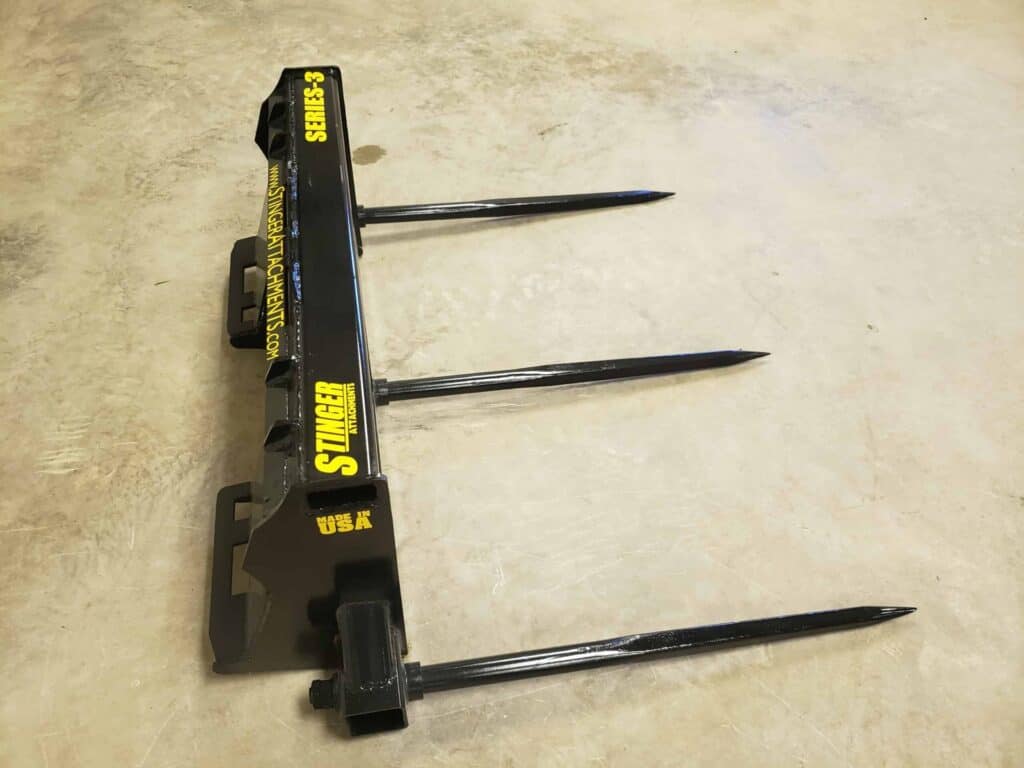

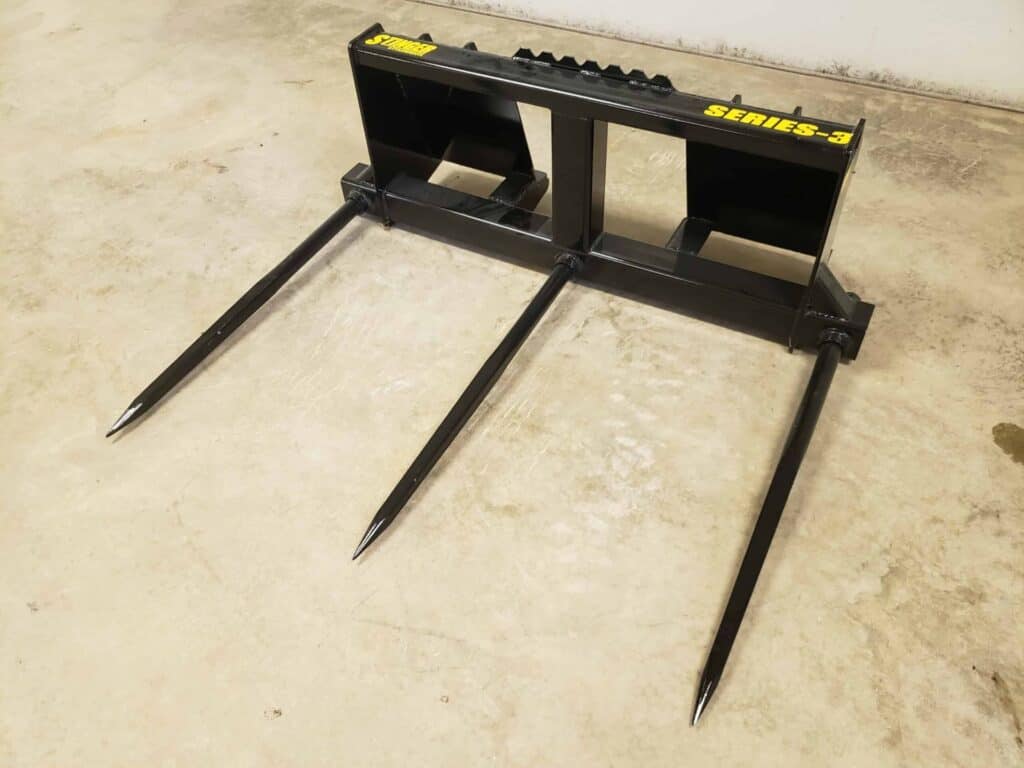

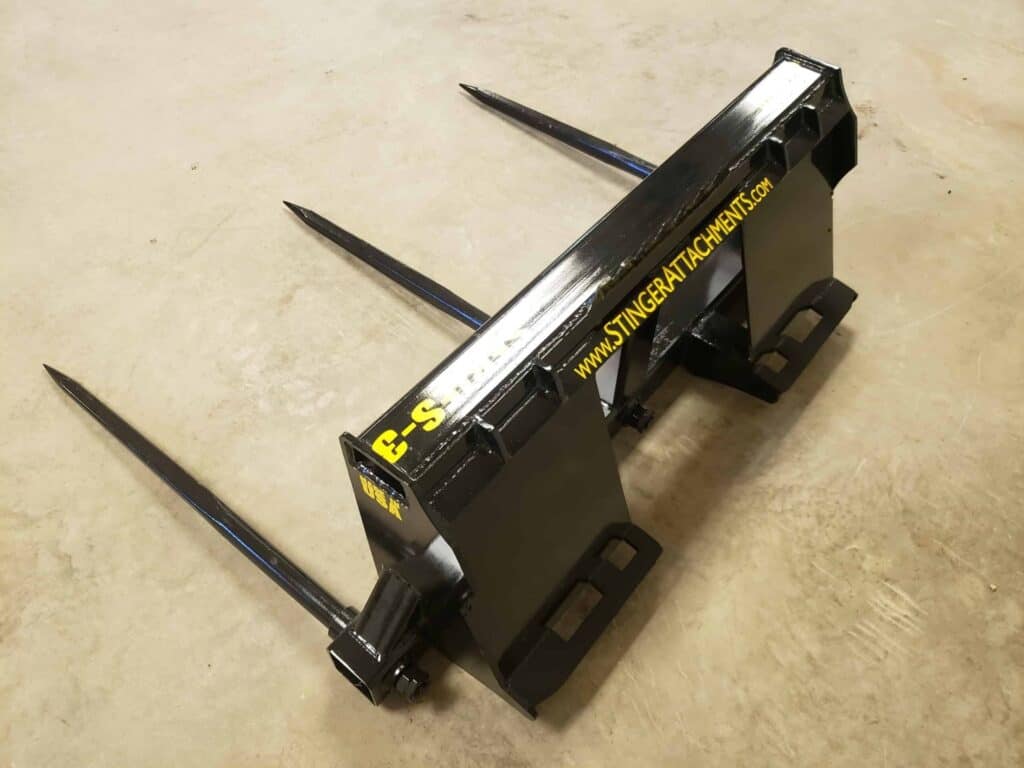

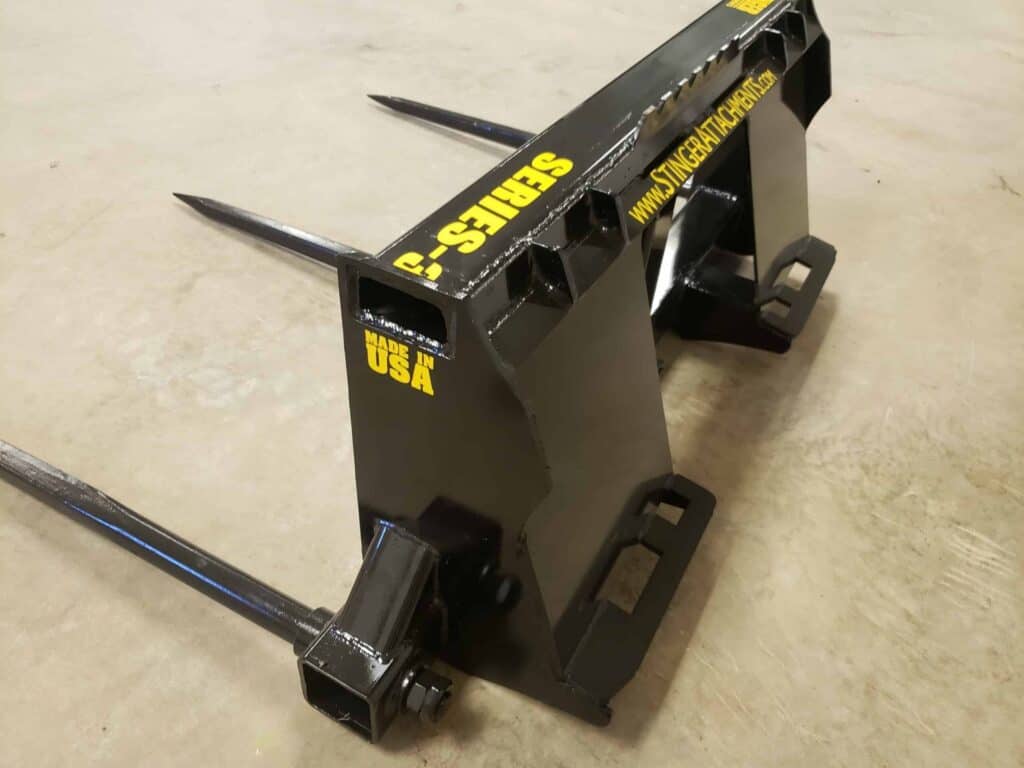

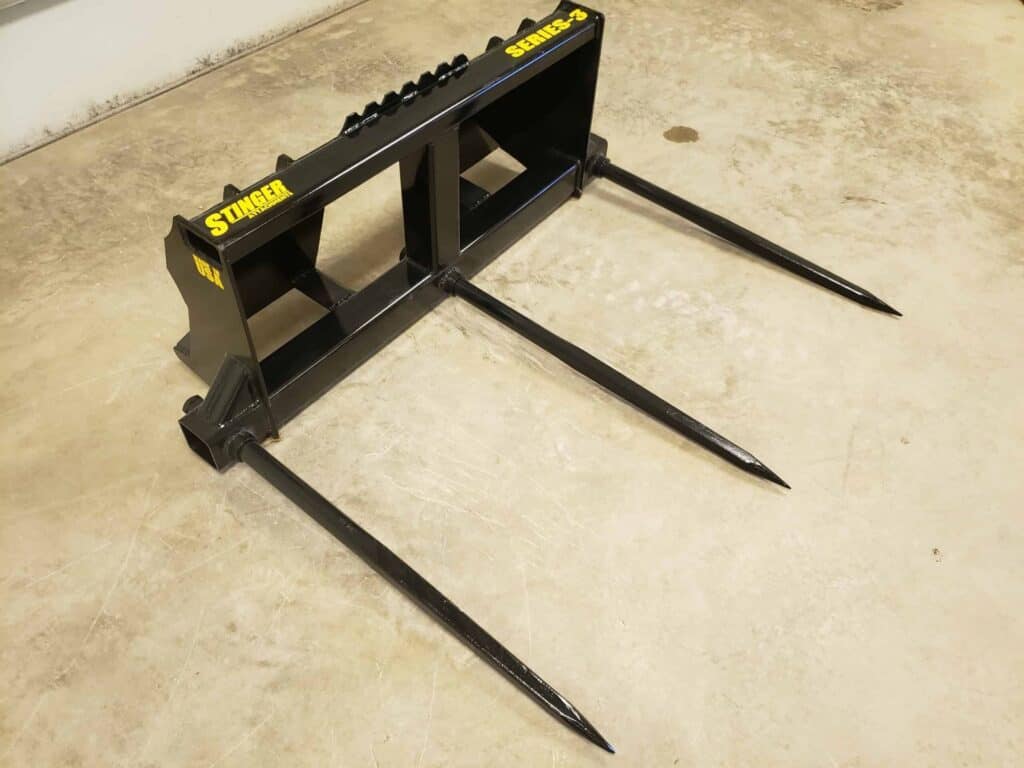

The Stinger Series 3 Bale Spear is built for farmers, ranchers, and hay operations moving large square bales, round bales, and heavy feed loads. Its three-spear layout gives operators more support across the bale, with the two outside spears spaced 52" apart on center and one spear placed in the center of the attachment.

This is a strong fit for skid steers, compact track loaders, and tractors with universal skid steer quick attach. With available 39", 43", and 49" spear options, replaceable double-nut tines, a 70-degree back angle, heavy-duty tubing, and a built-in safety step, the Series 3 is a practical choice for daily bale handling when a single or two-spear frame is not enough. Stinger lists the Series 3 at 280 lbs with 43" spears.

Features

• Three-spear design supports large square bales, round bales, and feed handling jobs.
• Outside spears are spaced 52" apart on center, with one spear centered on the attachment.
• Available with 39", 43", or 49" spear options to match different bale sizes and machine setups.
• 39" spear option provides 33" of usable spear length.
• 43" spear option provides 37" of usable spear length.
• 49" spear option provides 43.5" of usable spear length.
• Replaceable double-nut tines make future tine replacement easier.
• 70-degree back angle helps keep bales positioned during lifting and transport.
• Built-in safety step improves operator access on compatible machines.
• Skid steer quick attach mount fits many skid steers, compact track loaders, and tractors with SSQA loaders.

More Bale Support

The three-spear design gives large round and square bales better support during lifting, carrying, stacking, and feeding.

Built for Large Square Bales

The outside spears are spaced 52" apart on center with one center spear, making it a strong setup for wider and heavier bale handling.

Works with Skid Steers and Tractors

Universal skid steer hookup works with many skid steers, compact track loaders, and tractors equipped with SSQA loaders.

Serviceable Farm Design

Replaceable double-nut tines, heavy-duty tubing, and Grade 50 side plates make it a dependable attachment for daily hay work.

• Farmers moving large square bales, round bales, and hay around the farm.
• Ranchers feeding cattle, horses, sheep, goats, and other livestock.
• Hay producers stacking, loading, unloading, and transporting bales.
• Tractor owners needing a heavier bale spear setup with skid steer quick attach.
• Skid steer and compact track loader operators wanting more support than a two-spear frame.

• Weight: 280 lbs with 43" spears
• Back Angle: 70 degrees
• Mounting Style: Skid steer quick attach
• Spear Layout: Three-spear design
• Outside Spear Spacing: 52" apart on center
• Center Spear: One spear centered on attachment
• Available Spear Lengths: 39", 43", 49"
• 39" Spear Usable Length: 33"
• 43" Spear Usable Length: 37"
• 49" Spear Usable Length: 43.5"

Recommended Machine Size

• 40–120 HP tractors and skid steers

Common Compatible Models

Bobcat -  S650, S740, S770, T650, T66, T76

Caterpillar -  262D3, 272D3, 279D3, 289D3, 299D3

John Deere-  318G, 320G, 324G, 325G, 333G

Kubota -  SSV65, SSV75, SVL75-2, SVL97-2

Case / New Holland -  SR210, SV280, L218, L328, C332

What is the Stinger Series 3 Bale Spear used for?

The Series 3 Bale Spear is used for moving large square bales, round bales, feed, and hay around farms, ranches, acreages, feedlots, and hay storage areas.

Will this bale spear work on a tractor?

Yes, it can work on tractors with a universal skid steer quick attach loader mount. Always confirm your tractor has SSQA and enough lift capacity for the attachment and bale weight.

Is this only for skid steers?

No. While it uses a skid steer quick attach mount, it also works with compatible compact track loaders and tractors with SSQA mounting.

How many spears does the Series 3 have?

The Series 3 uses three spears. The outside spears are spaced 52" apart on center, with one spear centered on the attachment.

Why choose the Series 3 over the Series 2?

The Series 3 gives you an extra center spear and wider outside spear spacing, which can provide more support for larger bales, especially large square bales.

What spear lengths are available?

The Series 3 is available with 39", 43", or 49" spear options.

Which spear length should I choose?

The 39" option works well for smaller or lighter bales, the 43" option is a good all-around choice, and the 49" option gives the most usable length for larger round or square bales.

Are the tines replaceable?

Yes. Stinger lists the Series 3 with replaceable double-nut tines, making it easier to service if a tine gets bent, damaged, or worn.

What is the safety step for?

The safety step gives the operator a better step point when getting in and out of the skid steer, track loader, or tractor.

What machines fit this bale spear?

It fits many skid steers, compact track loaders, and tractors with universal skid steer quick attach. Always verify your machine’s mount style before ordering.

Stinger Attachments products are backed by a 2-year manufacturer warranty covering defects in materials and workmanship for the original purchaser. Twice the length of industry standard.

• Structural components and welds are covered under normal use
• Wear items such as cutting edges and skid shoes are considered maintenance
• Warranty applies to properly operated equipment within rated use

This warranty does not cover damage caused by misuse, improper operation, or normal wear and tear.

All warranty claims are handled through Echo Equipment, where you’ll work directly with our team to get issues resolved quickly without the runaround.
