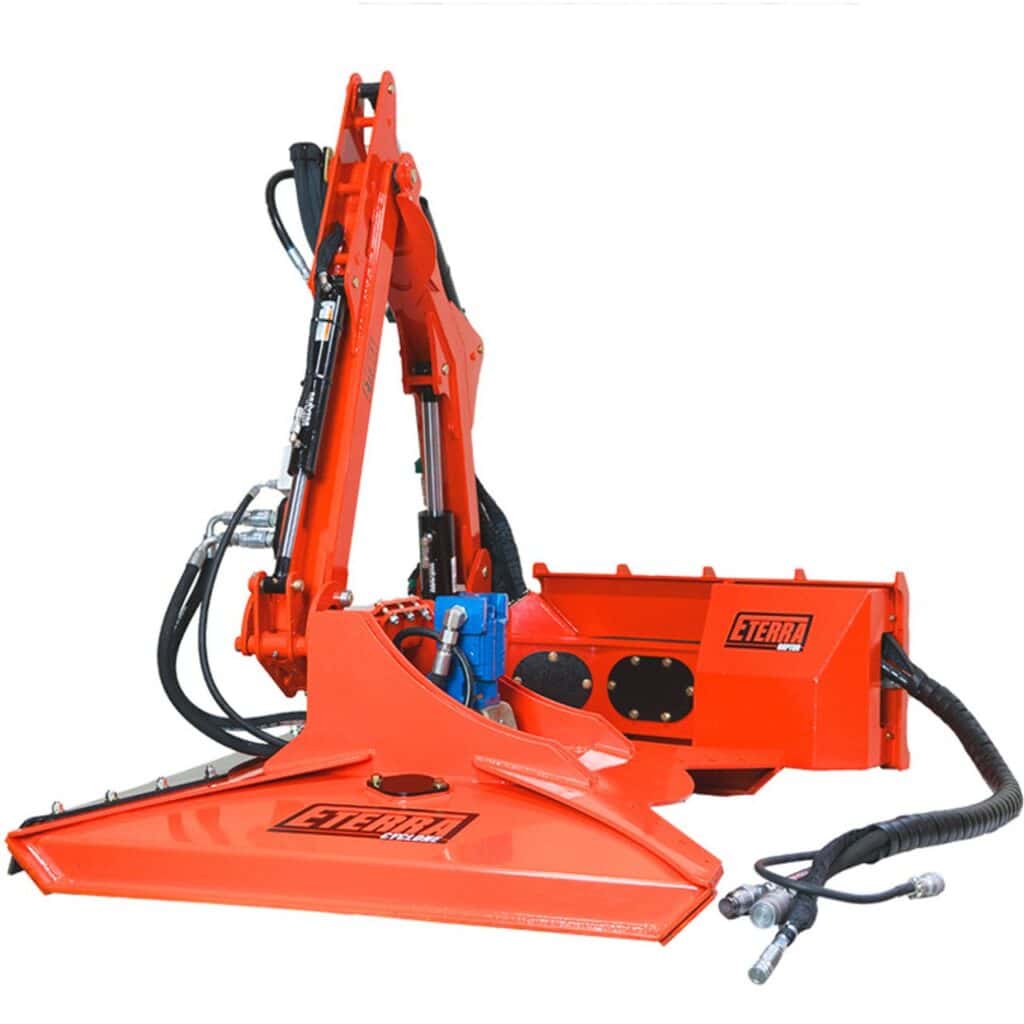

The Eterra Raptor Boom Arm System is a side-reach mowing solution designed to turn your skid steer into a highly capable vegetation management machine. This is not just a mower - it’s a full system that allows you to run multiple mower heads while reaching areas traditional attachments simply cannot touch.

With up to 20 feet of reach depending on the mower head, the Raptor allows operators to cut along roadsides, into ditches, over guardrails, and around obstacles without constantly repositioning the machine.

Built off an excavator-style boom design, the latest version improves strength while reducing weight, making it easier to run on a wider range of machines.

Features

• Up to 14–20 ft of reach depending on mower head for true side-reach capability

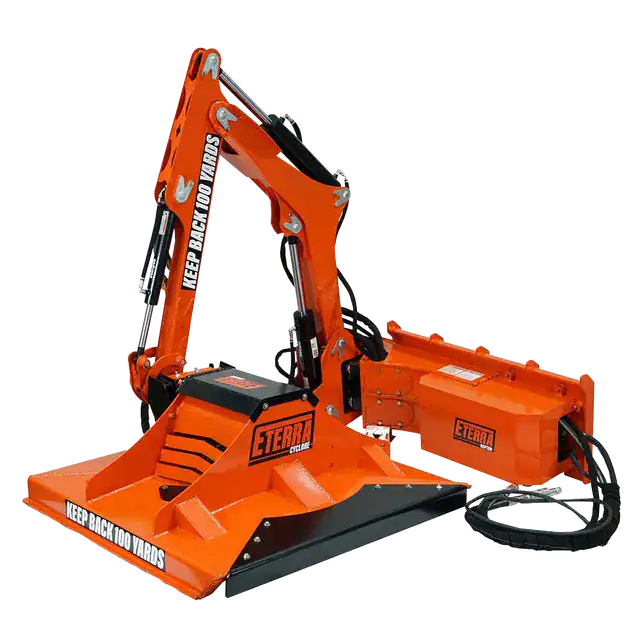

• Excavator-style boom arm design provides strength while keeping weight manageable

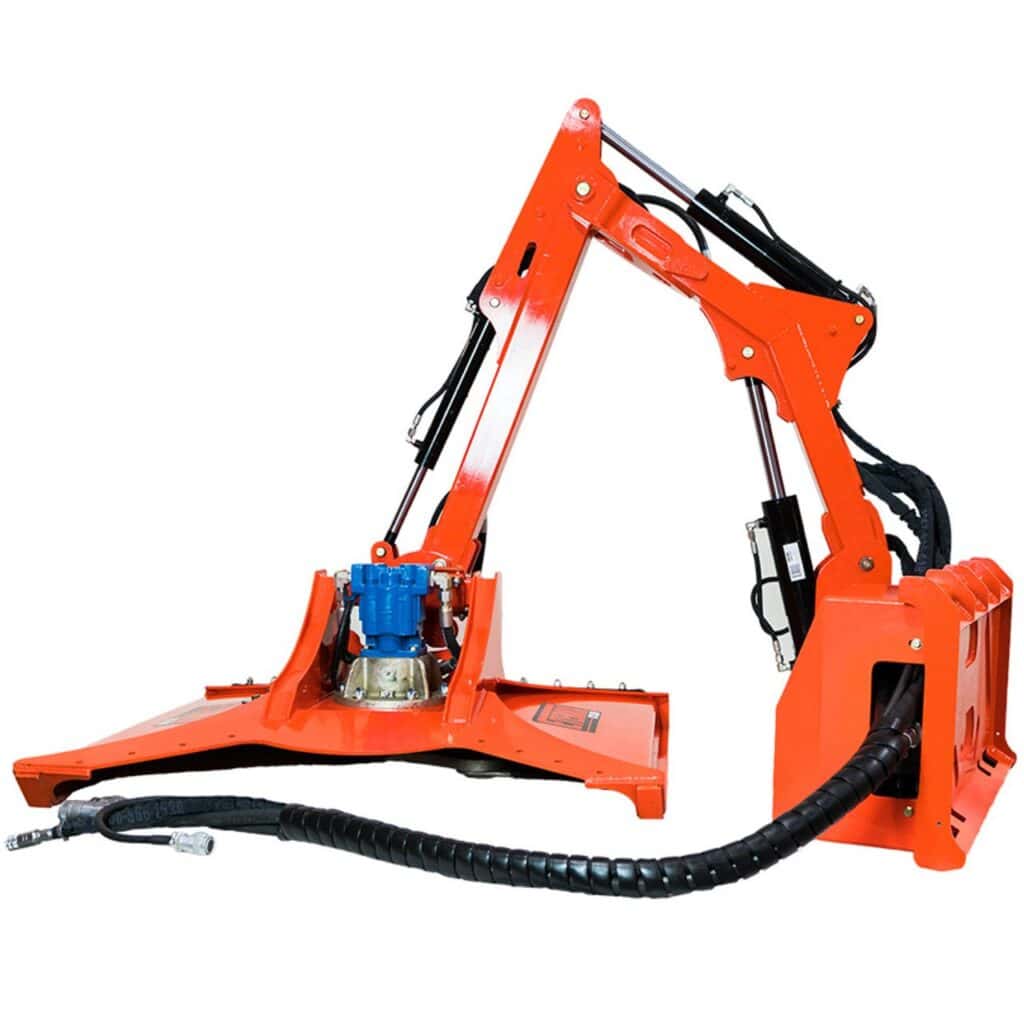

• Hydraulic rotary actuator with breakaway protection prevents damage from impacts

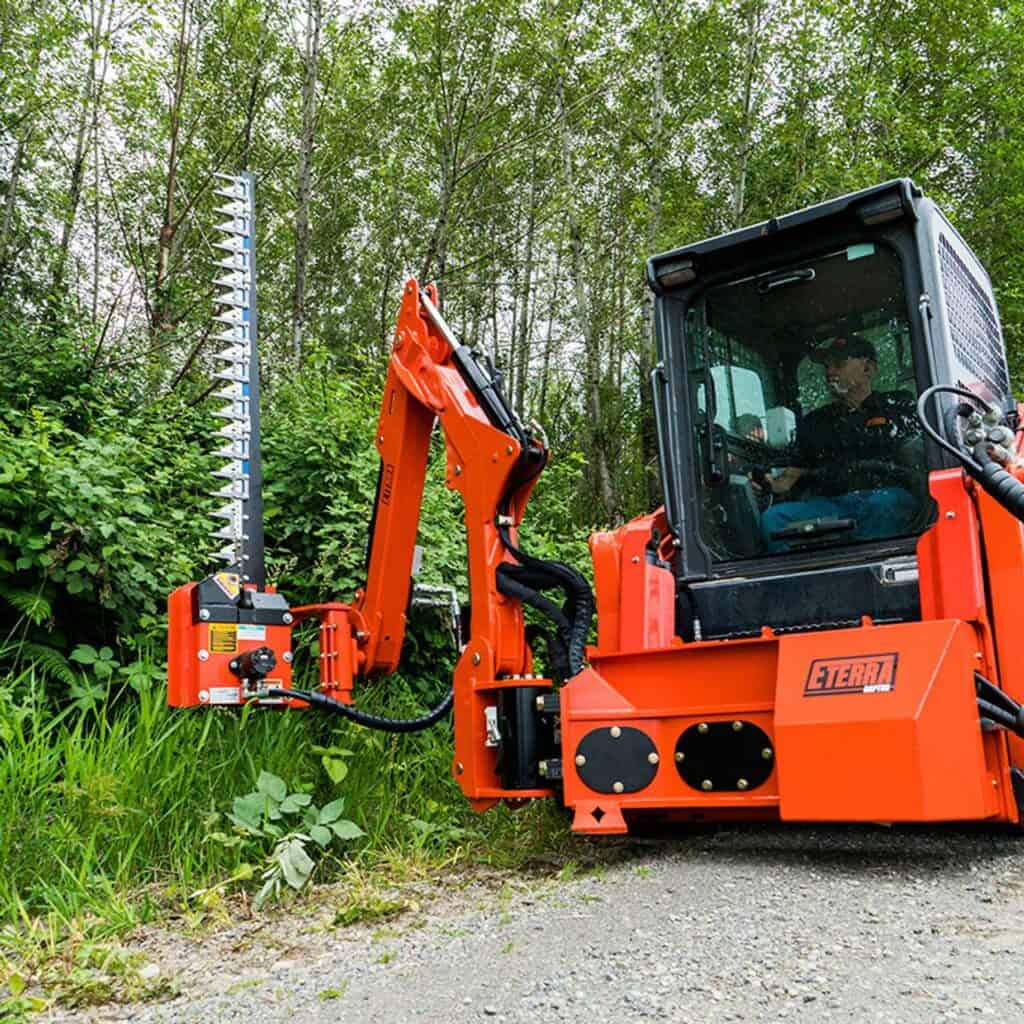

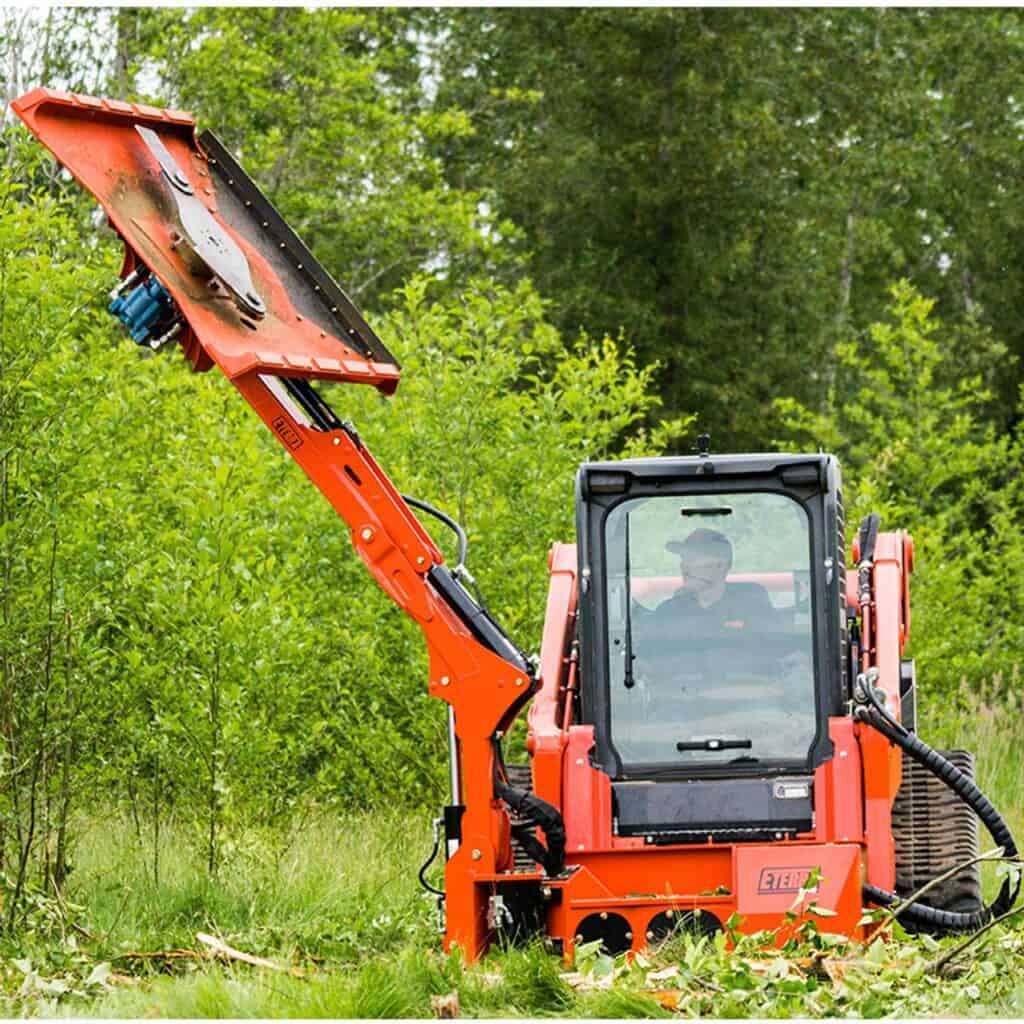

• 180° head rotation allows cutting vertically, horizontally, or below grade

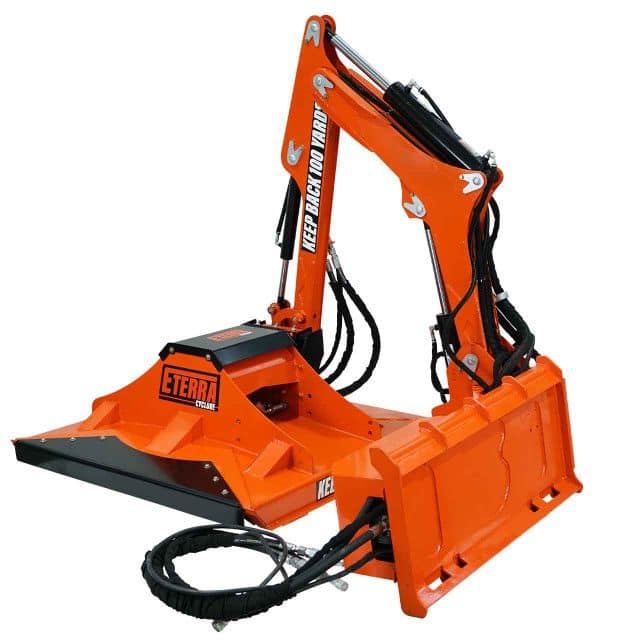

• Multiple mower head compatibility including rotary, flail, and sickle options
• Fully enclosed control system options for precise multi-function operation
• External wrapped hose routing improves durability and heat management
• Case drain system and high-quality control valve for long-term hydraulic reliability

Improves Safety

Keep operators out of ditches, slopes, and dangerous roadside conditions

Saves Time

Reach more area without constantly repositioning your machine

Reduces Equipment Needs

Eliminates the need for dedicated boom mowers or roadside equipment

Extreme Versatility

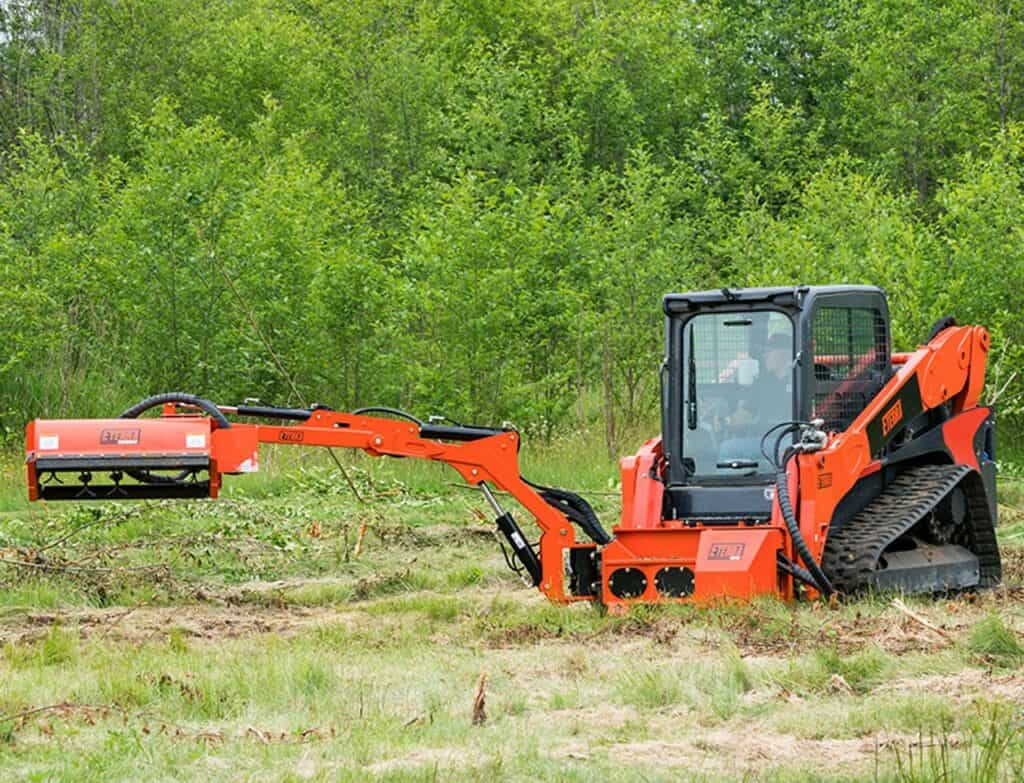

Run rotary, flail, or sickle mower heads depending on the job

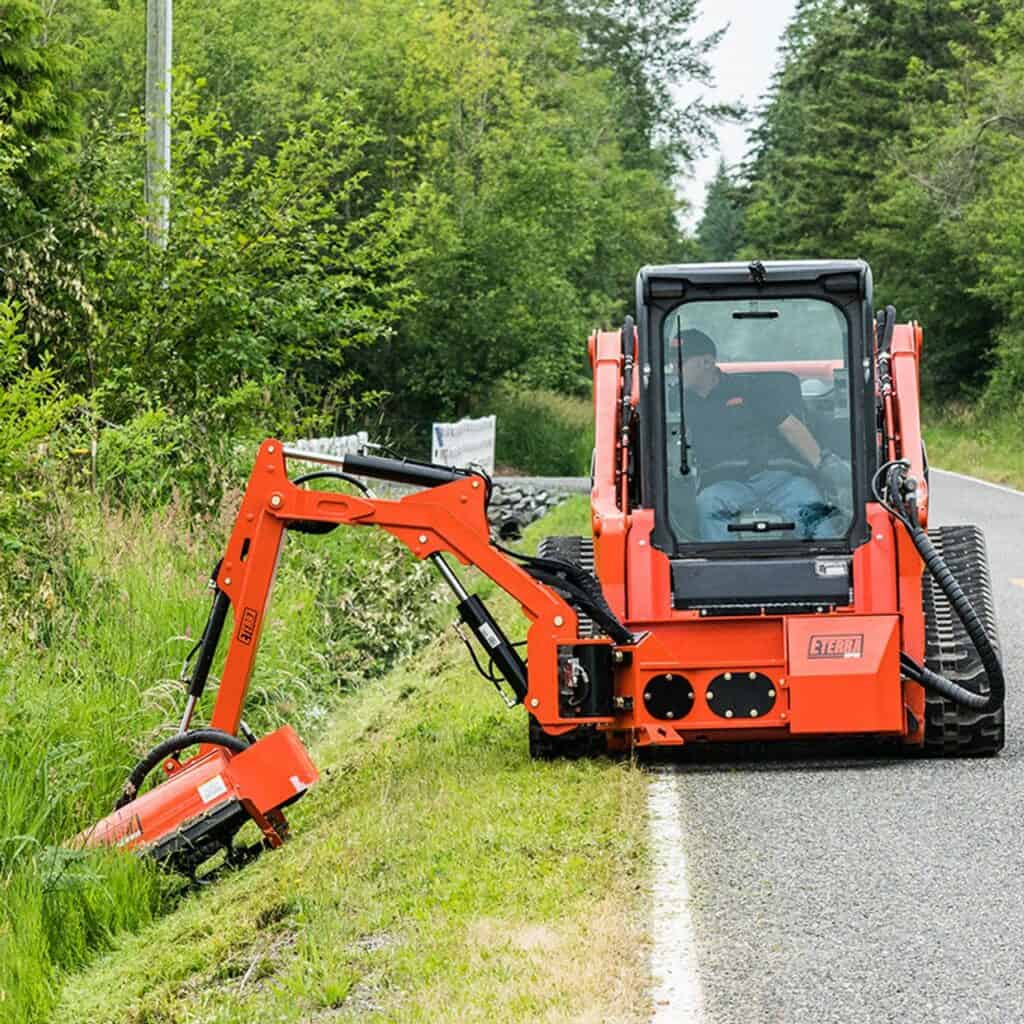

• Roadside mowing and maintenance

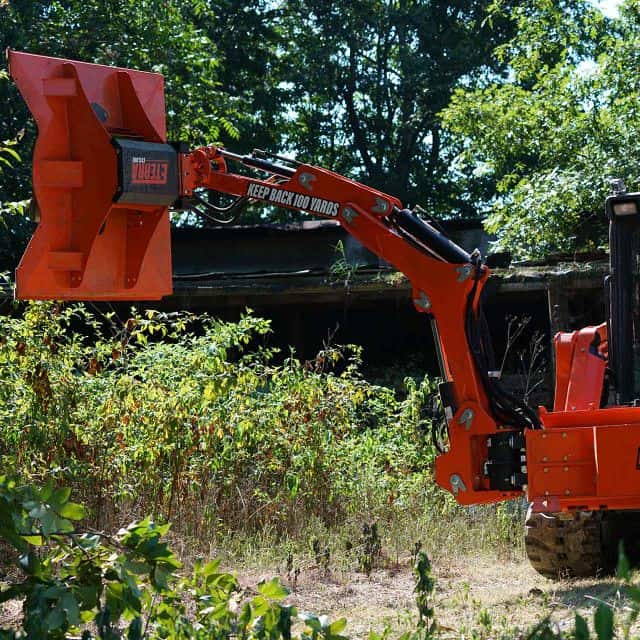

• Ditch and slope cutting
• Municipal and county crews

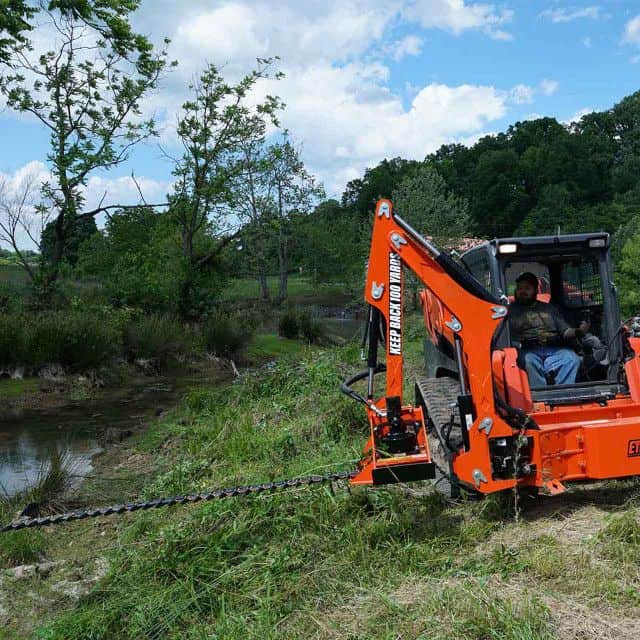

• Fence line and property edge maintenance

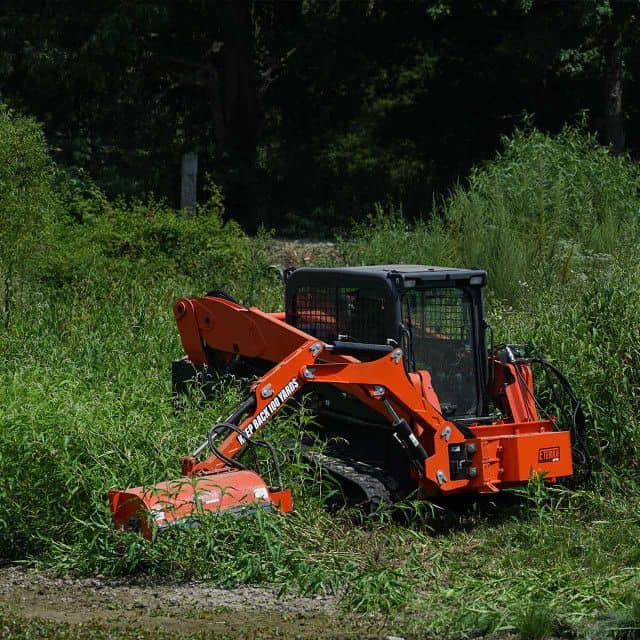

• Large property and land management
• Jobs where reach and control matter more than brute cutting

• Hydraulic Flow Requirement: 18–45 GPM
• Max Pressure: 3,500 PSI
• Max Reach:

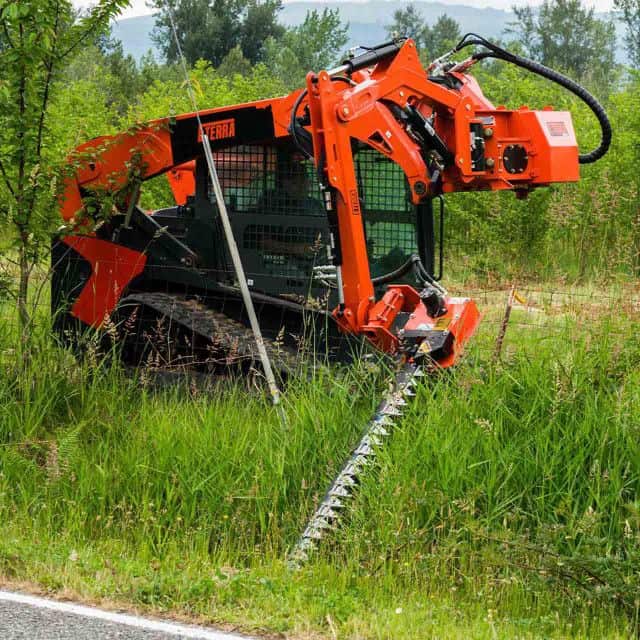

• ~14 ft (5' sickle)

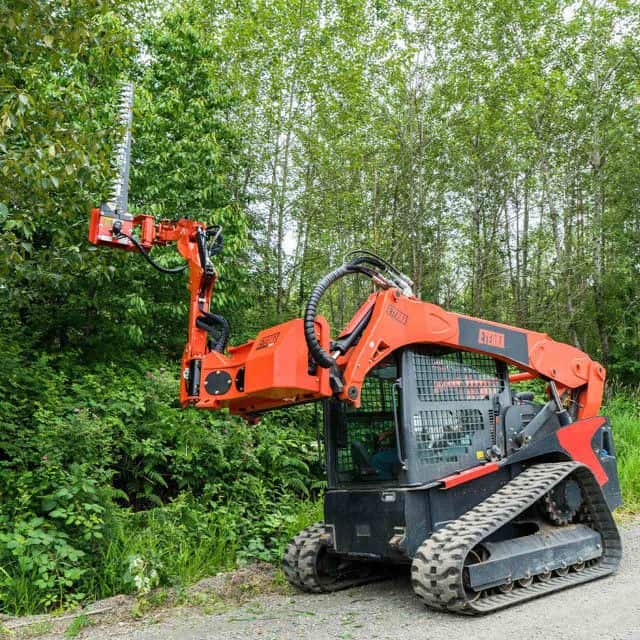

• ~18 ft (7' sickle)

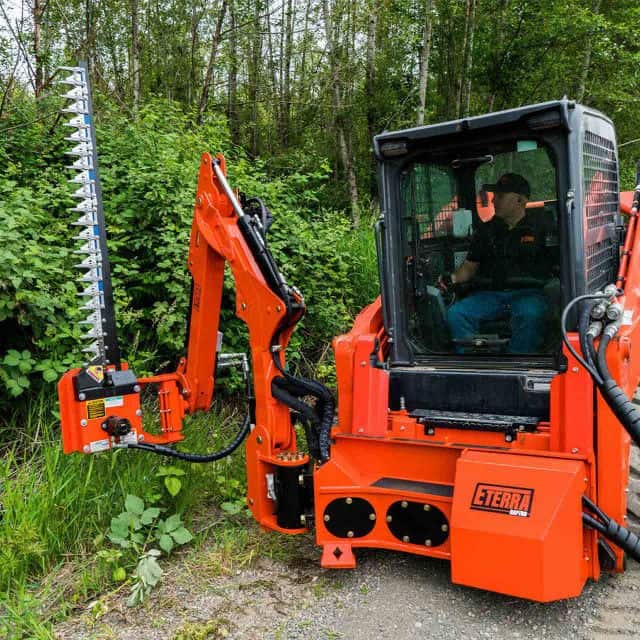

• ~20 ft (9' sickle)
• Head Rotation: 180°
• Max Side Reach from Centerline: 151"
• Boom Arm Vertical Reach: ~97" from centerline
• Boom Arm Horizontal Reach: ~125" from centerline
• Weight: ~1,350 lbs arm only
• Mount: Skid steer quick attach

Designed for mid to large skid steers and compact track loaders

Recommended Machine Specs:

• Hydraulic Flow: 18–45 GPM
• Lift Capacity: 2,500–4,000+ lbs
• Case Drain: Required
• Machine Weight: Mid to large frame preferred

Common Skid Steer Compatible Models

• Bobcat S650, S740, S770, T650, T770, S66, T76
• John Deere 320G, 324G, 330G, 332G, 333G
• Kubota SVL75-2, SVL97-2, SVL97-3
• Case SV280, SV340, TV370
• New Holland L228, L230, C332
• CAT 262D, 272D, 289D, 299D
• ASV RT-65, RT-75, RT-120
• Takeuchi TL8, TL10, TL12

Is this a complete mower or just the boom arm?

It’s a system. The boom arm is the base, and you choose a mower head like rotary, flail, or sickle depending on your application.

How far can I actually reach?

Up to around 20 feet depending on the mower head you’re running, with additional vertical reach from your machine.

What’s the biggest advantage over a standard brush mower?

Reach. You can cut areas a traditional front-mounted mower physically cannot access.

Can I switch between mower heads?

Yes, that’s one of the biggest advantages. You can run different heads depending on the job.

Is this only for high-flow machines?

No, it works with standard and high-flow machines, but higher flow gives better performance.

How does the breakaway system work?

The rotary actuator allows the arm to give if it hits an object, then resets to protect the system from damage.

Who should actually buy this?

Municipal crews, contractors, and property managers who need reach and versatility, not just cutting power.

Eterra Attachments are backed by a limited manufacturer warranty covering defects in materials and workmanship for the original purchaser.

• Structural components and hydraulic cylinders are typically covered for 1 year under normal use
• Gearboxes and drive components are covered, with wear items (such as seals) considered maintenance after the initial period
• Warranty applies to properly operated and maintained equipment within recommended hydraulic and usage specifications

This warranty does not cover damage caused by misuse, improper installation, normal wear and tear, or operation outside of rated capacities.

All warranty claims are handled through Echo Equipment, where you’ll work directly with our team to get issues resolved quickly without the runaround.
