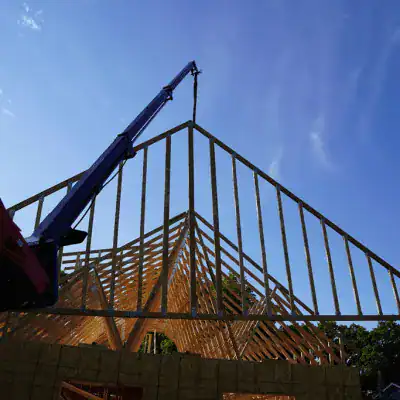

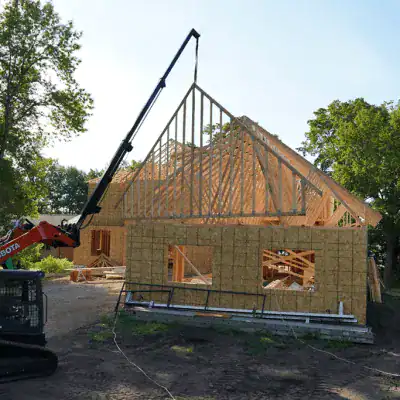

The Prime Attachments Telescopic Boom is built specifically for setting trusses, lifting framing materials, and getting overhead work done without bringing in a crane. If you’re doing pole barns, post frame buildings, or roof systems, this attachment turns your skid steer or tractor into a simple, effective truss-setting machine.

With over 22 feet of reach and the ability to work close to 30 feet when combined with your machine height, you can place trusses from the ground with better control and less setup. It’s a straightforward solution for crews who want to move faster without adding another piece of equipment to the job.

For most truss jobs, this covers everything you need without the cost, scheduling, or hassle of a crane.

Features

• Built specifically for truss setting and overhead placement making it ideal for framing crews
• 72" hydraulic extension cylinder provides smooth, controlled reach adjustment
• Over 22 feet of reach for roof and structure work
• Compact retracted length makes transport and jobsite movement easy
• Heavy-duty steel construction built for repeated lifting tasks
• Universal quick attach mount fits skid steers and telehandlers

Improves Safety

Set trusses from the machine instead of ladders or risky manual placement

Saves Time

Place trusses quickly without waiting on crane scheduling or setup

Reduces Equipment Costs

Handle most truss jobs without needing a crane or boom truck

Better Control

Place trusses more accurately with steady machine positioning

• Setting roof trusses
• Pole barn construction
• Post frame buildings
• Framing and roofing crews
• Lifting materials onto structures
• Farm building projects

• Length (Retracted): ~129"
• Length (Extended): ~272"
• Reach Height: Up to ~30 ft depending on machine
• Weight: ~485 lbs
• Hydraulic Cylinder: 72" stroke
• Capacity:
• ~1,200 lbs (retracted, angled)
• ~750 lbs (retracted horizontal)
• ~350 lbs (fully extended)
• Mount: Skid steer quick attach

Designed for skid steers used in construction and framing

Recommended Machine Specs:

• Lift Capacity: 2,000–3,500+ lbs
• Auxiliary Hydraulics: Required
• Machine Size: Mid to large machines preferred

Skid Steers / Track Loaders

Bobcat

• S650, S66, S76, S86, T650, T66, T76, T86

Caterpillar

• 262D3, 272D3, 279D3, 289D3

John Deere

• 320G, 324G, 325G, 331G

Kubota

• SSV75, SVL75-2, SVL97-2

Is this actually enough to set trusses without a crane?

For most residential and post-frame builds, yes. It handles typical truss weights and gives you enough reach to set them safely from the ground.

How many people do I need to set trusses with this?

Typically a small crew can handle it. One operator and a couple of guys guiding trusses is common.

What size trusses can it handle?

That depends on weight, not just size. Most standard wood trusses are well within capacity, especially when not fully extended.

Does it feel stable when placing trusses?

Yes, as long as it’s matched with the right machine. Larger skid steers and tractors provide better stability, especially at full reach.

Why not just use forks or a jib boom?

This gives you far more reach and control, which makes truss placement faster and safer.

Can I still use this for other lifting tasks?

Yes, but it really shines in truss setting and overhead framing work.

What’s the biggest limitation?

Like any boom, capacity drops as you extend. Staying within limits is key for safe operation.

Prime Attachments products are backed by a limited manufacturer warranty covering defects in materials and workmanship for the original purchaser.



• Structural components and welds are typically covered for 2 years under normal use
• Wear items such as blades, hardware, and normal maintenance components are not covered
• Warranty applies to properly operated equipment within rated hydraulic and usage specifications

This warranty does not cover damage caused by misuse, improper installation, or normal wear and tear.

All warranty claims are handled through Echo Equipment, where you’ll work directly with our team to get issues resolved quickly without the runaround.
