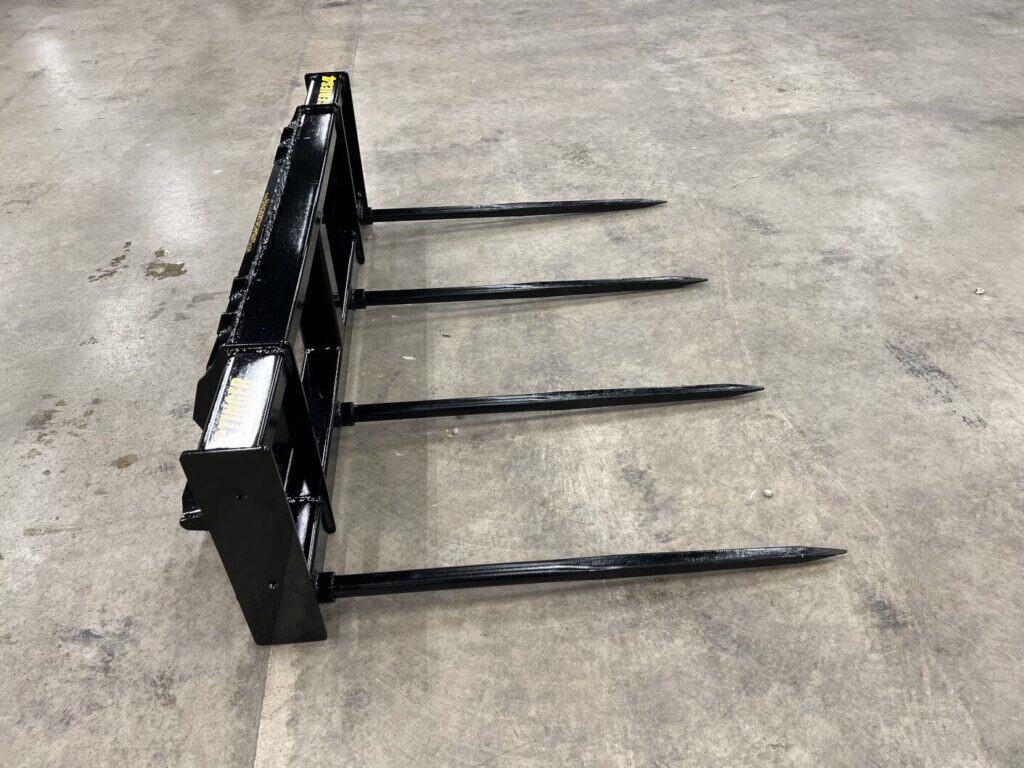

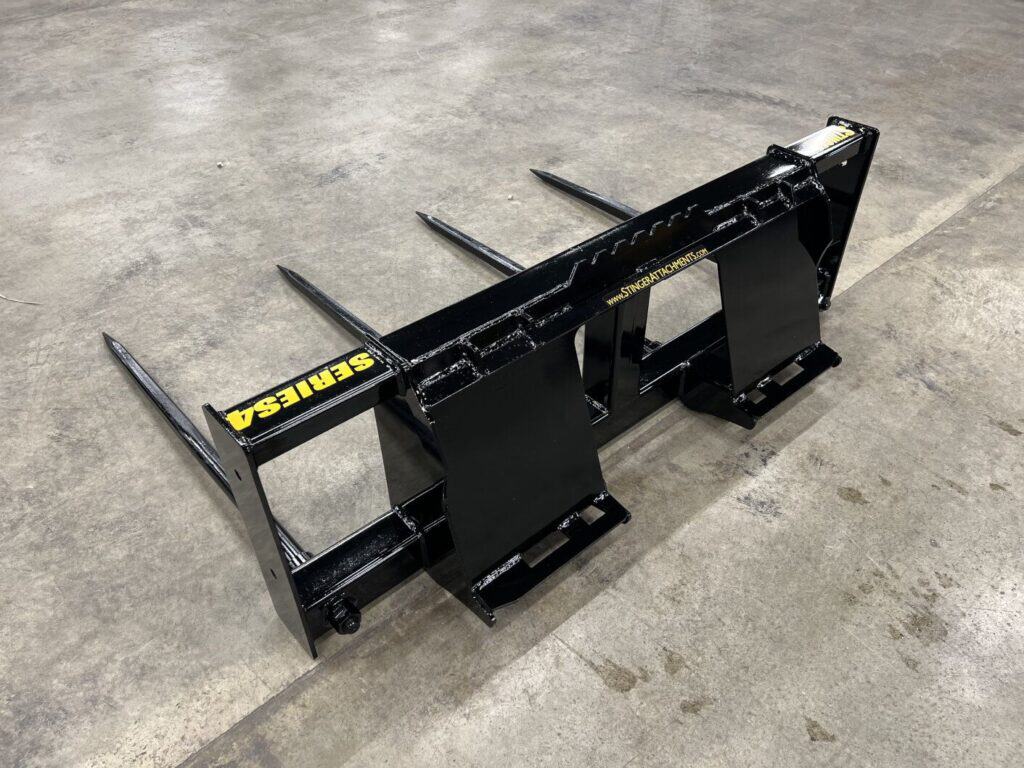

The Stinger Series 4 Bale Spear is built for larger hay operations, farmers, ranchers, and ag producers moving large square bales or two large round bales at a time. With four replaceable tines, wide spear placement, and multiple mount options, this bale spear gives operators more support and flexibility than a standard single, double, or three-spear setup.

This is a strong fit for skid steers, compact track loaders, and tractors with compatible mounting. Stinger lists the Series 4 with Universal Quick Attach, John Deere 100-500 Series, and Global Euro mount options, making it a practical choice for both skid steer and tractor loader use. It is available with 39", 43", or 49" spears, plus an optional bolt-on bale support for carrying two large bales at once.

Features

• Four-spear layout is built for large square bales and double large round bale handling.

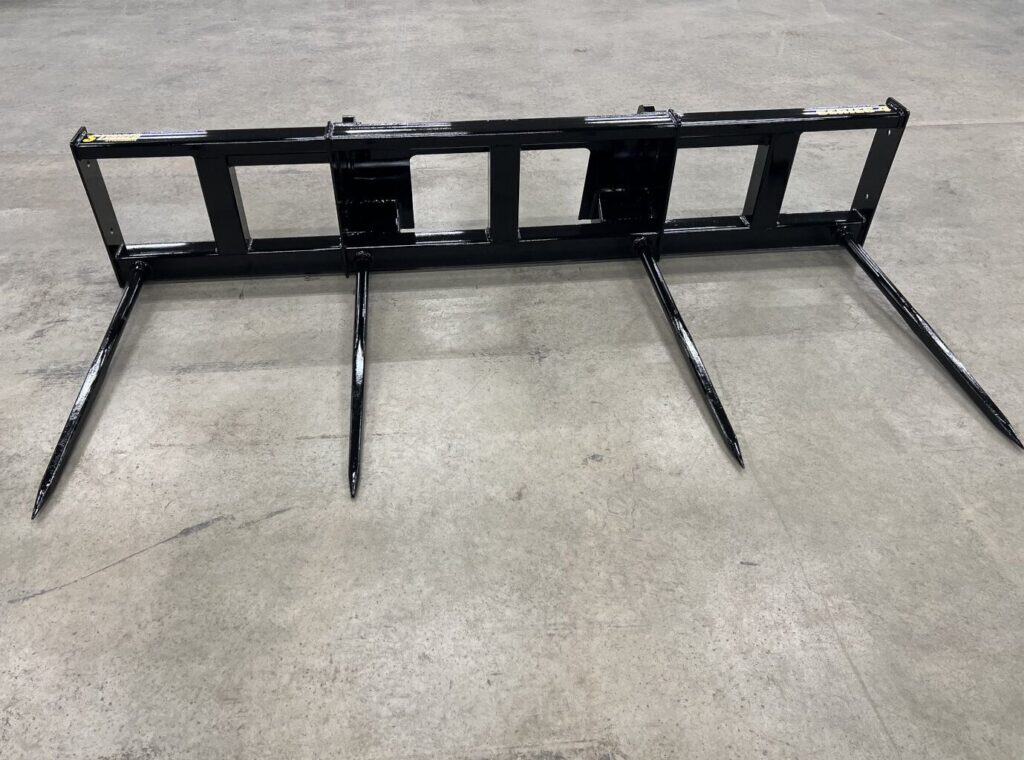

• Outermost tines are placed 61" apart with two additional tines placed evenly between them.
• Available with 39", 43", or 49" spear lengths to match different bale sizes and loader setups.

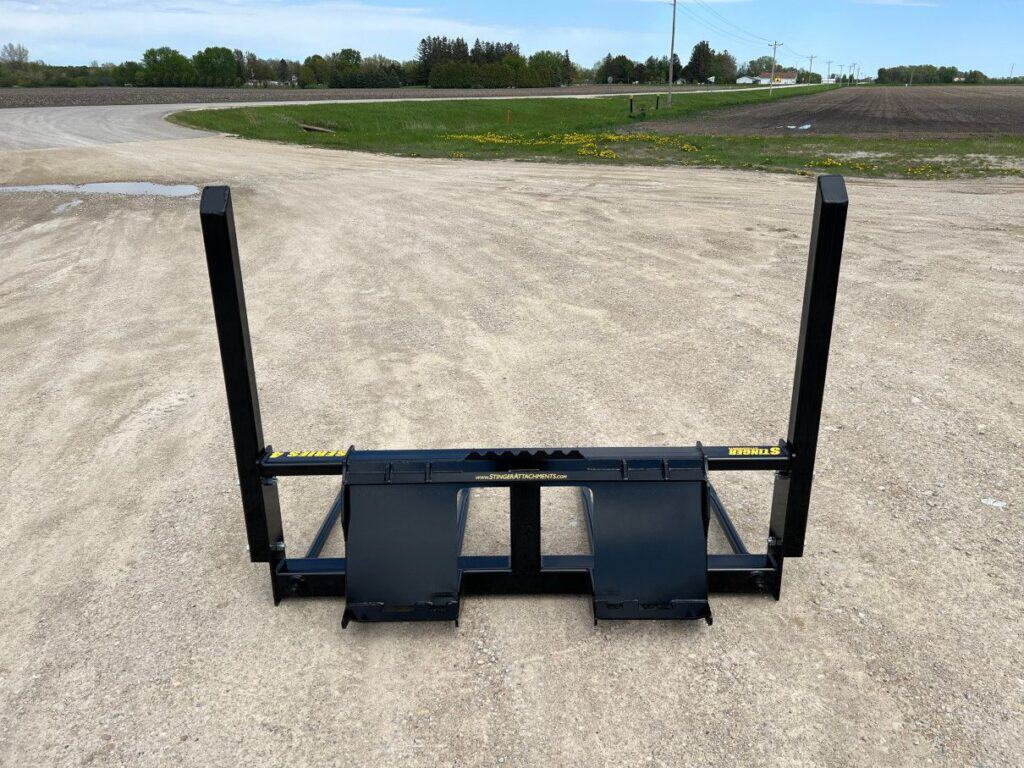

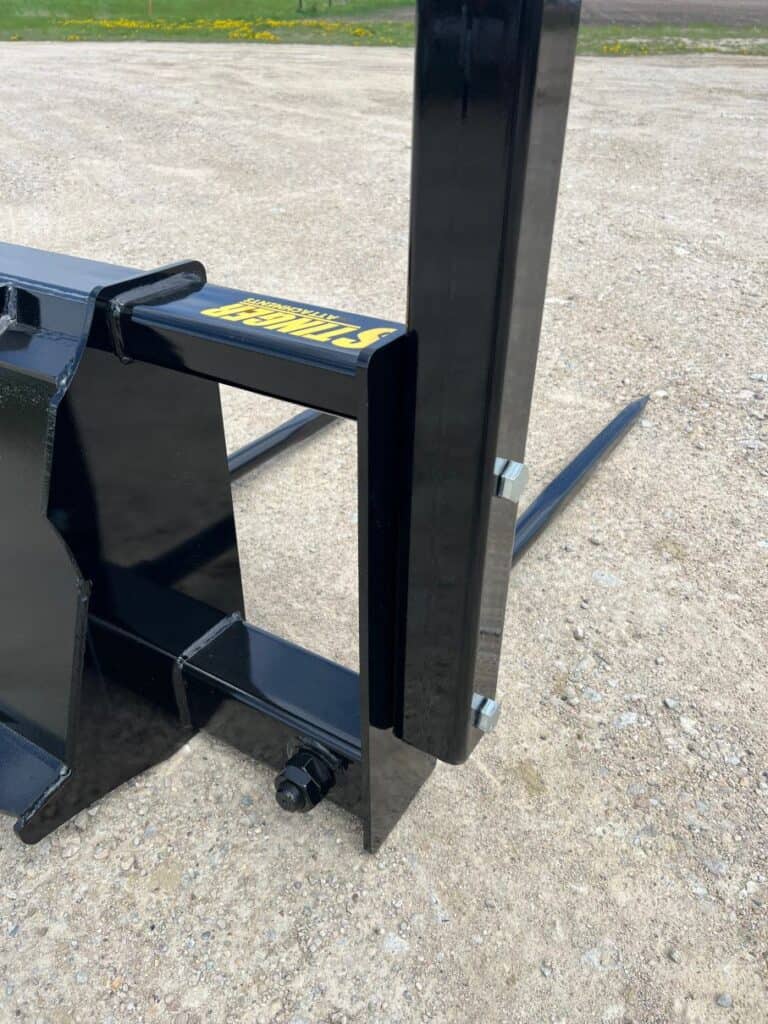

• Optional bolt-on side supports are available for carrying two large bales at once.
• Each tine is rated for 3,500 lbs at 30" for heavy hay handling capacity.

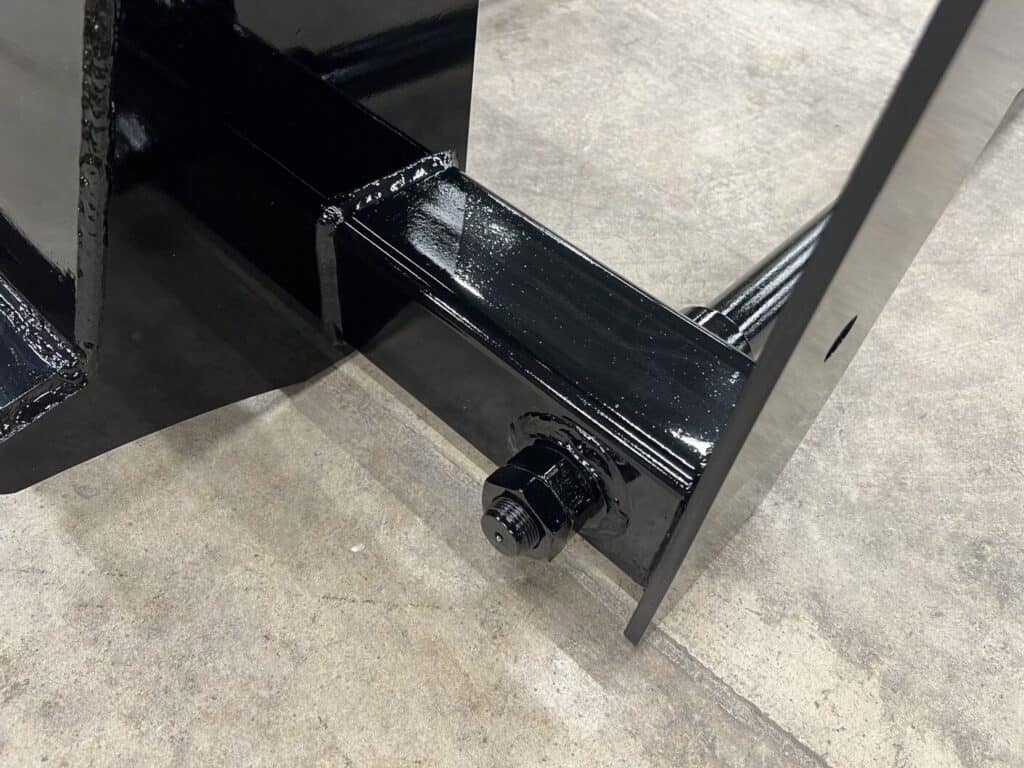

• Replaceable double-nut tines make service and replacement easier over time.
• 70-degree back angle helps keep bales positioned during lifting, carrying, and stacking.
• Built-in ribbed safety step gives operators a better step point when climbing in or out of the machine.
• Multiple mount options are available, including Universal Quick Attach, John Deere 100-500 Series, and Global Euro.

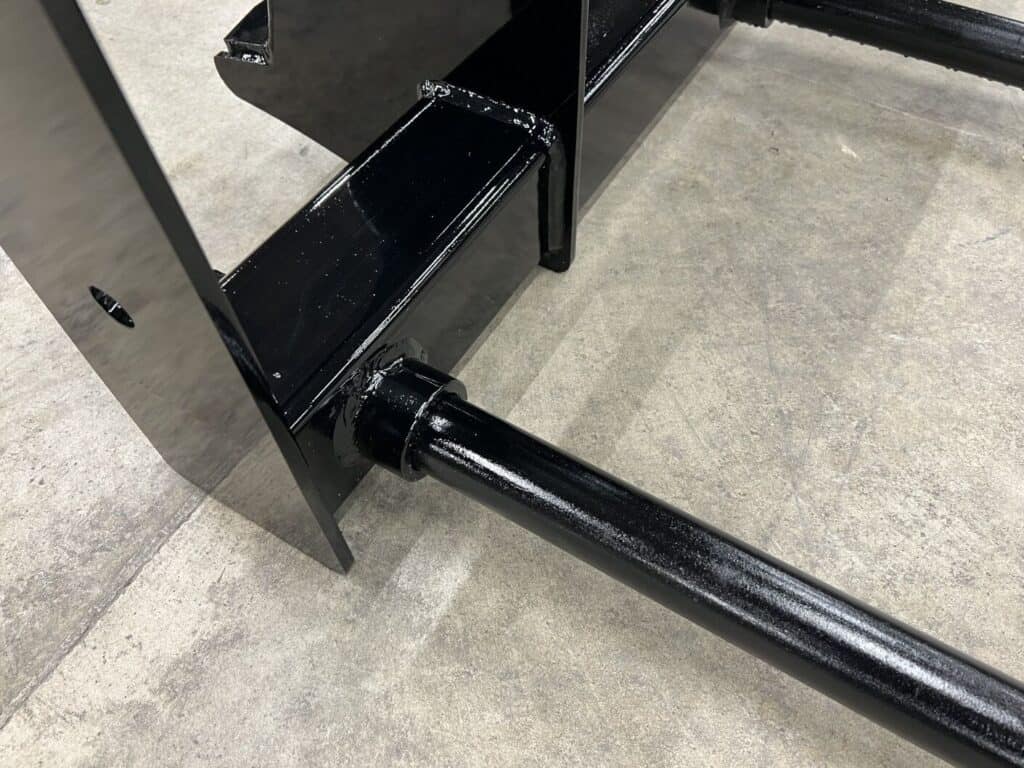

• Heavy-duty frame uses Grade 50 side plates and large support tubing for farm and ranch use.

Handles Bigger Bale Jobs

The four-spear design gives large square bales and double round bale loads more support during lifting, carrying, and feeding.

Built for Skid Steers and Tractors

Available mounting options include Universal Quick Attach, John Deere 100-500 Series, and Global Euro for a wide range of farm loaders.

Move Two Bales at Once

The optional bolt-on bale support helps safely carry two large bales at once, cutting down trips across the farm or feedlot.

Serviceable Farm Design

Replaceable double-nut tines, heavy-duty tubing, Grade 50 side plates, and a built-in safety step make it practical for daily hay handling.

• Large hay producers moving large square bales, round bales, and feed around the farm.
• Farmers wanting to move two large round bales at once with the optional bolt-on support.
• Ranchers feeding cattle, horses, sheep, goats, and other livestock.
• Tractor owners needing a heavy bale spear with John Deere or Global Euro mount options.
• Skid steer and compact track loader operators wanting a four-spear setup for bigger bale handling.

• Spear configuration - 4 spear (quad design)
• Capacity - up to 14,000 lbs
• Outer tine spacing - approx. 61" on center
• Spear lengths - 39", 43", or 49" options
• Frame - heavy-duty steel construction
• Back angle - 70°

Reccomended Machine Specifications

• 30–100 HP skid steers and compact track loaders
• Tractors with skid steer universal plate

Bobcat: S510, S530, S550, S570, S590, S630, S650, S740, S76, S770, S86, T550, T590, T595, T630, T650, T66, T76, T770, T86

CAT: 226D3, 232D3, 236D3, 242D3, 246D3, 262D3, 272D3, 279D3, 289D3, 299D3, 239D3, 249D3, 259D3

John Deere: 316GR, 318G, 320G, 324G, 330G, 332G, 333G, 325G, 3025E, 3032E, 3038E, 4044M, 4052M, 4066M, 5075E, 5100E, 5125R with compatible mount

Kubota: SSV65, SSV75, SVL65-2, SVL75-2, SVL75-3, SVL95-2s, SVL97-2, L2501, L3302, L3902, L4701, MX5400, MX6000, M4 Series, M5 Series with compatible mount

New Holland: L316, L318, L320, L321, L328, L334, C327, C332, C337, C345, Workmaster and PowerStar models with compatible loader mount

Case: SR160B, SR175B, SV185B, SR210B, SR240B, SV280B, SV340B, TR270B, TR310B, TV370B, TV450B, Farmall and Maxxum models with compatible loader mount

Kioti: CK2620, CK3520, CK4020, DK4210, DK4710, DK5310, DK5510, RX Series with compatible loader mount

Mahindra: 1626, 2638, 4540, 4550, 5155, 6065, 6075 models with compatible loader mount

LS Tractor: MT225, MT235, MT240, MT342, MT347, MT352, MT357, MT573 models with compatible loader mount

TYM: T25, T264, T394, T474, T494, T574, T654 models with compatible loader mount

Will the Stinger Series 4 Bale Spear work on a tractor?

Yes. The Series 4 is available with tractor-friendly mount options, including John Deere 100-500 Series and Global Euro. It can also work with tractor loaders that use Universal Quick Attach.

What makes the Series 4 different from the Series 1, 2, and 3?

The Series 4 uses four spears instead of one, two, or three. That gives it more support across wider bales and makes it a better fit for large square bales or moving two round bales with the optional bale support.

Can this bale spear carry two round bales at once?

Yes, when equipped with the optional bolt-on bale support. This is one of the biggest reasons to choose the Series 4 if you are trying to cut down on trips while feeding or moving hay.

What bale types is the Series 4 best for?

It is best for large square bales, large round bales, and heavier hay handling jobs where more spear support is helpful.

What mount should I choose?

Choose Universal Quick Attach for most skid steers, compact track loaders, and SSQA tractor loaders. Choose John Deere 100-500 Series or Global Euro if your tractor loader uses one of those mount styles.

Are the spears replaceable?

Yes. The Series 4 uses replaceable double-nut tines, so a damaged or worn spear can be replaced without replacing the whole attachment.

What spear length should I pick?

Choose 39" spears for smaller or lighter bales, 43" spears for a good all-around setup, and 49" spears for larger round or square bales where extra usable length helps.

Why does the back angle matter?

The 70-degree back angle helps keep the bale positioned toward the frame while lifting, carrying, and stacking, especially when working around barns, feed areas, or uneven ground.

Is this too much attachment for a compact tractor?

It can be, depending on the tractor. The Series 4 is a heavier four-spear bale attachment, so compact tractor owners should confirm loader lift capacity, mount style, and bale weight before ordering.

Stinger Attachments products are backed by a 2-year manufacturer warranty covering defects in materials and workmanship for the original purchaser. Twice the length of industry standard.

• Structural components and welds are covered under normal use
• Wear items such as cutting edges and skid shoes are considered maintenance
• Warranty applies to properly operated equipment within rated use

This warranty does not cover damage caused by misuse, improper operation, or normal wear and tear.

All warranty claims are handled through Echo Equipment, where you’ll work directly with our team to get issues resolved quickly without the runaround.
