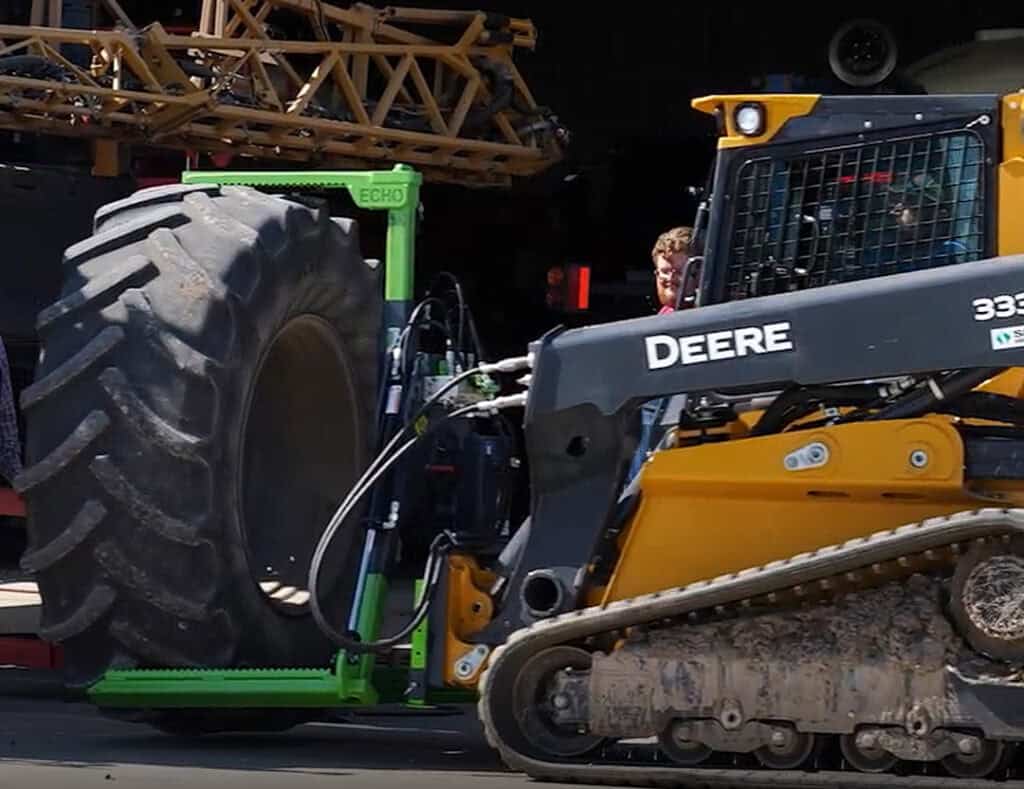

The ECHO X3 Skid Steer Tire Handler is the next generation of skid steer tire handling attachments designed to safely lift, rotate, and install large agricultural and heavy equipment tires. Built with the same proven design as the original Echo Handler, the X3 introduces three hydraulically adjustable legs and improved control to make handling oversized tires easier and more precise.

Handle 48–110" tires with its heavy-duty 8,000 lb axle spindle, 3,500 lb working load rating, and 30° rotation capability, the Echo X3 allows operators to maneuver large tires around fenders and accurately align wheel studs during installation.

Whether you're servicing tractors, sprayers, or heavy equipment tires, the Echo Handler X3 helps reduce labor, improve safety, and speed up tire changes using your skid steer.

Features

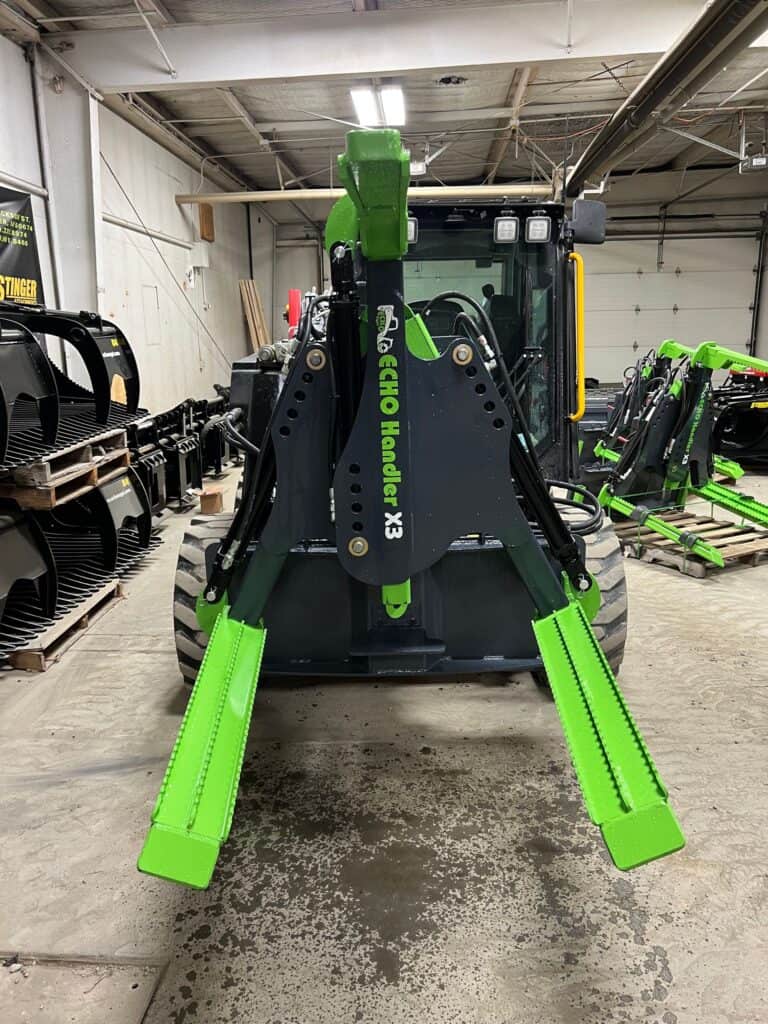

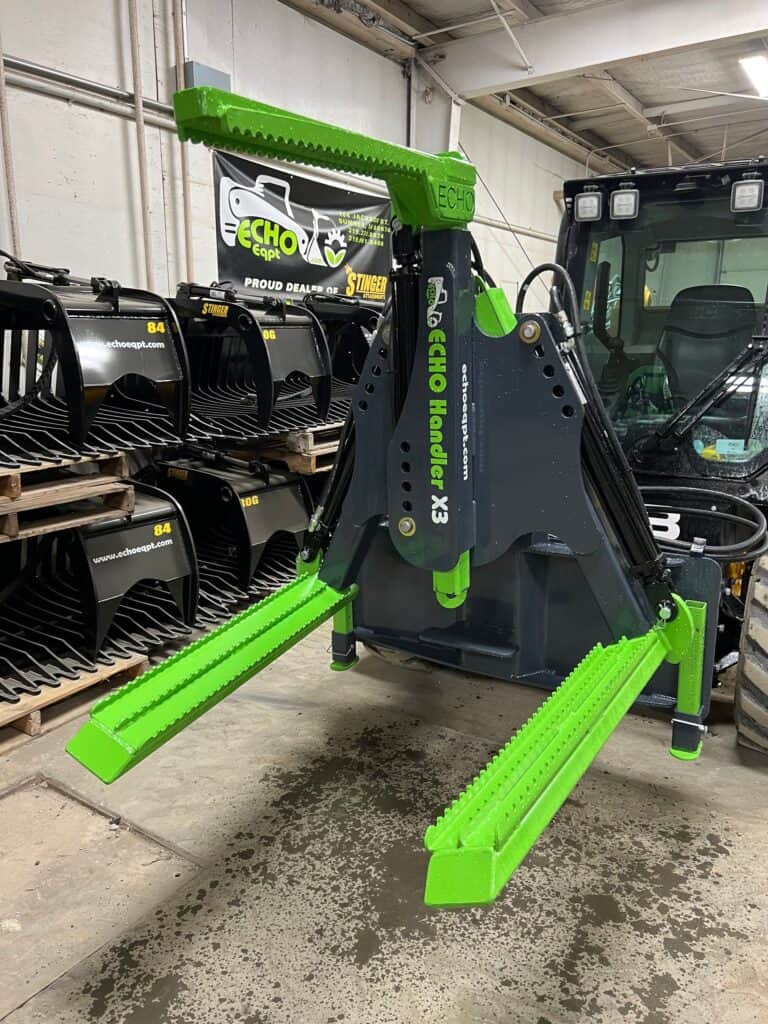

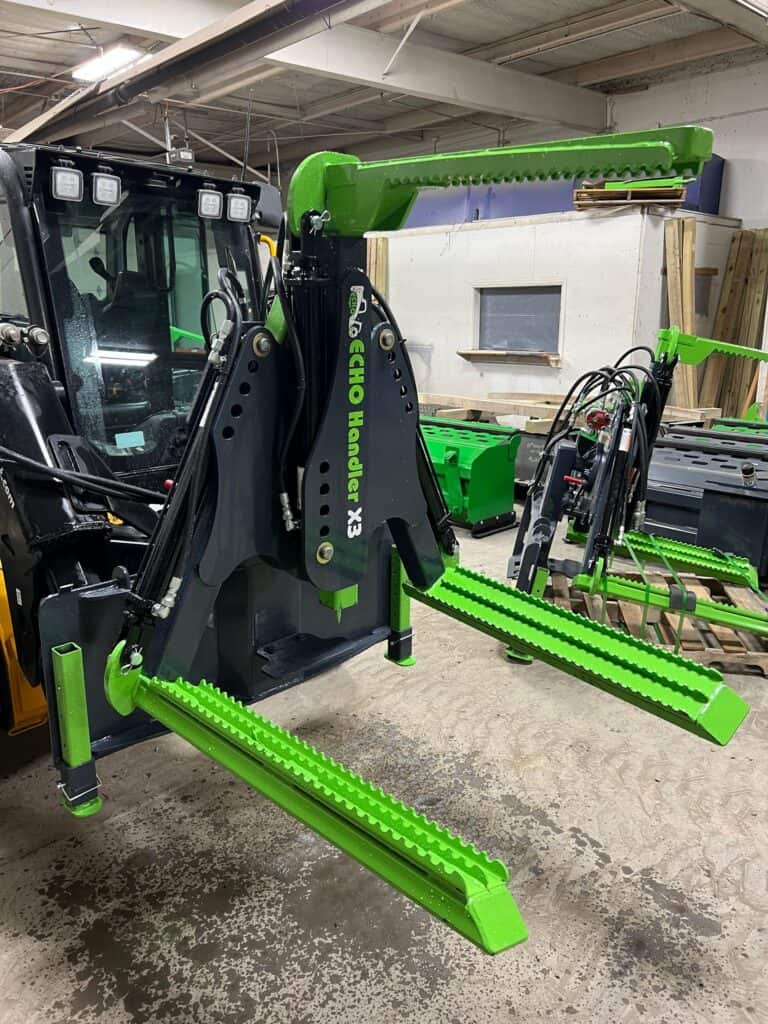

• Three hydraulically adjustable legs for improved control and positioning
• Handles 48–110" OD tires
• Gear driven flow diverter valve for smoother hydraulic operation
• 30° rotation in each direction for easier wheel alignment

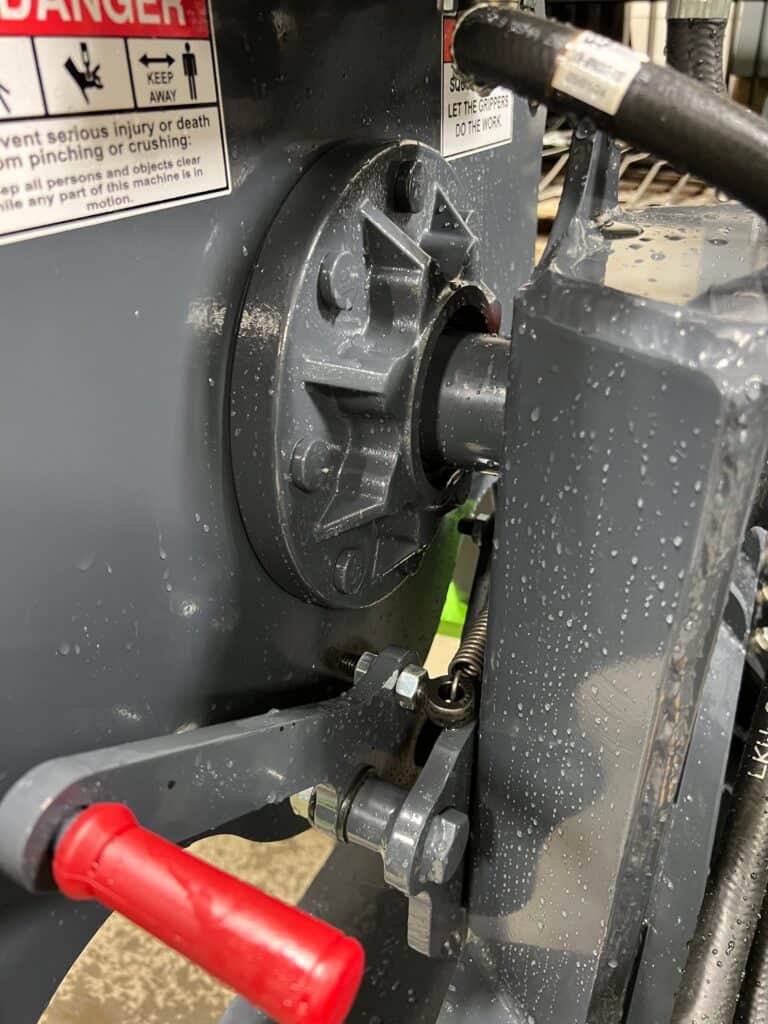

• Heavy-duty 8,000 lb axle spindle
• 3,500 lb working load rating

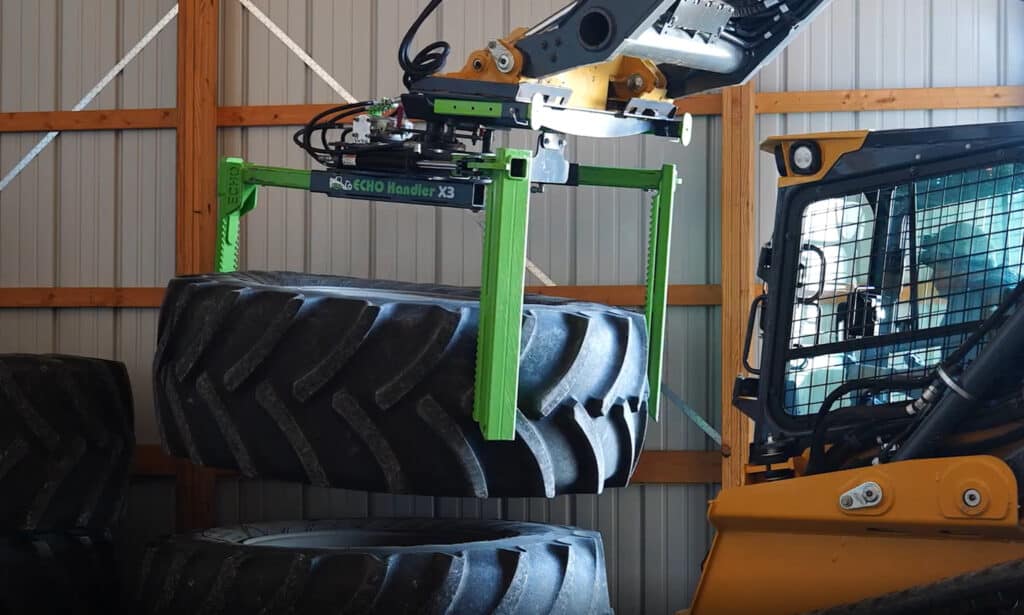

• Ability to stack tires flat on the ground for easier storage or transport
• Designed for handling large agricultural and equipment tires

Improves safety

Handling large agricultural tires can be dangerous. The Echo Handler X3 allows operators to lift and position heavy tires without manual handling.

Saves time

Hydraulic grabber arms and manual rotation allow operators to quickly position tires and align wheel studs during installation.

Reduces labor

One operator can safely manage large tires that would normally require multiple people.

Greater control

The three hydraulic legs allow the tire to be positioned precisely for removal, installation, or stacking.

• Tractor and combine tire installation and removal

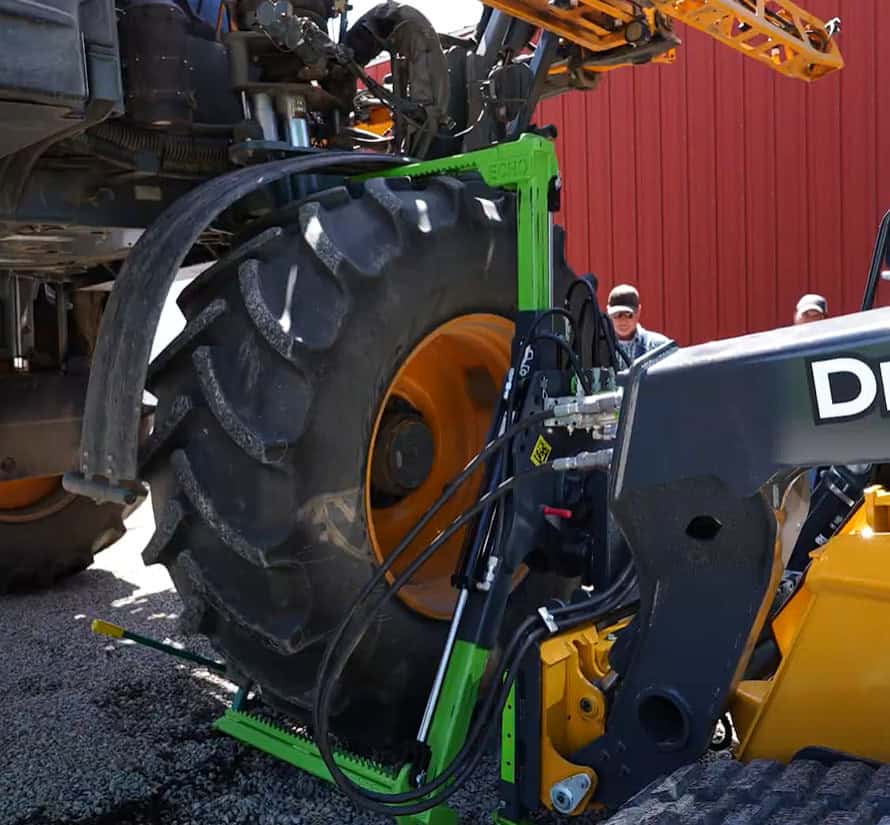

• Sprayer and floater tire handling
• Large agricultural tire service
• Tire shops and mobile tire service trucks
• Farm maintenance and equipment service
• Handling duals and weighted wheels
• Operations looking to reduce labor and improve safety
• Skid steer owners needing a safer way to move oversized tires

• Tire Capacity: 48" – 110" outside diameter
• Working Load Rating: 3,500 lbs

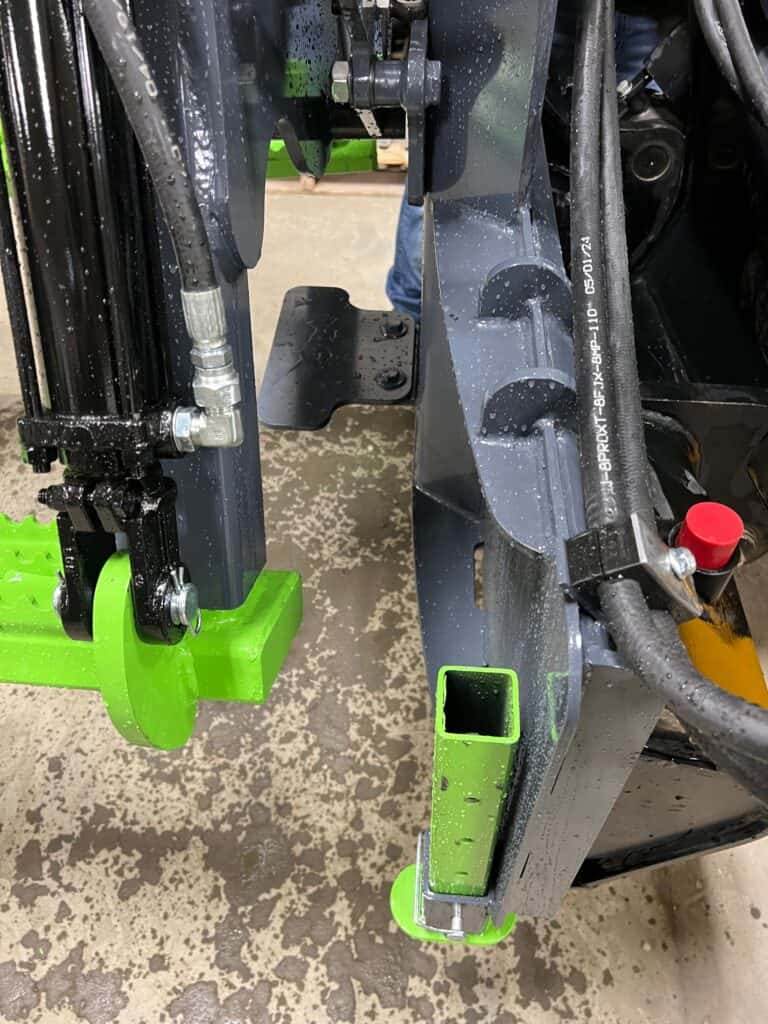

• Axle Spindle Rating: 8,000 lbs

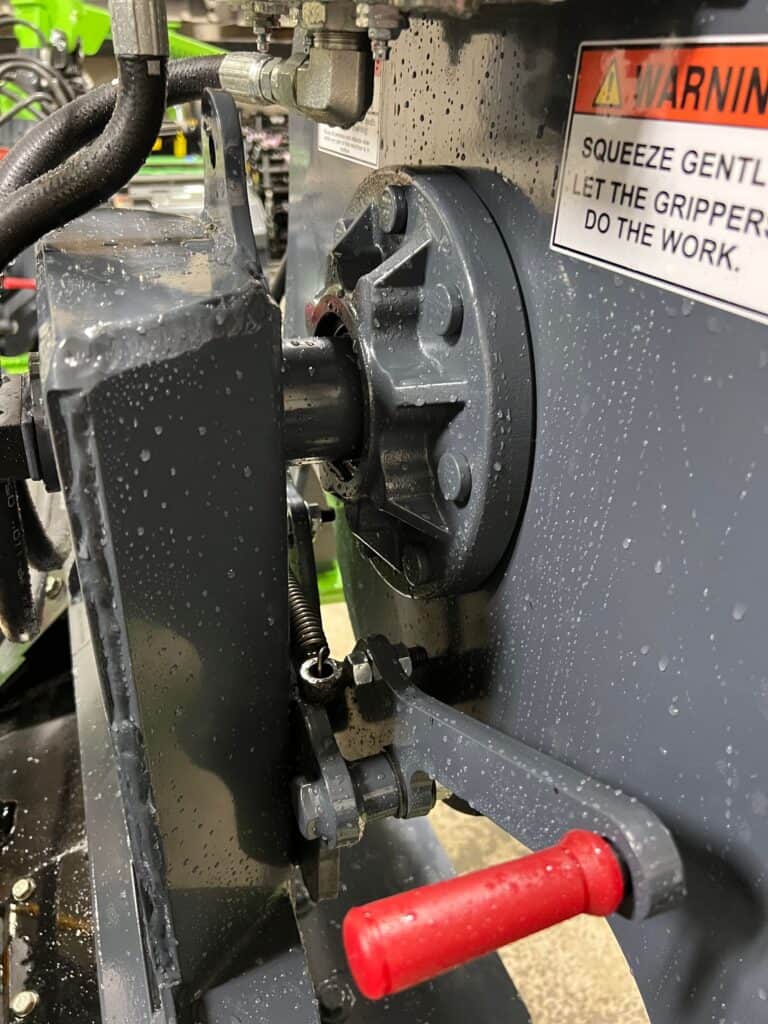

• Rotation: 30° left and right
• Hydraulic System: Gear-driven flow diverter valve

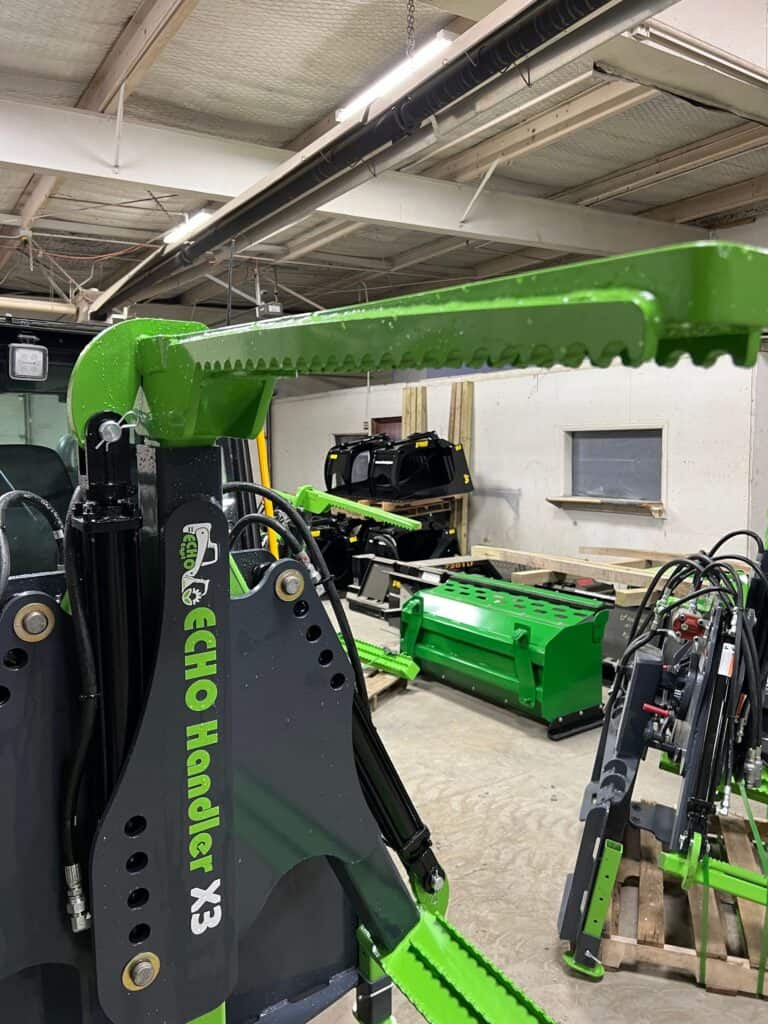

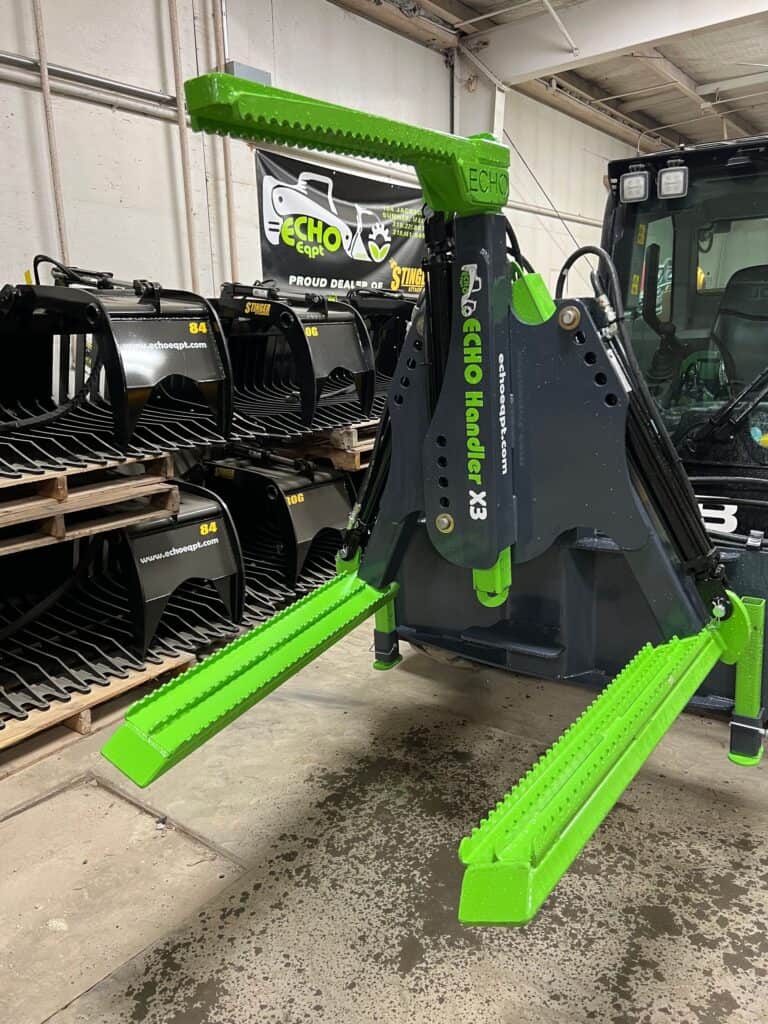

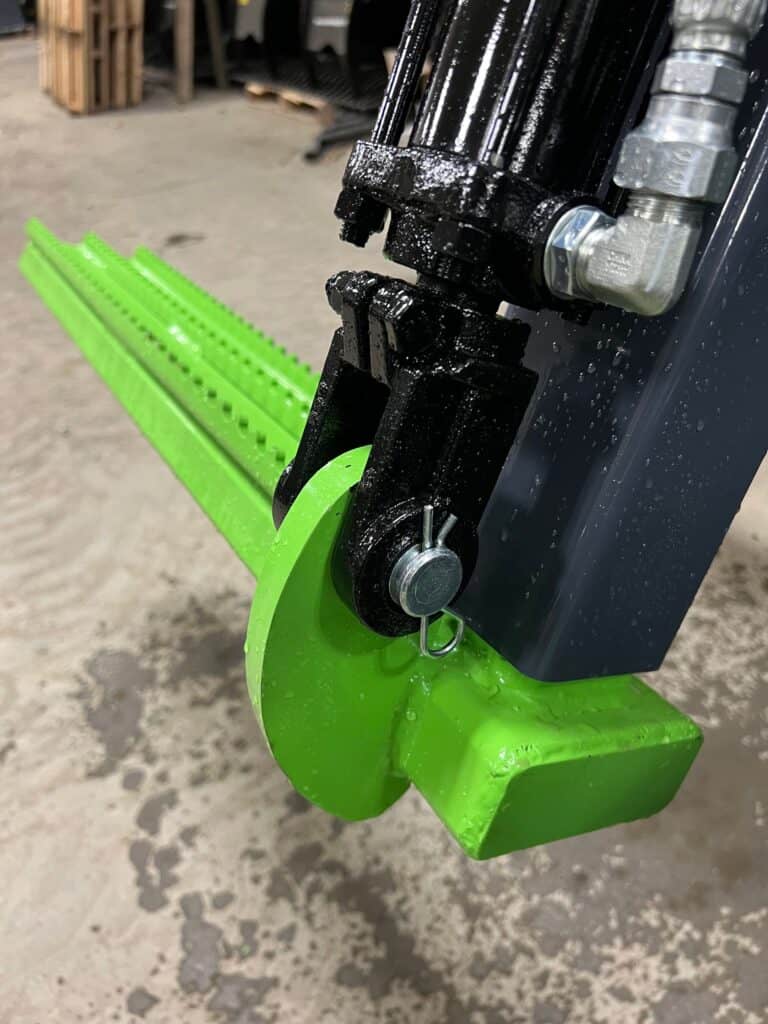

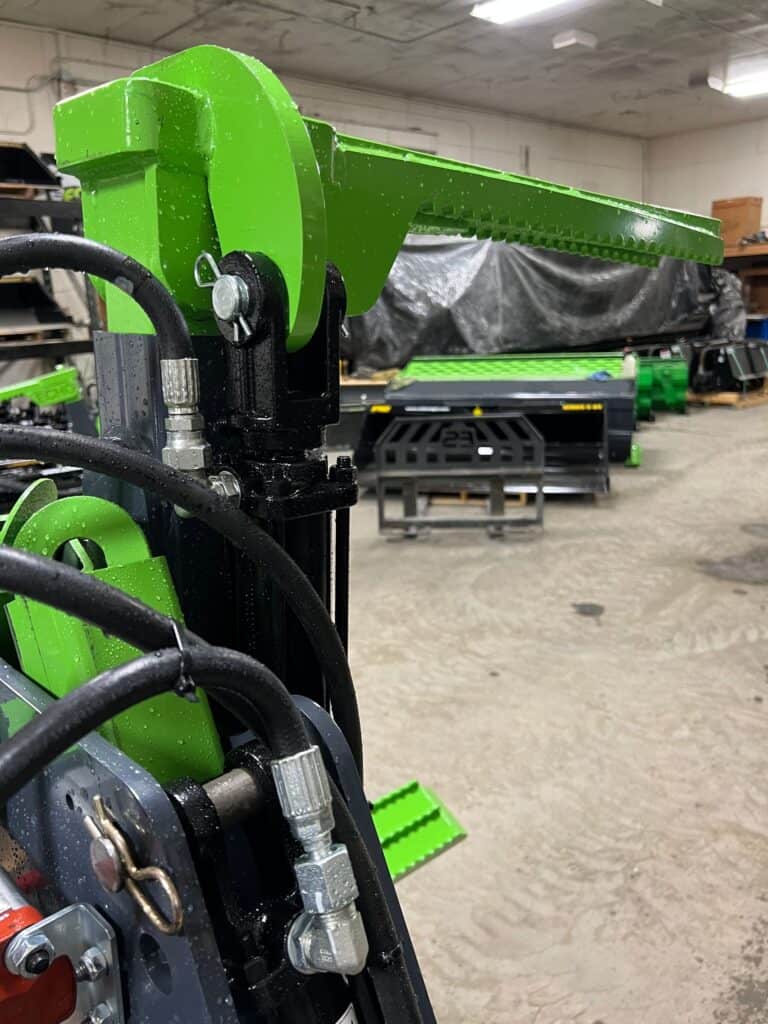

• Grab System: Three hydraulically adjustable legs
• Mount Type: Universal skid steer quick attach & Euro Global
• Hydraulic Couplers: 1/2" flat-face couplers included
• Functionality: Lift, rotate, install, and stack large tires

The ECHO Handler X3 is designed to work with a wide range of equipment, as long as the machine is equipped with:

• Auxiliary hydraulics (low flow compatible - approx. 5+ GPM minimum)
• Skid steer universal quick attach OR Euro/Global mount (with adapter if needed)

Common Machine Types

• Skid steers
• Compact track loaders
• Telehandlers (with skid steer or Euro/Global interface)
• Wheel loaders with compatible mounting systems
• Tractors

Common Skid Steer Compatible Models

• Bobcat S650, S740, S770, T650, T770, S66, T76
• John Deere 320G, 324G, 330G, 332G, 333G
• Kubota SVL75-2, SVL97-2, SVL97-3
• Case SV280, SV340, TV370
• New Holland L228, L230, C332
• CAT 262D, 272D, 289D, 299D
• ASV RT-65, RT-75, RT-120
• Takeuchi TL8, TL10, TL12

What hydraulic flow and pressure does the X3 require?

The X3 is designed to run on low to standard flow machines, with as little as 5+ GPM auxiliary hydraulics.

Will this run on smaller machines or anything with auxiliary hydraulics?

In most cases, yes. If your machine can run a grapple or auger, it can typically run the X3.

That said, hydraulic flow and lifting capacity are two different things - smaller machines may operate the attachment but be limited when handling larger or heavier tires.

Can I run this on machines other than skid steers?

Yes. The X3 can be used on:

• Skid steers and compact track loaders
• Telehandlers
• Wheel loaders
• Tractors

As long as the machine has aux hydraulics (5+ GPM) and a skid steer quick attach or Euro/Global mount (adapter may be required) and the lift capacity to carry the tire.

How does the X3 handle offset loads or uneven tire weight?

The three independent hydraulic legs allow you to center and stabilize uneven loads like liquid-filled tires or mounted assemblies, reducing slip and improving control.

How precise is the rotation when aligning lug holes?

The X3 offers 30° rotation left and right, allowing you to line up lug holes without constantly repositioning the machine.

Does the X3 require case drain or additional hydraulic hookups?

No. It runs off standard auxiliary hydraulics using flat-face couplers, making it plug-and-play on most machines.

ECHO Equipment Warranty - We built it, and we stand behind it.

All ECHO attachments are backed by a 2-year limited warranty covering defects in materials and workmanship from the original purchase date - twice the length of standard industry coverage.

Covers:

• Structural components, frames, and welds
• Hydraulic components including cylinders and hoses
• Failures related to manufacturing defects under normal use

Does not cover:

• Wear items such as teeth, cutting edges, seals, and bushings
• Damage from misuse, improper installation, or lack of maintenance
• Operation outside recommended specs

If something goes wrong, you deal directly with ECHO. No runaround - just real support from people who built the product and stand behind it.
