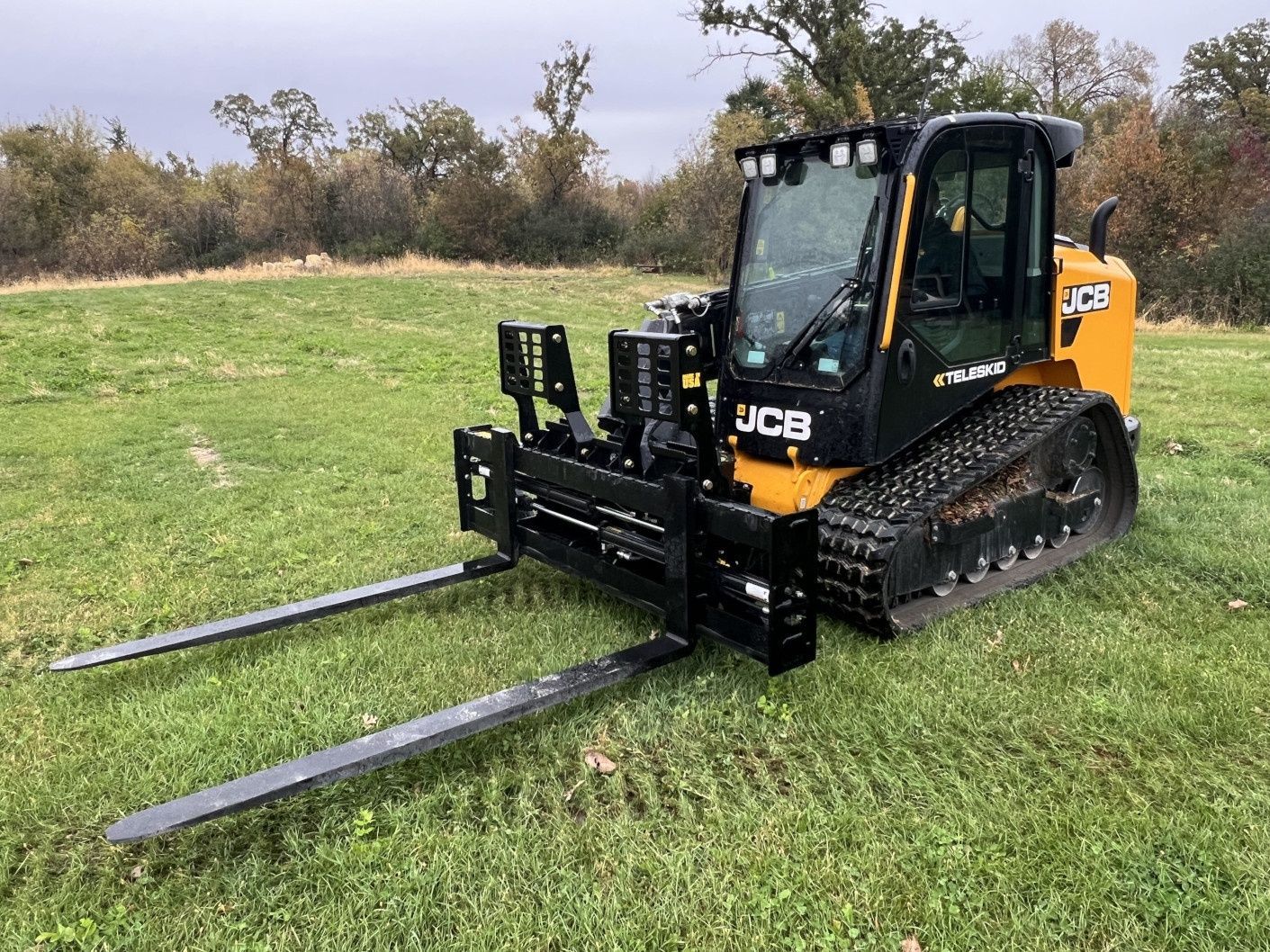

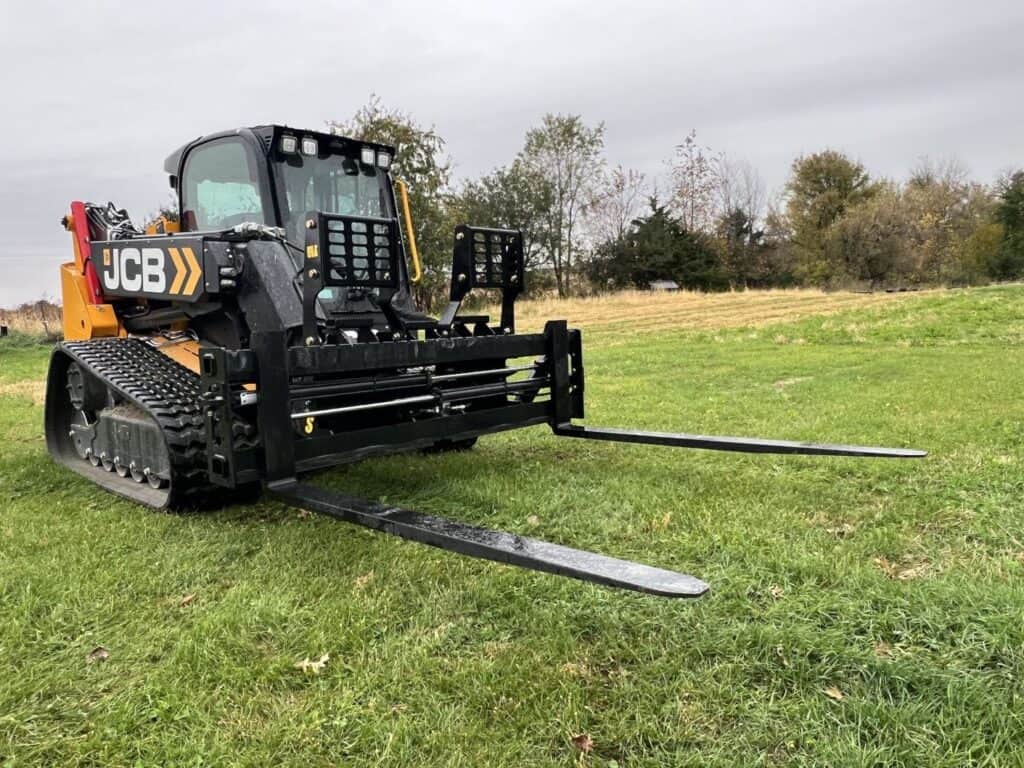

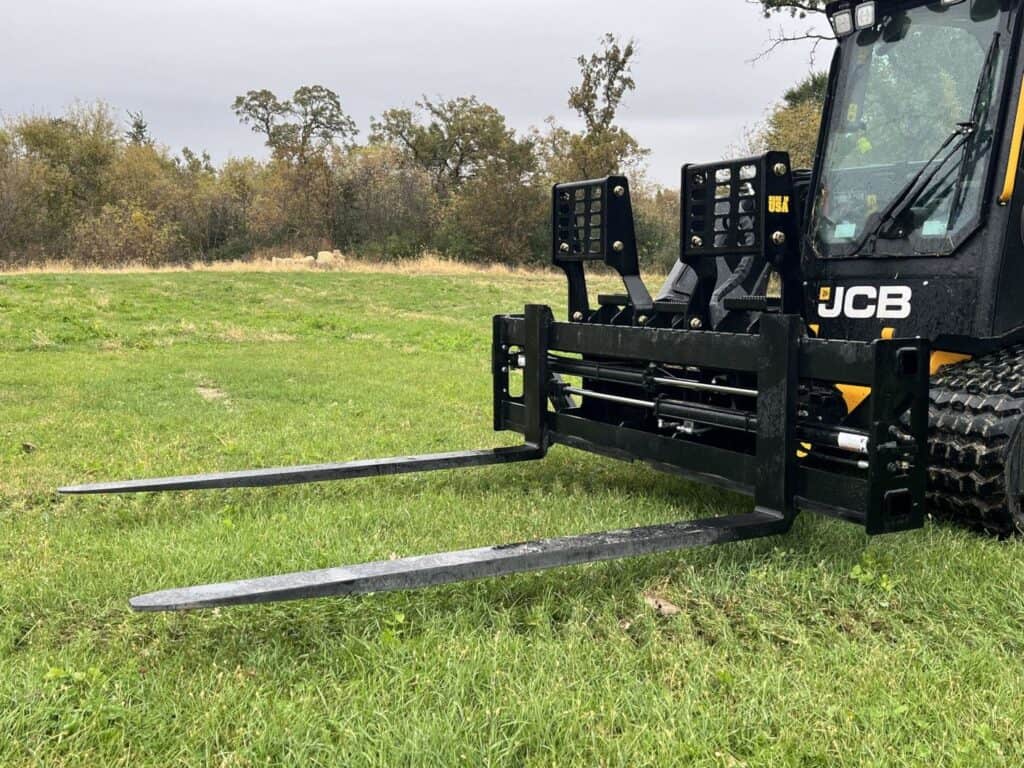

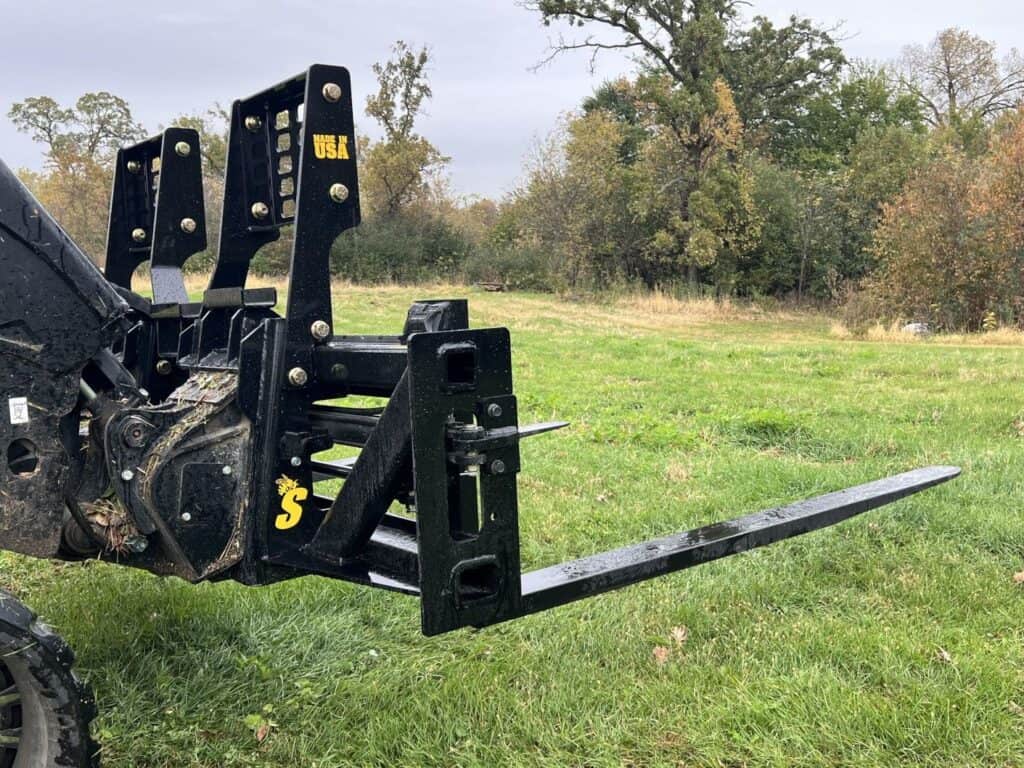

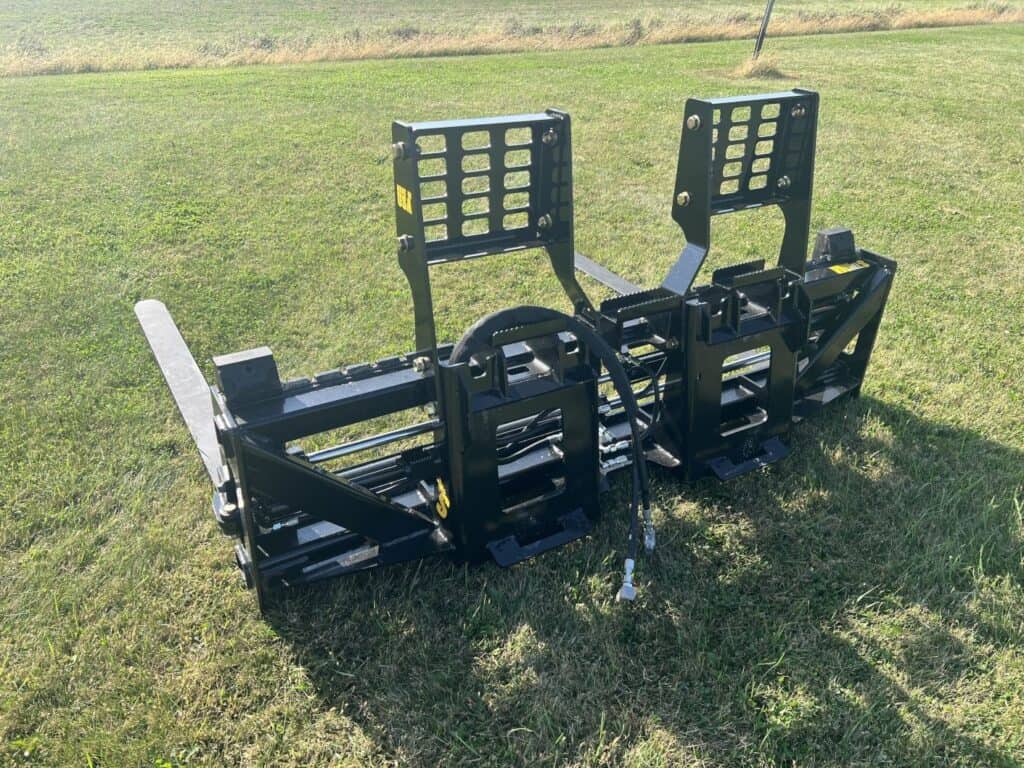

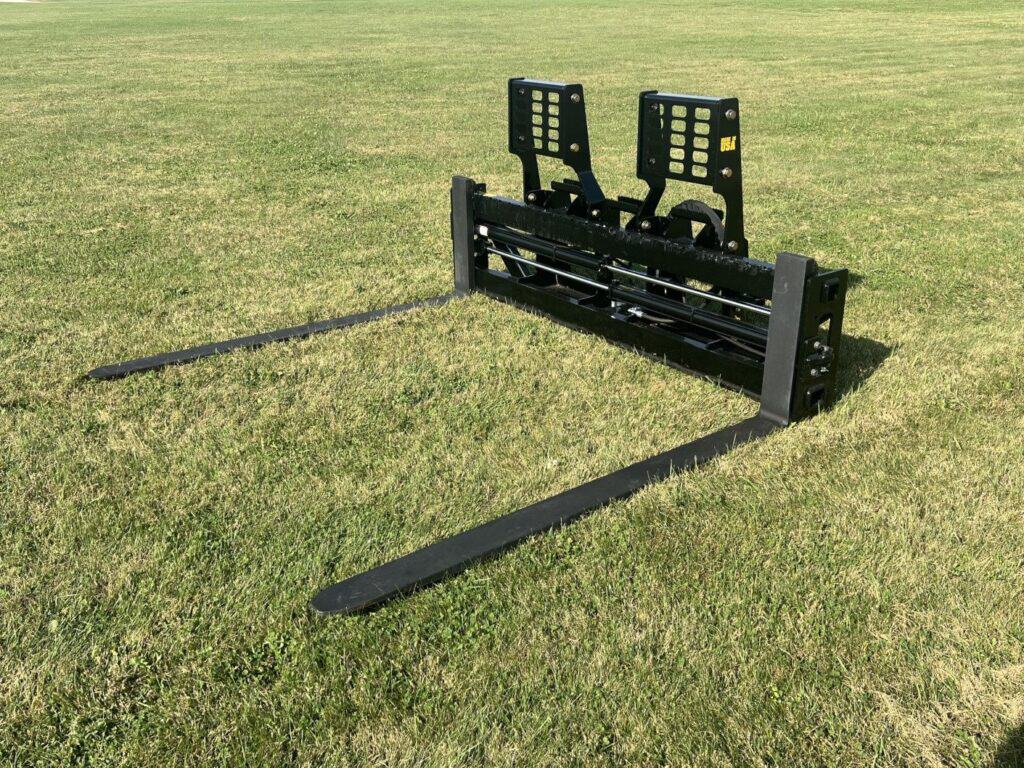

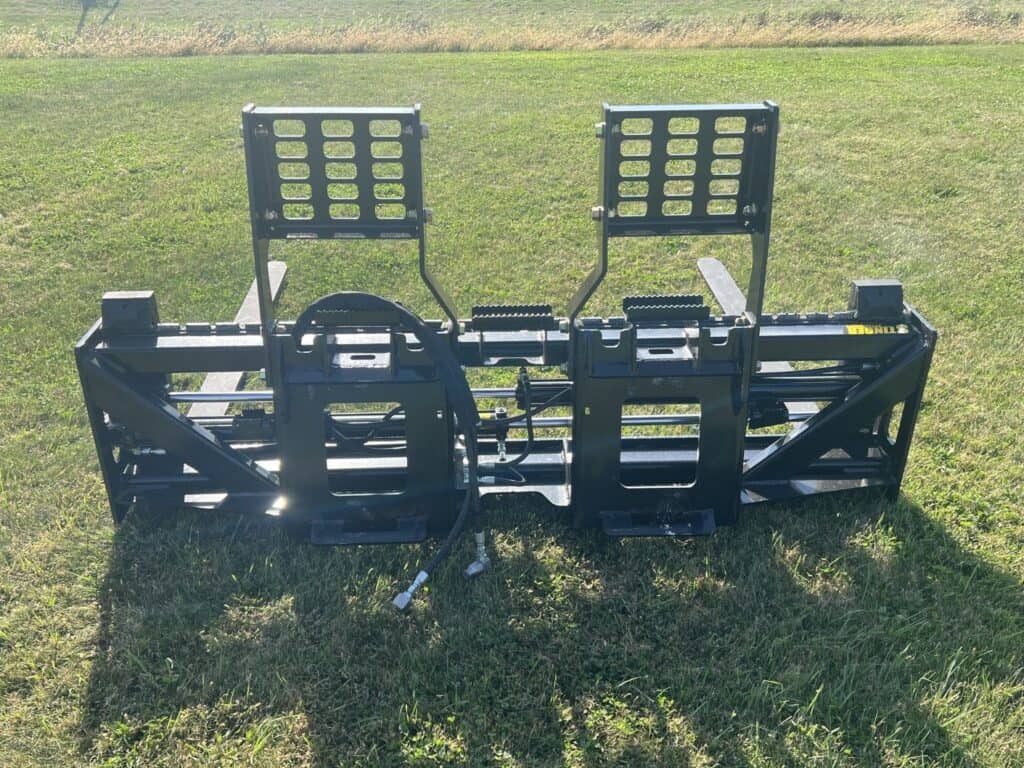

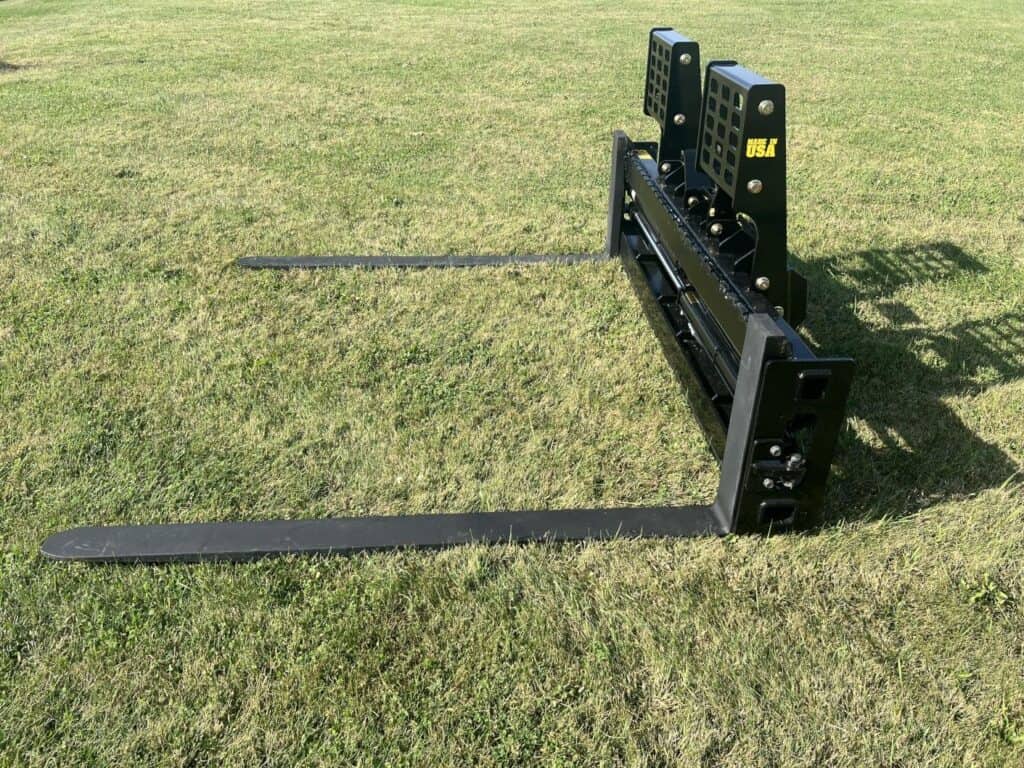

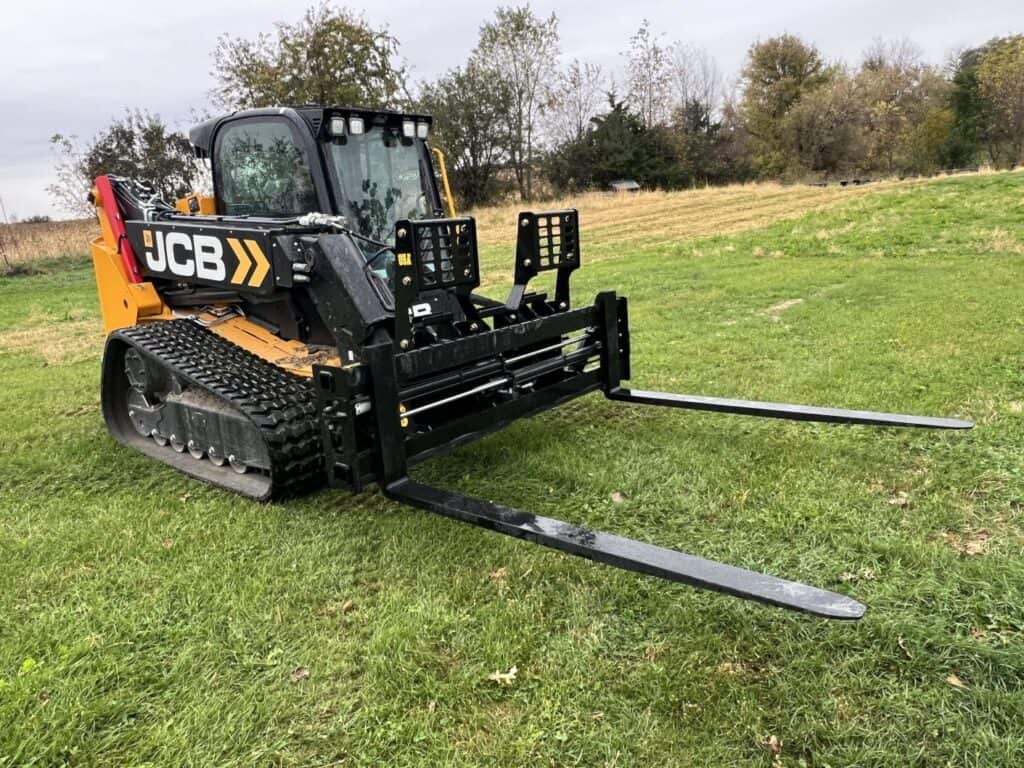

The Stinger PF3H Hydraulic Class 3 Pallet Forks are built for operators moving heavier pallets, lumber bundles, pipe, logs, equipment, and oversized material with a skid steer, compact track loader, utility tractor, or mid-sized payloader.

This page is set up specifically for the heavy-duty configuration with a 72" carriage, 72" forks, and 10,000 lb capacity per set. The hydraulic fork positioning system lets operators move the forks in or out from the cab, making it faster to switch between different pallet sizes and awkward loads without climbing in and out of the machine.

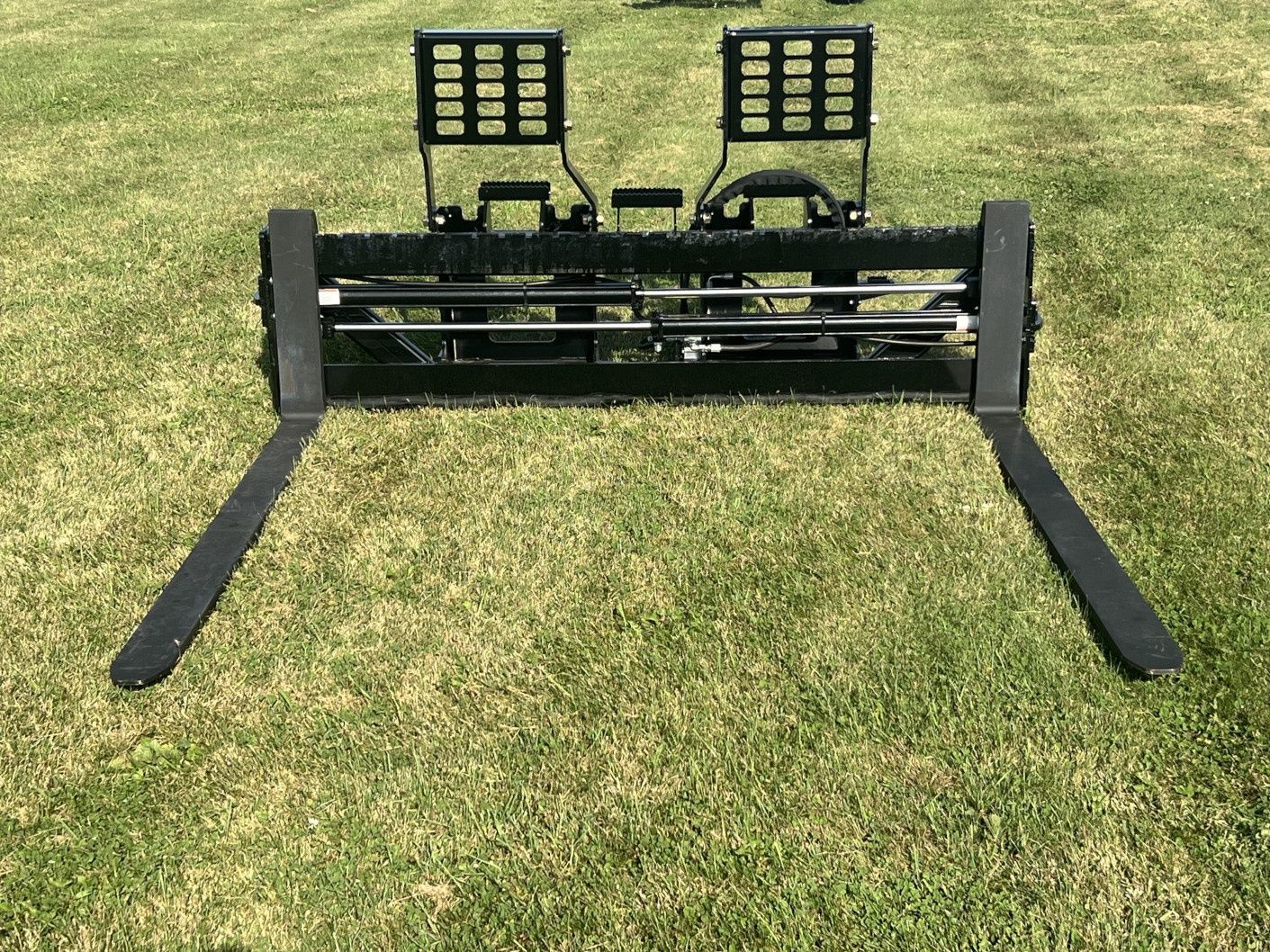

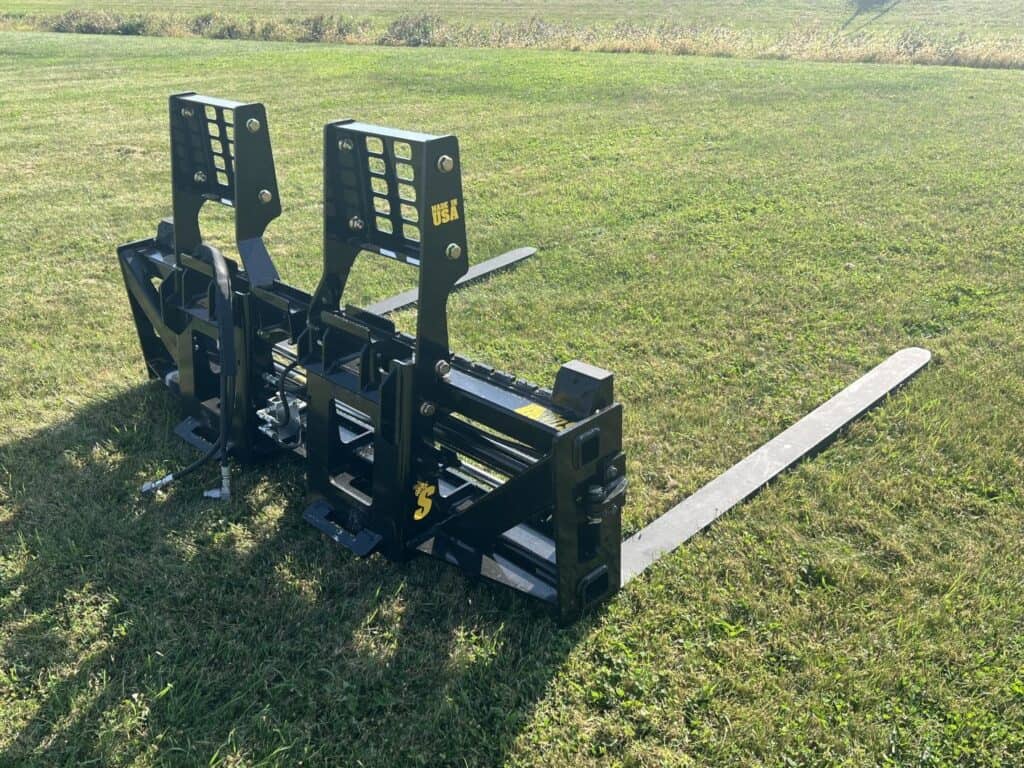

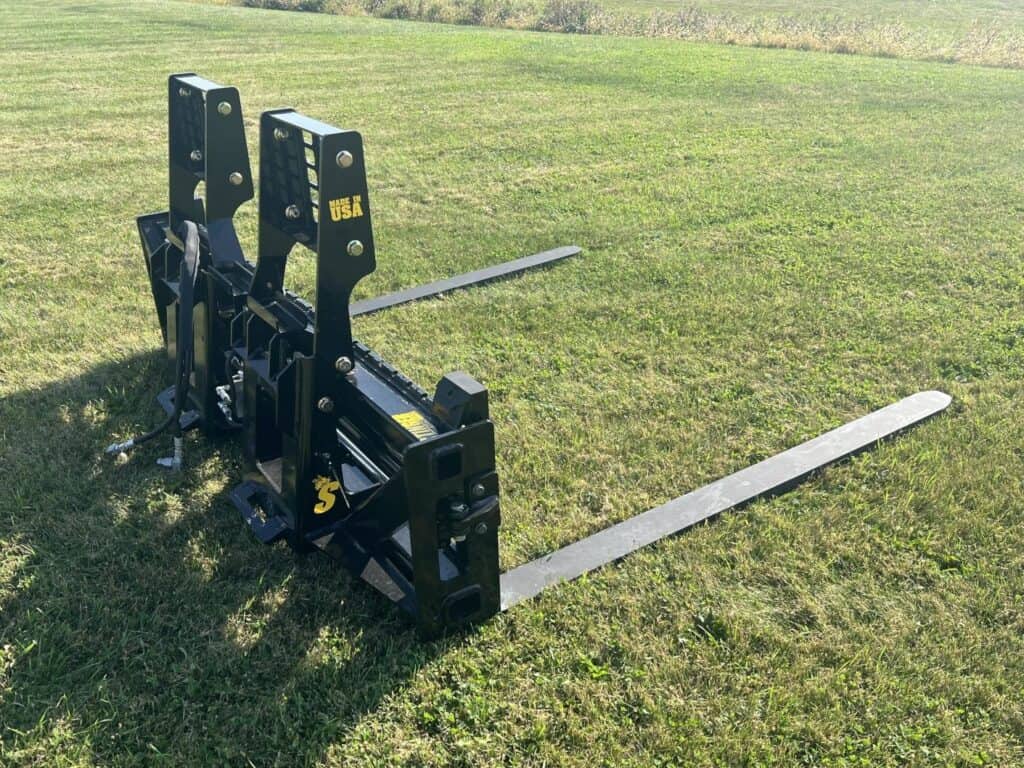

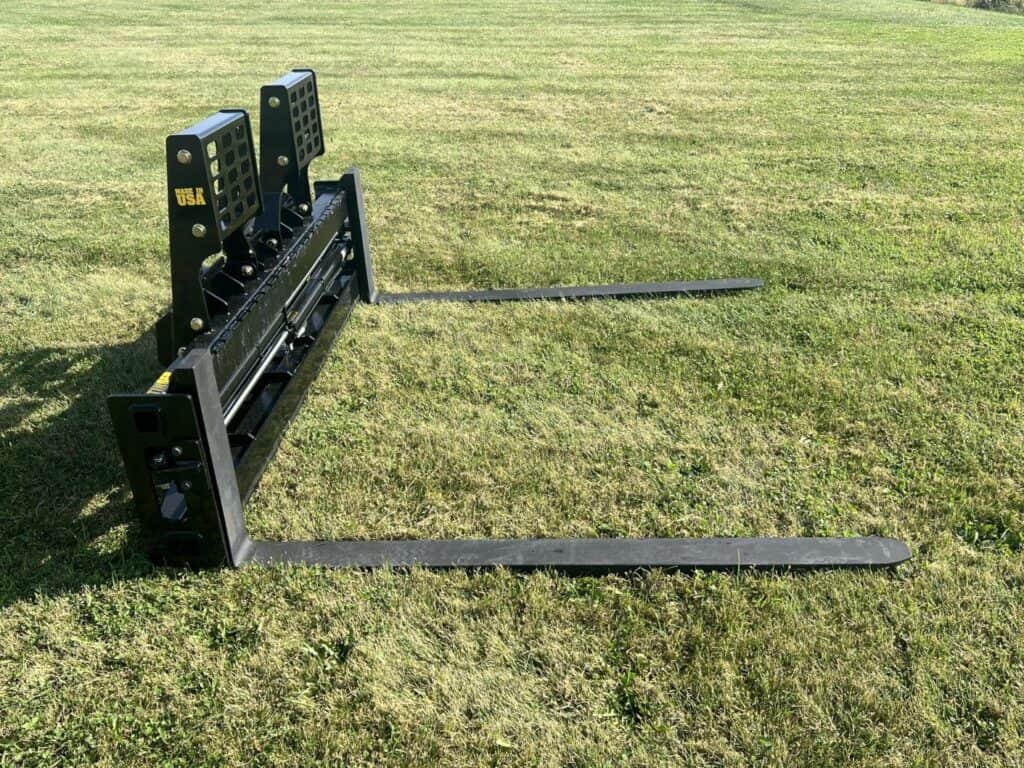

The frame uses a machined 1.5" x 4.5" top carrier bar, heavy-wall structural tubing, and USA-made Cascade forks. It is a strong fit for operators who need more capacity, more fork length, and more usable width than a standard pallet fork frame.

Features

• Hydraulic Fork Positioning: Move the forks in or out from the cab to match different pallet widths and load sizes.
• 72" Carriage Width: Wider frame gives operators more flexibility when handling oversized or uneven material.
• 72" Fork Length: Longer forks provide better support under lumber bundles, pipe, equipment, and deep pallets.
• 10,000 lb Fork Capacity: Heavy-duty Cascade forks are built for demanding material handling work.

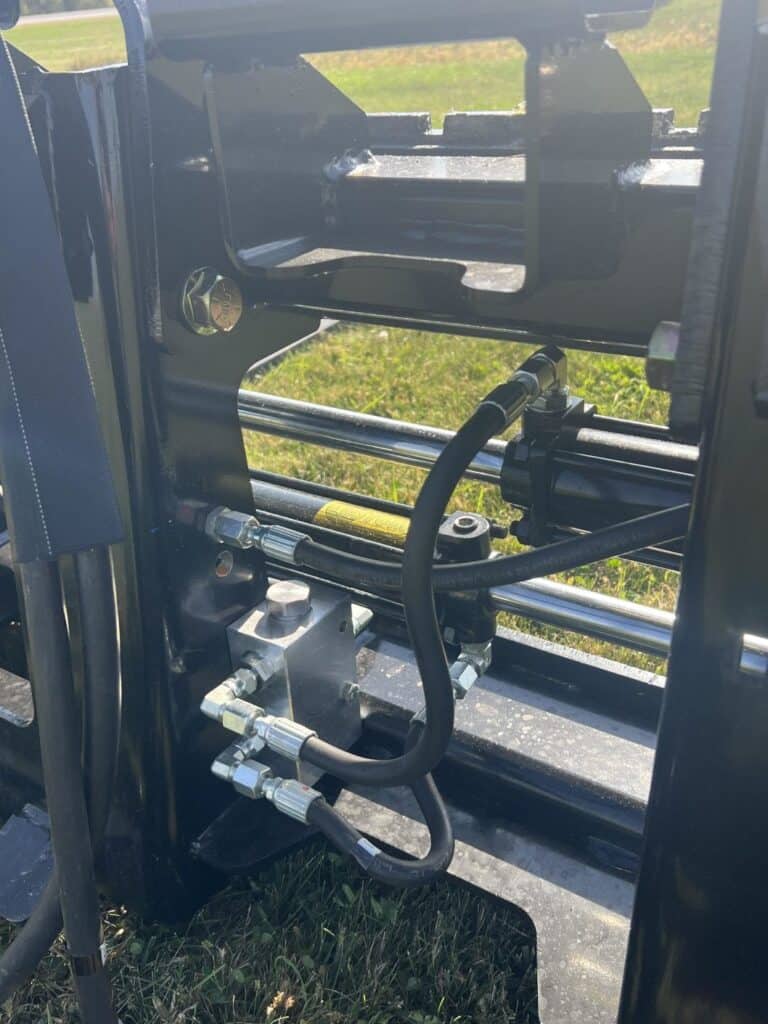

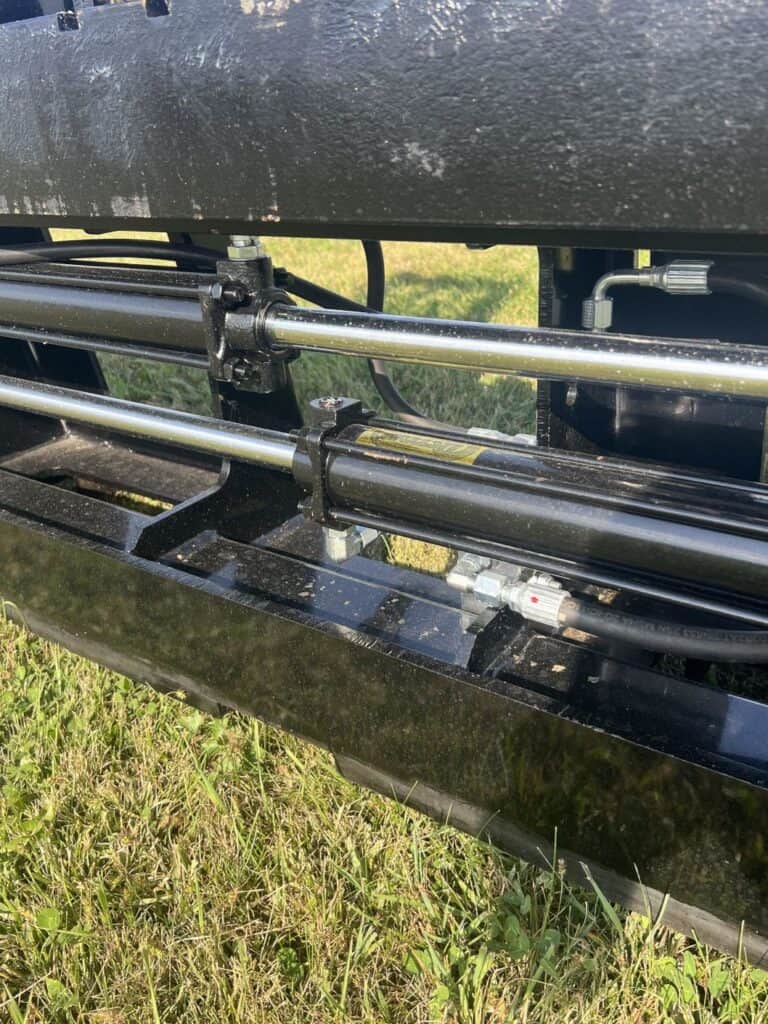

Adjust Fork Spacing From the Cab

Hydraulic width adjustment lets operators reposition the forks without getting out of the machine every time the load changes.

Built for Heavy Loads

The 10,000 lb fork capacity gives operators a stronger setup for lumber, pipe, equipment, bulk material, and heavier pallet work.

More Reach for Oversized Material

The 72" forks provide extra support under longer loads compared to standard 48" or 60" forks.

Wider Frame for Better Support

The 72" carriage gives operators more usable fork spacing for wide pallets, bundles, and awkward material.

• Construction crews moving lumber bundles, pipe, pallets, forms, and building material.
• Farmers handling seed, feed, bulk bags, equipment, hay supplies, and oversized loads.
• Lumber yards, supply yards, and material handlers moving long or wide bundles.
• Skid steer and CTL operators needing more capacity than a standard pallet fork setup.

• Carriage Width: 72"
• Fork Length: 72"
• Fork Capacity: 10,000 lbs per set
• Frame Height: 45"
• Hydraulic Frame Base Weight: Approximately 600 lbs, not including fork weight
• Top Carrier Bar: Machined 1.5" x 4.5"
• Top Support Tube: 3" x 3" with 3/8" wall
• Bottom Support Tube: 3" x 4" with 3/8" wall
• Bottom Carrier: 1/2" x 3" flat bar
• Fork Manufacturer: Cascade

Note: Best matched with larger skid steers, compact track loaders, utility tractors, and mid-sized payloaders with enough lift capacity for the frame, forks, load center, and material being handled. Mounting must be confirmed before ordering.

Bobcat: S650, S740, S76, S770, S86, T650, T66, T76, T770, T86, A770

CAT: 242D3, 246D3, 262D3, 272D3, 279D3, 289D3, 299D3, 255, 265, 275, 285

John Deere: 324G, 325G, 330G, 331G, 332G, 333G, 331P, 333P, 335P

Kubota: SSV75, SVL75-3, SVL95-2s, SVL97-2

New Holland: L328, L334, C332, C337, C345, C362

Case: SR240B, SV280B, SV340B, TR310B, TV370B, TV450B, TV620B

Takeuchi: TL10, TL12, TL12V2, TL12R2, TL12V3

ASV: RT-75, VT-70, VT-100, RT-120, RT-135

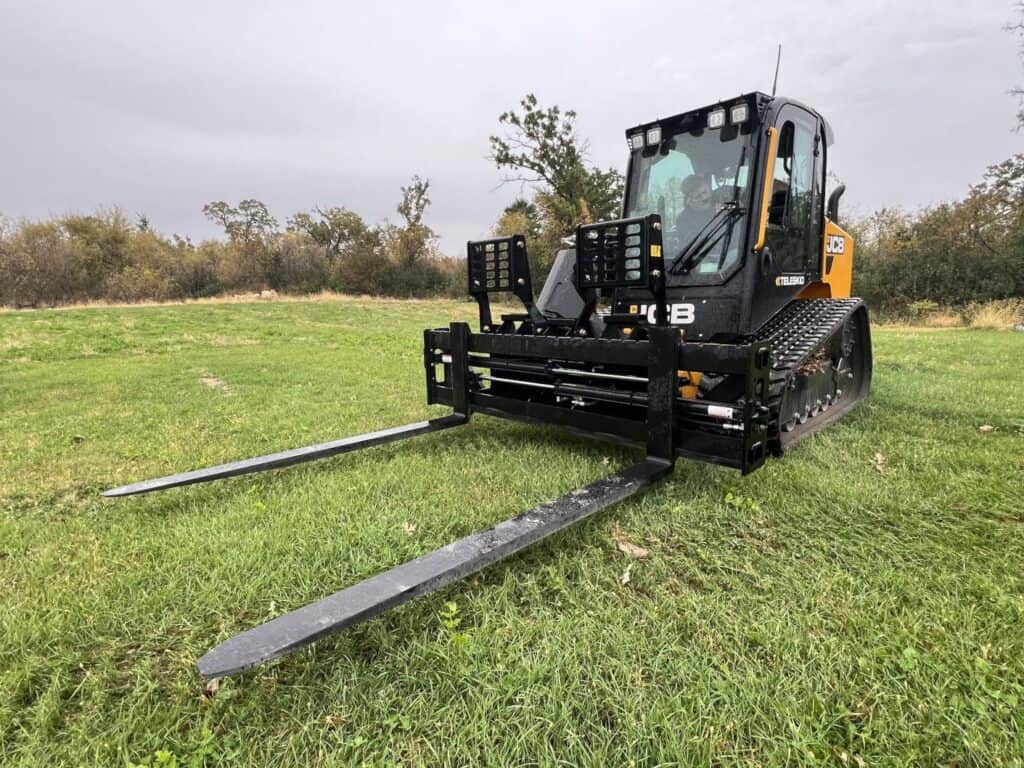

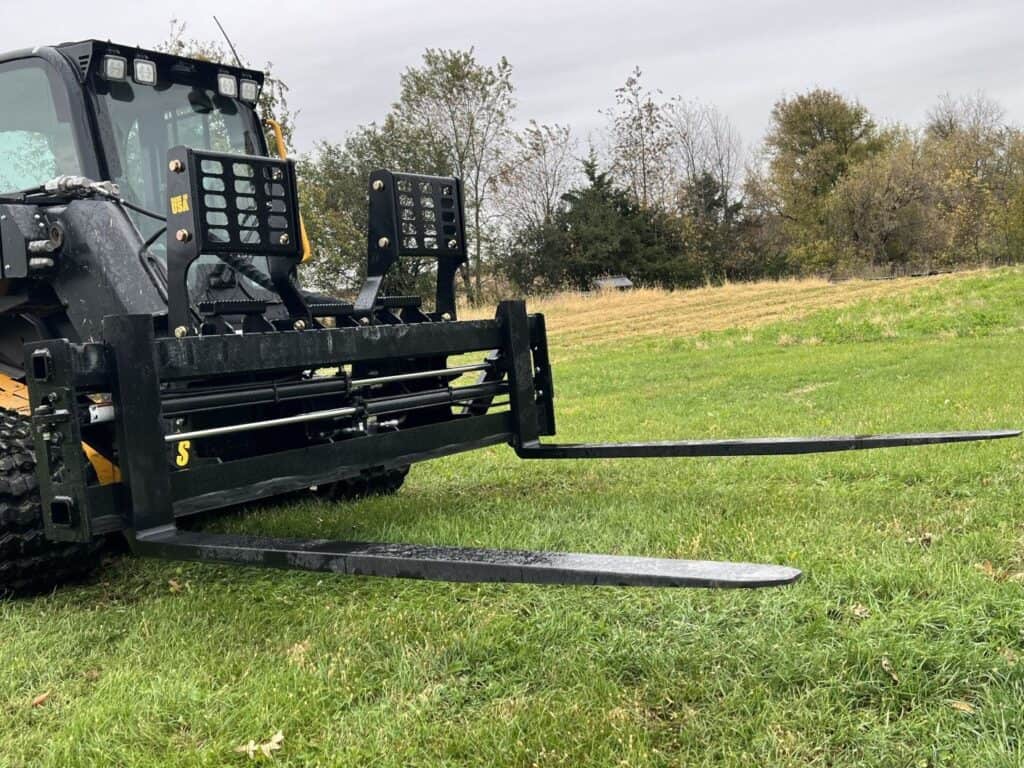

JCB: 270, 300, 3TS-8T, 3TS-8W

Wacker Neuson: SW28, SW32, ST45, ST50

What is included in this configuration?

This setup includes a 72" carriage, 72" Cascade forks, hydraulic width adjustment, and a 10,000 lb fork rating per set.

Why choose hydraulic pallet forks instead of standard forks?

Hydraulic adjustment lets you move the forks in or out from the cab. That saves time when switching between pallets, lumber bundles, pipe, equipment, and uneven loads throughout the day.

Can my machine actually lift 10,000 lbs?

The forks are rated for 10,000 lbs per set, but your safe lifting capacity is still limited by the machine, mount, load center, counterweight, and operating conditions. The attachment rating does not increase the lifting capacity of your skid steer, tractor, or payloader.

Why choose 72" forks?

The longer forks give you more support under deep pallets, lumber bundles, pipe, and oversized material. They are a better fit when standard 48" forks do not reach far enough under the load.

Why choose the 72" carriage?

The wider carriage gives you more usable fork spacing for large pallets, wide bundles, and awkward material. It also makes the hydraulic adjustment more useful when you handle different load sizes regularly.

Will these work on a tractor or payloader?

Yes, with the correct mount. The PF3H frame is built for high-horsepower skid steers, utility tractors, and midsized payloaders, with multiple mount options available.

Are the forks replaceable?

Yes. The PF3H uses USA-made Cascade forks. The forks carry a 3-year warranty, while the frame carries a 2-year warranty.

Stinger Attachments products are backed by a 2-year manufacturer warranty covering defects in materials and workmanship for the original purchaser. Twice the length of industry standard.

• Structural components and welds are covered under normal use
• Wear items such as cutting edges and skid shoes are considered maintenance
• Warranty applies to properly operated equipment within rated use

This warranty does not cover damage caused by misuse, improper operation, or normal wear and tear.

All warranty claims are handled through Echo Equipment, where you’ll work directly with our team to get issues resolved quickly without the runaround.
