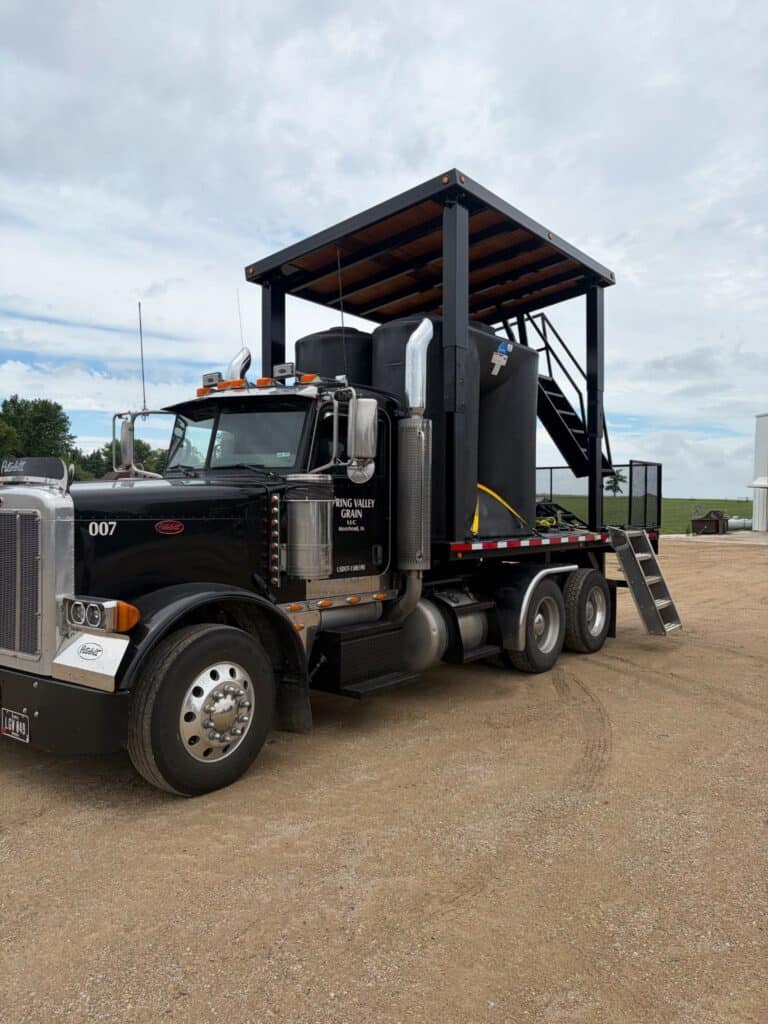

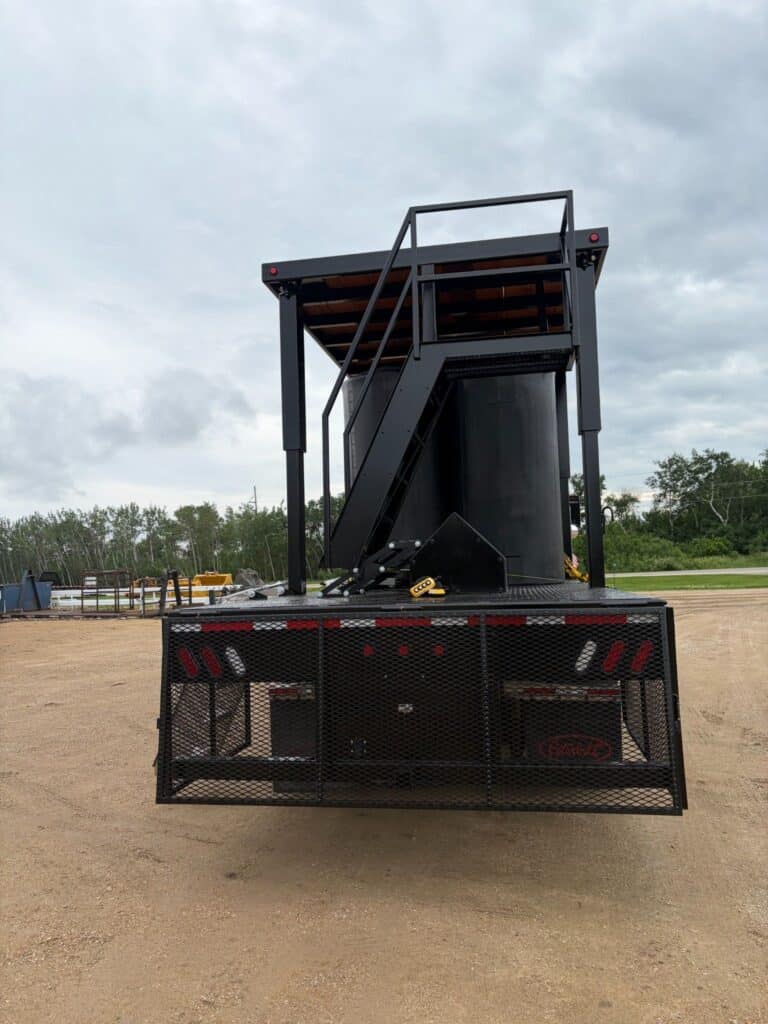

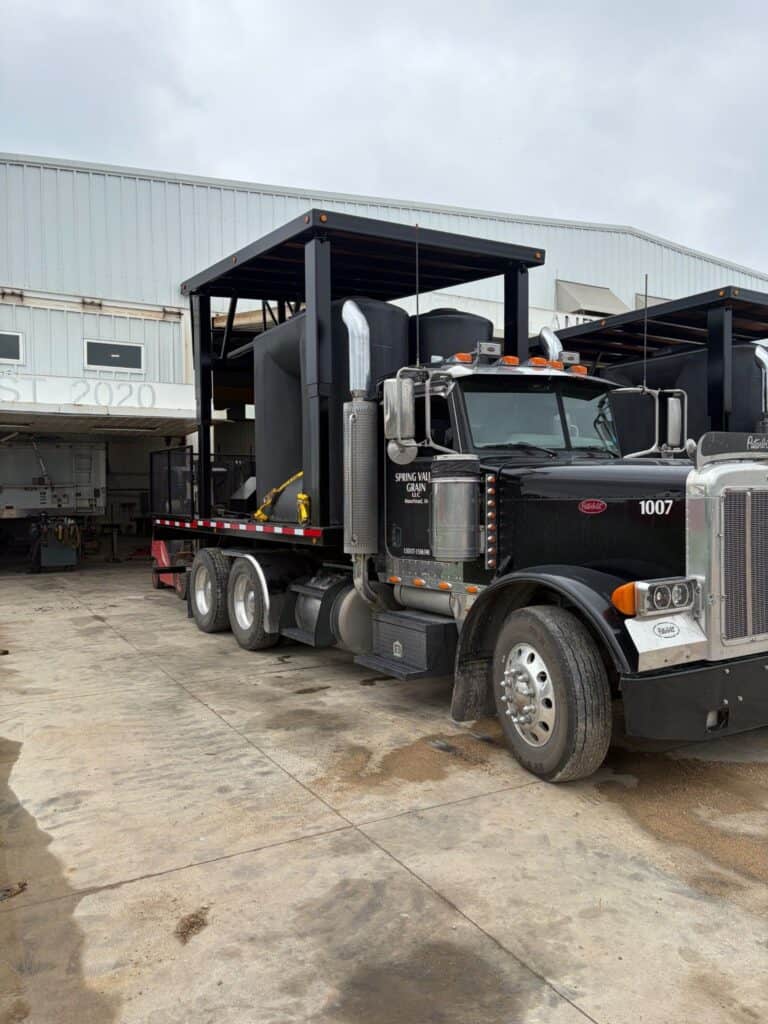

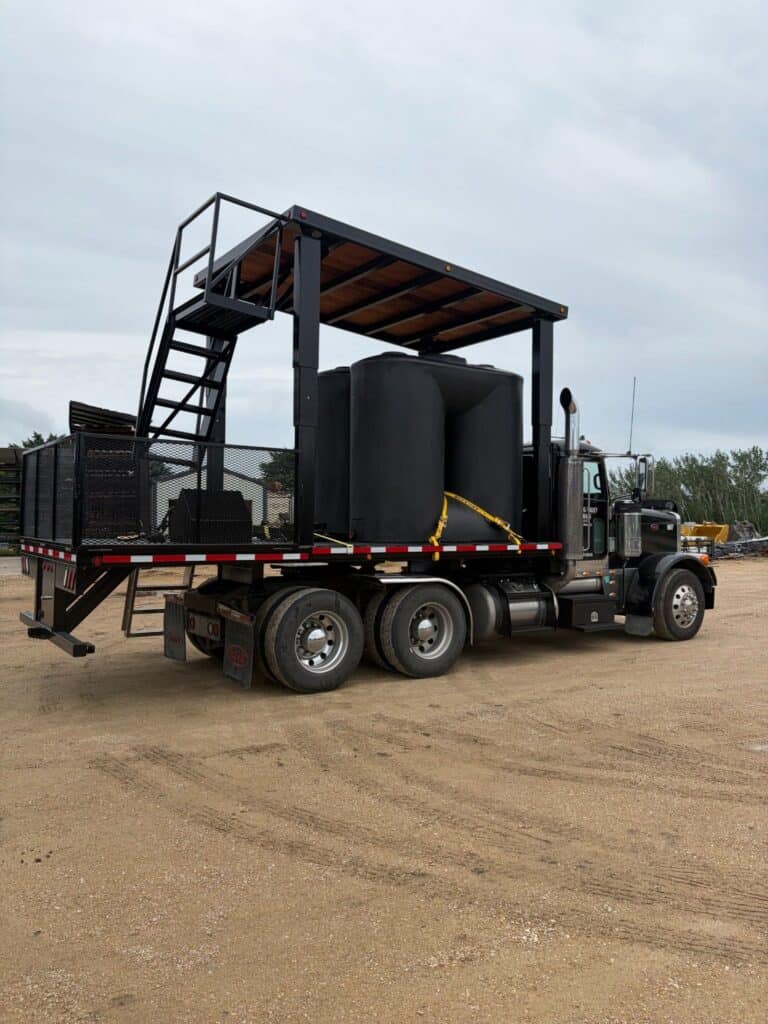

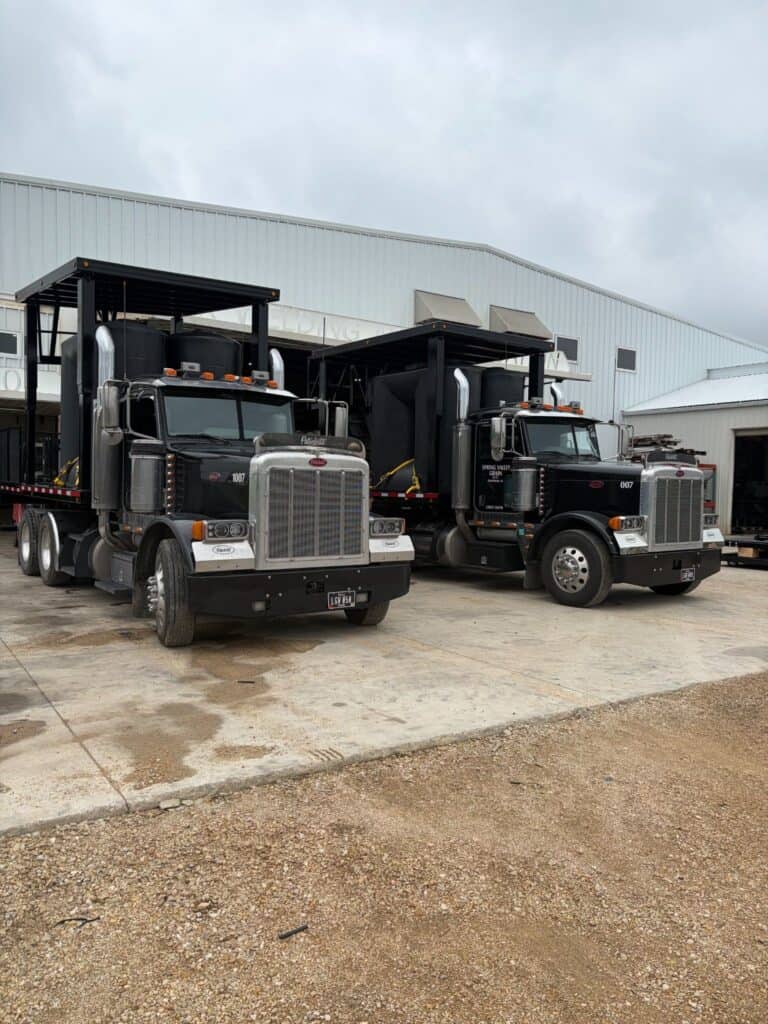

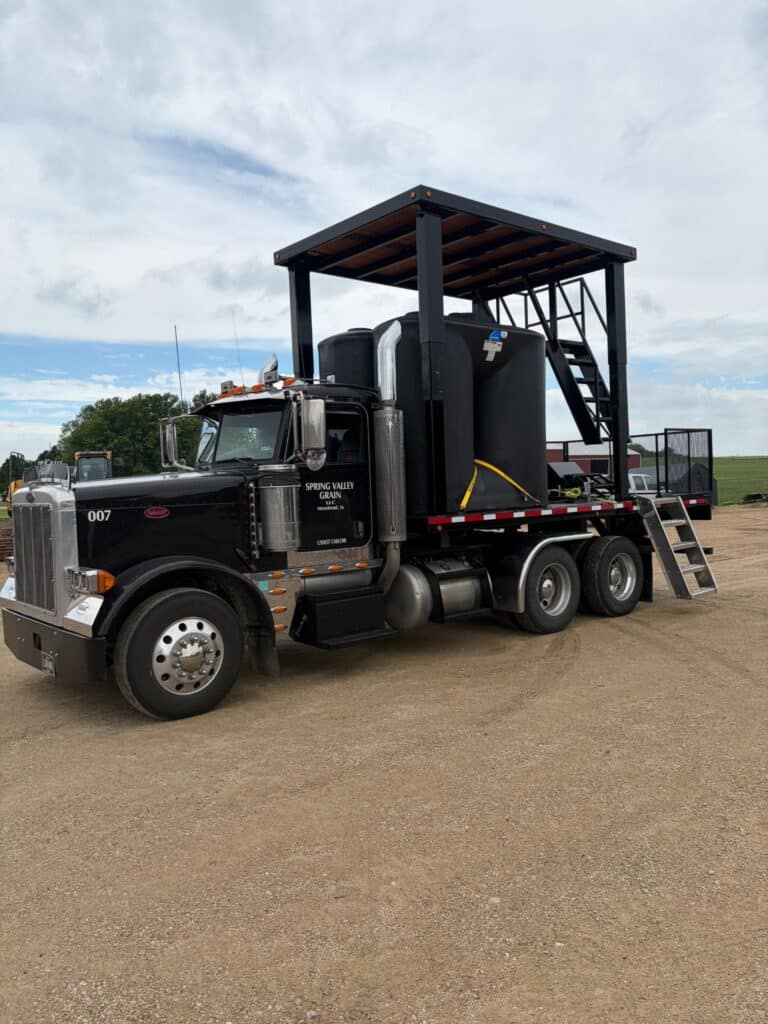

The ECHO SS Heli Skid turns a semi tractor into a removable helicopter landing and refueling platform. Built from the same removable SS platform concept, it gives ag operators a stable landing surface that can be moved between locations without dedicating a permanent truck or trailer to the job.

The platform is 8.5 ft wide and uses four hydraulic stabilizer arms, each with 18 inches of stroke, to help level and support the landing surface on uneven ground. Fuel or chemical tanks can be mounted below the platform, keeping the deck clear while making refilling easier from ground level.

For ag helicopter operators, applicators, and support crews, the SS Heli Skid gives you a mobile landing setup that can be positioned where the work is happening.

Features

• 8.5 Ft Wide Landing Platform: Provides a stable working surface for ag helicopter landing and refueling operations.
• Four Hydraulic Stabilizer Arms: Supports the platform at four points for better stability on uneven ground.
• 18" Stabilizer Stroke: Gives each hydraulic arm enough travel to help level the platform across changing terrain.
• Below-Deck Tank Placement: Keeps tanks below the platform for easier ground-level filling and a cleaner landing surface.
• Removable SS Platform Design: Built around the same removable semi-mounted concept as the ECHO SS platform.
• Mobile Field Setup: Lets crews position the landing platform closer to the work instead of relying on a fixed landing location.
• Clear Landing Surface: Keeps refueling equipment and tank storage out of the way beneath the deck.

Stable Landing Surface in the Field

Four hydraulic support arms help level and stabilize the platform on uneven ground, giving helicopter crews a more consistent landing area away from the shop.

Easy Ground-Level Filling

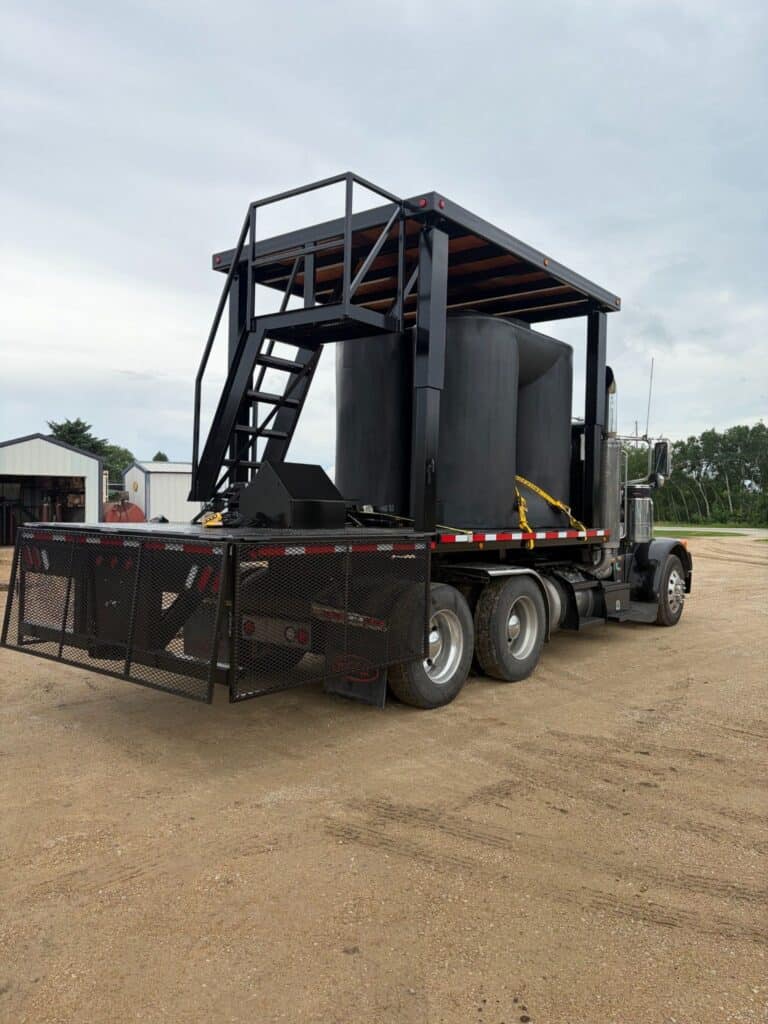

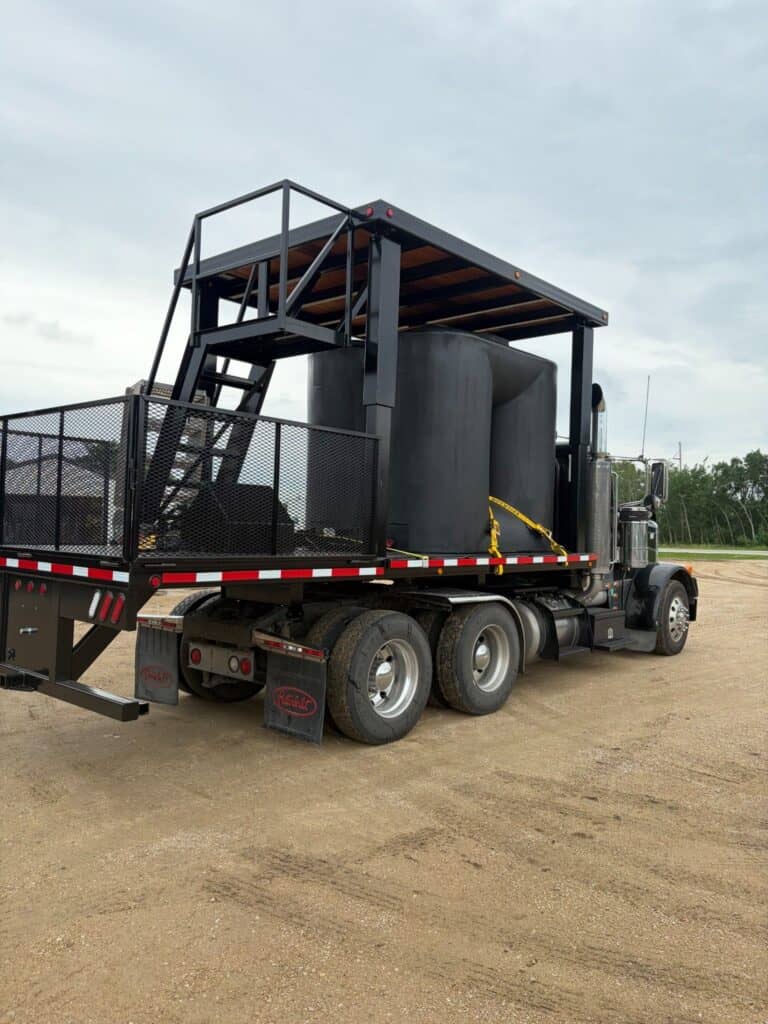

Tanks can be placed below the landing surface, making it easier to fill the helicopter without lifting containers or working from the deck.

Removable Semi-Mounted Design

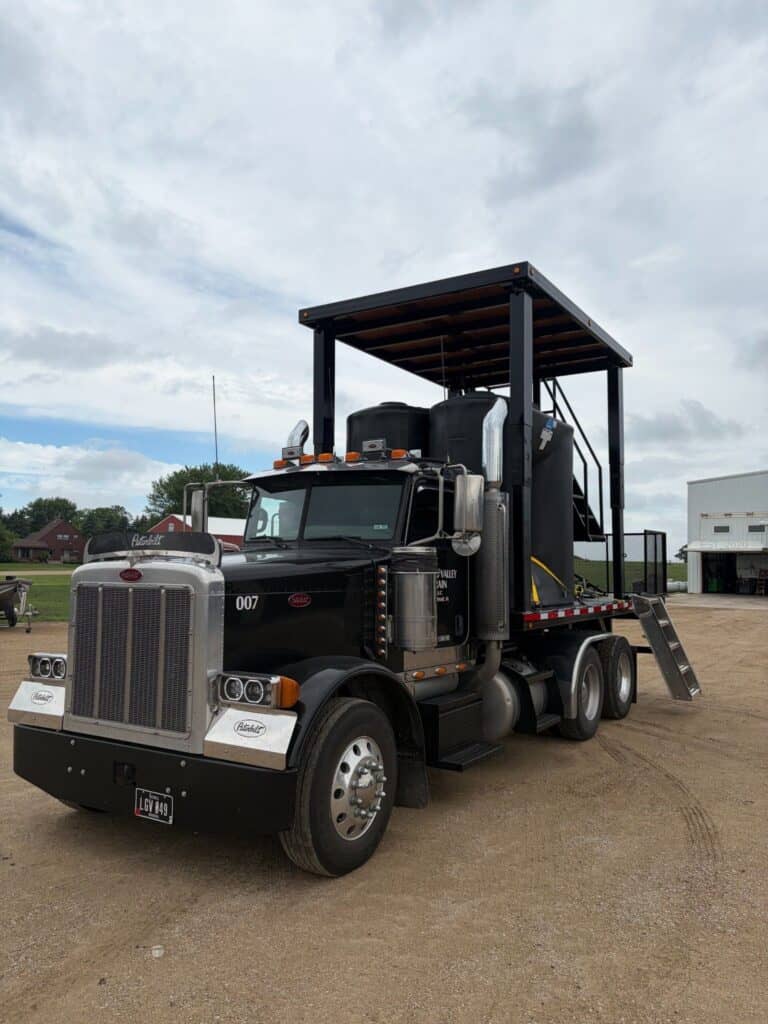

Based on the removable ECHO SS platform, the Heli Skid can be installed on a semi tractor without permanently converting the truck.

Move the Platform With the Job

Bring the landing and refueling platform closer to the application area to reduce ferry time and keep helicopter operations moving.

• Ag helicopter operators applying fertilizer, herbicide, fungicide, and crop protection products.
• Aerial applicators wanting to reduce ferry time between the field and a fixed refill location.
• Farm operations supporting helicopter spraying, seeding, and other aerial application work.
• Custom applicators moving between farms, fields, and seasonal jobs.
• Helicopter support crews needing a mobile landing and ground-level refill platform.

• Platform Width: 8.5 ft
• Platform Type: Removable semi-mounted helicopter landing platform
• Hydraulic Stabilizer Arms: 4
• Stabilizer Stroke: 18" per arm
• Support Layout: Four-point hydraulic stabilization

The ECHO SS Heli Skid is designed to work with most semi tractors using a standard fifth wheel / kingpin setup. Its adjustable frame allows fitment across a wide range of truck brands and configurations.

Common Compatible Trucks

Peterbilt 348, 357, 367, 379, 389, 567, 579

Kenworth T370, T440, T680, T800, T880, W900, W990

Freightliner Cascadia, 122SD, Coronado, M2 106, M2 112

International HV Series, HX Series, LT Series, RH Series

Volvo VHD Series, VNL 300, VNL 400, VNL 740, VNL 760

Mack Anthem, Granite, Pinnacle, TerraPro

Western Star 4700, 4800, 4900, 5700XE

Truck Notes

• Designed for standard semi tractor fifth wheel setups
• Adjustable frame fits a wide range of wheelbases
• Compatible with day cab and sleeper trucks
• Works with most tandem axle configurations

Helicopter Fitment Note

The SS Heli Skid should be matched to the helicopter before ordering. Key fitment items include:

• Skid width and skid length
• Loaded operating weight
• Landing gear configuration
• Required deck clearance
• Operator and aircraft requirements

What is the ECHO SS Heli Skid?

The SS Heli Skid is a removable semi-mounted helicopter landing and refueling platform built for ag helicopter operations and mobile field support.

How does the platform stay stable on uneven ground?

The platform uses four hydraulic stabilizer arms with 18" of stroke per arm. The four-point support system helps level and stabilize the landing surface when the truck is parked on uneven ground.

Why are the tanks mounted below the platform?

Below-deck tank placement keeps the landing surface clear and makes it easier to refill the helicopter from ground level.

Does the Heli Skid permanently convert the truck?

No. It is based on the removable ECHO SS platform concept, allowing the truck to be used for other work when the skid is removed.

Can the platform be moved between fields?

Yes. The semi-mounted design lets crews reposition the landing and refueling platform as the job moves.

What is the benefit of moving the platform closer to the field?

A closer refill point can reduce ferry time, shorten turnaround between loads, and help keep aerial application work moving efficiently.

Will it work with any helicopter?

Fitment should be confirmed based on the helicopter model, operating weight, landing gear footprint, truck setup, tank layout, and intended use.

Is this a certified permanent helipad?

No. This is a mobile field landing and refueling platform. Final setup and operation should follow the aircraft operator’s requirements and all applicable safety rules.

ECHO Equipment Warranty - We built it, and we stand behind it.

All ECHO attachments are backed by a 2-year limited warranty covering defects in materials and workmanship from the original purchase date - twice the length of standard industry coverage.

Covers:

• Structural components, frames, and welds
• Hydraulic components including cylinders and hoses
• Failures related to manufacturing defects under normal use

Does not cover:

• Wear items such as teeth, cutting edges, seals, and bushings
• Damage from misuse, improper installation, or lack of maintenance
• Operation outside recommended specs

If something goes wrong, you deal directly with ECHO. No runaround - just real support from people who built the product and stand behind it.
